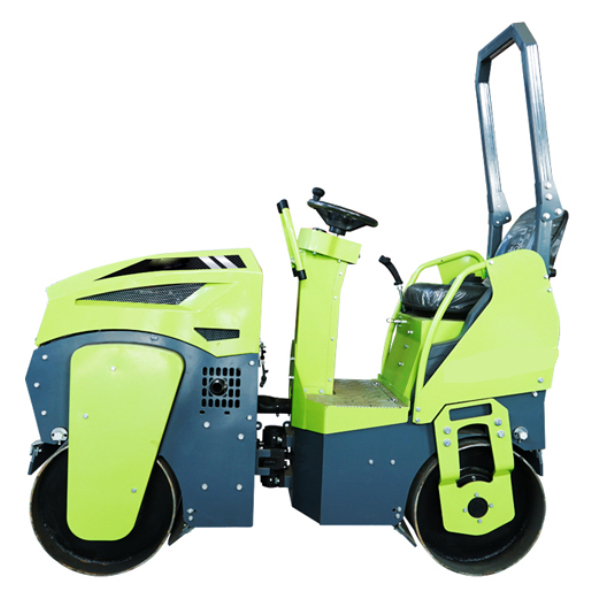

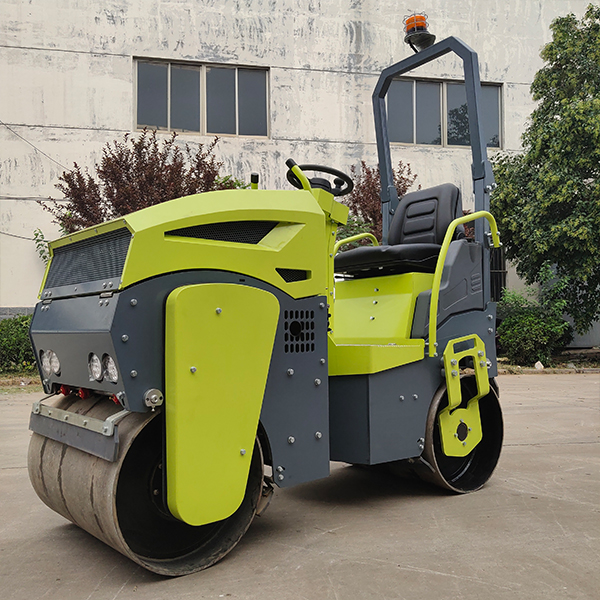

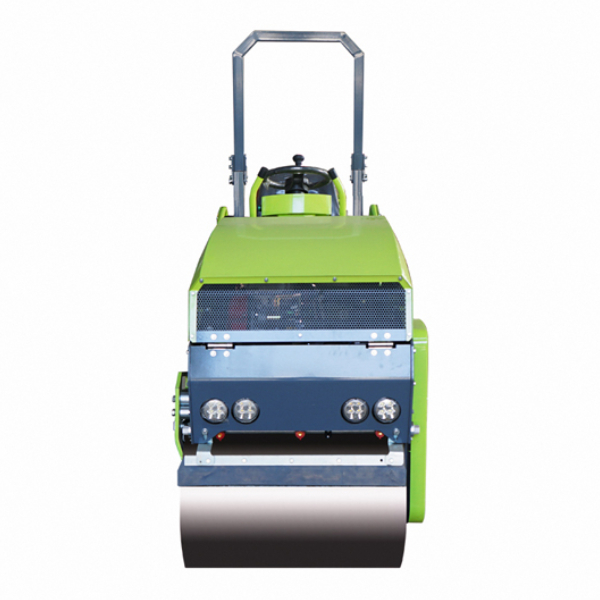

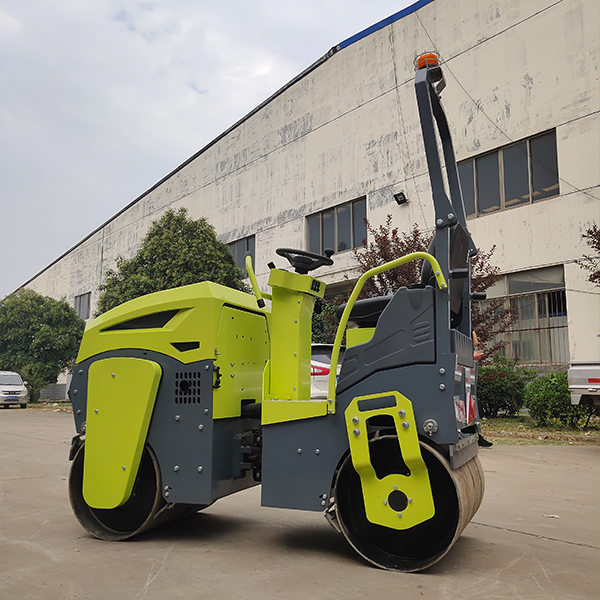

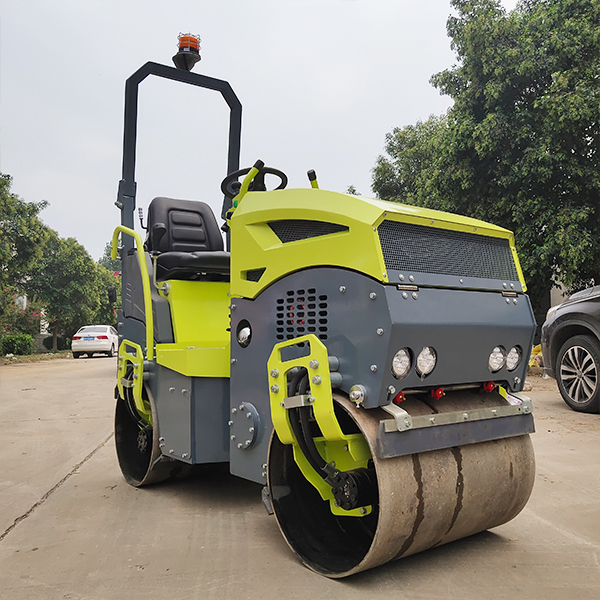

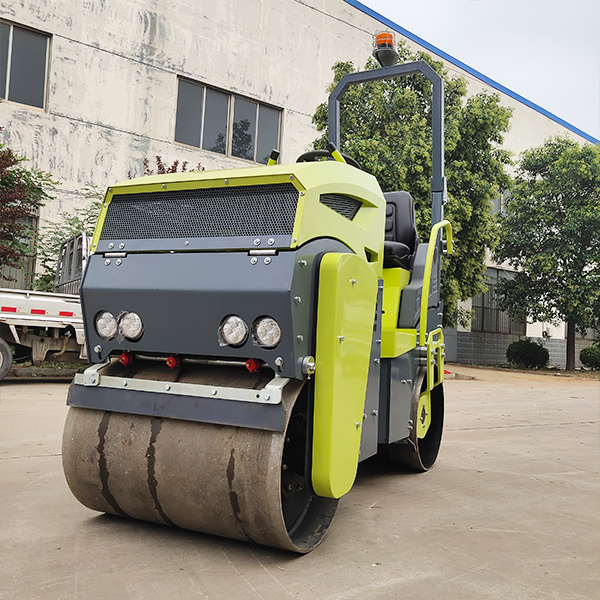

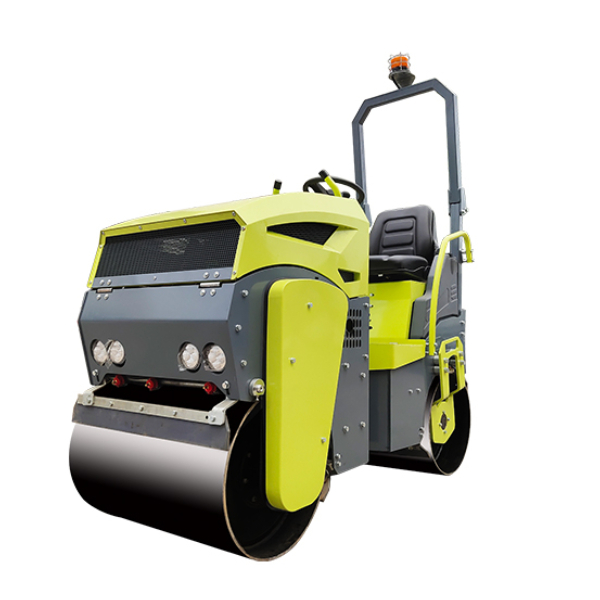

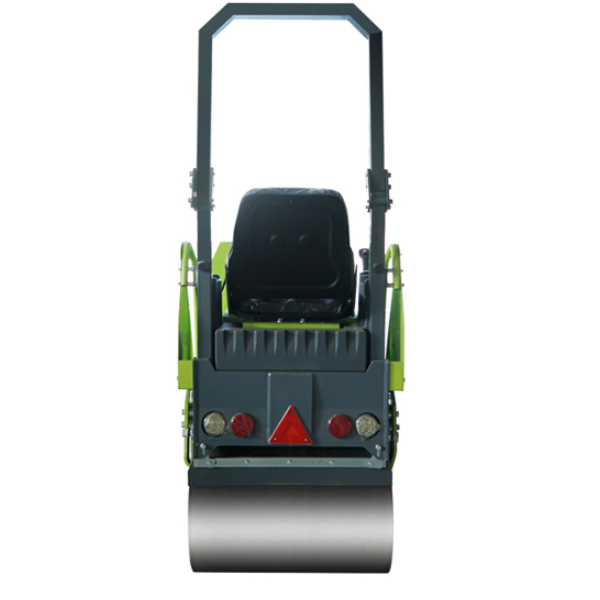

SDBM 1000KG Ride-on Double Drum road Roller

SKU: HT-528891

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

"SDBM" brand BM1000 ROAD ROLLER

-- sdbm 1 Ton Mini Hydraulic New Compaction Machine Road Roller With Cheap Price

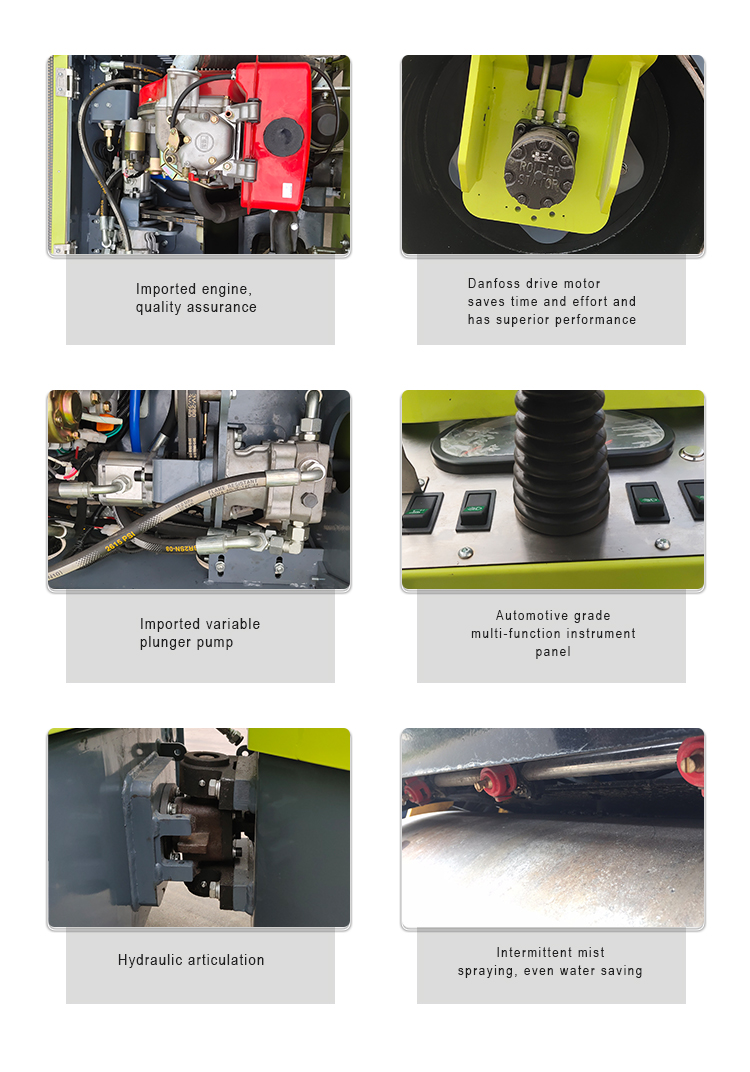

-- Equipped with famous brand engine, could guarantee quality stability and excellent performance.

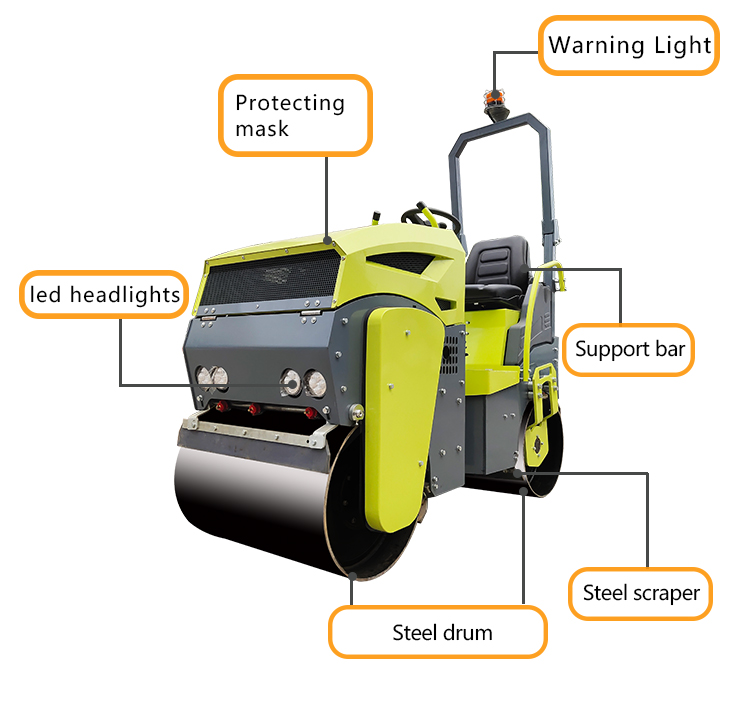

-- Hawkeye-shaped body design, wide field of vision and beautiful appearance.

-- Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.

-- The control instrument panel is fully functional with one-button operation.

-- Assembled with working light and warning light, could work at night.

-- Ergonomic chair.

-- Passed CE, SGS and ISO certification and won Red Star Award design.

Model	BM1000
WEIGHT
Operating weight	1000KG
Static line load	56/77 N/cm
DIMENSIONS
Working width	825mm
Overall length	1780mm
Overall height with ROPS	1985mm
Turning radius(outer)	2600mm
Drum width	700mm
Drum diameter	500mm
Wheel base	1230mm
DRIVE
Engine	Honda GX390/ B&S 400	Changchai/Changfa 186F
Type	vertical,single cylinder, four stroke gasoline engine	Vertical, air-cooled, single cylinder, four stroke diesel engine
Output power	9.7kw	6kw
Rated speed	3600rpm	3600rpm
Electric equipment	12V
Drive mode	Variable displacement piston pump, infinitely variable speed, two wheels drive motor parallel
Walking speed	0-5km/h
Climbing ability (vibration on/off)	30%
BRAKES
Working brake	Variable displacement pump
STEERING
Steering method	Hydraulic steering
Steering system	Swing articulated
EXCITING SYSTEM
Vibration drum	Front
Driving form	Mechanical transmission, electromagnetic clutch
Vibration frequency	70Hz
Amplitude	0.5mm
Exciting force	20KN
SPRINKLER SYSTEM
Sprinkling type	intermittent pressure spray
CAPACITY
Hydraulic oil tank	15L
Fuel tank	6.5L	5.5L
Water tank	67L
