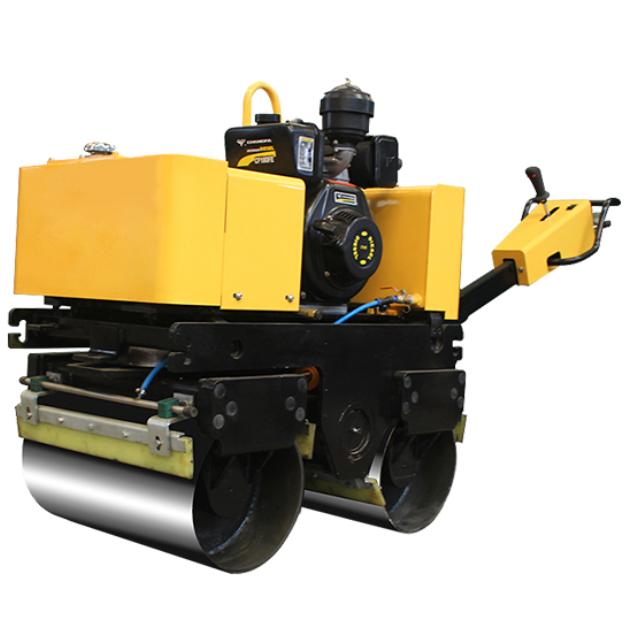

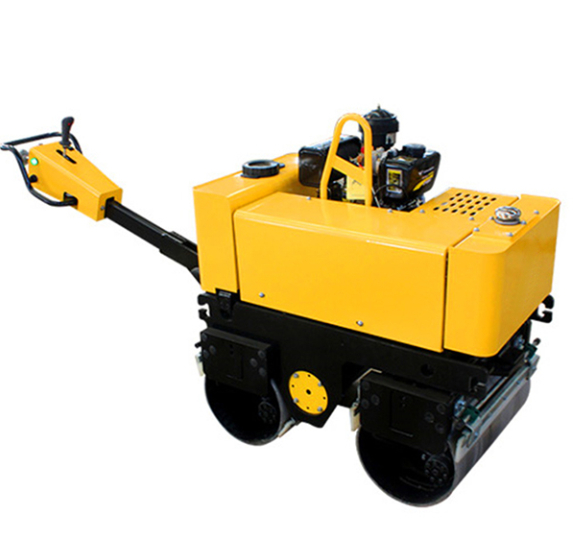

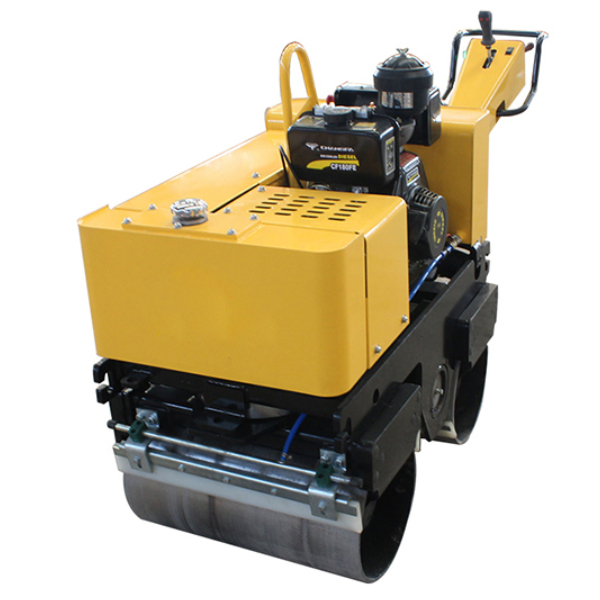

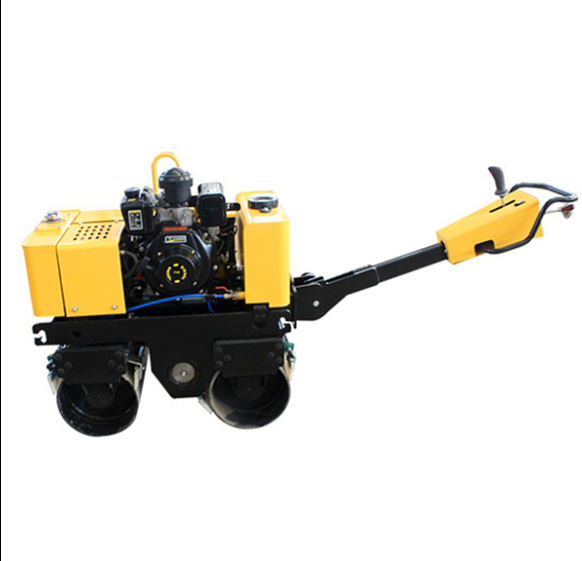

BM80
Fully hydraulic double drum vibratory road roller
FEATURES

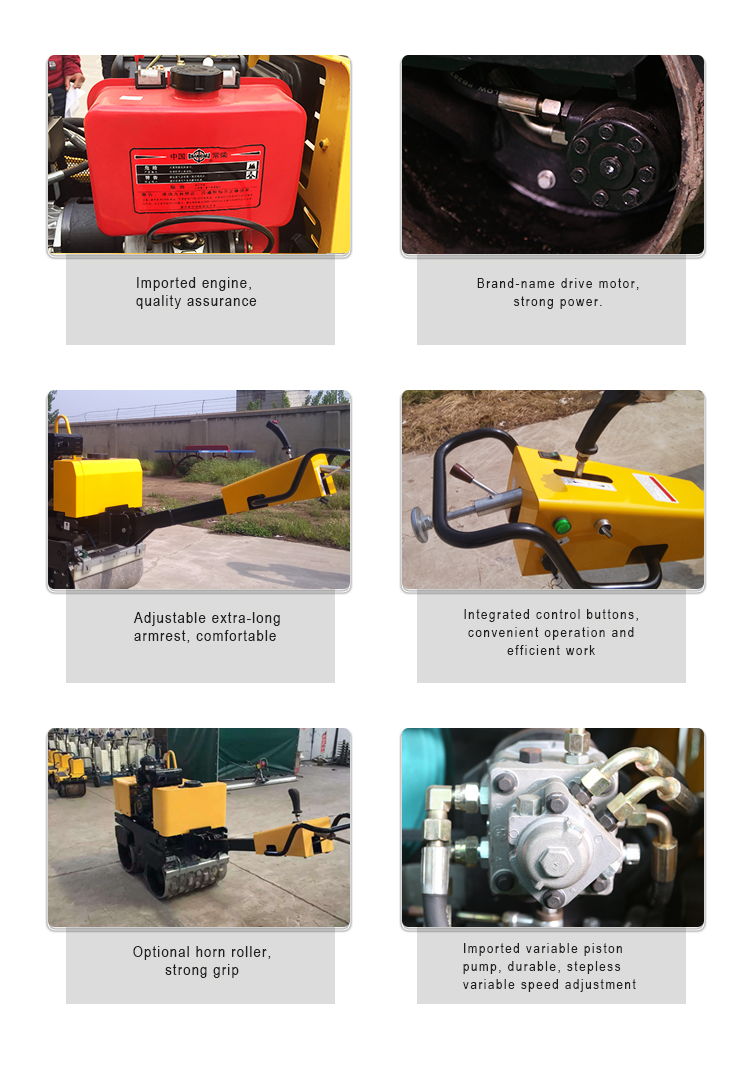

1 .Equipped with famous brand engine, could guarantee quality stability and excellent performance.
2. Hawkeye-shaped body design, wide field of vision and beautiful appearance
3. Imported hydraulic variable pump, stepless speed change, walking forward and backward.
4. Japanese NSK (Seiko) bearings to ensure the performance of the machine.
5. Electromagnetic clutch controls vibration for faster operation.
6. Hydraulic steering, labor-saving, flexible and convenient
7. Passed CE certification and won Red Star Award design
|
Model
|
BM80
|
|
WEIGHT
|
|
Operating Weight
|
800kg
|
|
Static Linear Load
|
59/64n/cm
|
|
DIMENSION
|
|
Working Width
|
680mm
|
|
Overall Length(safety rack down/up)
|
2500/1800mm
|
|
Overall Height(safety rack down/up)
|
1140/1710mm
|
|
Turning Radius(outside)
|
-------
|
|
Steel Wheel Width
|
620mm
|
|
Steel Wheel Diameter
|
355mm
|
|
Wheelbase
|
650mm
|
|
DRIVE
|
|
Engine Brand
|
HONDA
|
Changchai/Changfa
|
Golden Flying Fish
|
|
Engine Model
|
GX390
|
186F
|
90N-1
|
|
Engine Type
|
Gasoline, four stroke
|
Diesel, four stroke
|
Diesel, Horizontal water cooled
|
|
Number Of Cylinder
|
1
|
|
Output Power
|
9.7kw
|
6kw
|
5.88kw
|
|
Rotating Speed
|
3600rpm
|
3600rpm
|
2400rpm
|
|
Electrical Equipment
|
12v
|
|
Drive Mode
|
Variable piston pump, stepless speed change
|
|
WALKING CHARACTERISTICS
|
|
Speed
|
0-3.5km/h
|
|
Grade Ability
|
30%
|
|
BRAKES
|
|
Working Brake
|
Variable piston pump
|
|
STEERING
|
|
Steering Mode
|
Hydraulic Steering
|
|
Steering System
|
Hydraulic
|
|
EXCITING SYSTEM
|
|
Vibrating Drum
|
Front+Rear
|
|
Drive Form
|
Mechanical transmission
|
|
Vibrating Frequency
|
65hz
|
|
Vibrating Amplitude
|
0.5mm
|
|
Exciting Force
|
20kn
|
|
SPRINKLER SYSTEM
|
|
Water Spray Form
|
Gravity-Type Water
|
|
CAPACITY
|
|
Fuel Capacity
|
6.5L
|
5.5L
|
10L
|
|
Hydraulic Oil Capacity
|
28L
|
|
Water Tank Capacity
|
30L
|
