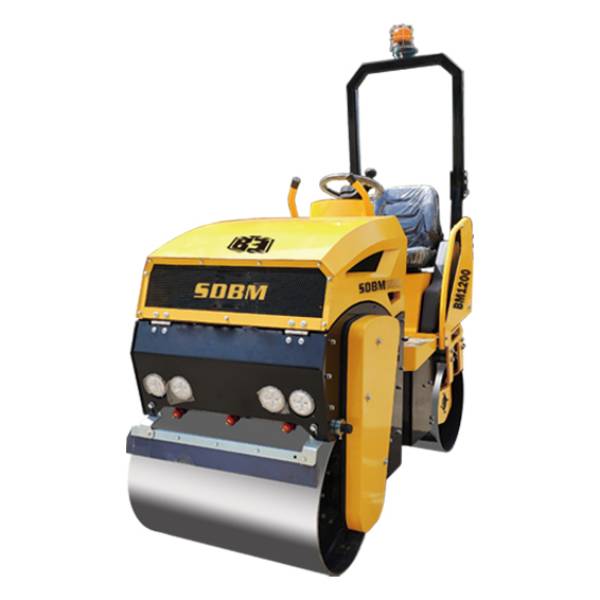

Ride-on Roller

SKU: HT-623256

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Easily Maneuverable: These units are highly maneuverable, providing flush compaction to curbs and obstructions with ease.
Pressurized Water System: The roller features a pressurized water system that offers consistent water flow. An eight-position timer allows the operator to adjust the water flow to match specific conditions.
Rear Platform and Front Hood Tilt: The rear platform and front hood of the roller conveniently tilt up, providing easy access for maintenance and enhancing machine serviceability.
Reduced Sound Levels: These rollers are designed to operate with reduced sound levels, running quieter than other machines in the same class. This ensures a more comfortable working environment.
Ideal for Various Surfaces: The CRR-12 roller series is ideally suited for compaction of granular base surfaces and finish layers on road repairs, driveways, parking lots, and any asphalt surface.

Engine type	Gasoline	Air-cooled, 2-cylinder
Engine manufacturer	Honda	GX630
Displacement	cm3	688
Operating speed	rpm	3,100
Operating performance Max Rated at 3600rpm	kW	15.1
Fuel comsumption	l/h	6
Fuel tank capacity	l	23
Water tank capacity	l	100
Operating weight w/80kg operator	kg	1,130
Dimensions (LxWxH)	mm	1824x1050x2290
Drum width	mm	900
Drum diameter	mm	560
Left side clearance	mm	90
Right side clearance	mm	100
Left curb clearance	mm	208
Right curb clearance	mm	240
Centrifugal force Dynamic (Front Drum)	kN	15
Frequency	Hz	60
Linear force Static (Front/Rear)	N/mm	4.9/7.2
Linear force Dynamic (Front)	N/mm	16.8
Travel speed Forward	km/h	7.5
Travel speed Reverse	km/h	7.5
Surface capacity Area	m2/h	675
Gradeability Maximum	%	30
Gradeability Limit (Engine)	%	32
Turning radius Outside	mm	2,500
