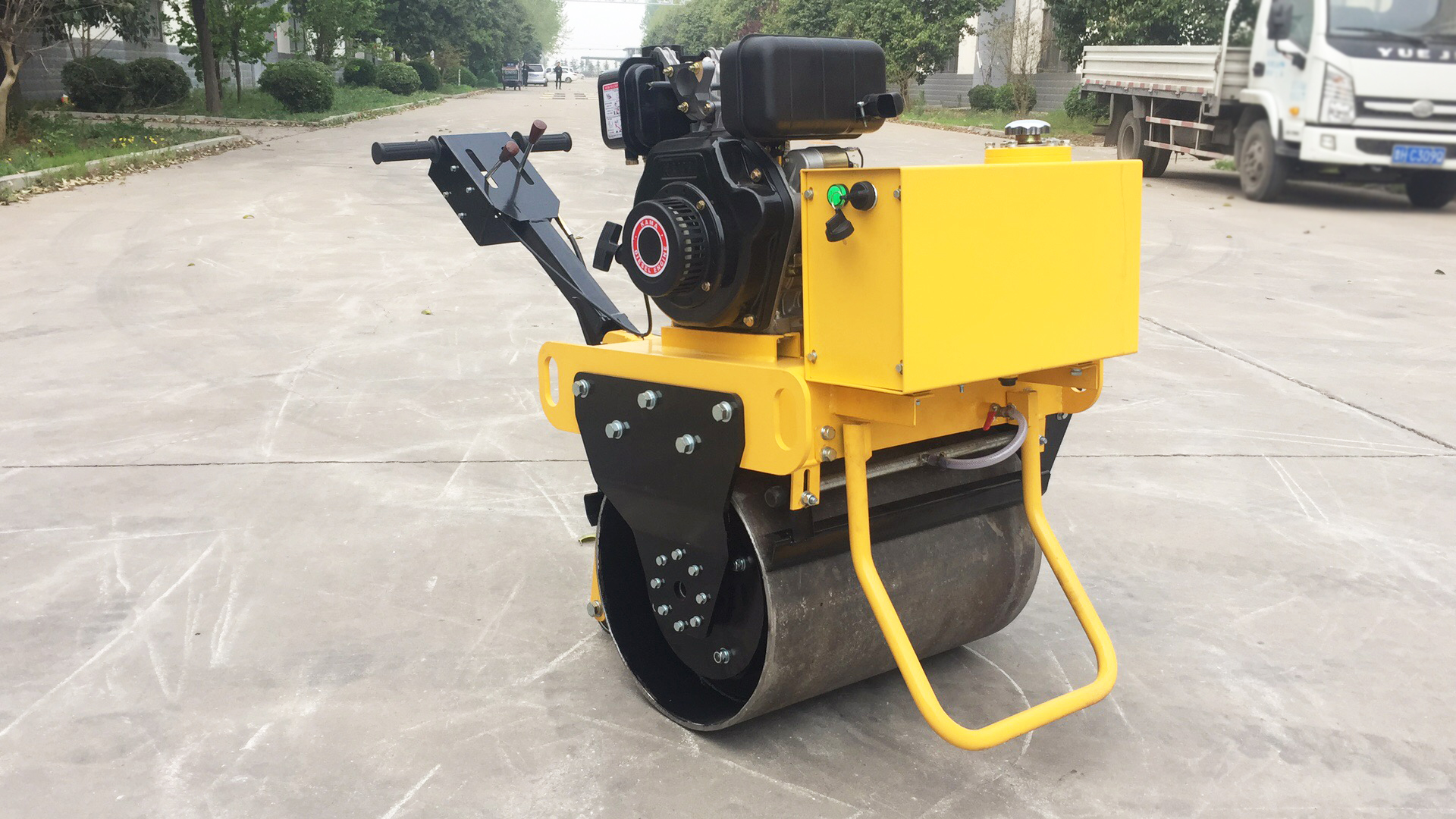

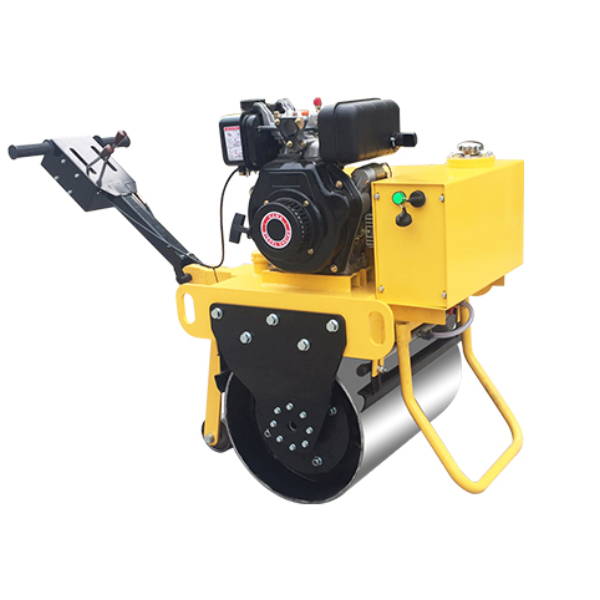

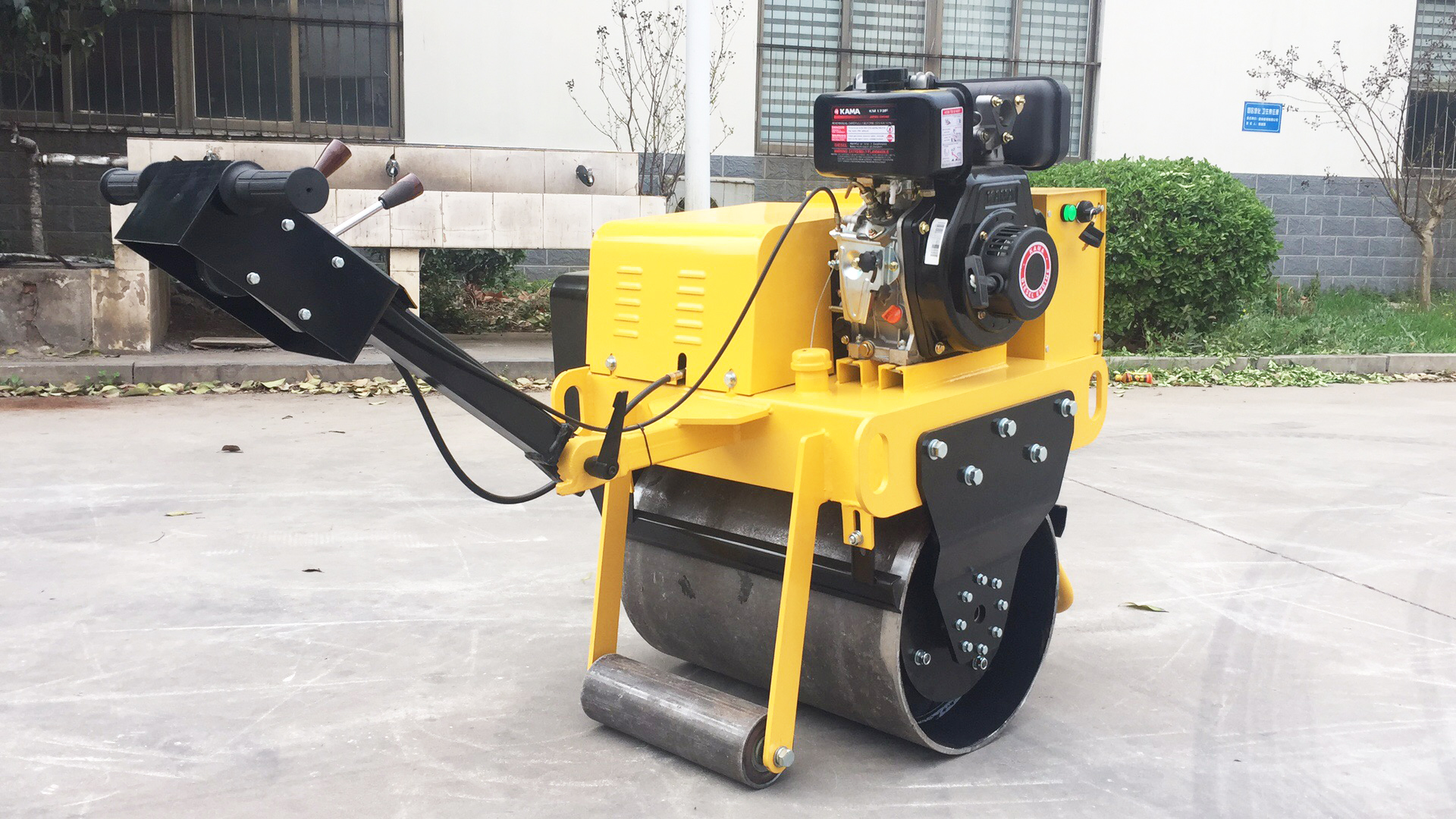

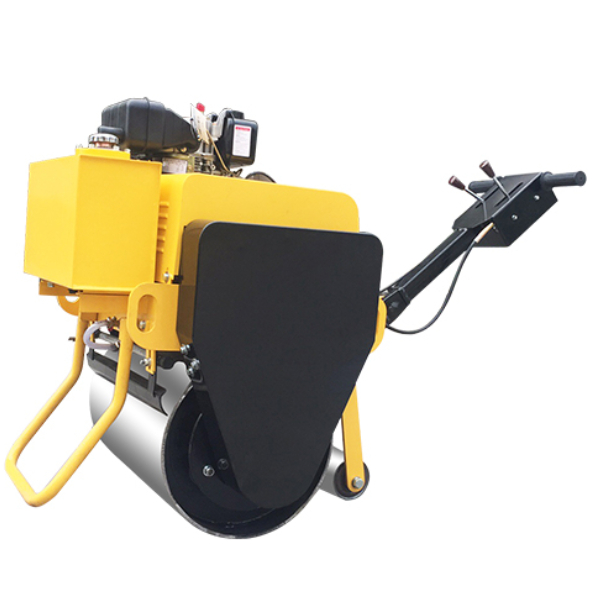

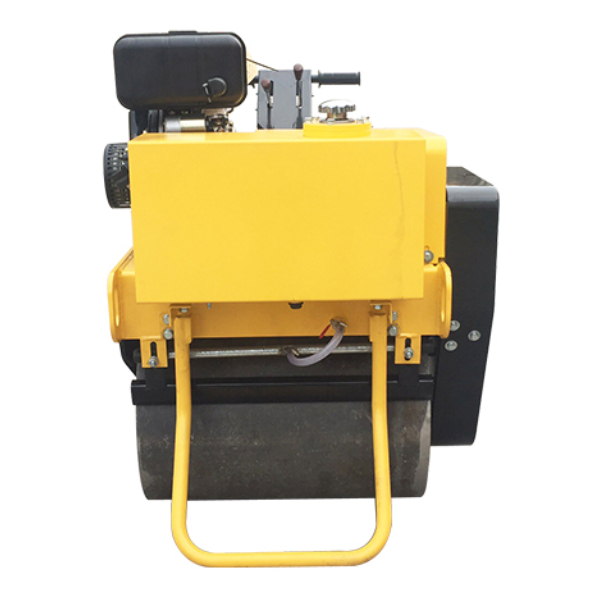

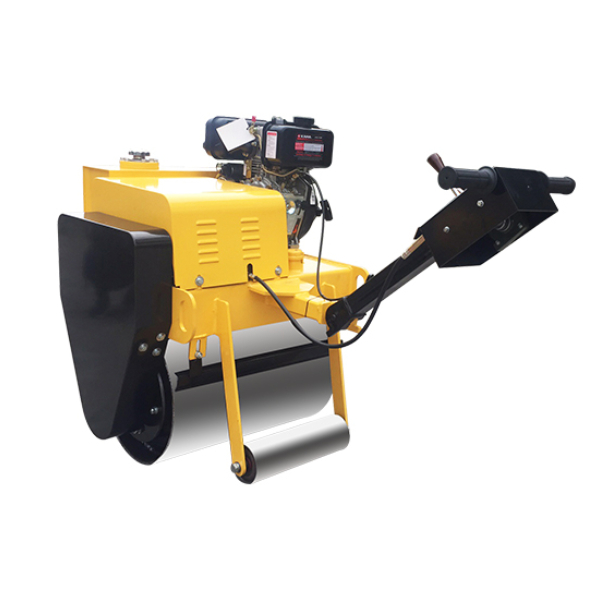

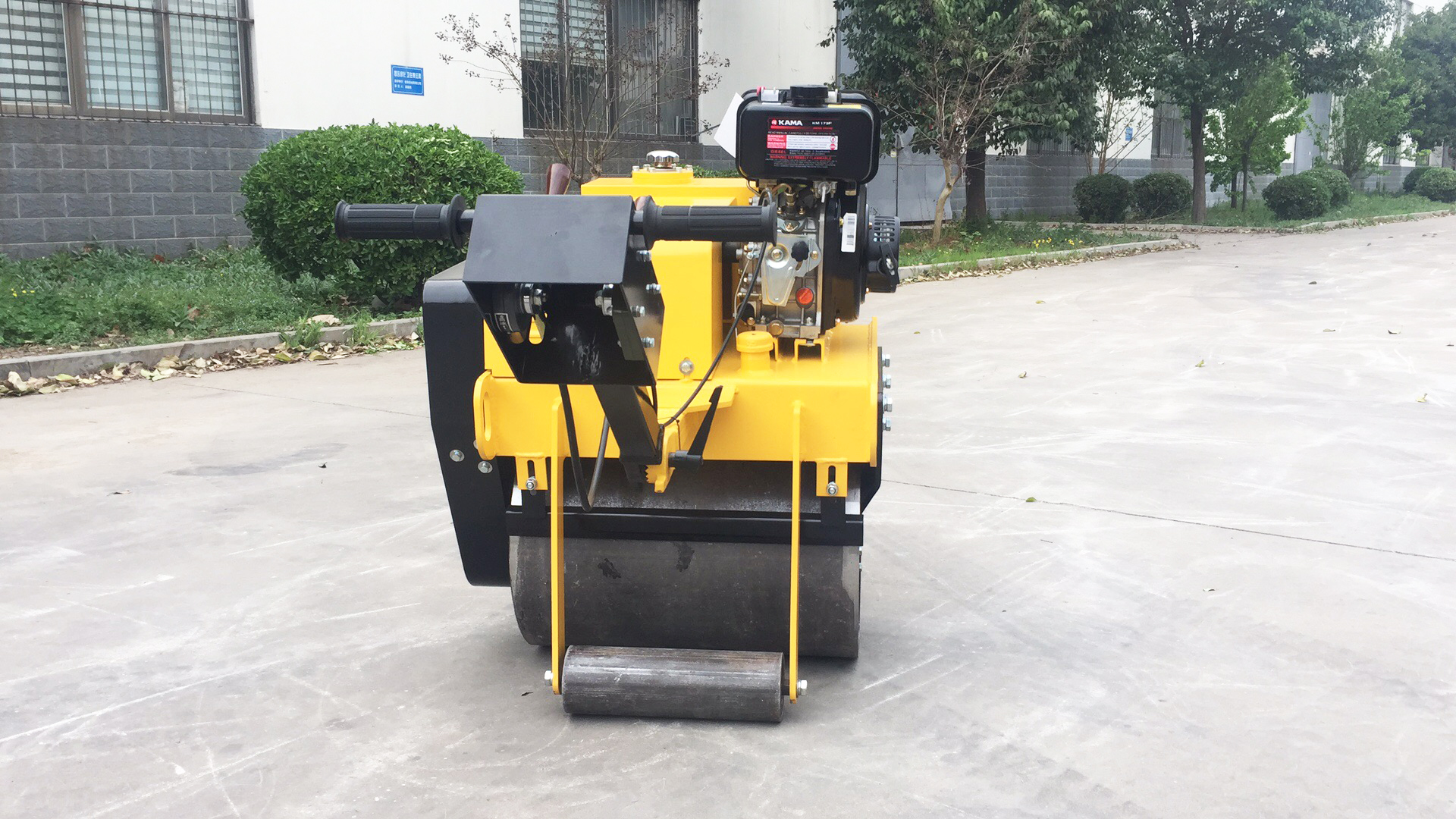

SDBM 300KG walk-behind hand pushed gasoline diesel Ce hydraulic road roller
SKU: HT-528919
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
BM30

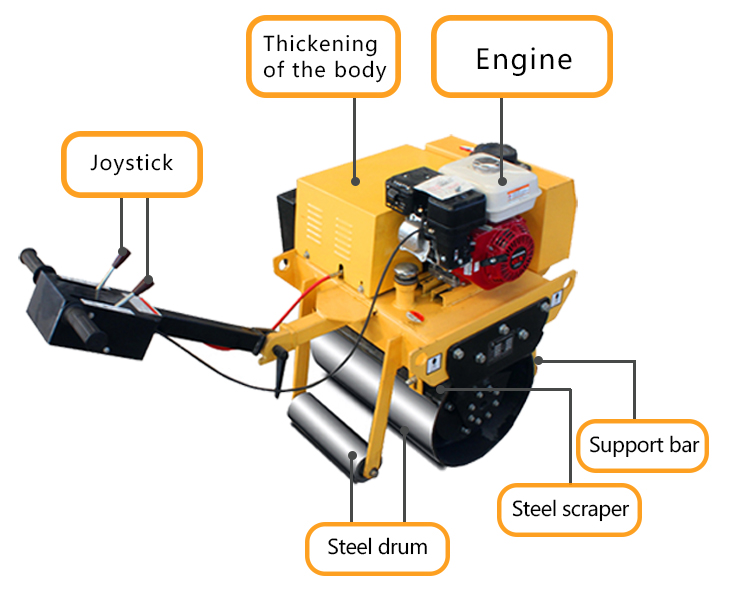

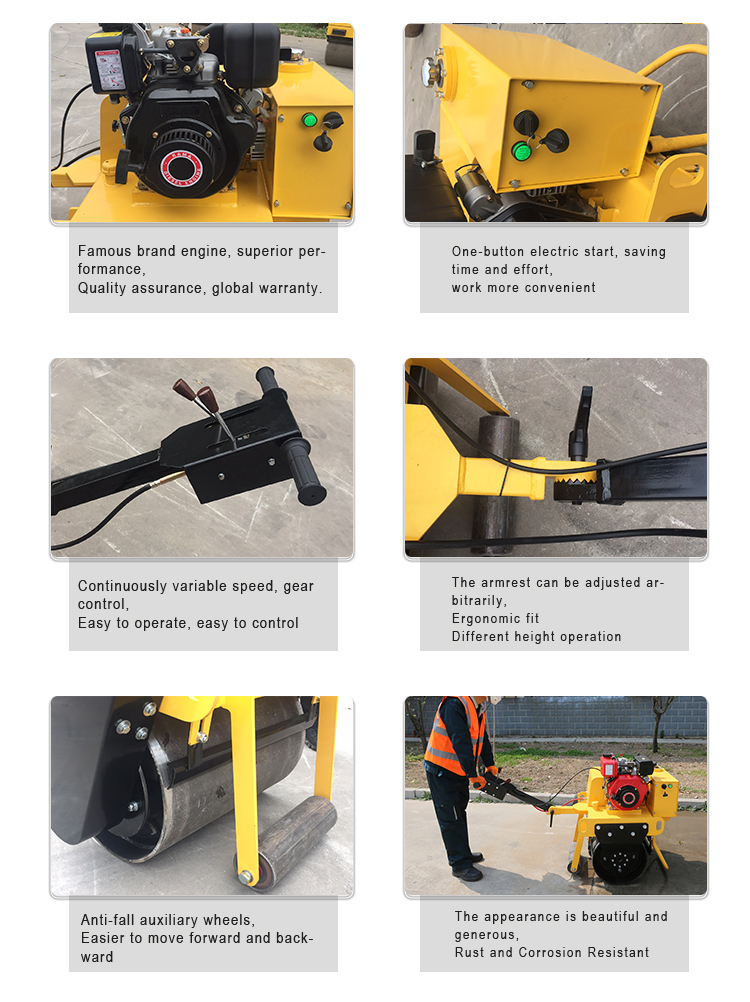

FEATURES
1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.
2. Overall spraying, wide field of vision and beautiful appearance.
3. Small working radius, could work in narrow areas.
4. Use famous brand hydraulic pump and motor, high quality and good stability.
5. The armrest adopted plane gear adjustment mechanism, which can be operated by people with different heights.
6. Transmission used Japanese NSK bearings to ensure the performance of the whole machine.
|
Model |
BM30 |
||||
|
WEIGHT |
|||||
|
Operating Weight |
330kg |
||||
|
Static Linear Load |
45n/cm |
||||
|
DIMENSION |
|||||
|
780mm |
|||||
|
Overall Length |
1600mm |
||||
|
Overall Height |
1060mm |
||||
|
Packing Size |
1050*850*1200mm |
||||
|
600mm |
|||||
|
Steel Wheel Diameter |
426mm |
||||
|
Start Up |
Recoil hand pull electric start |
||||
|
DRIVE |
|||||
|
Engine Brand |
HONDA |
Changchai/Changfa |
KAMA |
||
|
Engine Model |
GX160 |
170F |
170F |
||
|
Engine Type |
Gasoline, four stroke |
Diesel, four stroke |
Air-cooled, four stroke |
||
|
Number Of Cylinder |
1 |
||||
|
Output Power |
4.1kw |
3.1kw |
3.7kw |
||
|
Rotating Speed |
3600rpm |
||||
|
WALKING CHARACTERISTICS |
|||||
|
Speed |
0-3.8km/h |
||||
|
Grade Ability |
30% |
||||
|
BRAKES |
|||||
|
Walking Way |
Two-way hydraulic, chain transmission |
||||
|
EXCITING SYSTEM |
|||||
|
Vibrating Drum |
Single Drum |
||||
|
Vibrating Frequency |
70hz |
||||
|
Vibrating Amplitude |
0.6mm |
||||
|
Exciting Force |
15kn |
||||
|
SPRINKLER SYSTEM |
|||||
|
Water Spray Form |
Gravity-Type Water |
||||
|
CAPACITY |
|||||
|
Fuel Capacity |
3.6L |
1.9L |
2.5L |
||
|
Lubricating Oil Capacity |
0.6L |
0.75L |
0.75L |
||
|
Hydraulic Tank Capacity |
15L |
12L |
12L |
||
|
Water Tank Capacity |
22L |
||||
