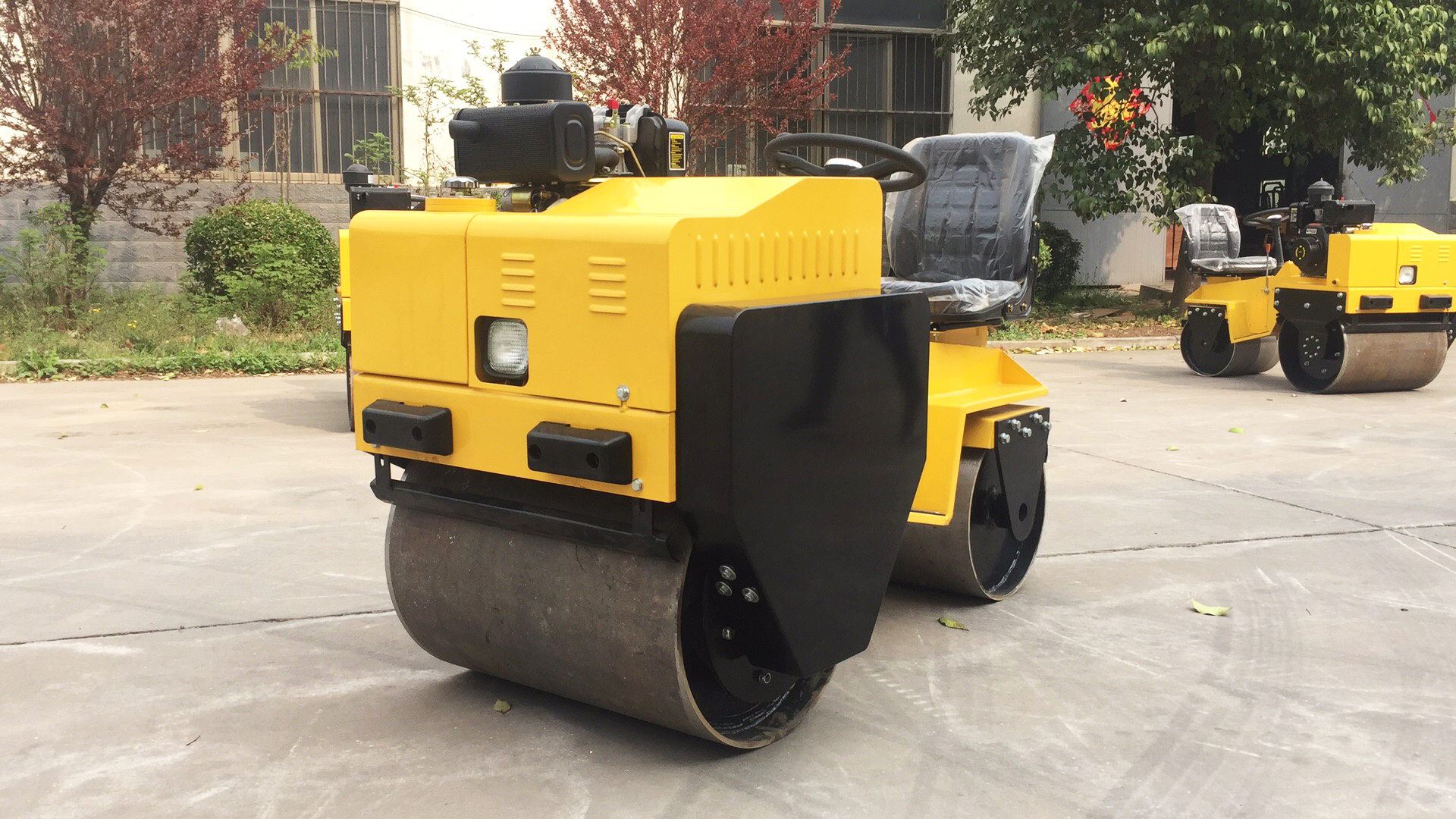

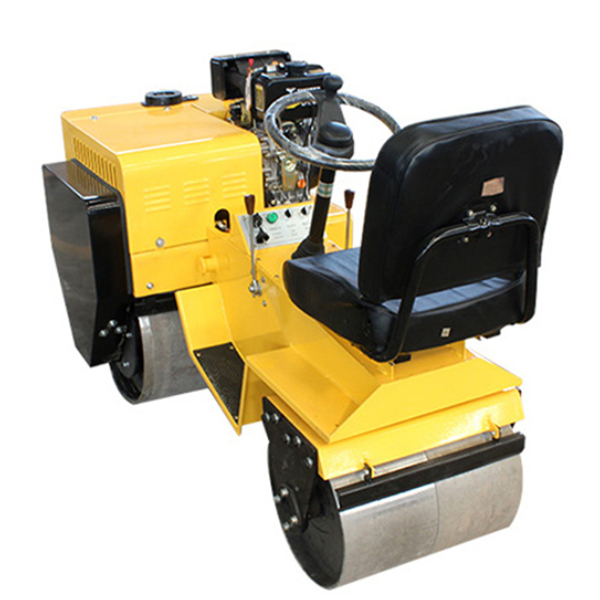

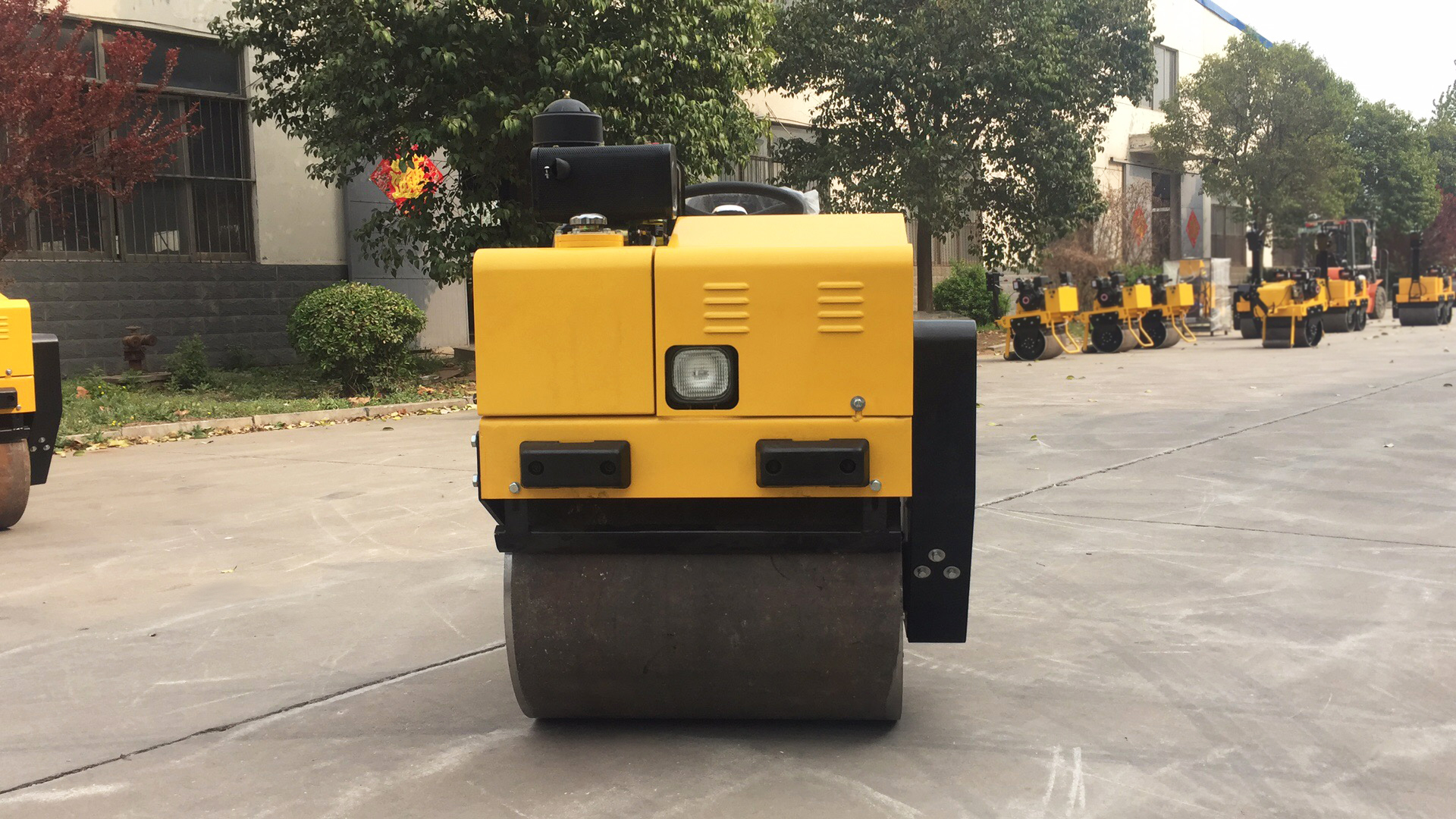

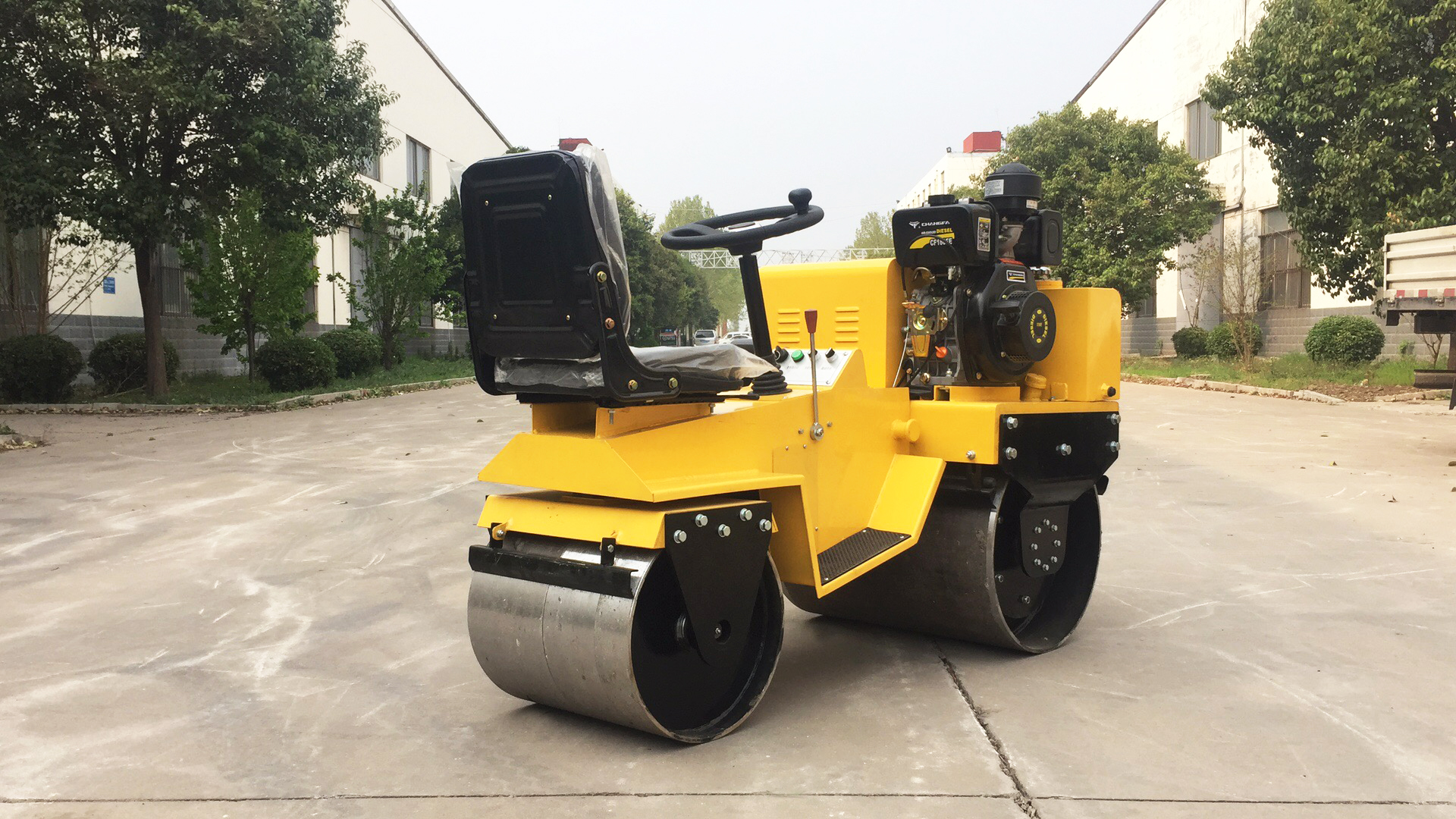

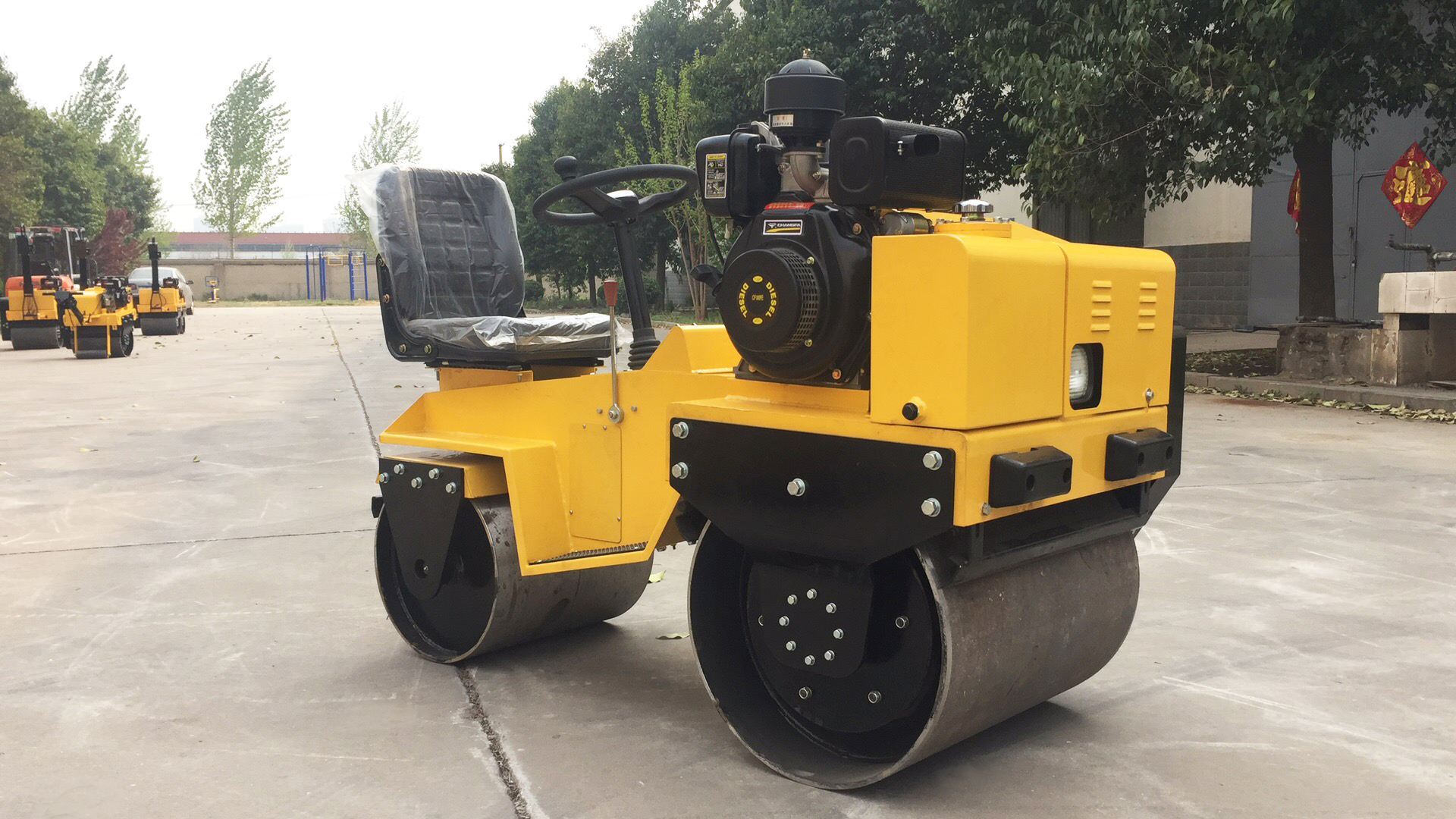

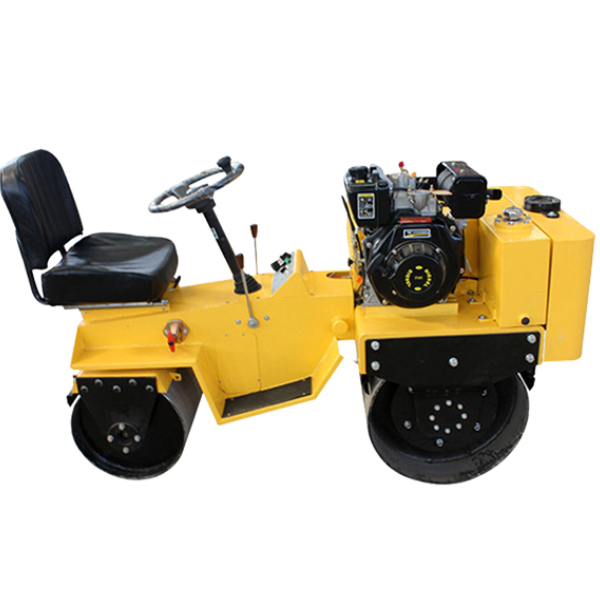

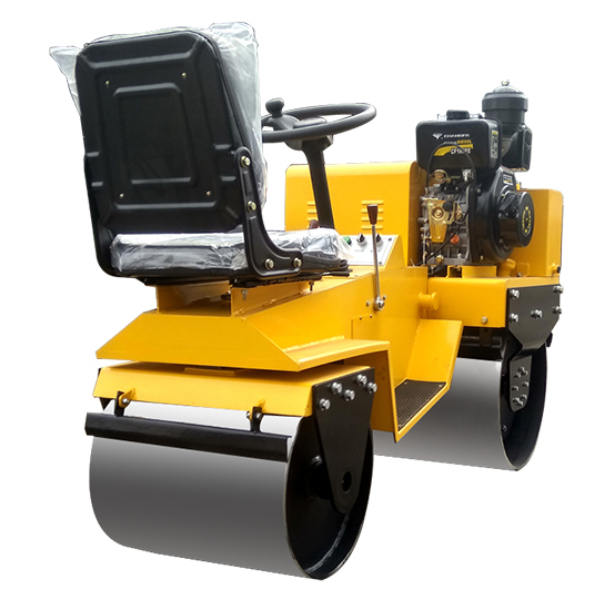

SDBM 850kg Chinese Roller Diesel Gasoline Vibratory Compacting Roller
SKU: HT-528917
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
BM850
Standard

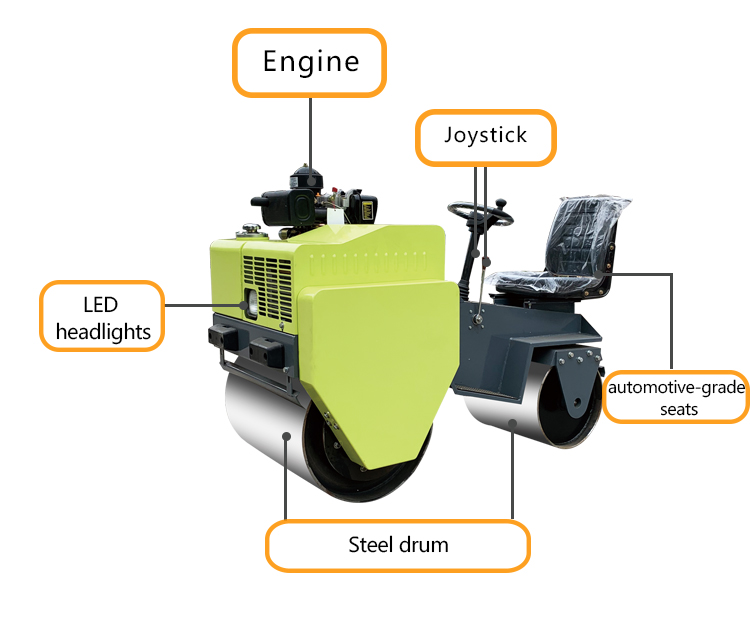

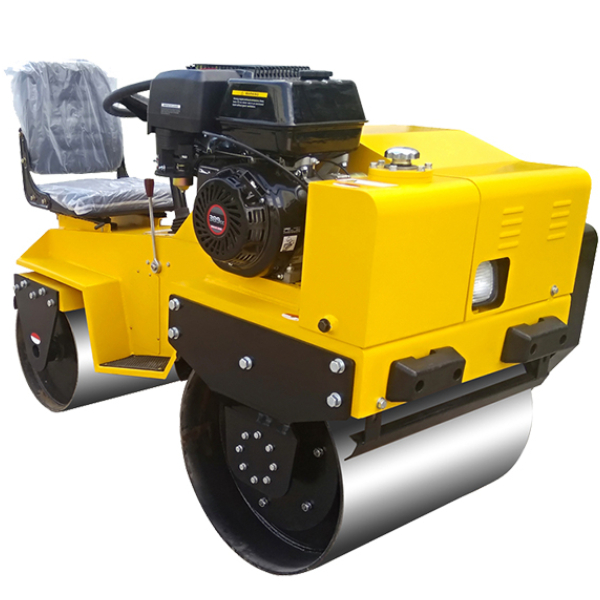

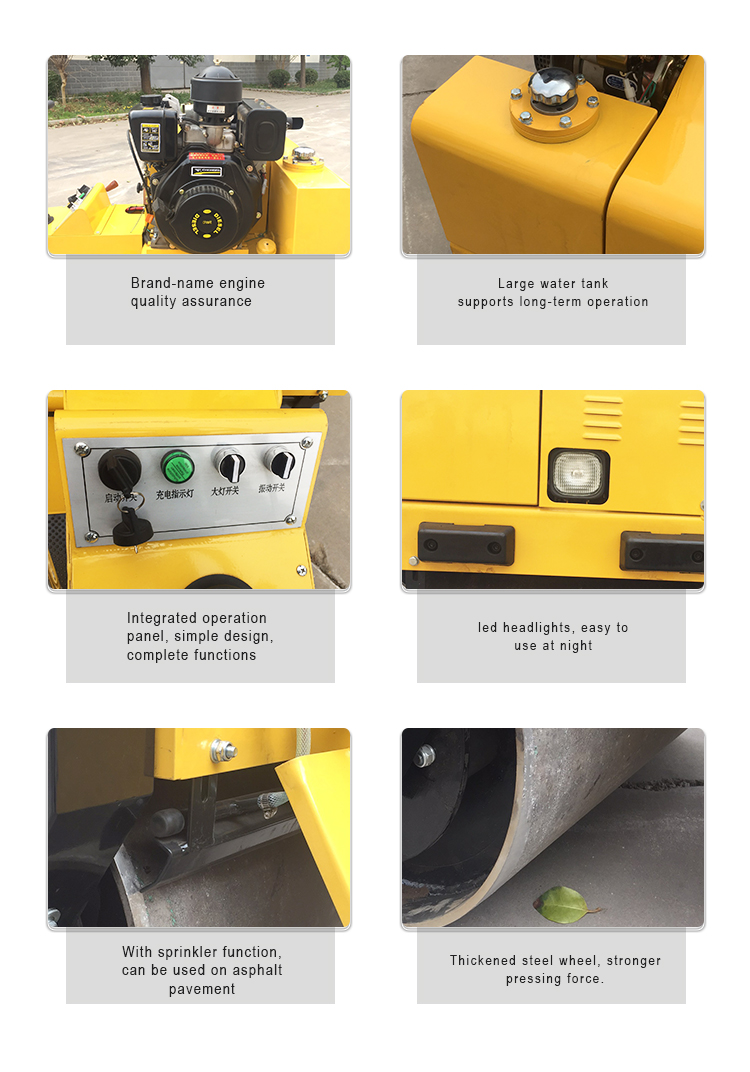

1.Honda gasoline/ Changfa diesel engine optional
2.Mechanical transmission, electromagnetic clutch
3.Front wheel vibration, rear wheel mechanical steering
4.Emergency stop button
5.Plastic water tank, gravity type spray
6.Japanese NSK bearing
Optional configuration
1.Led headlamps
2.Grooved compacted steel wheel
|
Model |
BM850 |
||
|
WEIGHT |
|||
|
Operating Weight |
780kg |
||
|
Static Linear Load |
55n/cm |
||
|
DIMENSION |
|||
|
Working Width |
875mm |
||
|
Overall Length(safety rack down/up) |
1550mm |
||
|
Overall Height(safety rack down/up) |
1210mm |
||
|
Turning Radius(outside) |
2300mm |
||
|
Steel Wheel Width |
700mm front, 500mm rear |
||
|
Steel Wheel Diameter |
530mm front, 425mm rear |
||
|
Wheelbase |
1110mm |
||
|
DRIVE |
|||
|
Engine Brand |
HONDA |
Changfa |
|
|
Engine Model |
GX390 |
180F |
|
|
Engine Type |
Gasoline, four stroke |
Diesel, four stroke |
|
|
Number Of Cylinder |
1 |
||
|
Output Power |
9.7kw |
4.8kw |
|
|
Rotating Speed |
3600rpm |
3600rpm |
|
|
Electrical Equipment |
12v |
||
|
Drive Mode |
Two-way hydraulic, chain transmission |
||
|
WALKING CHARACTERISTICS |
|||
|
Speed |
0-5km/h |
||
|
Grade Ability |
30% |
||
|
BRAKES |
|||
|
Working Brake |
Variable piston pump |
||
|
Steering Mode |
Mechanical Steering |
||
|
Steering System |
Rear drum Steering |
||
|
EXCITING SYSTEM |
|||
|
Vibrating Drum |
Front |
||
|
Drive Form |
Mechanical transmission |
||
|
Vibrating Frequency |
70hz |
||
|
Vibrating Amplitude |
0.5mm |
||
|
Exciting Force |
25kn |
||
|
SPRINKLER SYSTEM |
|||
|
Water Spray Form |
Gravity-Type Water |
||
|
CAPACITY |
|||
|
Fuel Capacity |
6.5L |
3.5L |
|
|
Hydraulic Oil Capacity |
12L |
||
|
Water Tank Capacity |
18L |
||
