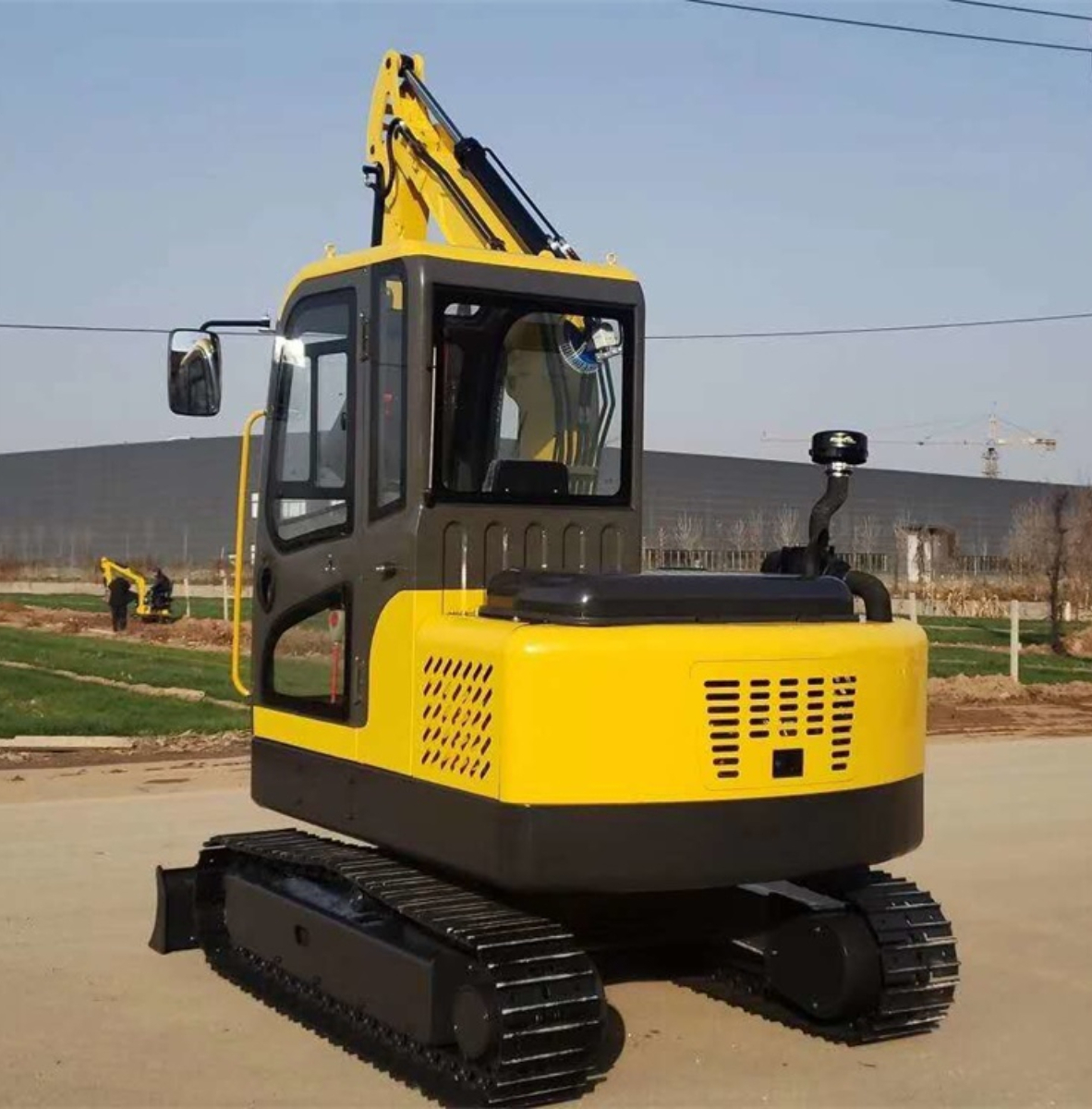

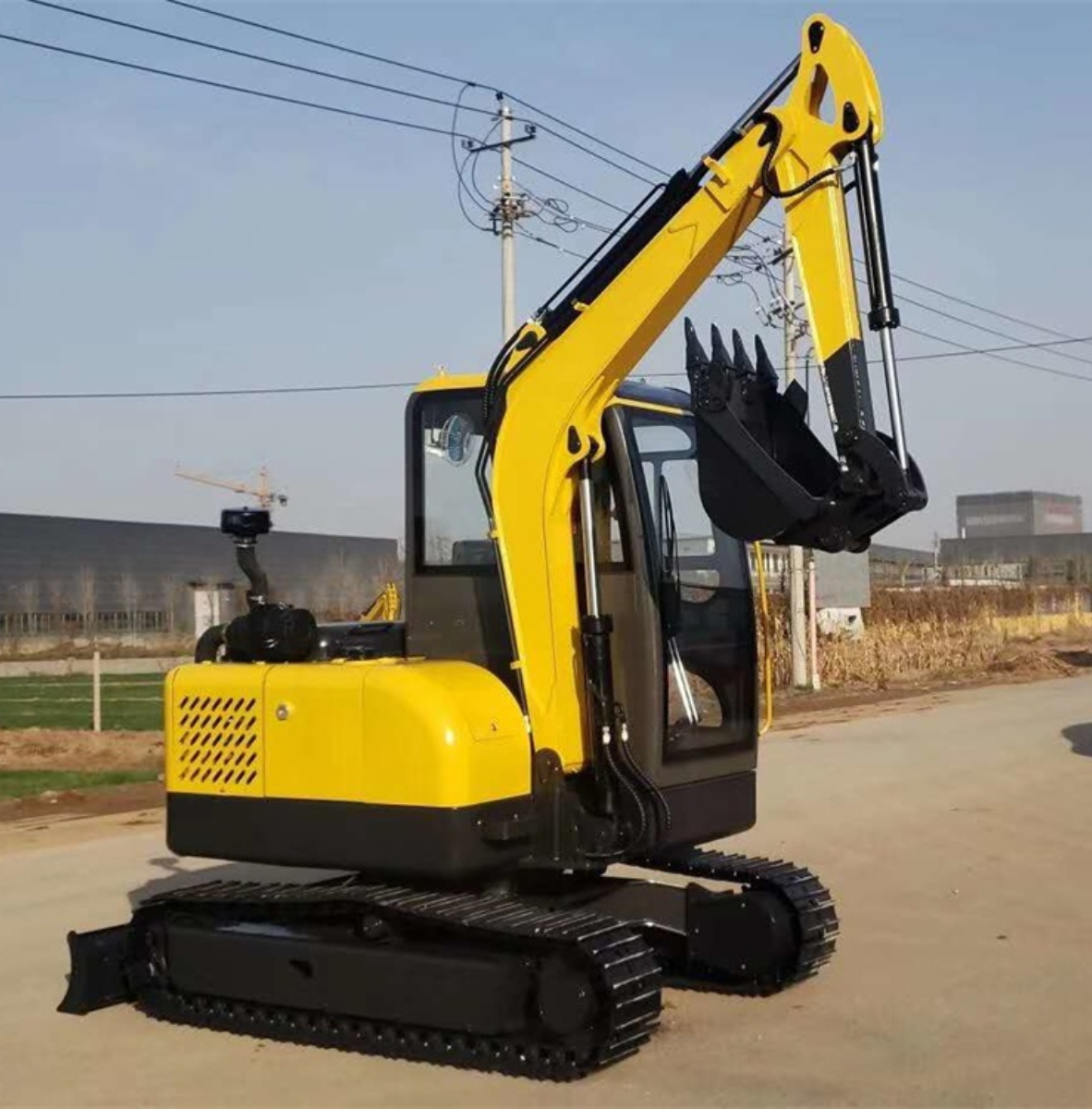

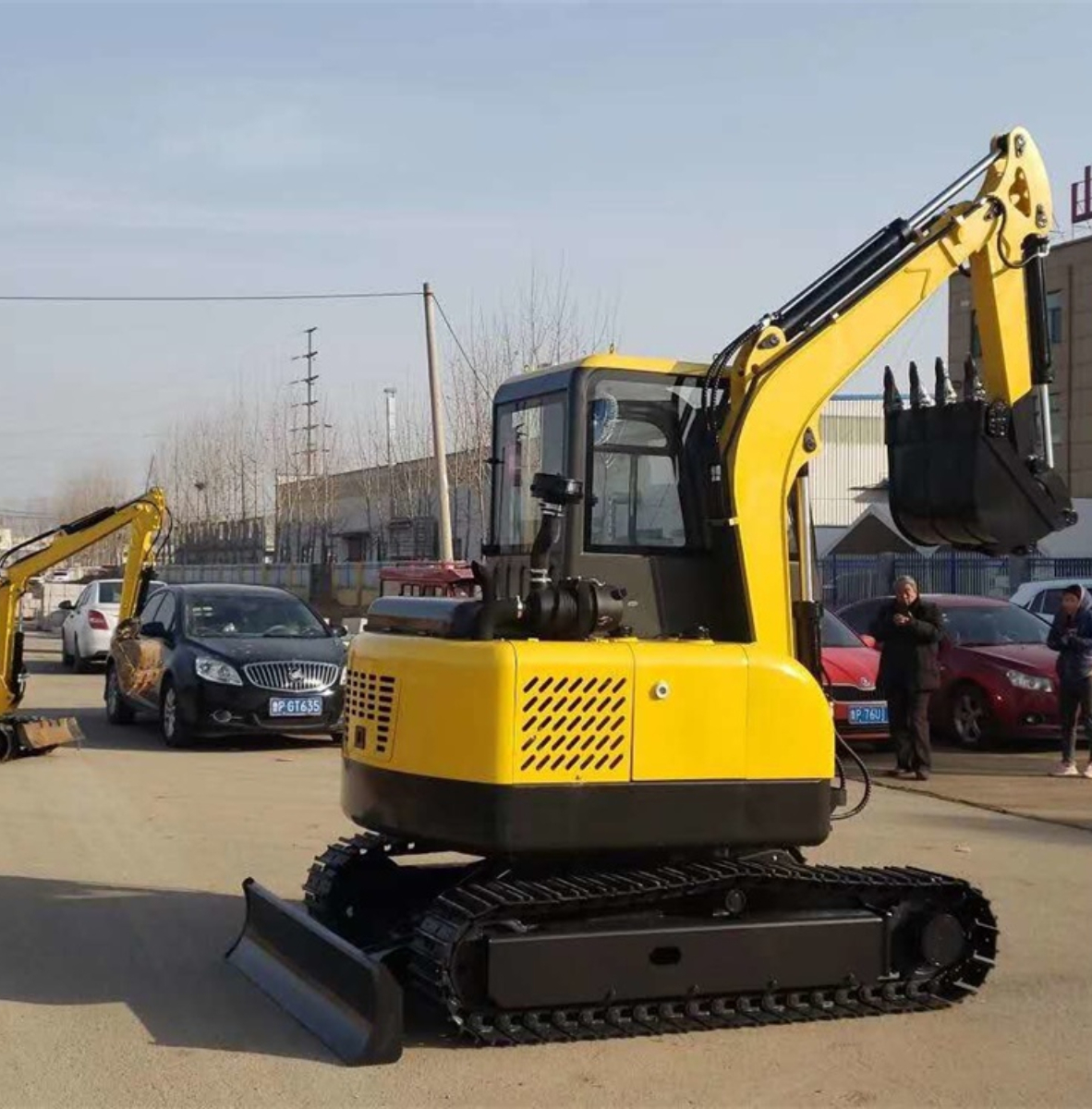

Mini excavator 3.5 ton

SKU: HT-868241

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

3.5 ton mini excavator

specifictions

Engine	Unit	Specificatin
Vehicle weight	kg	3600
Standard shovel capacity	m³	0.23
Working device form		backhoe
engine type		ZN490/3TNV88
Rated output power / speed	kw/r/min	34/2400
Walking speed	km/h	3.1/5.6
Gyration speed	rpm	10
Max Climb Capability		26°
Excavating power of dug	KN	24
Bucket excavating force	KN	13.6
crawler material		steel
Type of rising device		Butter cylinder
Pressure of hydraulic system	MPA	16
flow	L/min	28
Dimendions	Unit	Specificatin
Wheelbase	mm	1670
Minimum ground height	mm	240
Platform end radius of gyration	mm	1250
Total transportation height	mm	2260
track width	mm	300
Transport length	mm	4600
Operating range	Unit	Specificatin
Maximum ground mining radius	mm	4600
Maximum mining depth	mm	2500
Maximum mining height	mm	4380
Maximum unload height	mm	2520
