China Factory manufacture excavator 1ton mini digger escavator for sale

SKU: HT-868228

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

model	NM-E10
Vehicle weight	920kg	Digging Force	10KN
Standard shovel capacity	0.022-0.045m³	Swing(optinal)	75° left / 45° right
Working device form	Backhoe	Pumps	Gear pump
Rated power	7.62kw	Ground pressure	0.35MPa
Wheelbase	770mm	track width	180mm
Caterpillar chief	1090mm	Minimum radius of revolution(front)	1190mm
Platform clearance	370mm	Maximum lift height of earth shovel	325mm
width of bulldozer	860mm	Maximum digging depth of earth shovel	190mm
Emgine Model	KP-192FA	Swing speed	1.1R/MIN
Cooling	Air-cooling	Fuel Tank	5.5L

Swing arm optional

Swing arm 75° left / 45° right to make work more easily at the corner work

Roof or Anti-rollover beam shelf

The canopy makes outdoor work convenient, and the anti-rollover beam ensures safe operation on sloped ground

Compact Dimensions

With an overall width of only 860mm,with retractable track and bulldozer can be from 750mm-950mm

Main Features

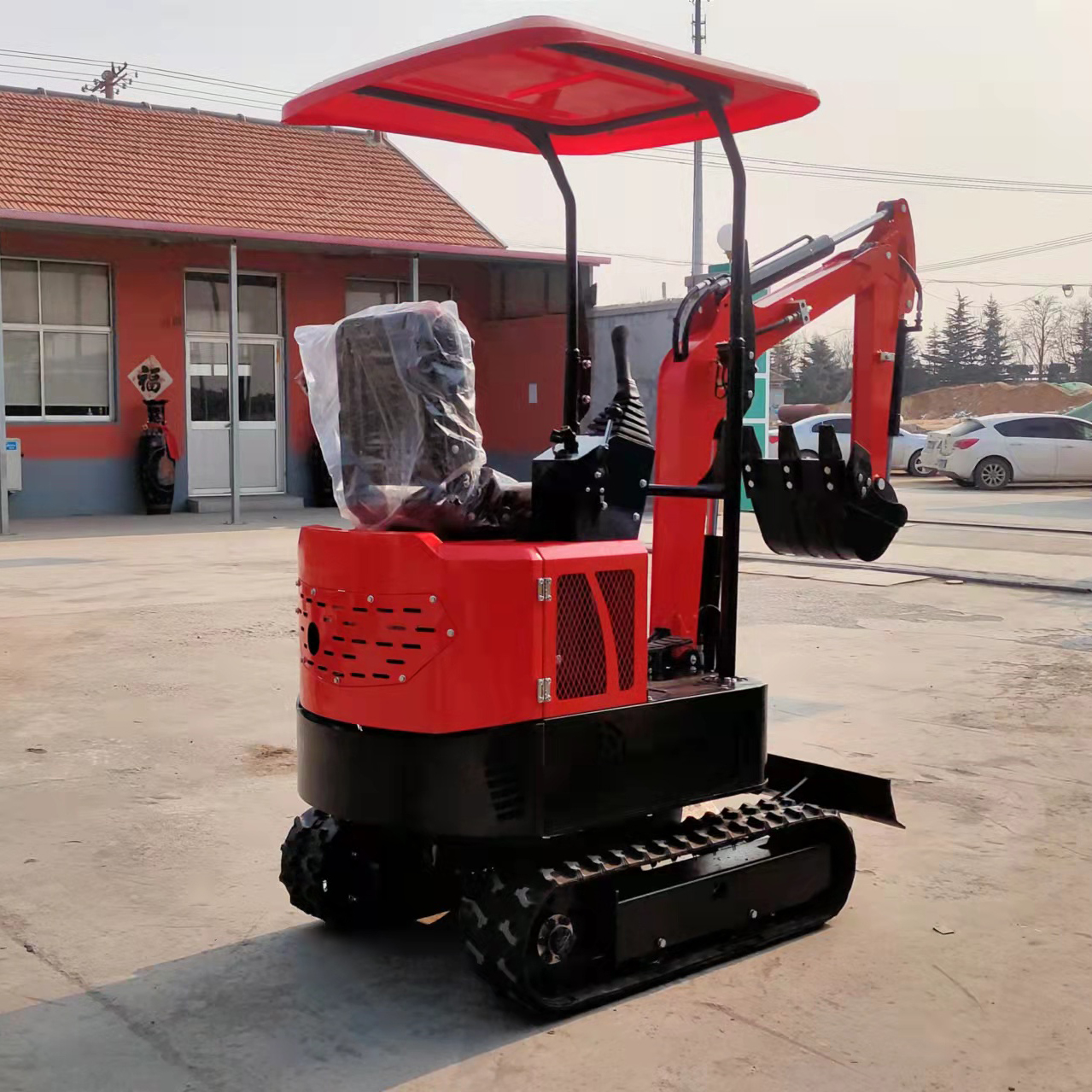

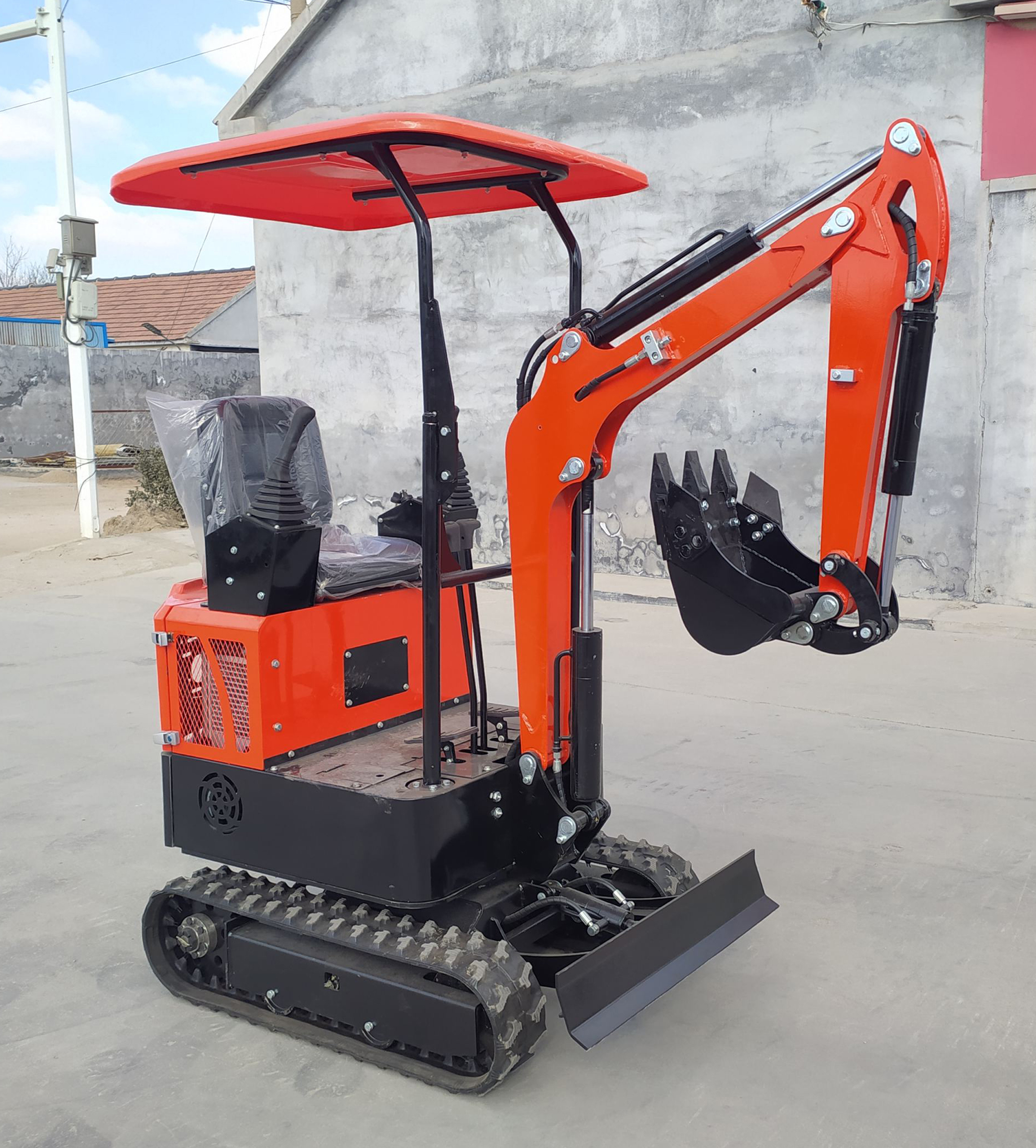

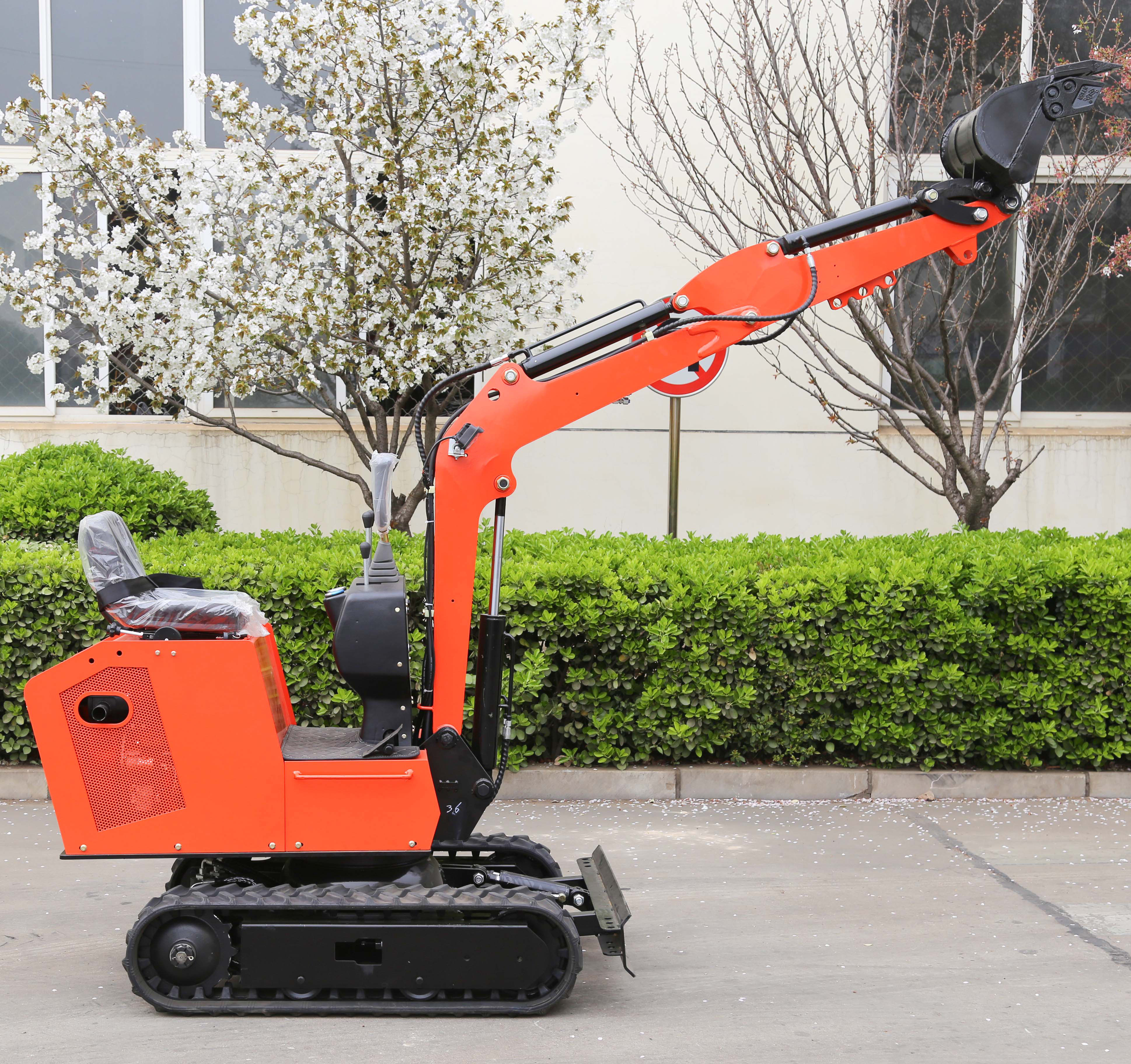

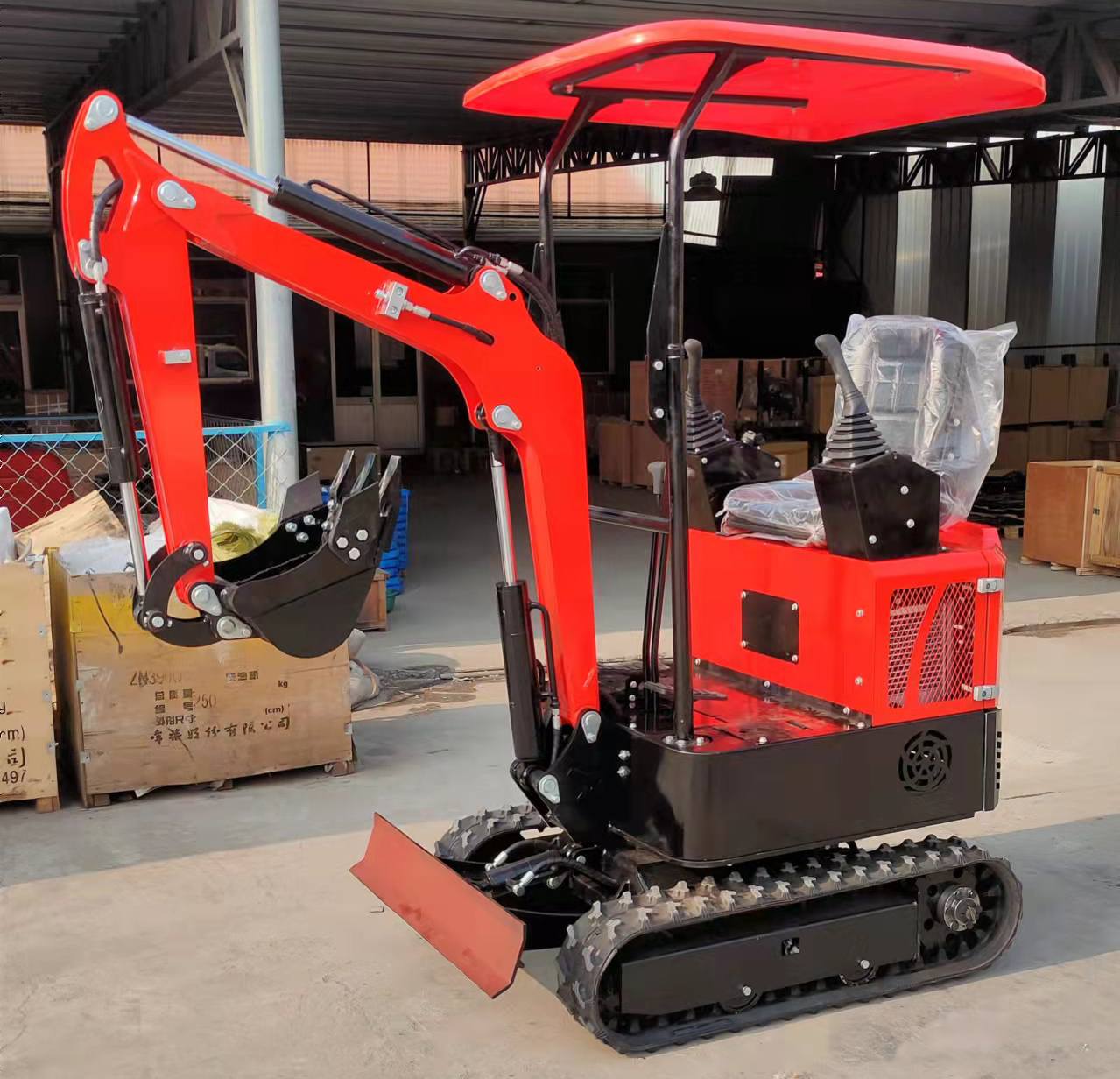

The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

1.    Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2.    Hydraulic pump (gear pump) is easy to maintain, long life
3.    Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets

you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean

up.

4. Multiple valves under the operating handle,The benefit of less effort and improved control

is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start

Hydraulic oil radiator

Professional radiator, yuken brand, to ensure the use of radiator life and use requirements

Front bucket details

The front bucket can be stacked with gravel and sand

Track details

Belt crawler, minimal damage to the road, crawler structure can adapt to any road requirements, large ground, strong grasp ability

Bucket details

The bucket capacity is from 0.025 to 0.045 CBM, the maximum digging radius is up to 2400 mm, the maximum digging depth is up to 1400 mm, the high quality steel cast, can adapt to any construction surface requirements

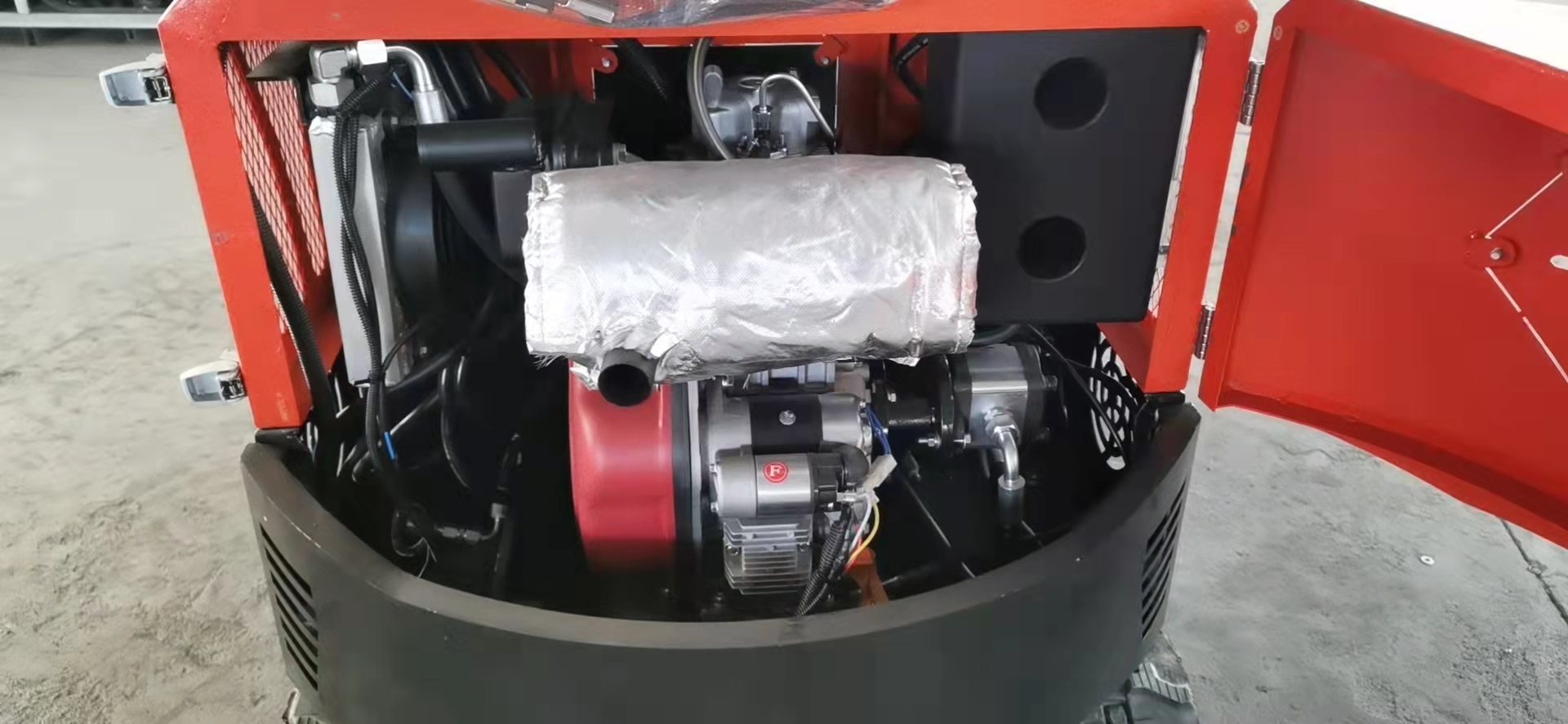

Internal Parts

The internal parts are neatly stacked, the engine uses KOOP brand, the hydraulic cylinder uses YUKEN brand, in the internal parts we meticulously adopt international standards to meet your use needs

Operation surface

Double rod operation, can flexibly control the front bucket, bucket maximum rotation radius up to 2400 mm

Strong supply manufacturing capacity

Model	NM-E08	NM-E10	NM-E13	NM-E15
Operating Weight	0.8Ton	1Ton	1.3Ton	1.5Ton
Engine	KOOP192F	Koop 192F	Water cooling 2V80	Kubota D722
Power	10HP	10HP	17HP	15HP
Bucket	0.02m³	0.025m³	0.026m³	0.028m³
Digging depth	1200mm	1320mm	1804mm	1810mm
Machine Width	720mm	940mm	960mm	980mm

Model	NM-E17	NM-E20	NM-E30	NM-E60
Operating Weight	1.7Ton	2Ton	3Ton	6Ton
Engine	Laidong 385	Yanmarengine 3TNV70	Changchai/3TNV88	Yanmar
Power	25HP	26HP	50HP	67HP
Bucket	0.04m³	0.06m³	0.08m³	0.2m³
Digging depth	2000mm	2050mm	2150mm	2460mm
Machine Width	1000mm	1050mm	1200mm	1920mm
