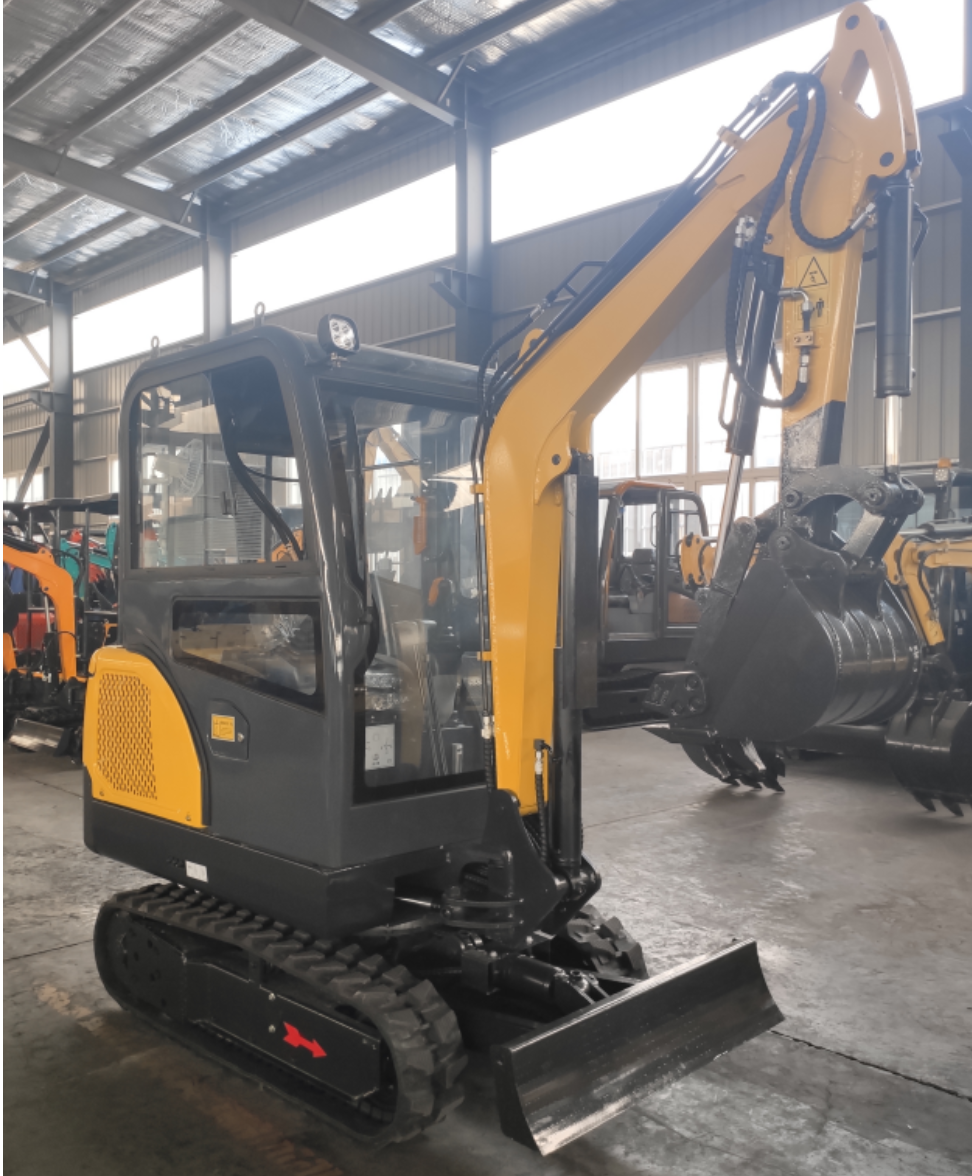

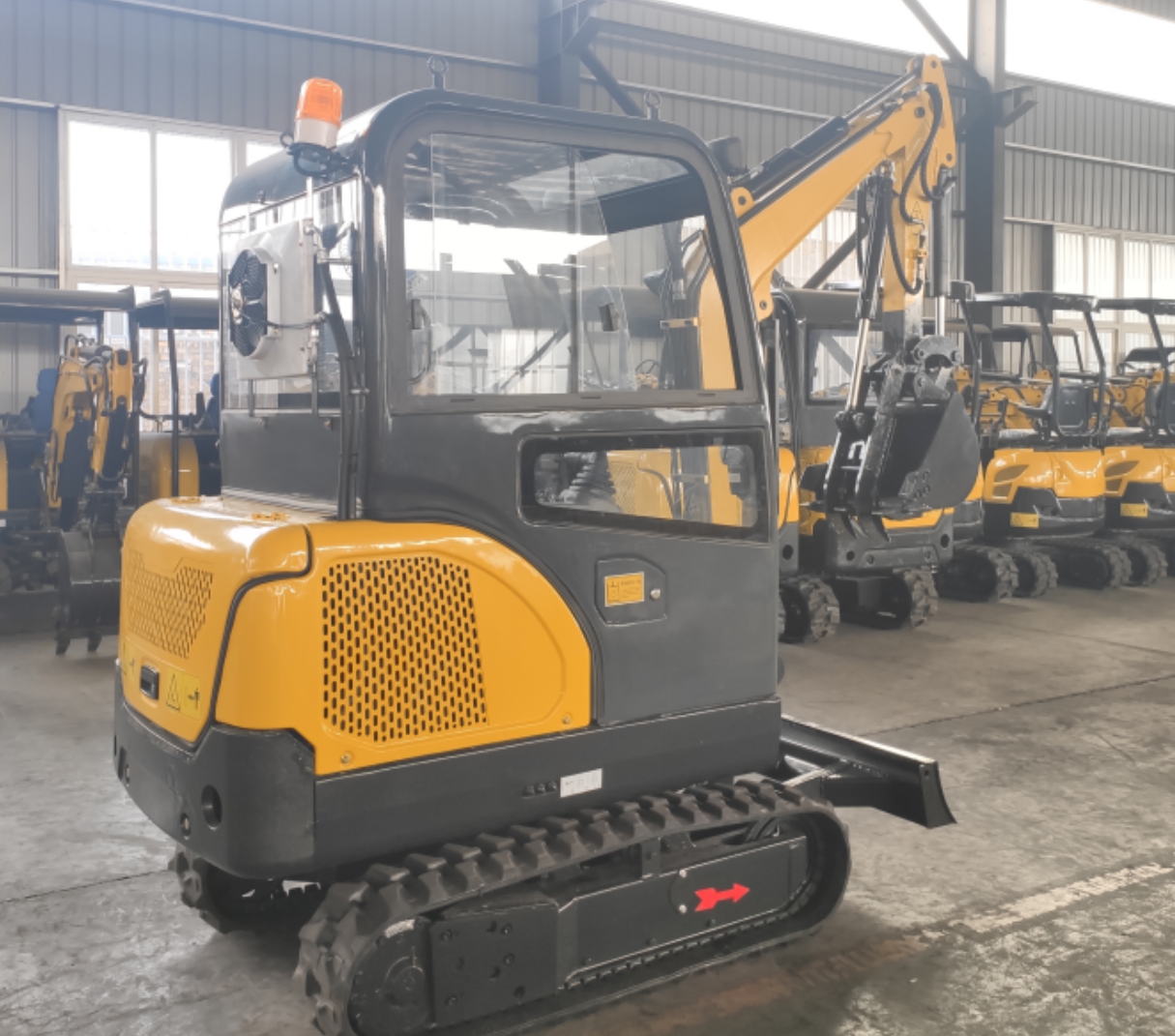

mini excavator with cabin

SKU: HT-868168

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications.

Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.

Configuration catalog:

swing arm,retractable tracks and full hydraulic joystick operating.

NM-E20 Comprehensive parameters
Machine parameters
Machine Total Weight	Kg	1800
Bucket capacity	CBM	0.05
Max dig force	KN	15.2
Swing speed	rpm	9
Walking speed	Km/h	2
Ground pressure	kgf/cm²	38
Fuel tank capacity	L	18
Engine
Model	Kubota	Laidong 385/Yanmar 3TNV88
Power	18.1kw/19.6kw
Type	Diesel oil	Water-cooled inline three-cylinder engine
Hydraulic system(Danfoss)
Maximum flow	L/min	18L
Fixed work stress	MPa	16
Type	Hydraulic pilot control, hydraulic safety lock of the whole machine
Dimensions(Transportation status)
Total length	mm	3714
Total width	mm	1050
Total height	mm	2275
Minimum ground clearance	mm	150
Track width	mm	230
Track length	mm	1450

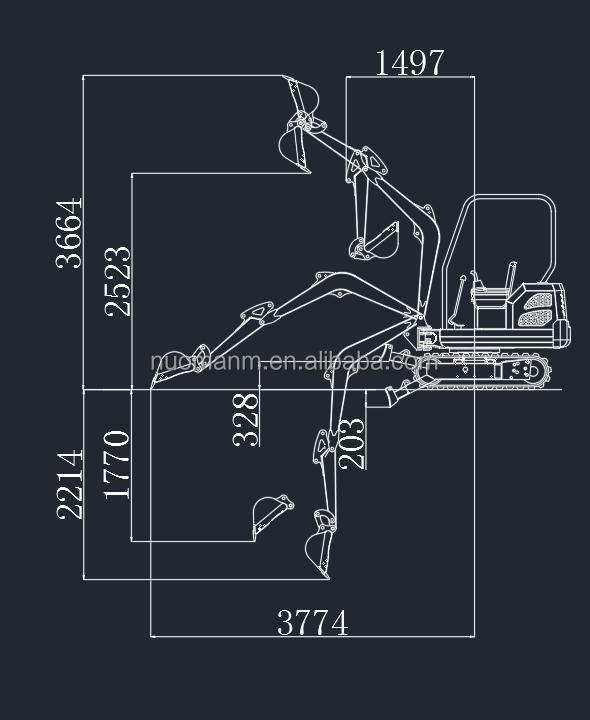

Working Range
Max digging height	mm	3664
Max unload height	mm	2523
Max dig depth	mm	2214
Max dig range	mm	3860
Max dig range on the ground	mm	3660
Boom turn	。	55（left）53（right）

Compact Dimensions

Easy site access

3 cylinder water cooling engine model

Eaton travel motor and hydraulic motor

full hydraulic joystick operating and side swing arm

Main Features

High configuration of mini excavator 1.8 ton

1.    Engine: Kubota D902-EF08(Euro V . EPA)
2.    Hydraulic pump (gear pump) is easy to maintain, long life
3.    Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets

you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean

up.

4. Multiple valves under the operating handle,The benefit of less effort and improved control

is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start

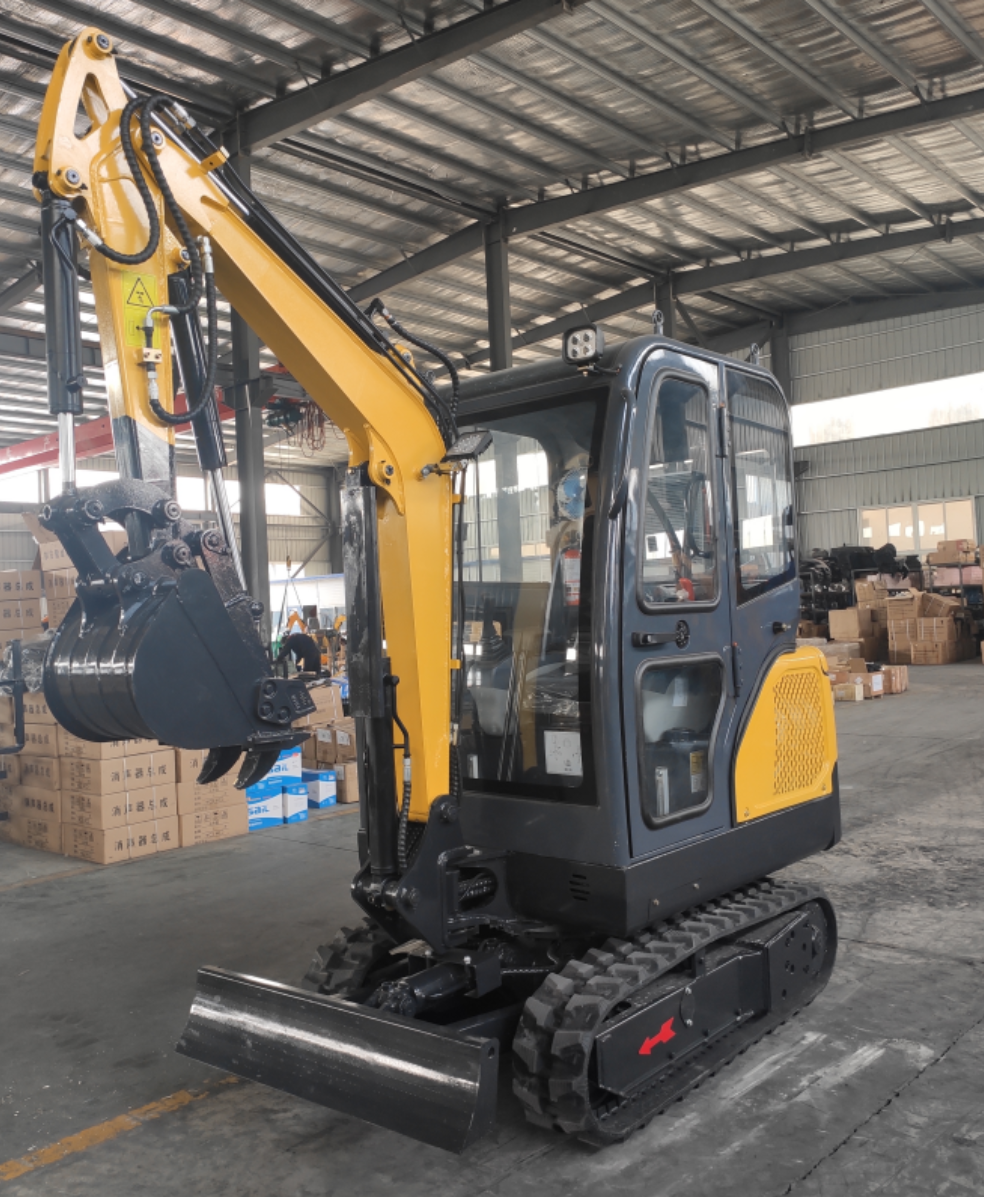

Detailed Images

Tailless operating 2 ton model(New Model)

Optional Attachments

Model	NM-E08	NM-E10	NM-E13	NM-E15
Operating Weight	720kg	900kg	1150kg	1200kg
Engine	KOOP192F	Koop 192F	YouPu 2V80	Kubota D722
Power	10HP	10HP	10.5HP	11HP
Bucket	0.02m³	0.025m³	0.026m³	0.028m³
Digging depth	1200mm	1320mm	1804mm	1810mm
Machine Width	720mm	940mm	960mm	980mm

Model	NM-E17	NM-E20	NM-E30	NM-E60
Operating Weight	1500kg	2000kg	2200kg	6010kg
Engine	Laidong 385	Yanmarengine 3TNV70	Changchai/3TNV88	Yanmarengine
Power	25HP	26HP	26.8HP	48.6HP
Bucket	0.04m³	0.06m³	0.08m³	0.2m³
Digging depth	2000mm	2050mm	2150mm	2460mm
Machine Width	1000mm	1050mm	1200mm	1920mm
