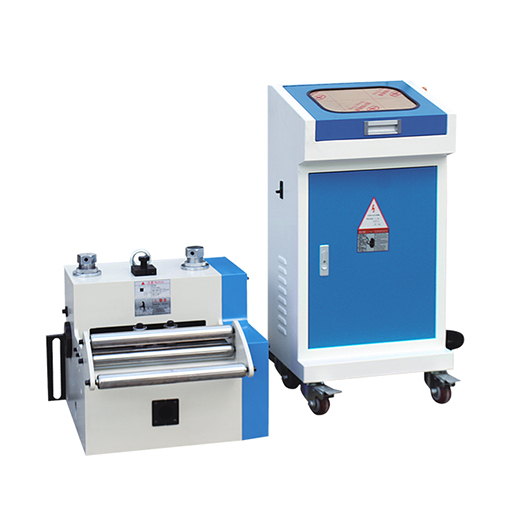

NC Servo Feeder
SKU: HT-263511
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
standard servo roll feeder suitable for most of metal stamping line.ZHESHENG servo roll feeder machine with pneumatic release.Contact us to design a suitable model for you.
Technical Data
| Model | NCFA-400 | NCFA-600 | NCFA-800 | NCFA-1000 | NCFA-1500 |
| Material width | 400 | 600 | 800 | 1000 | 1500 |
| Material thickness | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Standard Type | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feed speed | 20 | 20 | 20 | 20 | 20 |
| Servo motor | 1.8 | 2.9 | 4.4 | 5.5 | 7.5 |
| Pass Line | 150-350 | 150-350 | 150-350 | 150-350 | 150-350 |
| Power supply | 380/200 | 380/200 | 380/200 | 380/200 | 380/200 |
| Operating air | 0.49 | 0.49 | 0.49 | 0.49 | 0.49 |
| Dimesion A*B*C | 700*650*500 | 900*650*500 | 1100*650*500 | 1300*650*500 | 1800*650*500 |
| Release method | Pneumatic | ||||
