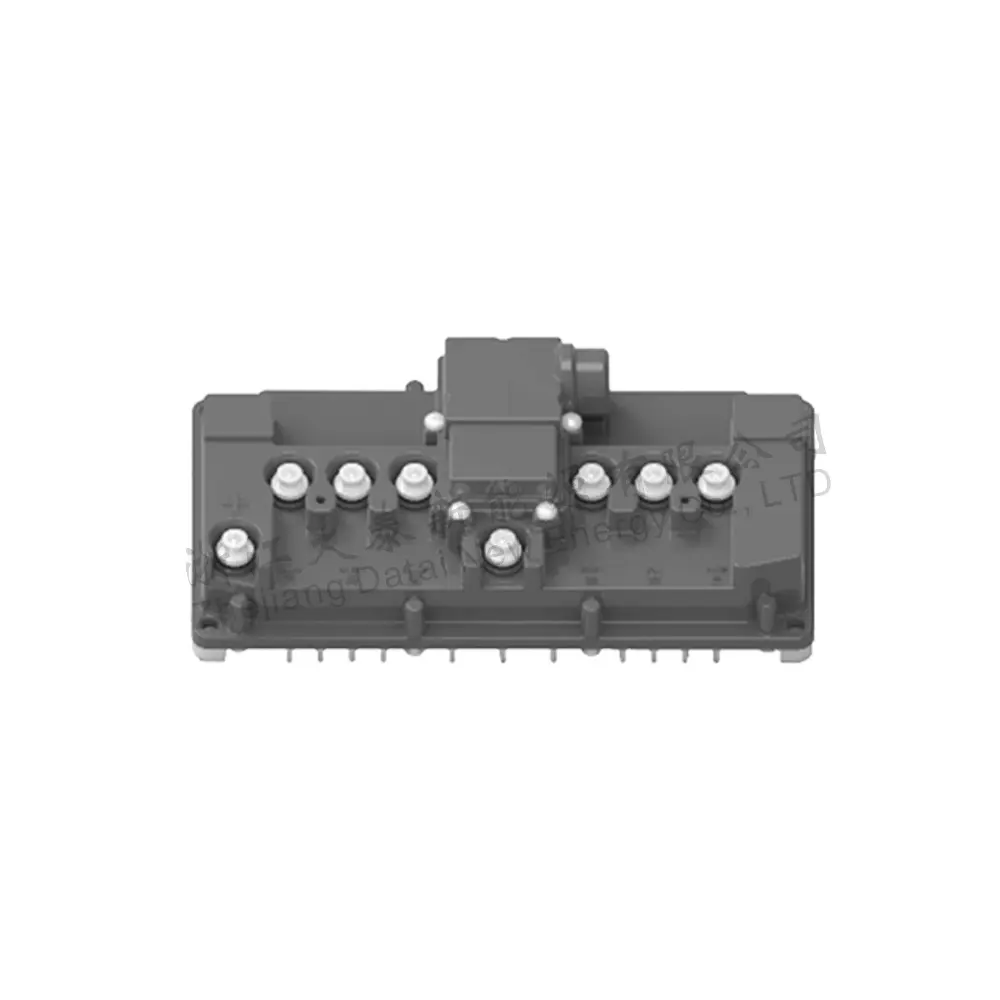

Six-phase controller
SKU: HT-223625
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
|
型号 Type |
72V100A380 |
72V120A430 |
72V120A430 |
|
|
外观尺寸 Dimension |
mm |
L240 W125 H72.3 |
||
|
控制类型 Control type |
外环为转矩闭环控制 The outer loop is torque closed loop control |
|||
|
额定电压 Rated voltage |
V |
72 |
||
|
适用电压 Applicable voltage |
V |
62-96 |
||
|
峰值母线电流 Peak line current |
A |
100 |
110 |
120 |
|
峰值相线电流 Peak phase current |
A |
380 |
430 |
430 |
|
峰值功率 Peak power |
W |
9600 |
10560 |
11520 |
|
峰值效率 Peak efficiency |
≦98% |
|||
|
传感器类型 Sensor type |
霍尔传感器 Hall sensor |
|||
|
冷却方式 Cooling method |
自然风冷 Air cooling |
|||
|
环境温度 Environment temperature |
℃ |
-30~50 |
||
|
过温保护 Overtemperature protection |
℃ |
110 |
||
|
控制器防护等级 Controller protection level |
IP66 |
|||
|
适配接口种类 Interface types |
CAN通讯、485通讯、一线通、模拟仪表等 CAN communication,485 communication, one-line communication,analog instrumentation,etc. |
|||
