Servo Feeder
SKU: HT-263047
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview

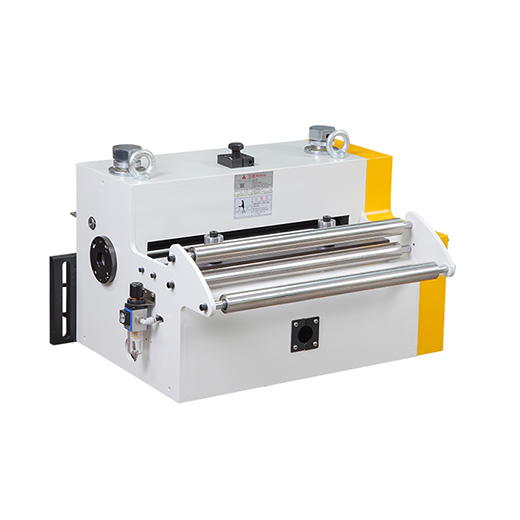

Standard servo roll feeder suitable for most of metal stamping line.ZHESHENG servo roll feeder machine with pneumatic release.Contact us to design a suitable model for you.
Technical Data
| Model | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 |
| Material width | 200 | 300 | 400 | 500 | 600 |
| Material thickness | 0.35-3.2 | 0.35-3.2 | 0.35-3.2 | 0.35-3.2 | 0.35-3.2 |
| Standard Type | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feed speed | 20 | 20 | 20 | 20 | 20 |
| Servo motor | 1 | 1/1.5 | 1/1.5 | 1.5/2 | 2/3 |
| Pass Line | 120-280 | 120-280 | 120-280 | 120-280 | 120-280 |
| Power supply | 380/200 | 380/200 | 380/200 | 380/200 | 380/200 |
| Dimesion A*B*C | 500*650*480 | 600*650*480 | 700*650*480 | 800*650*480 | 900*650*480 |
| Release method | Pneumatic/Mechanical | ||||
