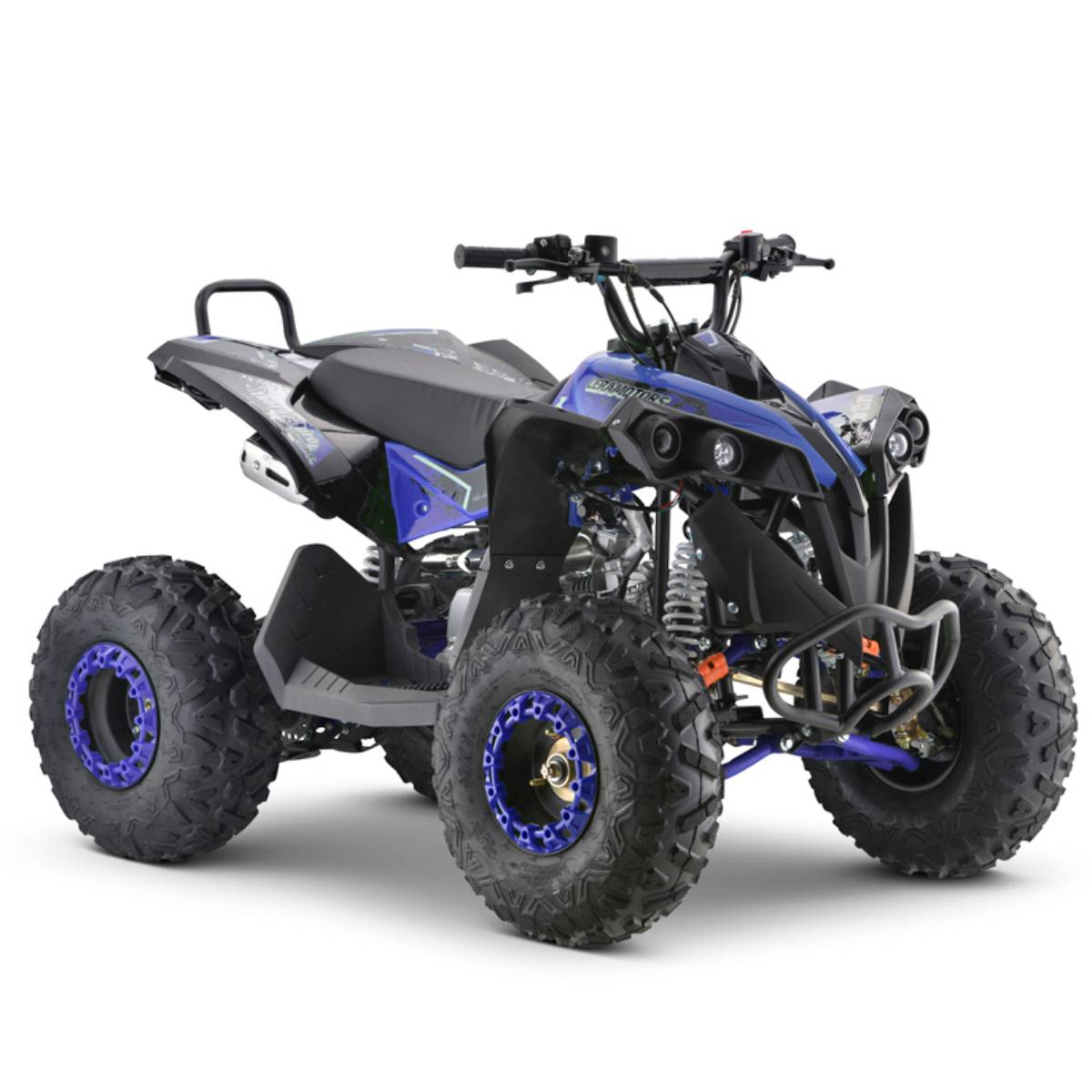

Quad-125cc new design

SKU: HT-935639

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

ENGINE	Cylinders Displacement	125cc
	Cooling	Air
	Engine Type	4-Stroke Single Cylinder
	Start Type	Electric Start
	Tranmission	Automatic/Semi-automatic
	Engine Gear	F-N-R
	Shift Gear	Foot
	Max Torque	8.5 N.m/5000 r/min
	Ignition	CDI
	Fuel Tank Capacity	0.66 Gal (2.5 L)
SPECIFICATIONS	Front Brakes	Hydraulic Disc, 1 Per Wheel
	Rear Brakes	Hydraulic Disc, Axel Mounted
	Parking Brakes	Handle Bar Mounted, Mechanical Locking
	Front Tires	19x7, R8
	Rear Tires	18x9.5, R8
	Wheelbase	39.96 in (101.5 cm)
	Front Suspension	13.77 in (35 cm)
	Rear Suspension	11.22 in (28.5 cm)
	Speed Limiter	Yes. The speed limiter may be adjusted by supervising adults when they determine that their child is capable of handling additional speed.
	Tether (Engine Kill Switch)	Yes
	Lighting	LED Running Lights
	Battery	12 V, 5 Ah
DIMENSION	Gross Weight	148kg
	Net Weight	118kg
	Max Loading	82 kg
	Overall Vehicle Size	60.24 x 36.61 x 37.40 in (153 x 93 x 95 cm)
	Seat Height	28.15 in (71.5 cm)
	Ground Clearance	5.31 in (13.5 cm)
