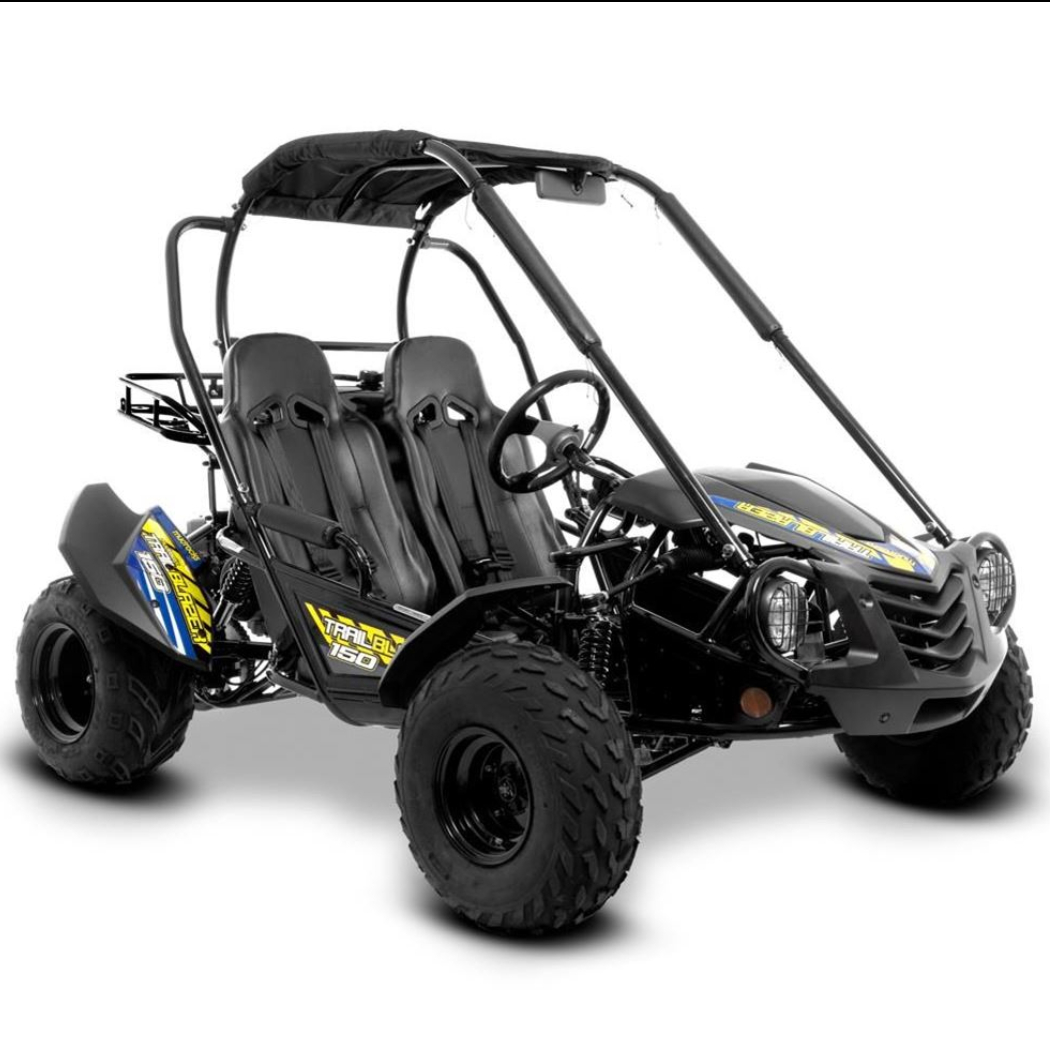

MUD 200 MAX PLUS
SKU: HT-935356
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
| Engine Information | Engine type | 4-stroke, single cylinder, air cooled |
| Displacement | 169cc | |
| Output Max. | 7.6KW/7000rpm | |
| Max torque | 11N.m/6000rpm | |
| Bore x stroke | 61.0*57.8mm | |
| Max speed | 70KM/H | |
| Climbing ability | 12 degrees (12º) | |
| Ignition | C.D.I | |
| Starting system | Electric Start | |
| Battery | 12V 10Ah | |
| Carburetor brand | Deli(Vacuum film) | |
| Engine oil | SAE 15W/40 |
| General Information | Clutch | Automatic CTV with reverse |
| Driveline / Driving wheel | Chain / Dual wheel drive | |
| Suspension, F / R | Dual A-arm / swing-arm | |
| Brakes, F / R | Both hydraulic brakes, Disc | |
| Tires, F / R | 20 x 7-8 / 22 x 10-10 | |
| Fuel capacity | 2.25 gal (8.516L) | |
| Weight, G.W. / N.W. | 292/243KG | |
| Max load | 500 lbs (227KG) |
| Dimension Information | Wheelbase | 61 inches (1.55m) |
| Height to seat | 13.8 inches (35.05cm) | |
| Min. ground clearance | 6.7 inches (17.02cm) | |
| Pedal to seat back | 36.3 to 42 inches 92～106 cm | |
| Shipping information | 36units / 40HQ |

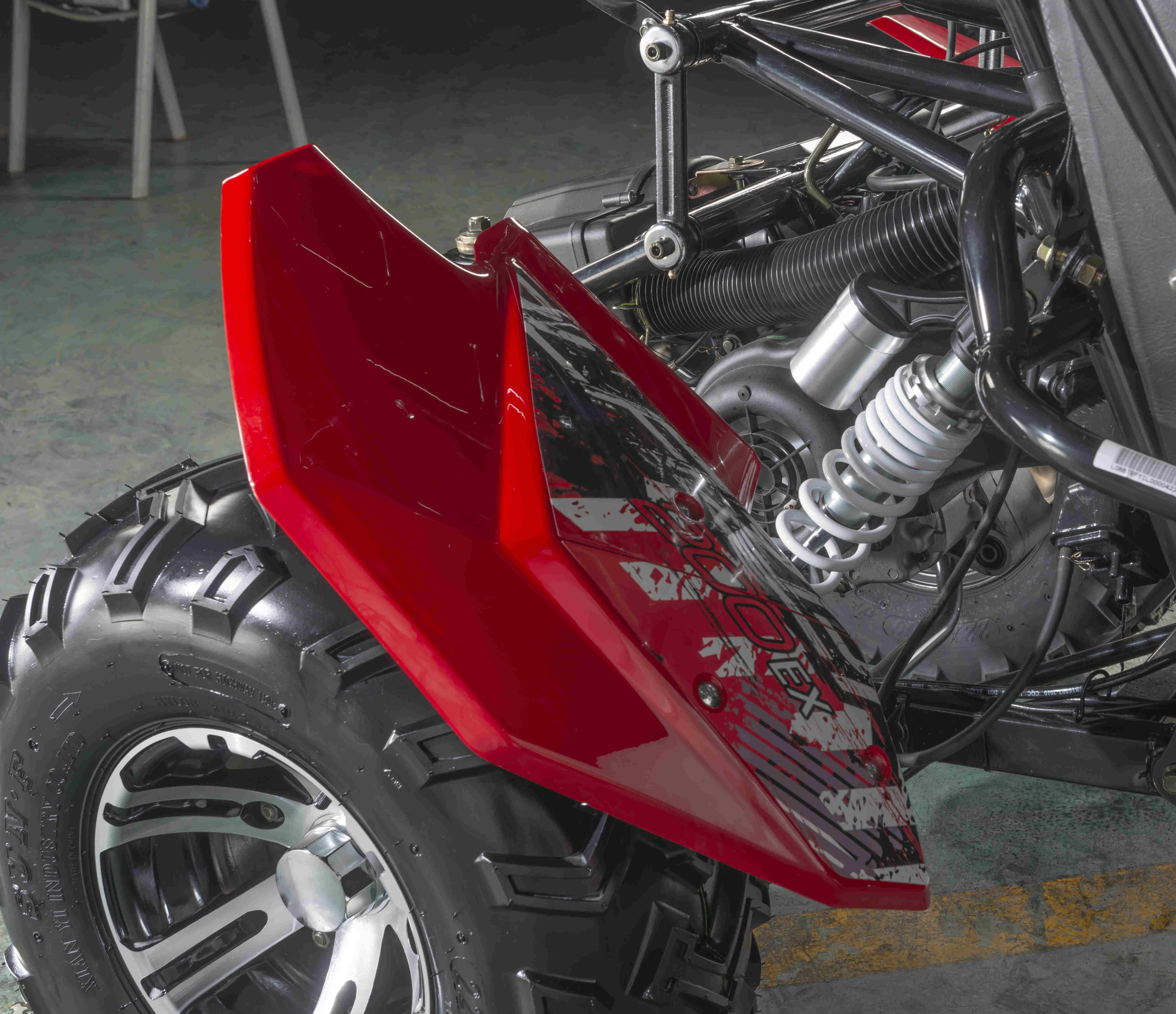

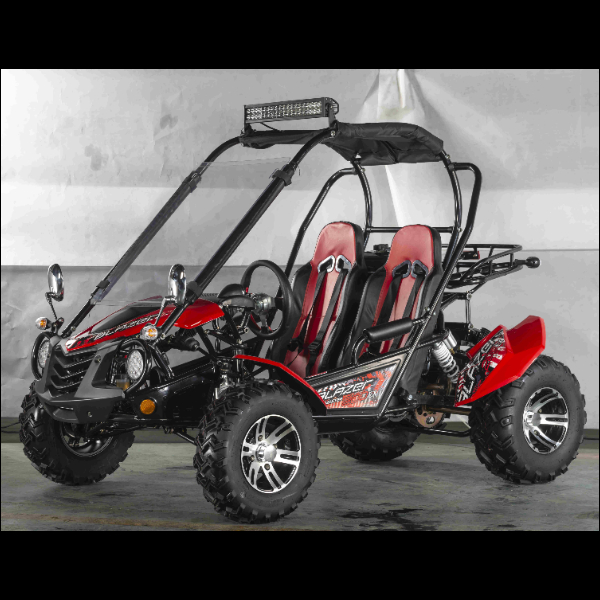

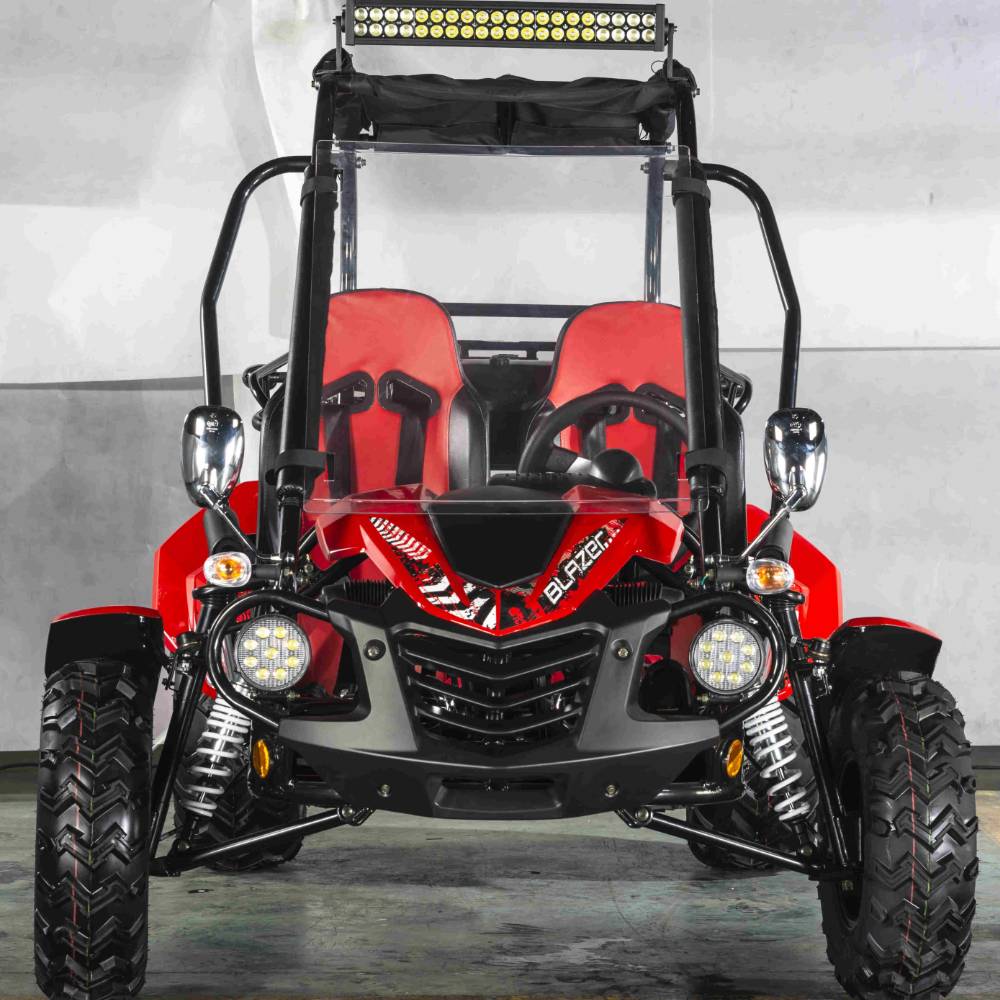

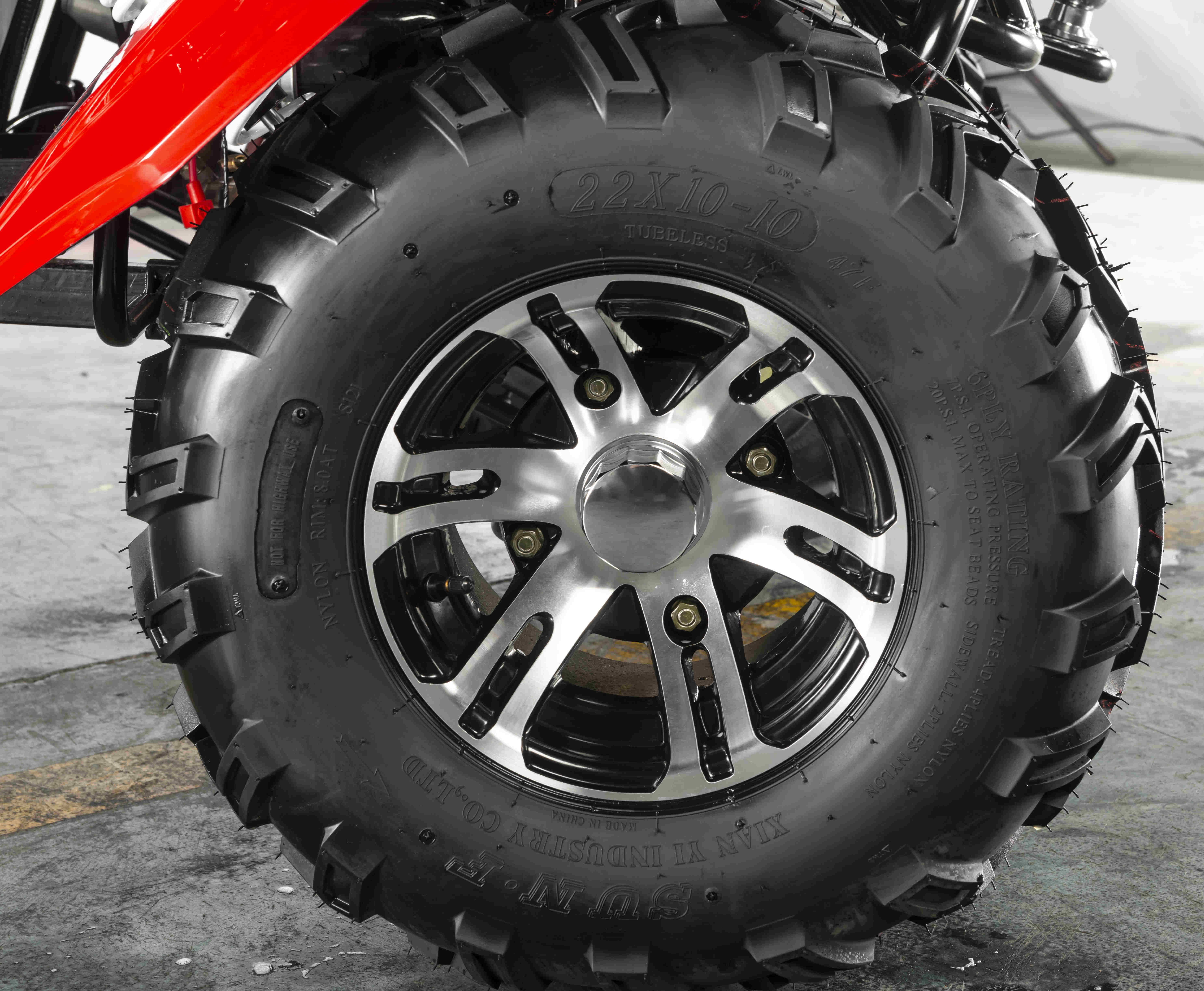

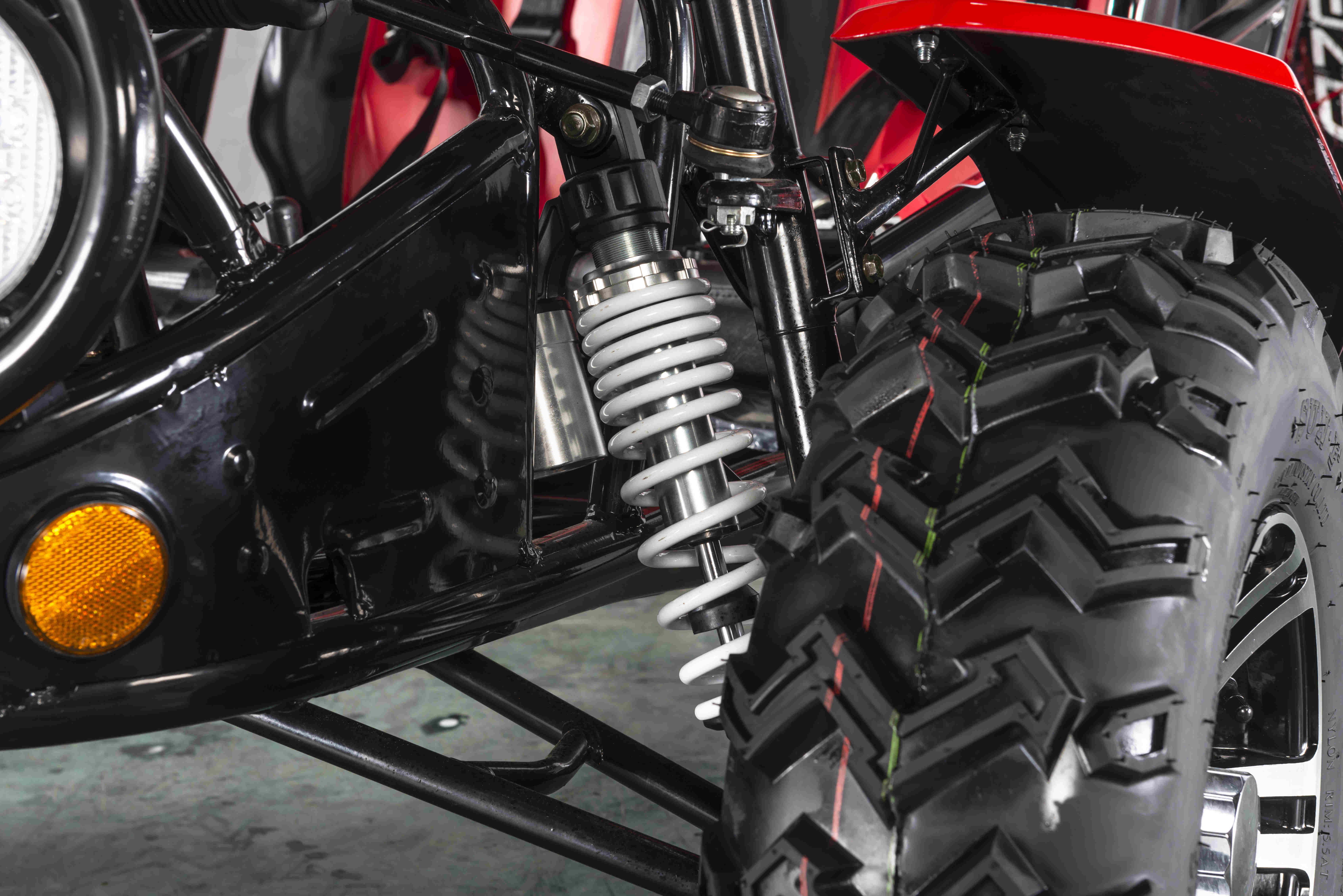

DETAIL IMAGES
 |
 |
 |
