HKIVI BMS 1A Smart Active Balance Bms 4S 8S 12V 24V Lifepo4 Li-Ion Battery management system Support Heating FunctionS

HKIVI-SP08S004 is an intelligent protection board solution specially designed for power batteries, electric bicycles, electric motorcycles and other 7-10 series battery packs. It is suitable for lithium batteries with different chemical properties such as lithium ions, lithium polymers, lithium batteries, etc. . The protective board has a strong load-bearing capacity, and the maximum continuous discharge current can reach 150A.

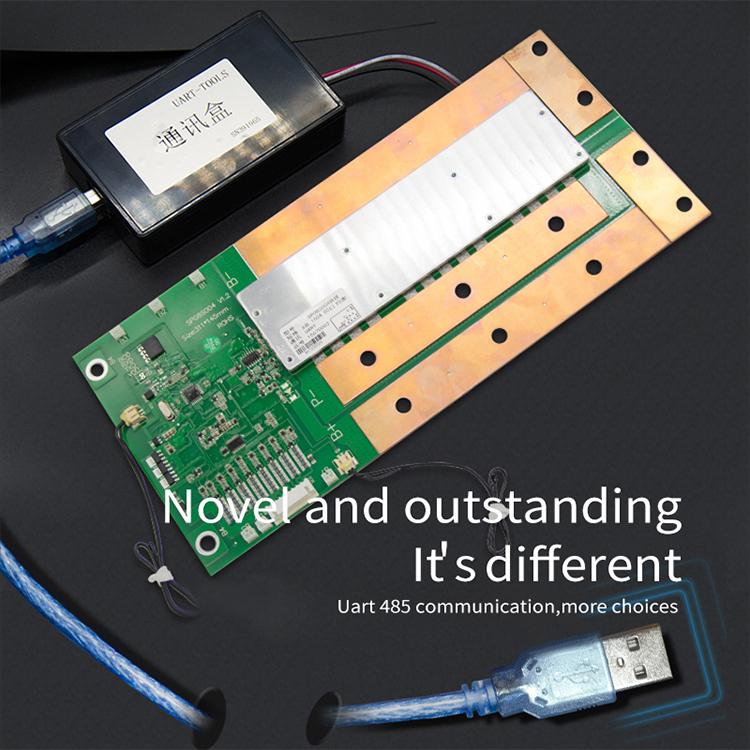

● 8 cores in series protection ● Multiple charging and discharging protection functions ● Hardware discharge over-current, short-circuit protection function process ● Software over-voltage, under-voltage, temperature and overload protection function processing ● Precise SOC calculation with auto SOC learning function ● Serial port communication ● RS485 communication function is reserved, which can read all the data of the battery in real time and update online ● Hardware discharge over-current, short-circuit protection function processing ● The reserved switch controls the output of the protection board

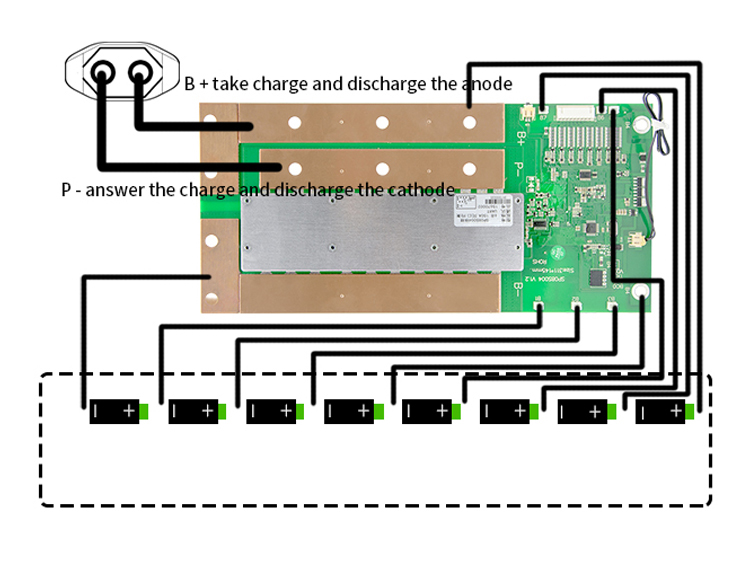

Same port BMS, 5 step wiring method

Only one string number connection method is taken as an example, and the same
