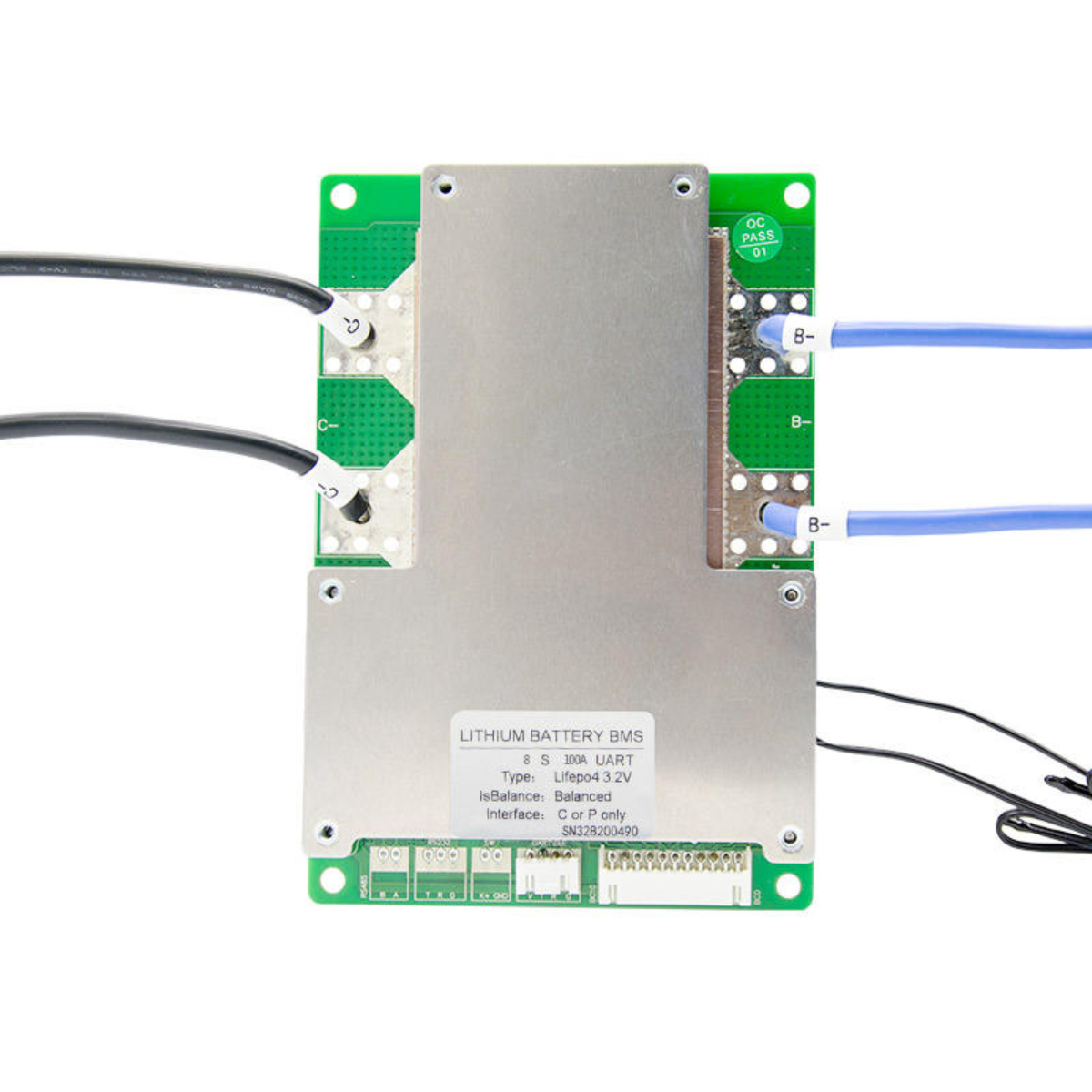

Hkivi 4S 8S 16S BMS RS485 CANBUS Smart 40ah 50ah 60ah 100ah BMS for lifeo4 Li-ion Battery Pack

HKIVI-SP10S009 is a smart protection board solution specially designed for 6-10 series battery packs of electric vehicles, AGV and other products. Suitable for lithium batteries with different chemical properties such as lithium ion, lithium polymer, lithium iron phosphate, etc. The protective board has a strong load-bearing capacity, and the maximum continuous discharge current can reach 100A.

● 10-cell battery series protection ● Multiple charging and discharging protection functions ● Hardware discharge over-current and short-circuit protection function process ● Software handling overvoltage, undervoltage, temperature and overload protection functions ● Precise SOC calculation with auto SOC learning function ● RS232 and UART communication reserved ● UART communication function, which can read all battery data in real time and update online ● Hardware discharge over-current and short-circuit protection function processing

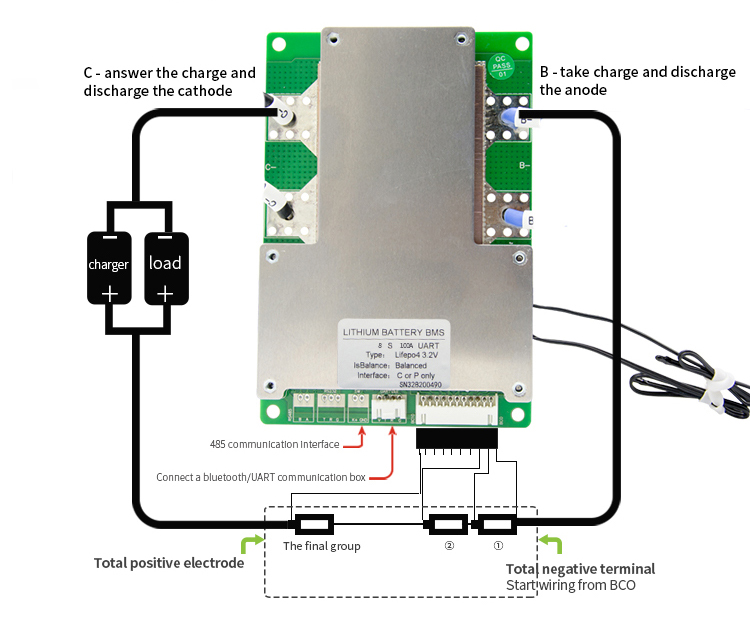

Same port BMS, 6 step wiring method

Only one string number connection method is taken as an example, and the same
