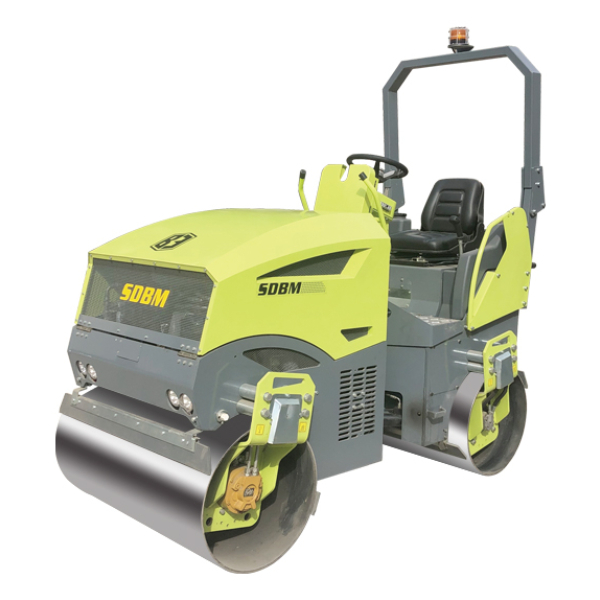

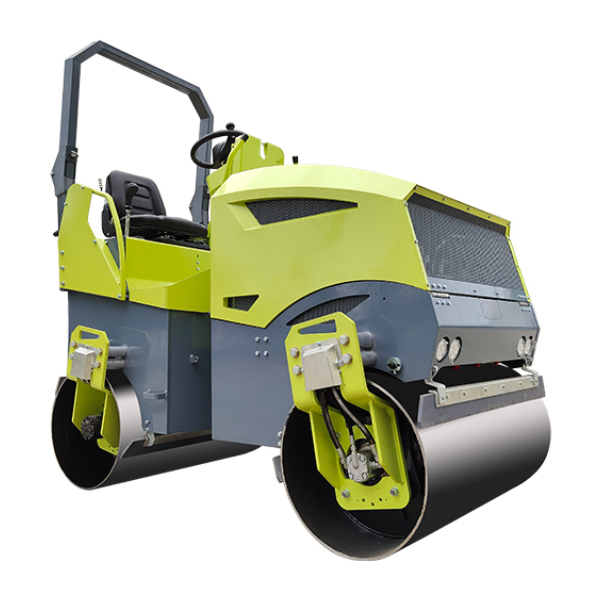

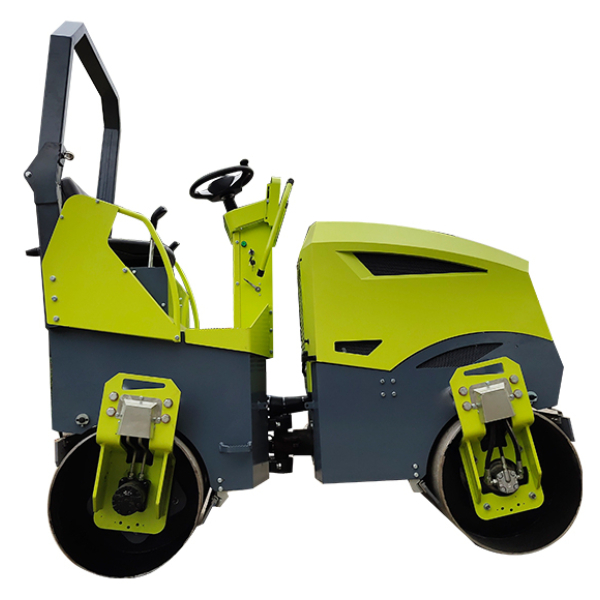

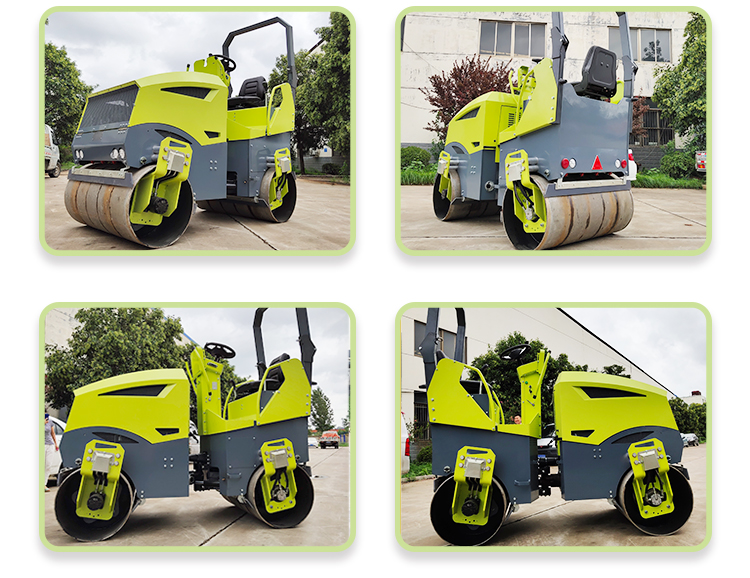

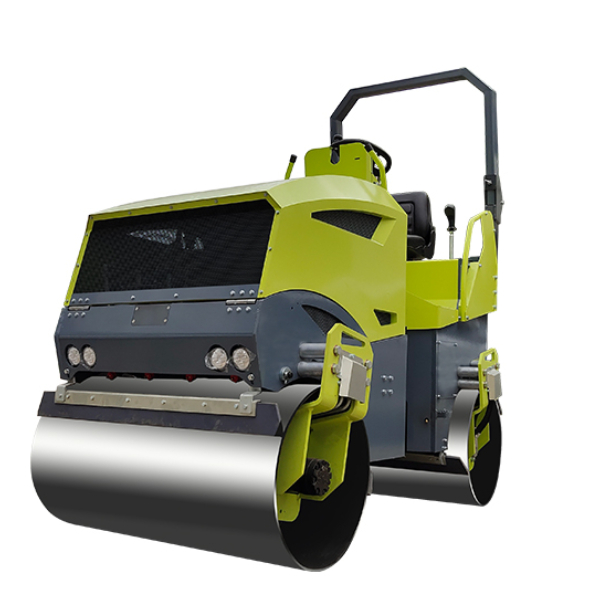

SDBM 3000KG compactors roller brands vibrating roller asphalt roller
SKU: HT-528899
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
BM3000

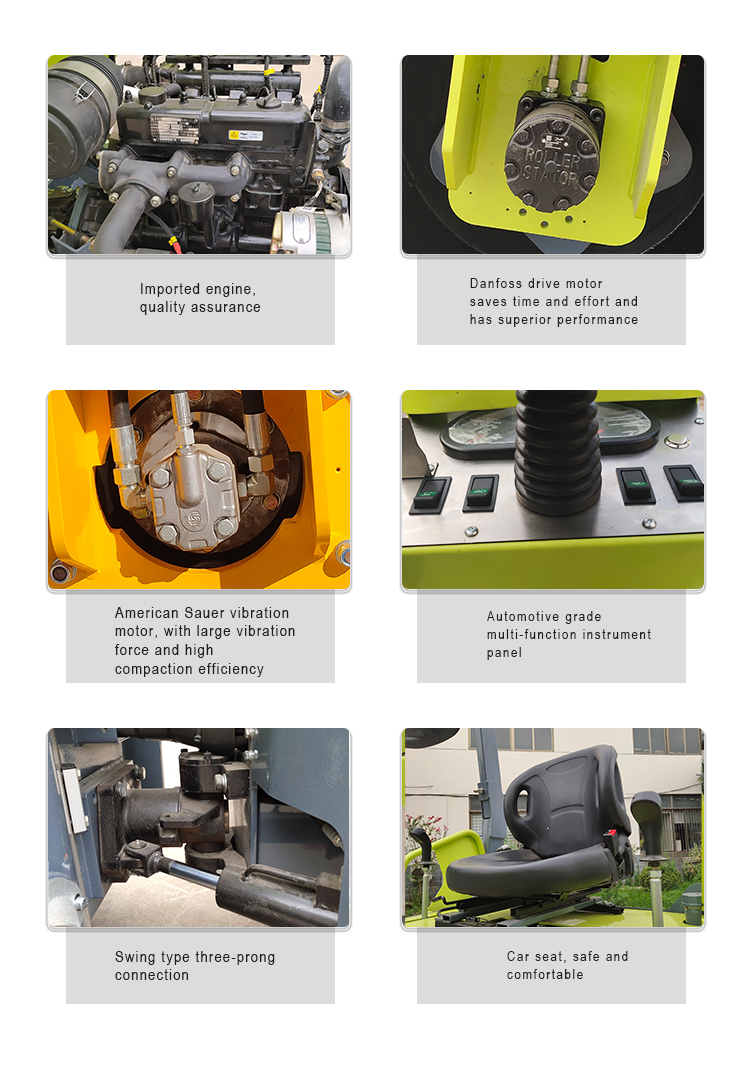

Standard:
A):Changchai/Yanmar diesel Engine optional
B):Italian Hansa Variable Piston Pump
C):American Danfoss Driving Motor
D):American Sauer Vibrating Motor
E):Electric Intermittent Spraying Systerm
F):Plastic Water Tank
| Model | BM3000 |
| WEIGHT | |
| Operating weight | 3000kg |
| Static line load | 106/94 n/cm |
| DIMENSIONS | |
| Working width | 1355mm |
| Overall length | 2400mm |
| Overall height with ROPS | 2630mm |
| Turning radius(inner/outer) | 2405/3760mm |
| Drum width |
1200mm |
| Drum diameter |
630mm |
| Wheel base |
1650mm |
| DRIV |
|
| Engine |
Changchai ZN390B/ Yanmar 3TN88 |
| Type |
Three cylinder, water-cooled, four-stroke, diesel engine |
| Output power |
28.5kw |
| Rated speed |
2600rpm |
| Electric equipment |
12V |
| Drive mode | Variable displacement piston pump with infinitely variable speed, two-wheel drive motor in parallel |
| Walking speed |
0-10km/h |
| Climbing ability (vibration on/off) |
30%/ 35% |
| BRAKES |
|
| Working brake |
Variable displacement pump |
| STEERING | |
| Steering method | Hydraulic Cylinder, Articulated Steering |
| Steering system | Swing articulated |
| EXCITING SYSTEM |
|
| Vibration drum |
Front/ front + rear |
| Driving form |
Hydraulic motor |
| Vibration frequency |
65hz |
| Amplitude |
0.5mm |
| Exciting force | 35kn/ 2*35kn |
| SPRINKLER SYSTEM | |
| Sprinkling type | intermittent pressure spray |
| CAPACITY | |
| Hydraulic oil tank | 46L |
| Fuel tank |
42L |
| Water tank |
140L |
