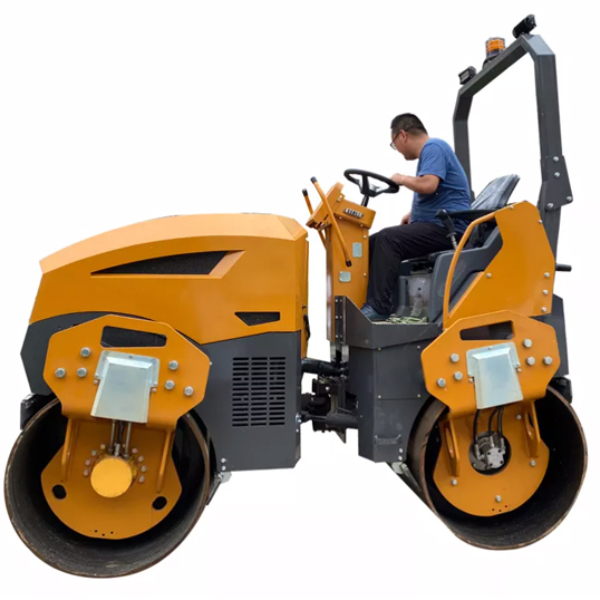

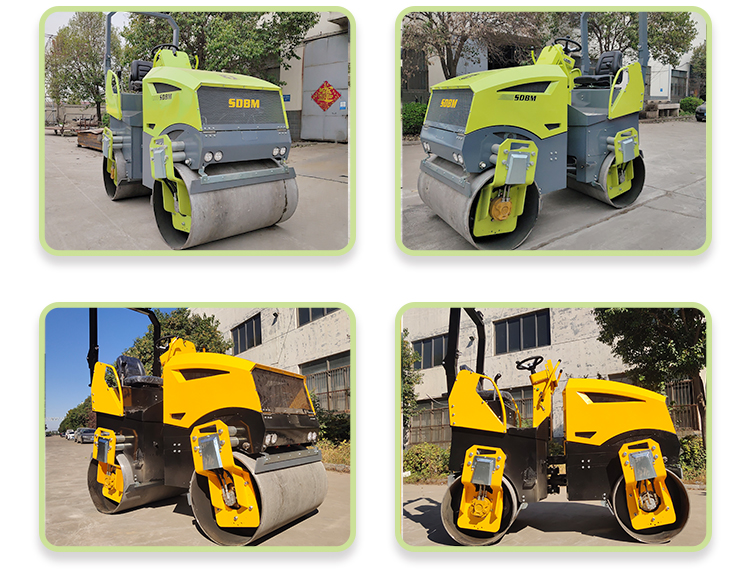

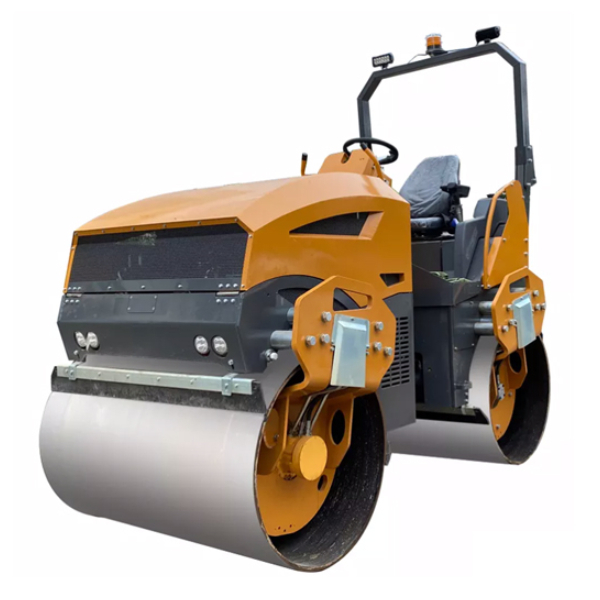

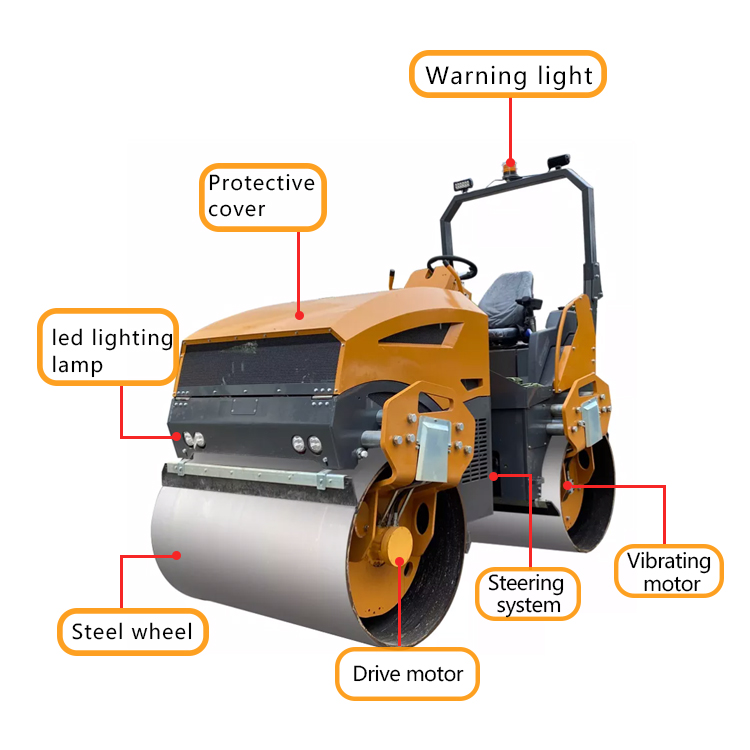

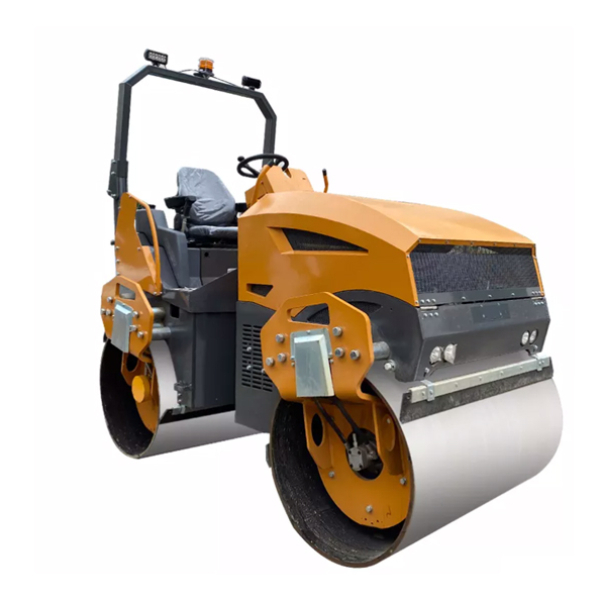

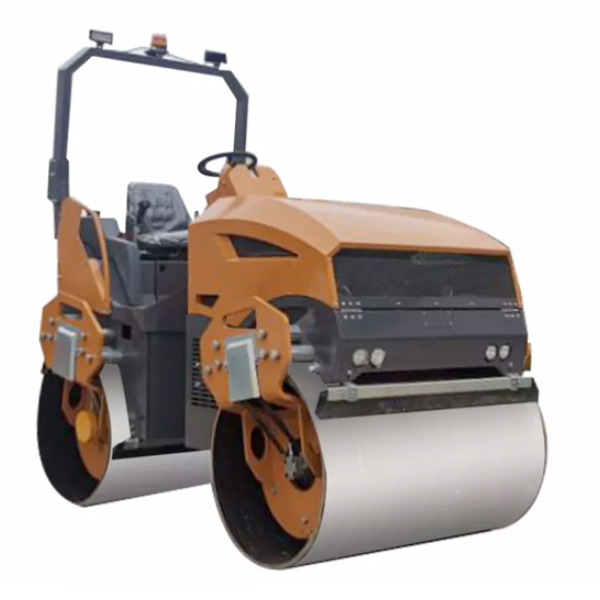

SDBM 5000KG compactors roller brands vibrating roller asphalt roller
SKU: HT-217328
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
| ITEM NO/DETAILS | BM5000 | ||
| ENGINE | |||
| Engine | CHANGCHAI ZN490B/YANMAR 4TNV88/KUBOTA V2403 | ||
| Engine type | 4 cylinders, water-cooled, four-stroke, diesel | ||
| Number of cylinders | 4 | ||
| Output power (KW) | 36/34.5/33.6 | ||
| Rating speed(RPM) | 2400 | ||
| Fuel consupmtion(G/KWH) | 255/261/255 | ||
| Lubricating oil volume(L) | 6.5/7.4/9.5 | ||
| DRIVING | |||
| Electrical equipment(V) | 12 | ||
| Drive mode | Variable displacement piston pump, stepless speed change, double-wheel drive, motor in parallel | ||
| Walking speed (KM/H) | 0--12 | ||
| Theoretical climbing ability(%) | 35/40(vibration on/off) | ||
| STEERING | |||
| Swing angle(°) | 30 | ||
| Steering mode | Hydraulic cylinder, articulated steering | ||
| Steering system | Swing articulated | ||
| EXCITING SYSTEM | |||
| Vibration wheel | Front+Rear | ||
| Drive form | Hydraulic Motors | ||
| Vibration frequency (HZ) | 50 | ||
| Vibration amplitude (MM) | 0.5 | ||
| Exciting force(KN) | 45*2 | ||
| SPRINKLING SYSTEM | |||
| Water spray form | Intermittent pressure water spray | ||
| CAPACITY | |||
| Drum lubricating oil capacity(L) | 9.8*2 | ||
| Hydraulic oil capacity(L) | 60 | ||
| Fuel capacity(L) | 44.5 | ||
| Water tank capacity (L) | 180 | ||
| SIZE | |||
| Working width(MM) | 1580 | ||
| Overall length(MM) | 2850 | ||
| Machine height(MM) | 2680 | ||
| Turning radius(outer)(MM) | 4380 | ||
| Ground clearance(MM) | 445 | ||
| Wheel track(MM) | 1950 | ||
| Drum size | 900*1400mm*2 | ||
| Drum thickness(MM) | 20 | ||
| Wheel offset(MM) | 50 | ||
| WEIGHT | |||
| Working weight(KG) | 5000 | ||
| Static load(N/CM) | 155 | ||
