FREE SHIPPING small digger

SKU: HT-867887

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

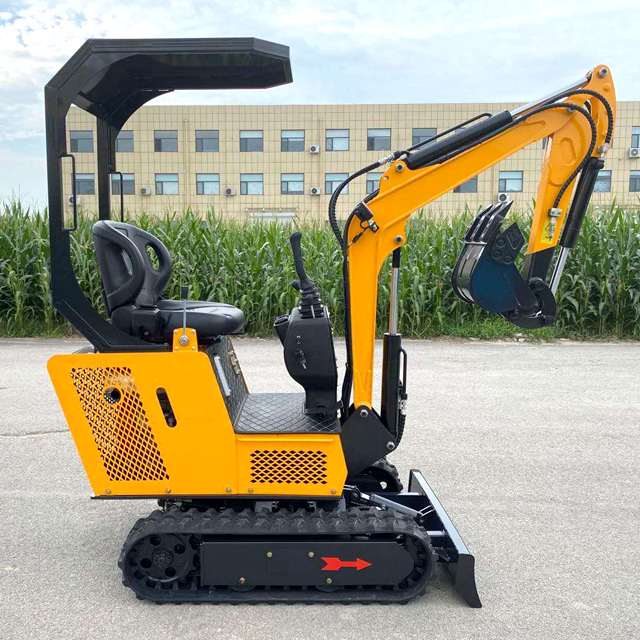

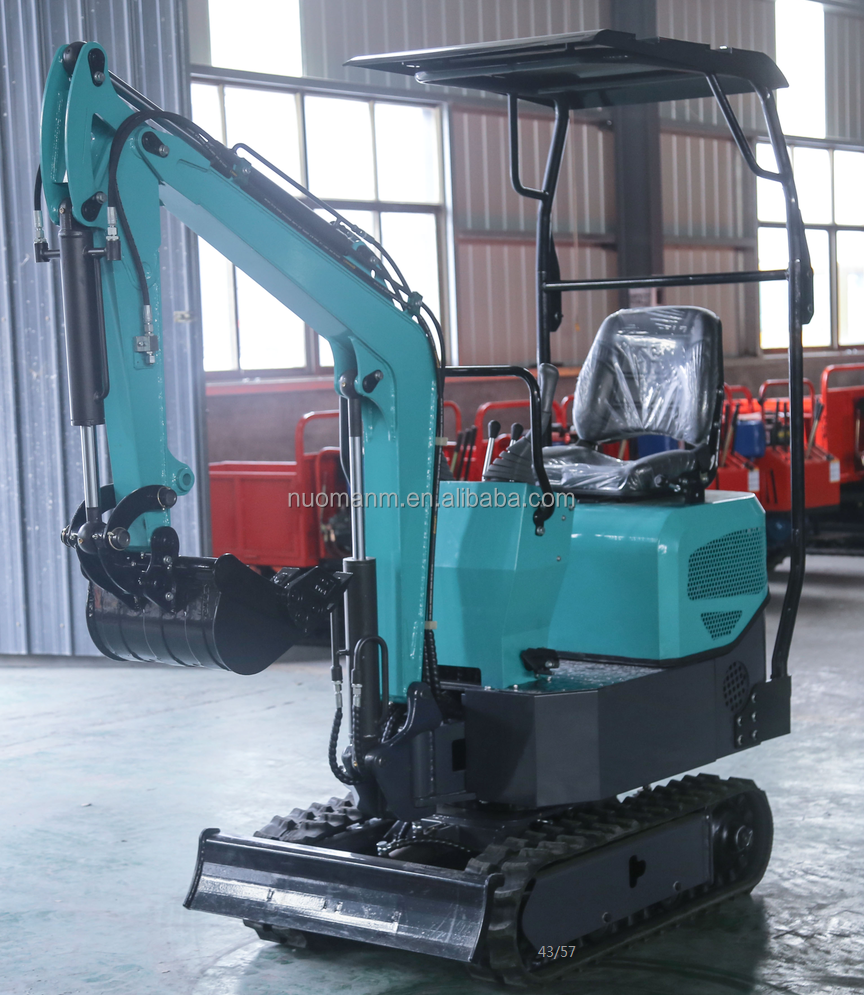

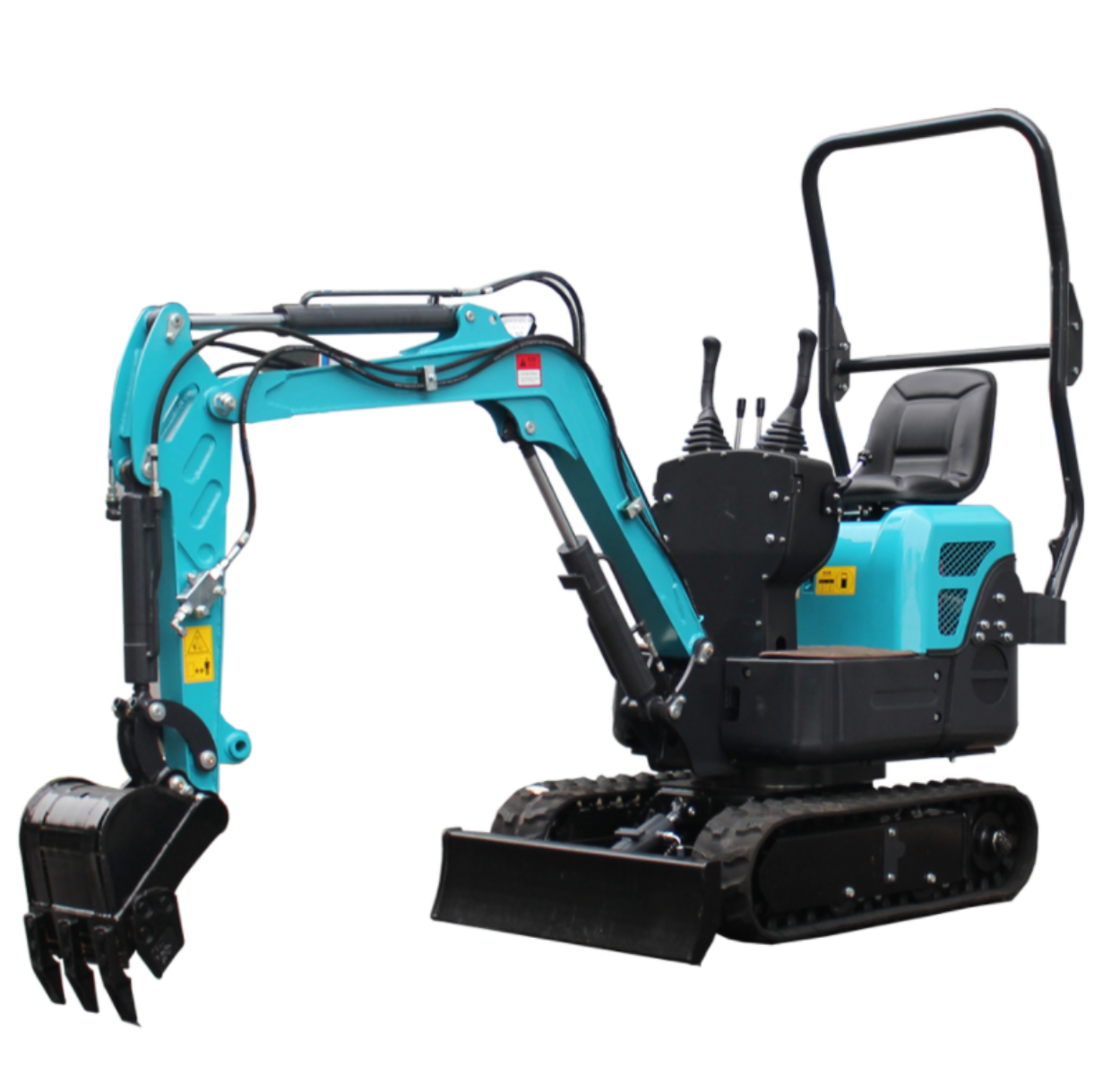

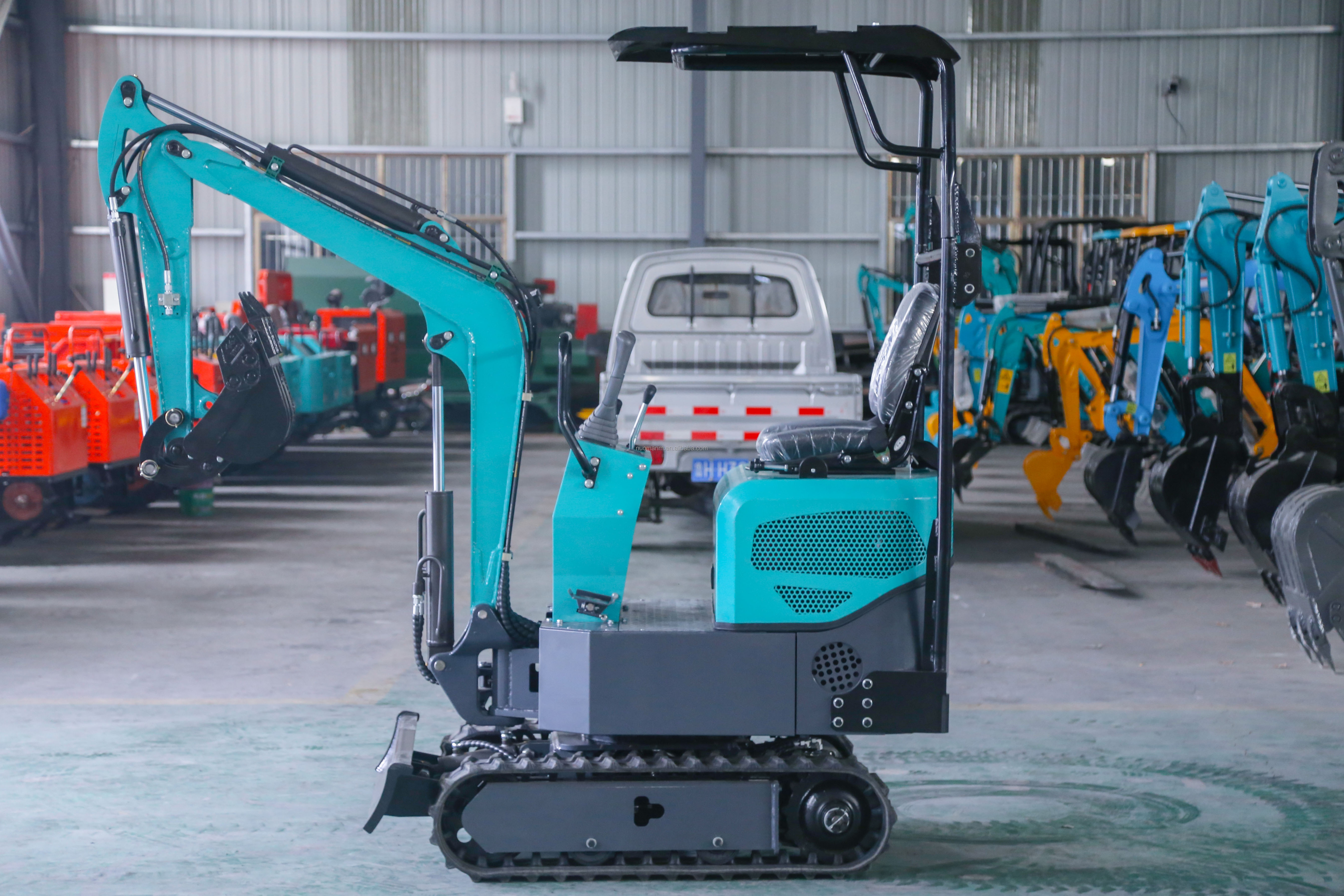

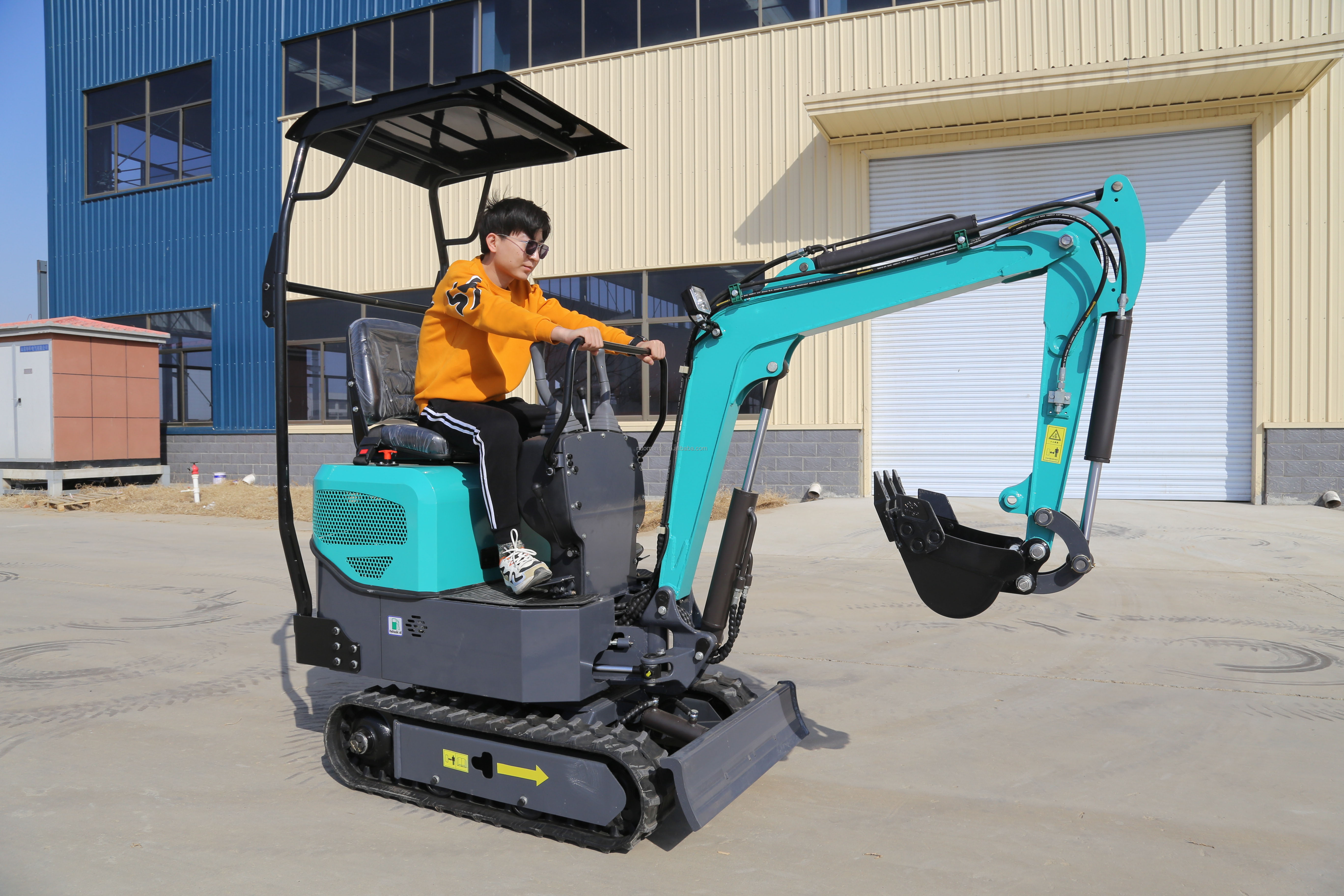

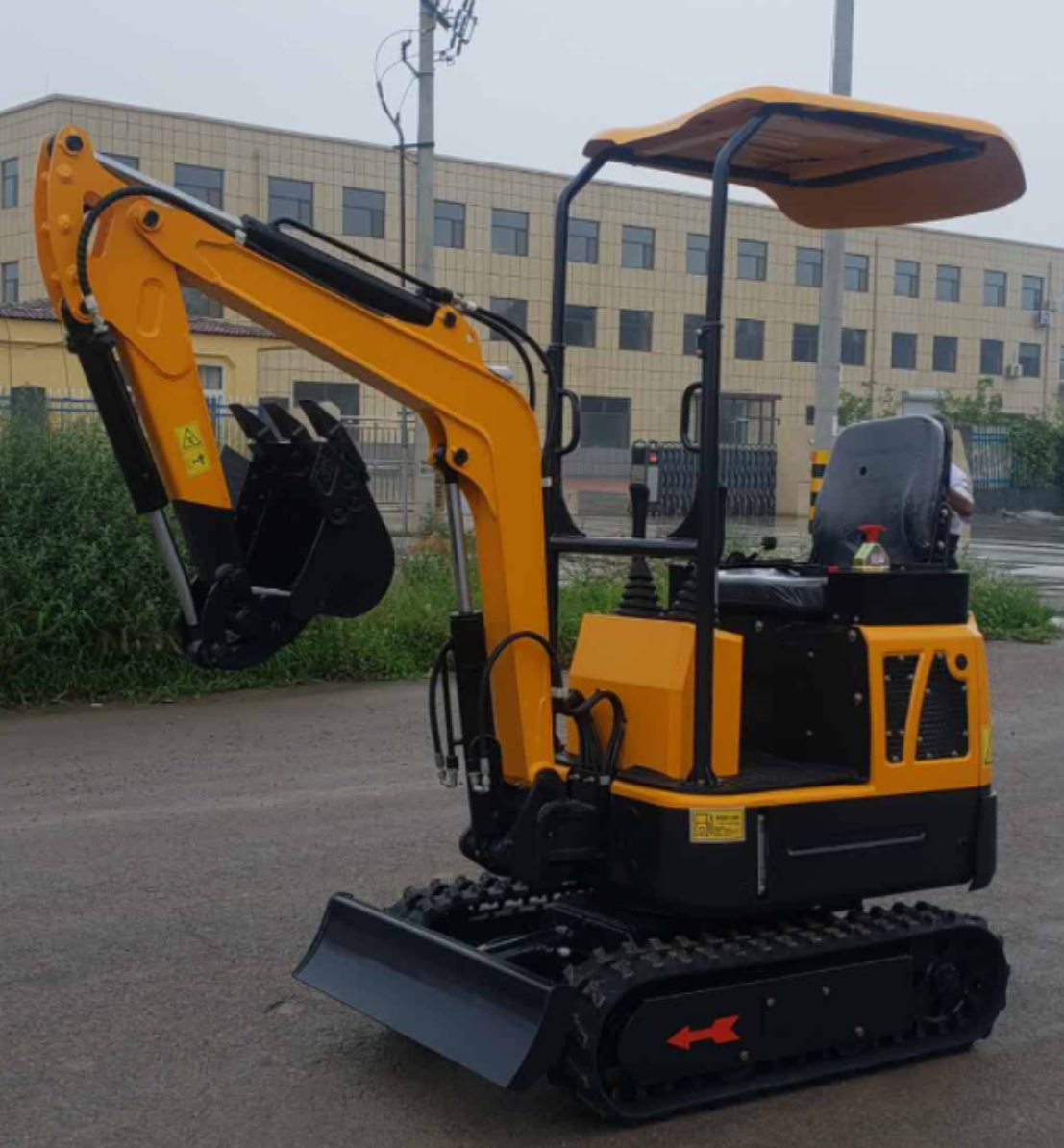

Mini hydraulic excavator

NM-E10 Family

model	NM-E10
Vehicle weight	920kg	Digging Force	10KN
Standard shovel capacity	0.022-0.045m³	Swing(optinal)	75° left / 45° right
Working device form	Backhoe	Pumps	Gear pump
Rated power	7.62kw	Ground pressure	0.35MPa
Wheelbase	770mm	track width	180mm
Caterpillar chief	1090mm	Minimum radius of revolution(front)	1190mm
Platform clearance	370mm	Maximum lift height of earth shovel	325mm
width of bulldozer	860mm	Maximum digging depth of earth shovel	190mm
Emgine Model	KP-192FA	Swing speed	1.1R/MIN
Cooling	Air-cooling	Fuel Tank	5.5L

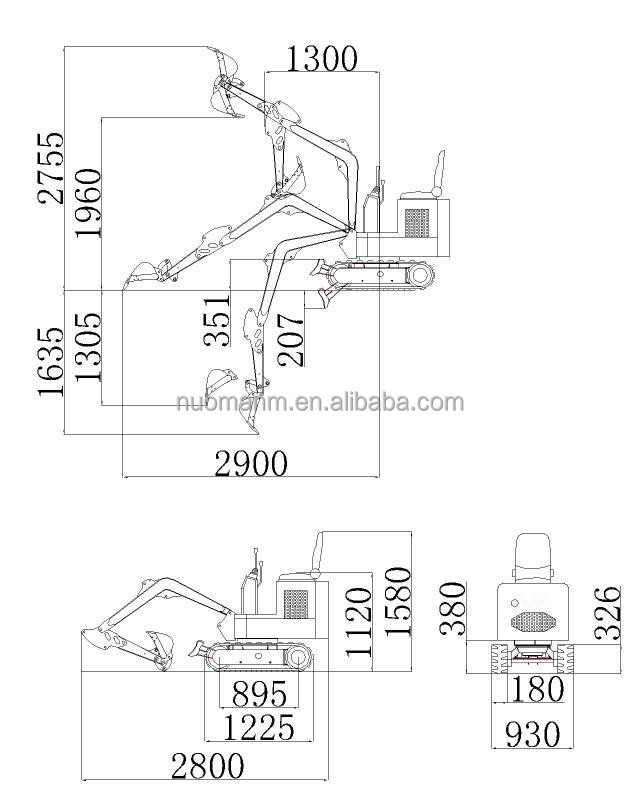

Compact Dimensions

With an overall width of only 860mm the NM-E10 Pro can easily drive through narrow passages and
doors. Both indoor and outdoor jobs
are now accessible with the under
1000 kg (2,205 lb) weight making easy
trailer transportation between sites
possible.

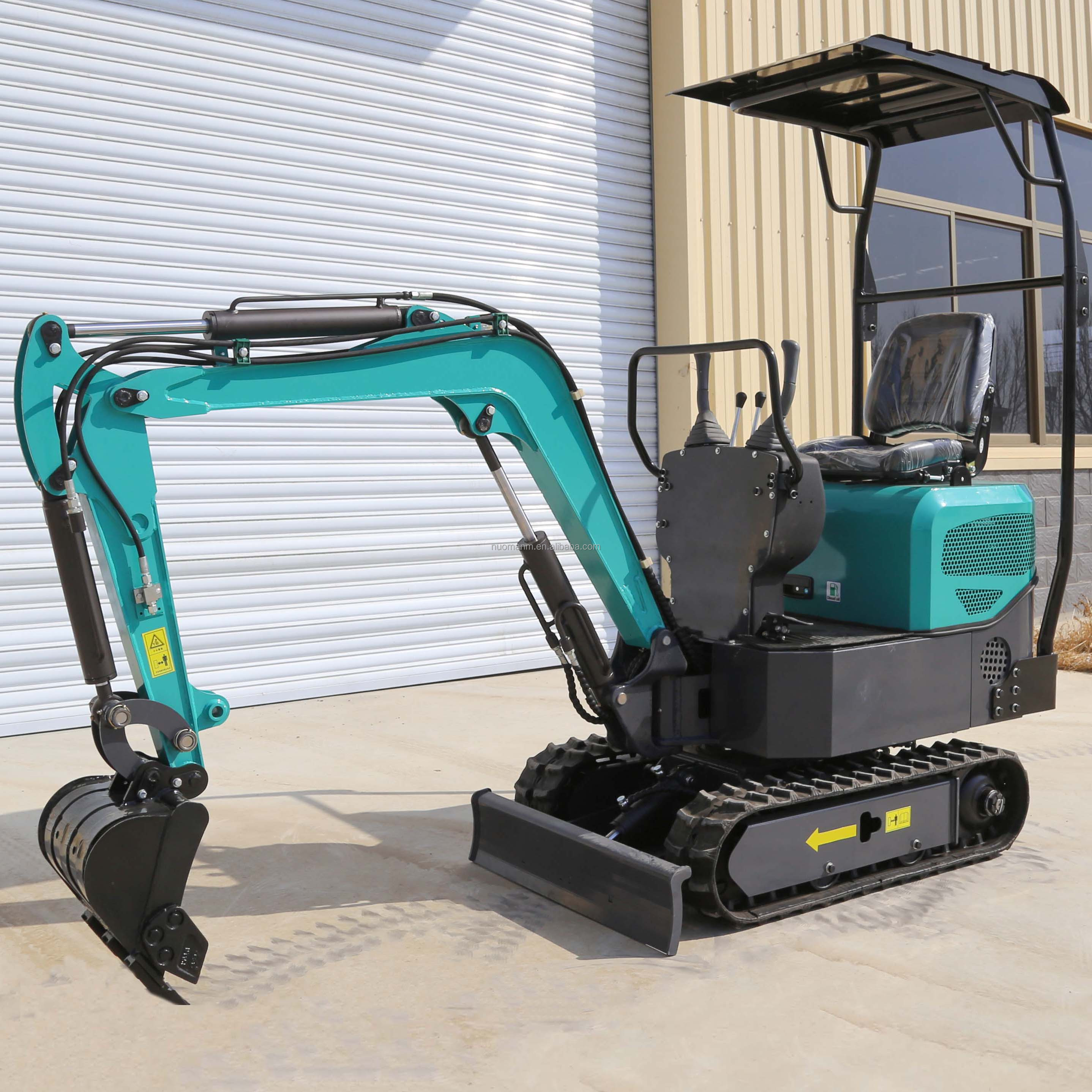

Extending Undercarriage and Blade

An extending undercarriage and fold
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.

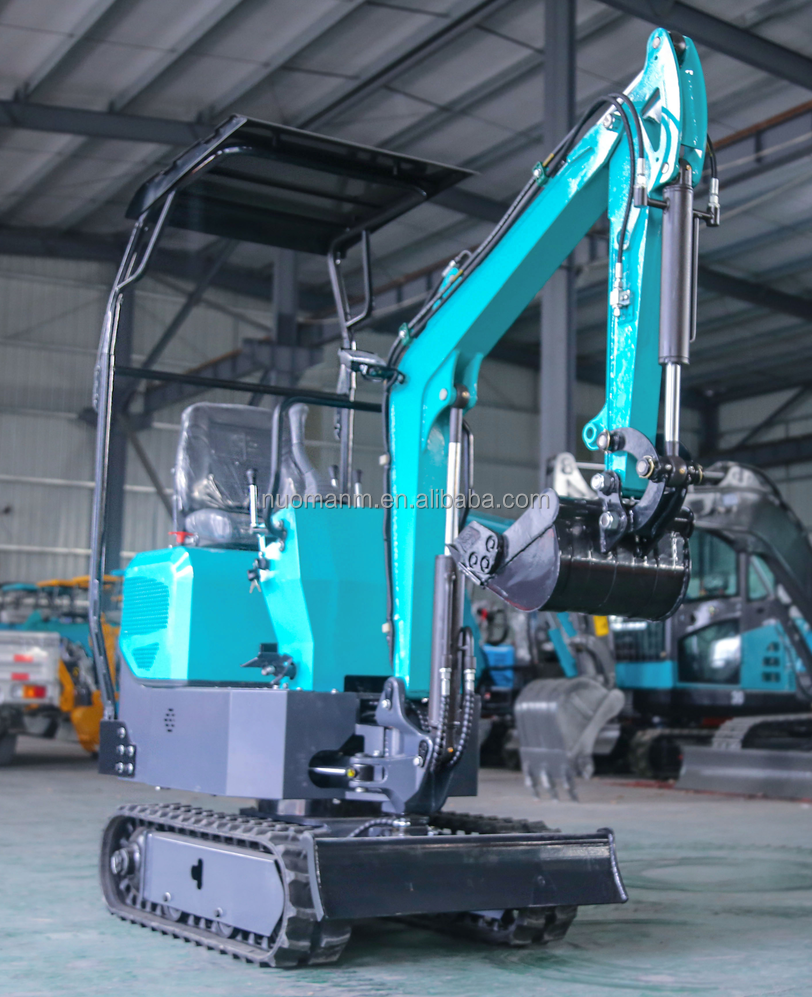

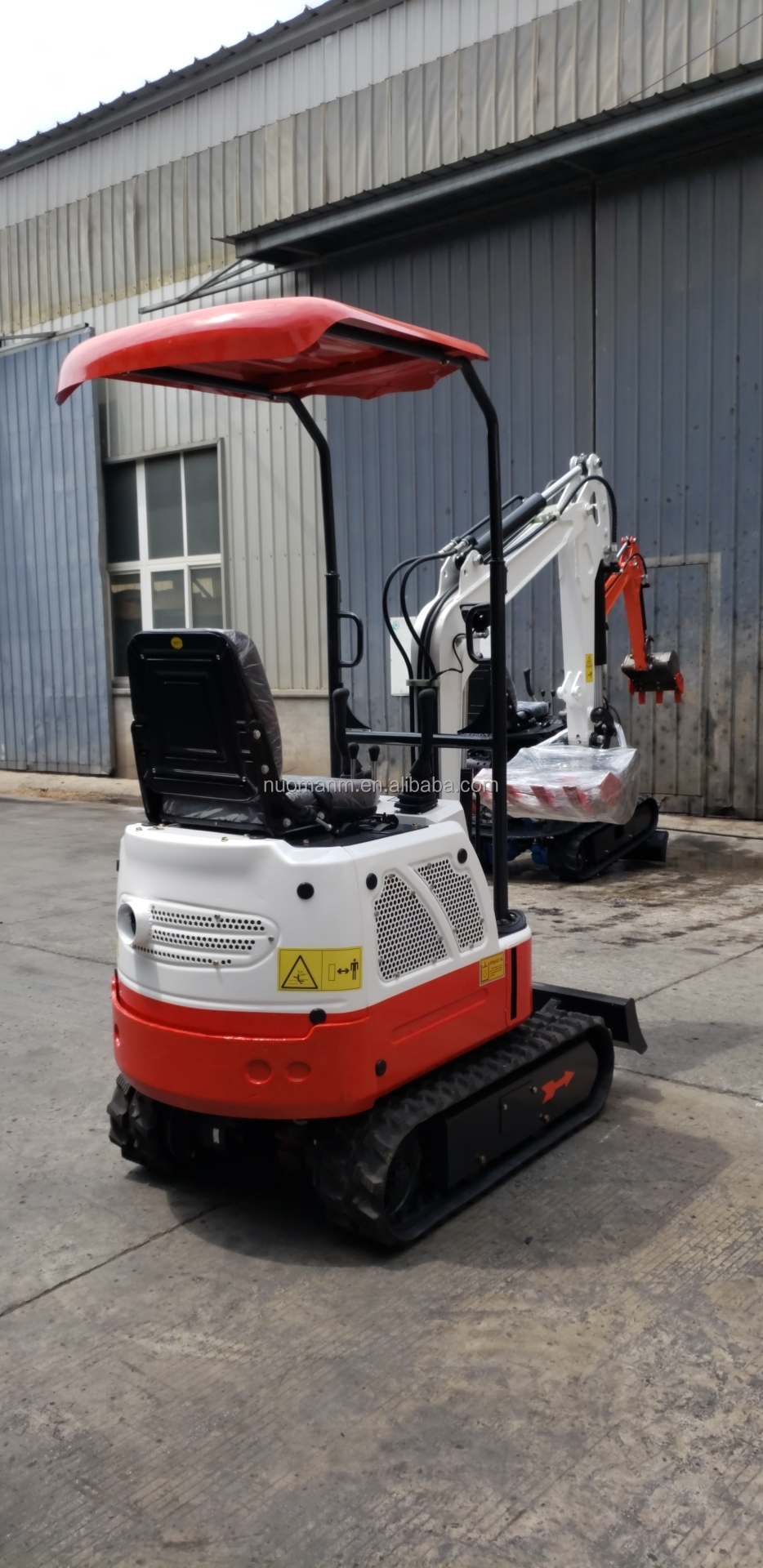

Counterweight, safe operation

The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer

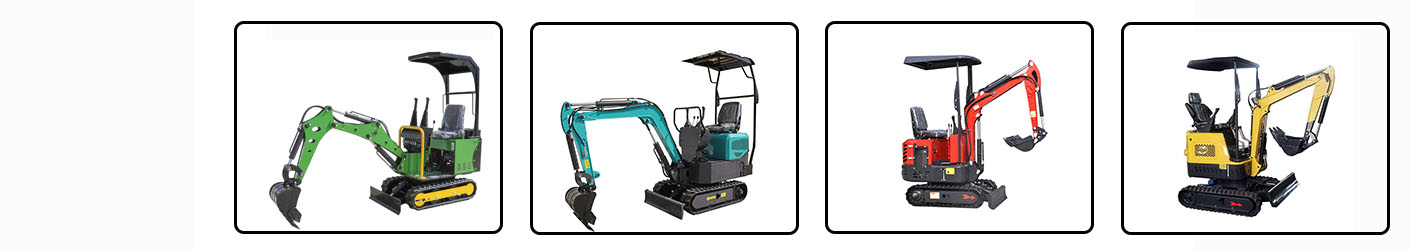

Model	NM-E08	NM-E10	NM-E13	NM-E15
Operating Weight	0.8Ton	1Ton	1.3Ton	1.5Ton
Engine	KOOP192F	Koop 192F	Water cooling 2V80	Kubota D722
Power	10HP	10HP	17HP	15HP
Bucket	0.02m³	0.025m³	0.026m³	0.028m³
Digging depth	1200mm	1320mm	1804mm	1810mm
Machine Width	720mm	940mm	960mm	980mm

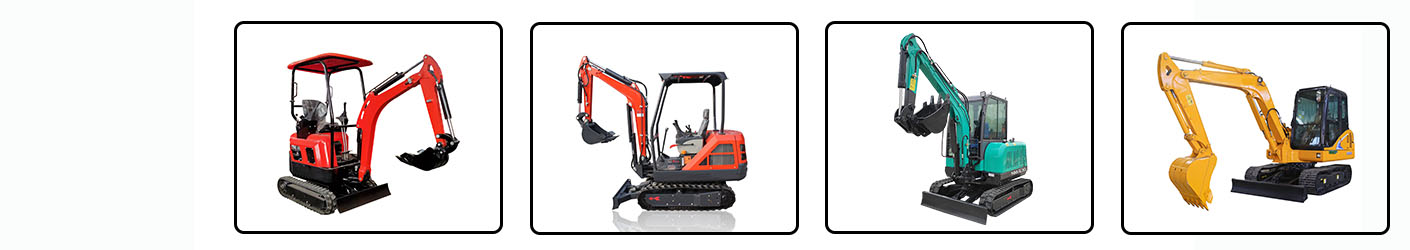

Model	NM-E17	NM-E20	NM-E30	NM-E60
Operating Weight	1.7Ton	2Ton	3Ton	6Ton
Engine	Laidong 385	Yanmarengine 3TNV70	Changchai/3TNV88	Yanmar
Power	25HP	26HP	50HP	67HP
Bucket	0.04m³	0.06m³	0.08m³	0.2m³
Digging depth	2000mm	2050mm	2150mm	2460mm
Machine Width	1000mm	1050mm	1200mm	1920mm

Main Features

The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

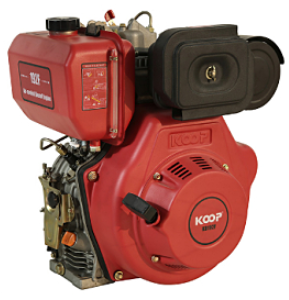

1.    Engine: KOOP-192 engine, single-cylinder air cooled, 10HP, 7.6KW

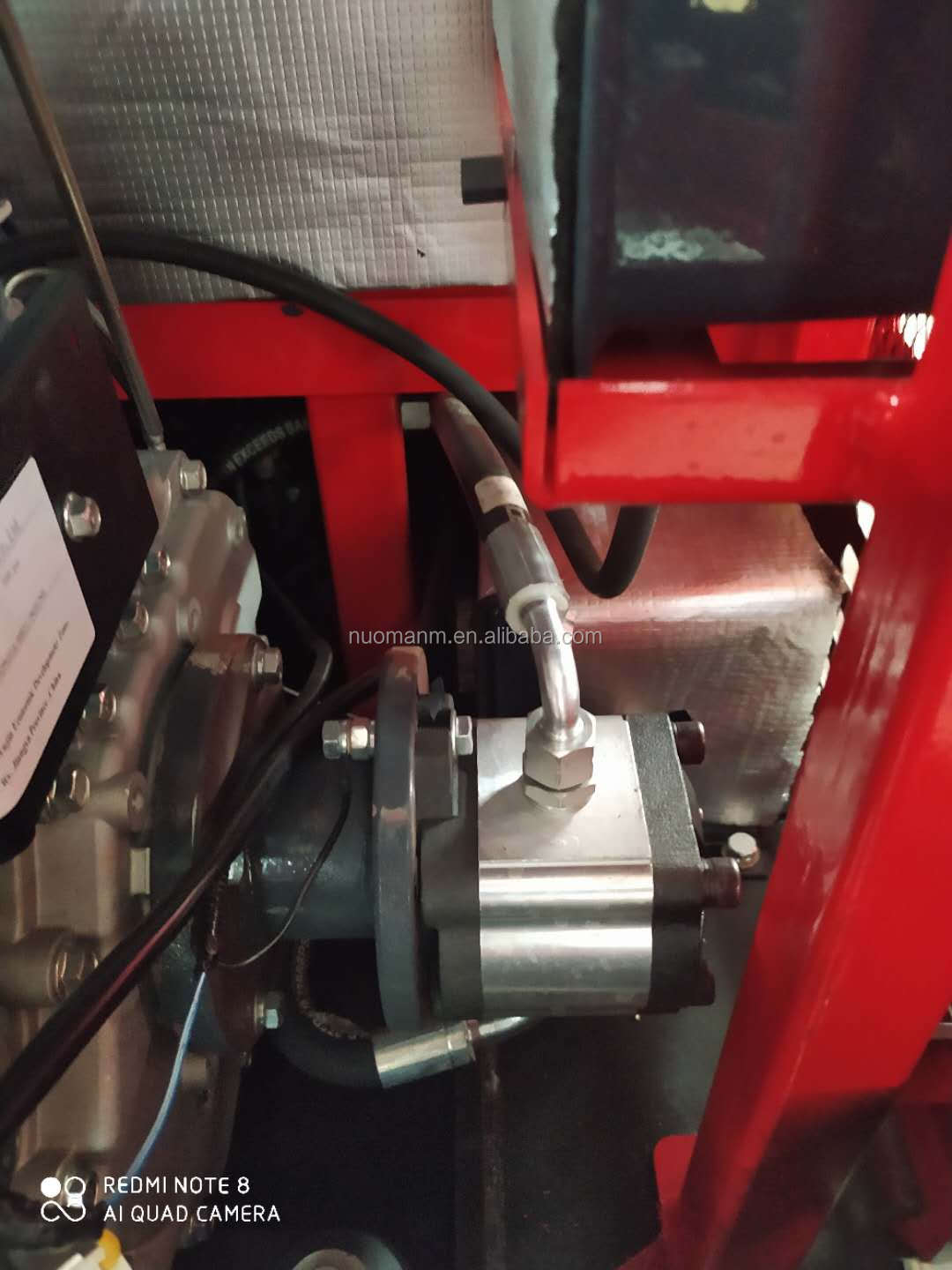

2.    Hydraulic pump (gear pump) is easy to maintain, long life
3.    Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets

you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean

up.

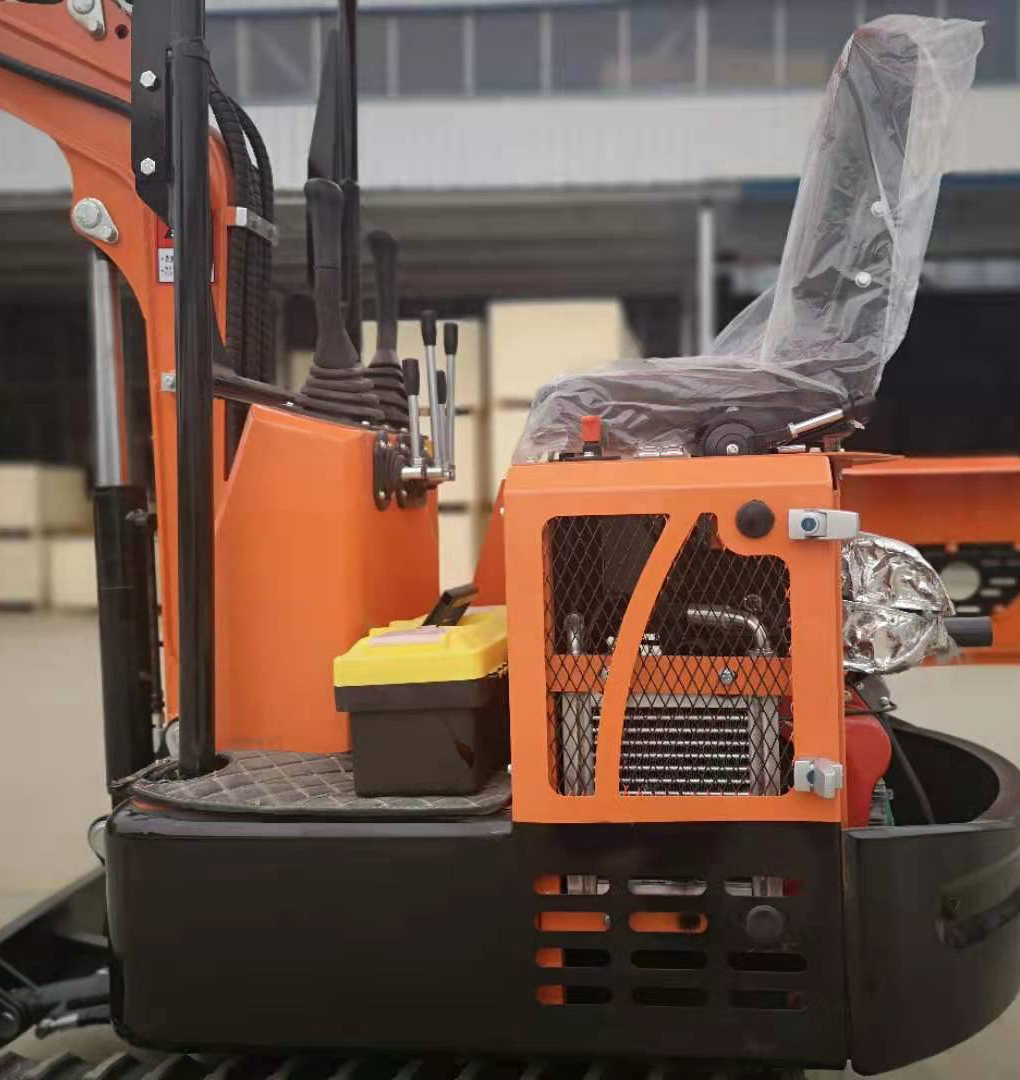

4. Multiple valves under the operating handle,The benefit of less effort and improved control

is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start

Powerful Engine and Hydraulics

The 12HP engine and perfectly matched hydraulics provide efficient, economical and reliable performance for
the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful
hammer,auger and log grab. Low noise and vibration levels deliver comfortable operation

Eaton hydraulic system

One multi-way valve, eight-way valve to ensure the machine's hydraulic work is stable and efficient，like the tilting
bucket/auger/breaker/thumb bucket and totator bucket.

hydraulic cooling system

Standard configuration：hydraulic oil radiator, no need for additional installation, mature technology

Customize

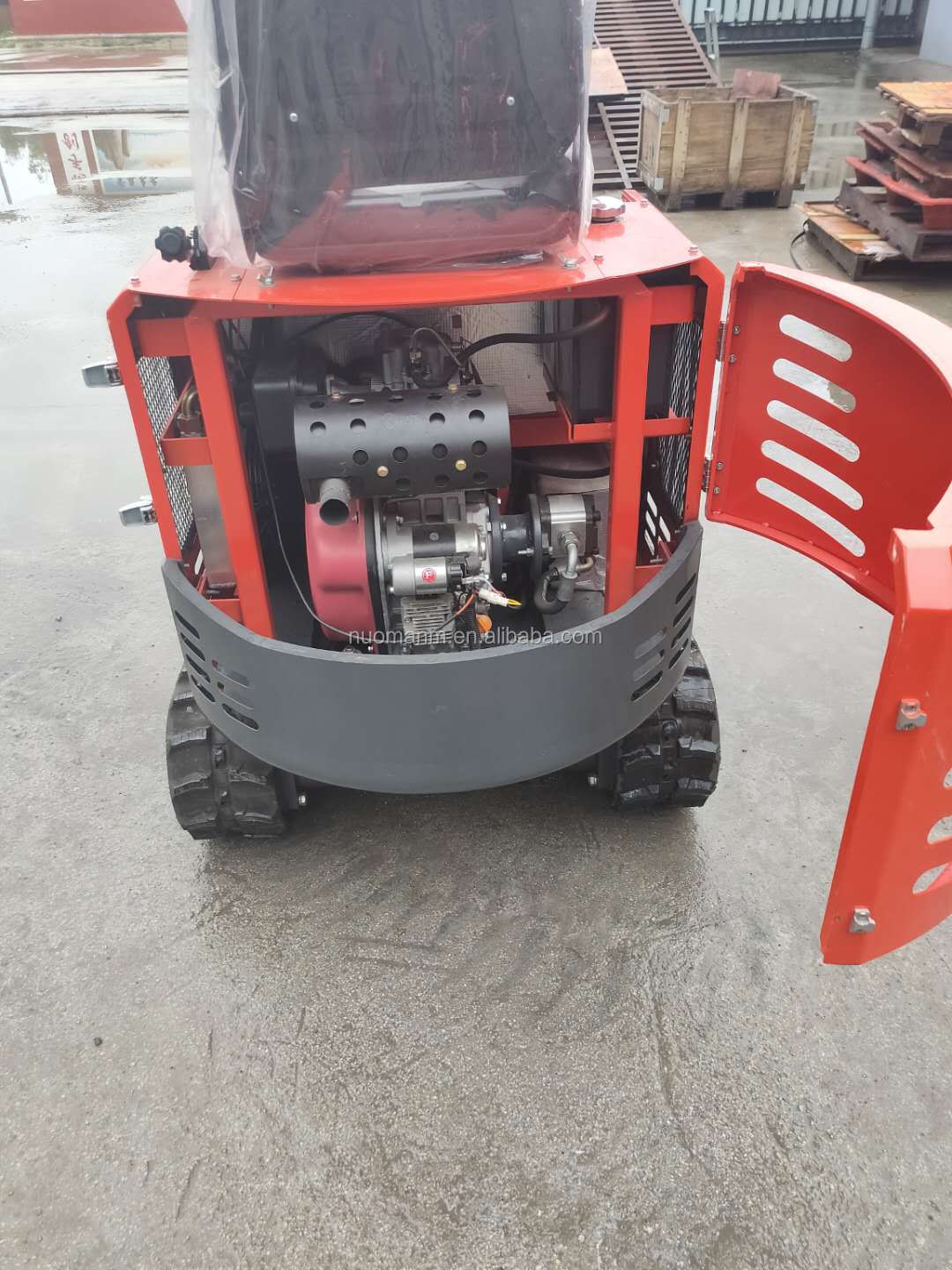

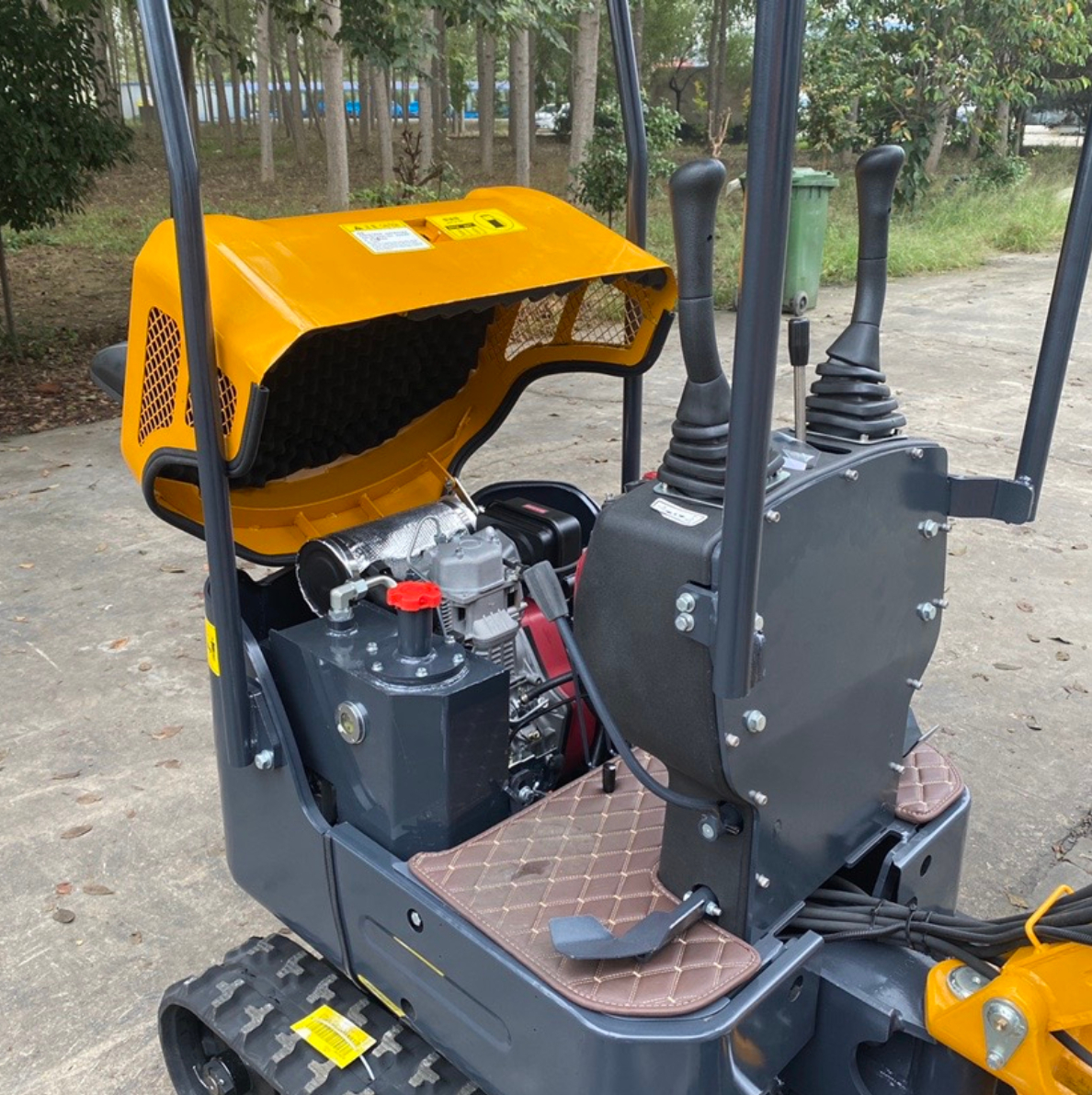

Using our unique patented hinged engine back cover design and rear-turning seat, the structure inside is clear after opening, and
inspection and maintenance are very convenient

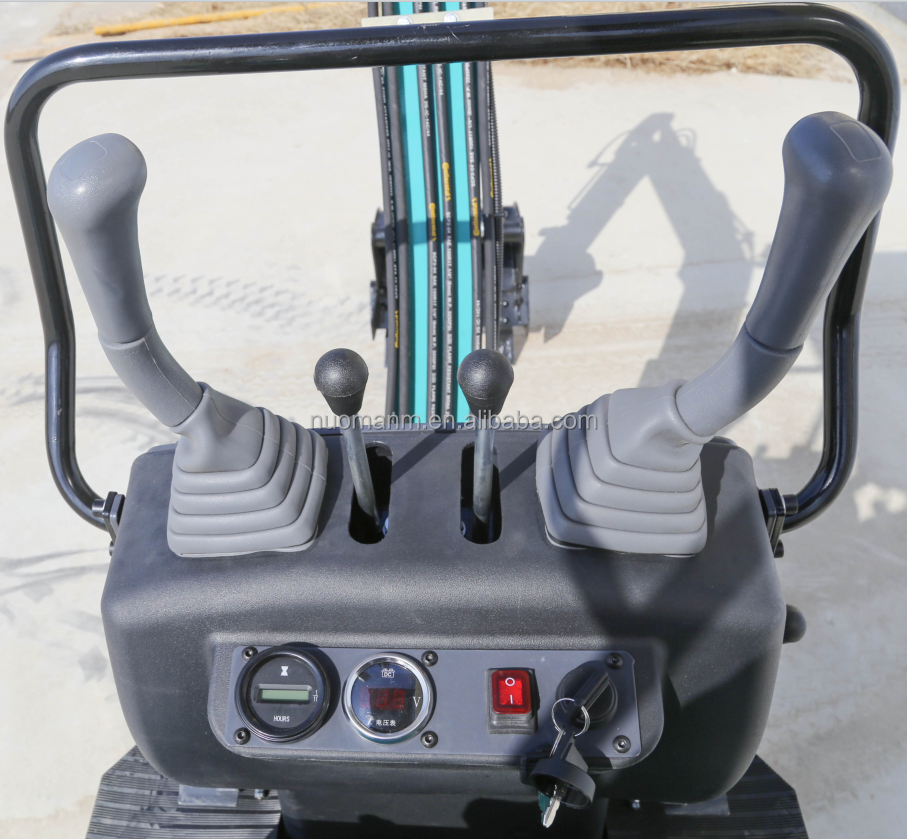

EASY TO OPERATE

Controls are easy to use and operate,with the .The operating instructions in front of the console are simple and easy to use

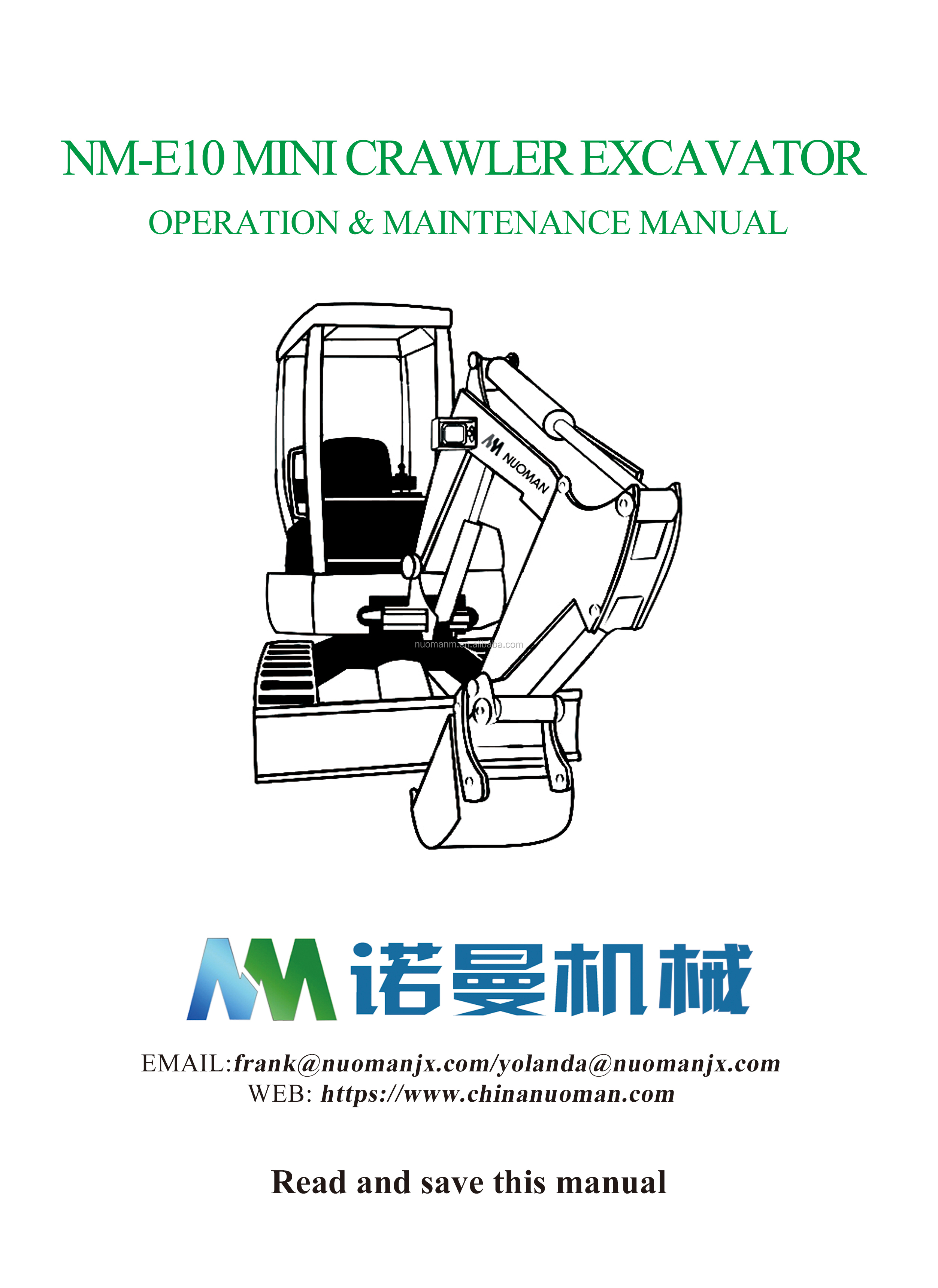

Manual book

Manual books with Design sketches and oil circuit diagrams to make the maintance and operating easily
