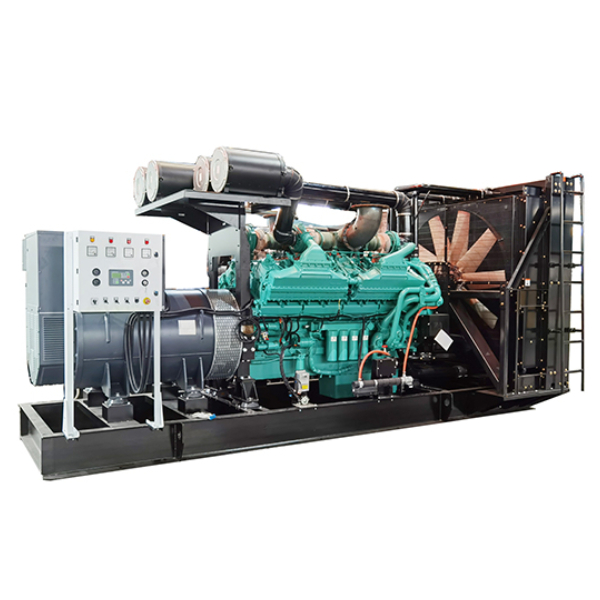

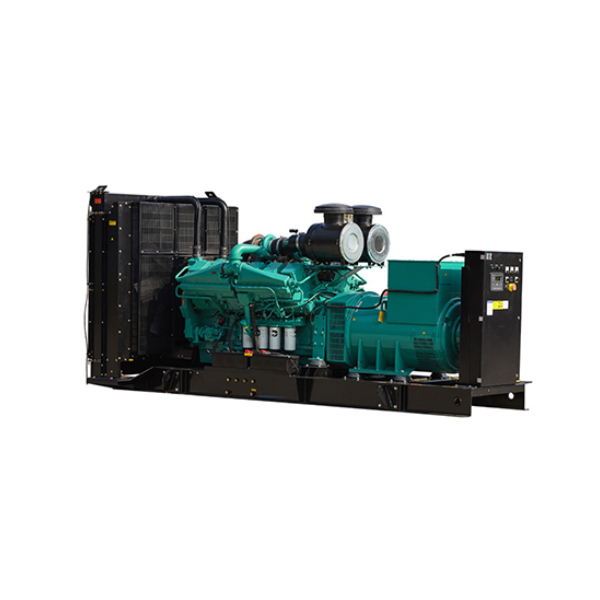

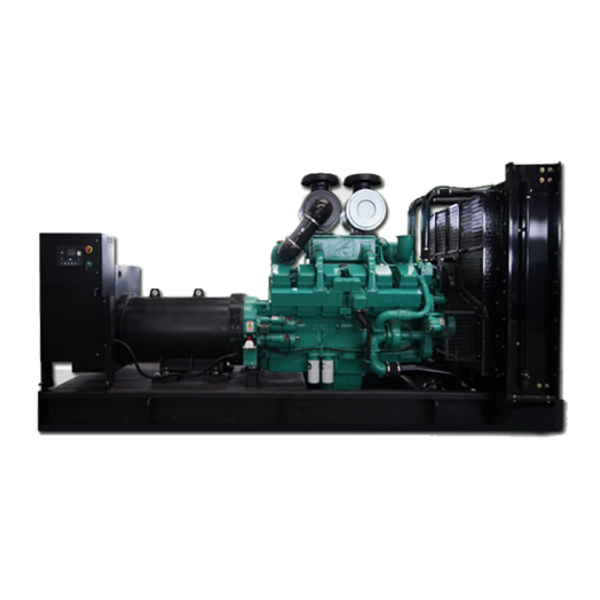

Diesel Generator Powered by Cummins 300kVA-2000kVA (CCEC)

SKU: HT-222458

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Cummins Diesel Generators Feature:

·Engine and alternator shall be mounted on a same frame steel skid.

·Built-in damper for anti-vibration.

·Small size, low weight, easy to operating, installation and maintenance.

·World most famous brand diesel engine: Cummins Engine

·World famous brand AC alternator: Stamford, MeccAlte, Leroy Somer, etc

·Advanced and reliable controller: Auto start, AMF & Remote control by PC with RS232/485

·Full range protect function and alarm shutdown feature.

·Comply with ISO8528 national standard and ISO9001 quality standard.

Cummins Series Diesel Generators, 50Hz, 1500rpm, 300kVA-2000kVA

Genset Model	Prime Power kW/kVA	Standby Power kW/kVA	Fuel Con. l/h	Engine Model	Dimension Size LxWxH (mm)	Weight kg
SC313	228/285	250/312.5	60	NTA855-G1A	3000x1000x1530	3100
SC350	250/312.5	280/350	64	NTA855-G1B	3000x1000x1530	3200
SC388	280/350	310/387.5	76	NTA855-G2A	3150x1050x1530	3400
SC450	320/400	360/450	86	NTAA855-G7A	3300x1380x1550	3700
SC500	360/450	400/500	97	KTA19-G3A	3550x1250x1800	4350
SC550	360/450	400/500	107	KTA19-G3A	3600x1250x1800	4500
SC650	480/600	520/650	125	KTA19-G8	3750x1250x1900	5000
SC688	500/625	550/687.5	130	KTAA19-G6A	3750x1250x1900	5400
SC800	580/725	640/800	150	KTA38-GA	4400x1800x2270	6500
SC825	600/750	660/825	156	KTA38-G2	4400x1800x2270	7000
SC880	640/800	704/800	168	KTA38-G2B	4650x1800x2270	7400
SC1000	720/900	800/1000	189	KTA38-G2A	4650x1830x2270	7650
SC1100	800/1000	880/1100	203	KTA38-G5	4800x1830x2300	8650
SC1250	900/1125	1000/1250	225	KTA38-G9	4850x1830x2300	9300
SC1400	1000/1250	1120/1400	254	KTA50-G3	5200x2000x2400	10500
SC1600	1142/1428	1280/1600	272	KTA50-G8	5200x2000x2400	11000
SC1675	1200/1500	1340/1675	280	KTA50-GS8	5200x2000x2400	11500
SC2250	1600/2000	1800/2250	394	QSK60-G4	6090x2300x2600	16500
