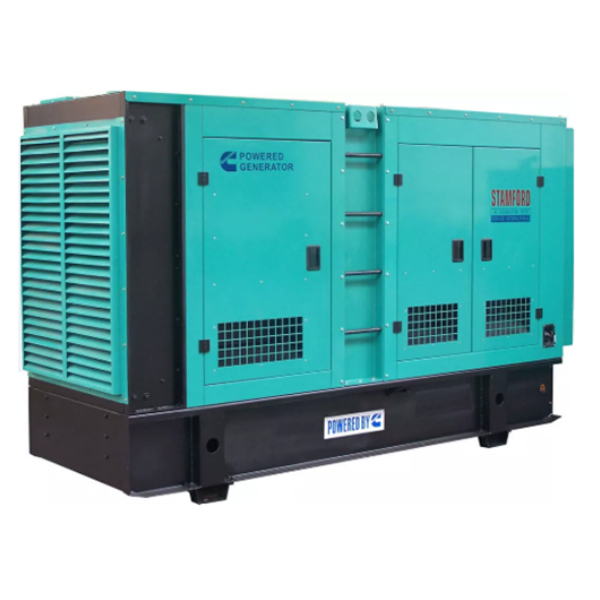

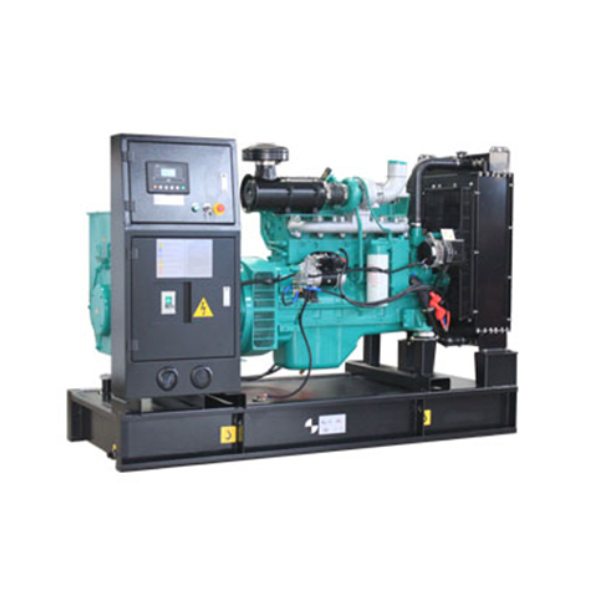

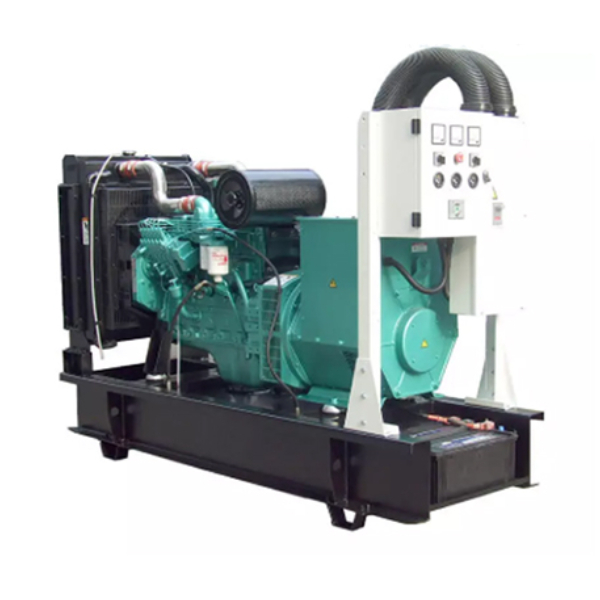

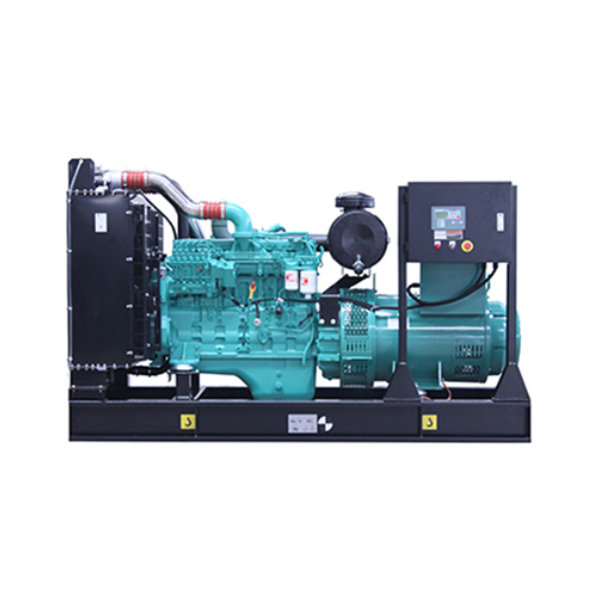

Diesel Generator Powered by Cummins 25kVA-500kVA (DCEC)

SKU: HT-222411

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

Cummins Diesel Generators Feature:

·Engine and alternator shall be mounted on a same frame steel skid.

·Built-in damper for anti-vibration.
·Small size, low weight, easy to operating, installation and maintenance.
·World most famous brand diesel engine: Cummins Engine
·World famous brand AC alternator: Stamford, MeccAlte, Leroy Somer, etc
·Advanced and reliable controller: Auto start, AMF & Remote control by PC with RS232/485
·Full range protect function and alarm shutdown feature.

·Comply with ISO8528 national standard and ISO9001 quality standard.

Cummins Series Diesel Generators, 50Hz, 1500rpm, 25kVA-500kVA

Genset Model	Prime Power	Standby Power	Diesel Engine Model	Dimension Size L x W x H	Weight	Noise	Fuel Consumption
Genset Model	kW/kVA	kW/kVA	Diesel Engine Model	mm	kg	dBA	l/h
SC28	20/25	22/27.5	4B3.9-G1	1600x830x1300	950	95	6.0
SC33	24/30	26/32.5	4BT3.9-G1	1800x830x1300	1000	95	7.2
SC44	32/40	35/44	4BT3.9-G1	1800x830x1300	1050	95	9.2
SC56	40/50	44/56	4BTA3.9-G2	1850x850x1430	1100	95	12.0
SC69	50/62.5	55/69	4BTA3.9-G2	1900x850x1430	1200	95	15.6
SC83	60/75	66/82.5	4BTA3.9-G11	2150x850x1430	1300	95	17.8
SC110	80/100	88/110	6BT5.9-G2	2300x850x1430	1400	95	23.0
SC125	90/112.5	100/125	6BTA5.9-G2	2400x850x1430	1550	95	26.0
SC138	100/125	110/137.5	6TAA5.9-G2	2400x950x1500	1700	95	30.0
SC165	120/150	132/165	6BTAA5.9-G12	2400x950x1500	1800	95	36.0
SC206	150/187.5	165/206	6CTA8.3-G2	2650x1050x1500	2100	102	41.2
SC220	160/200	176/220	6CTAA8.3-G2	2800x1050x1500	2200	102	44.0
SC275	200/250	220/275	6LTAA8.9-G2	2800x1050x1600	2500	102	50.0
SC500E	360/450	400/500	QSZ13-G2	3100x1050x1600	3000	102	93.0
SC550E	400/500	440/550	QSZ13-G3	3200x1050x1600	3200	102	102.0
