decoiler and straightener

decoiler and straightener

SKU: HT-263505
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available

Product details

Product overview

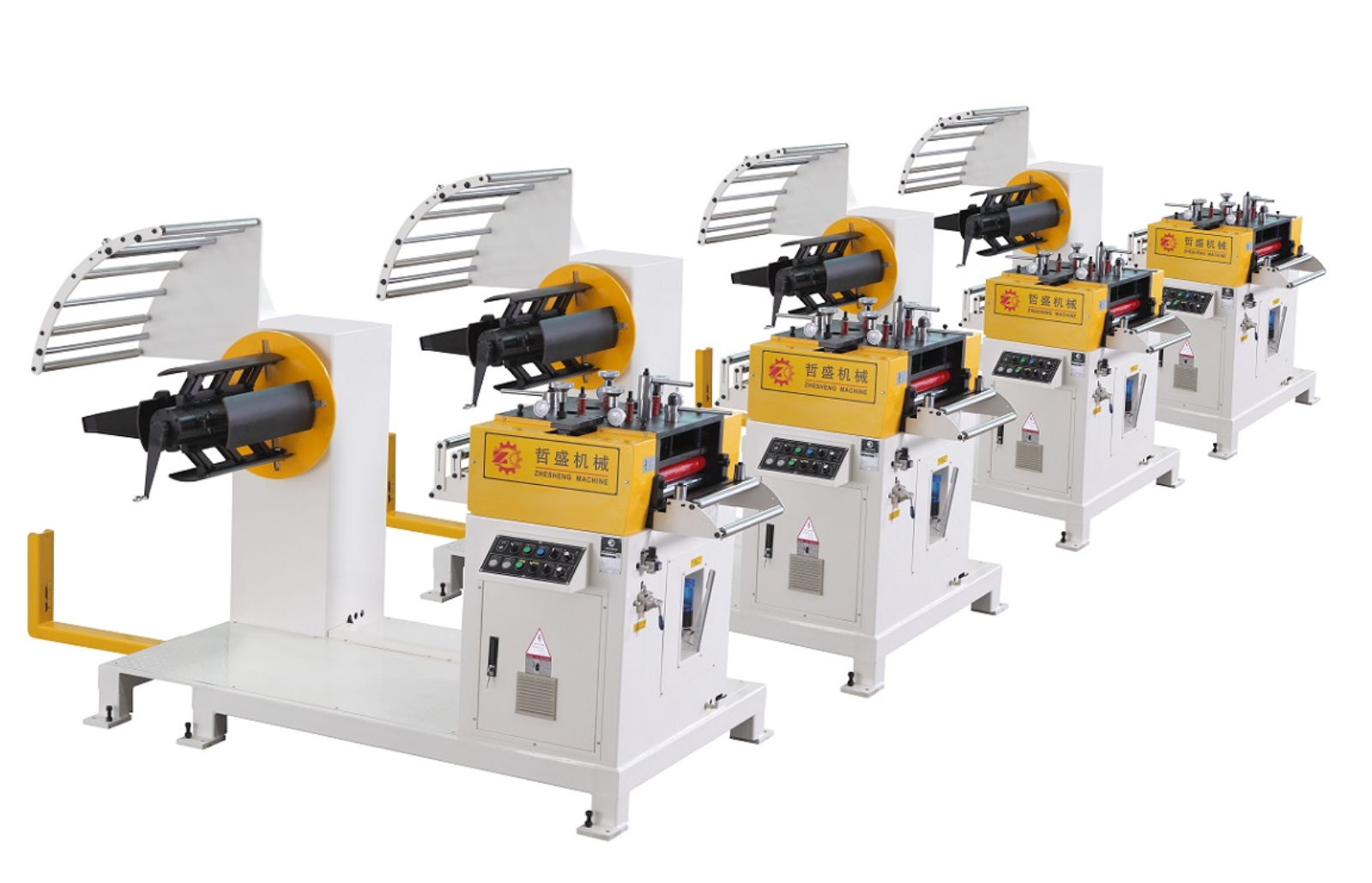

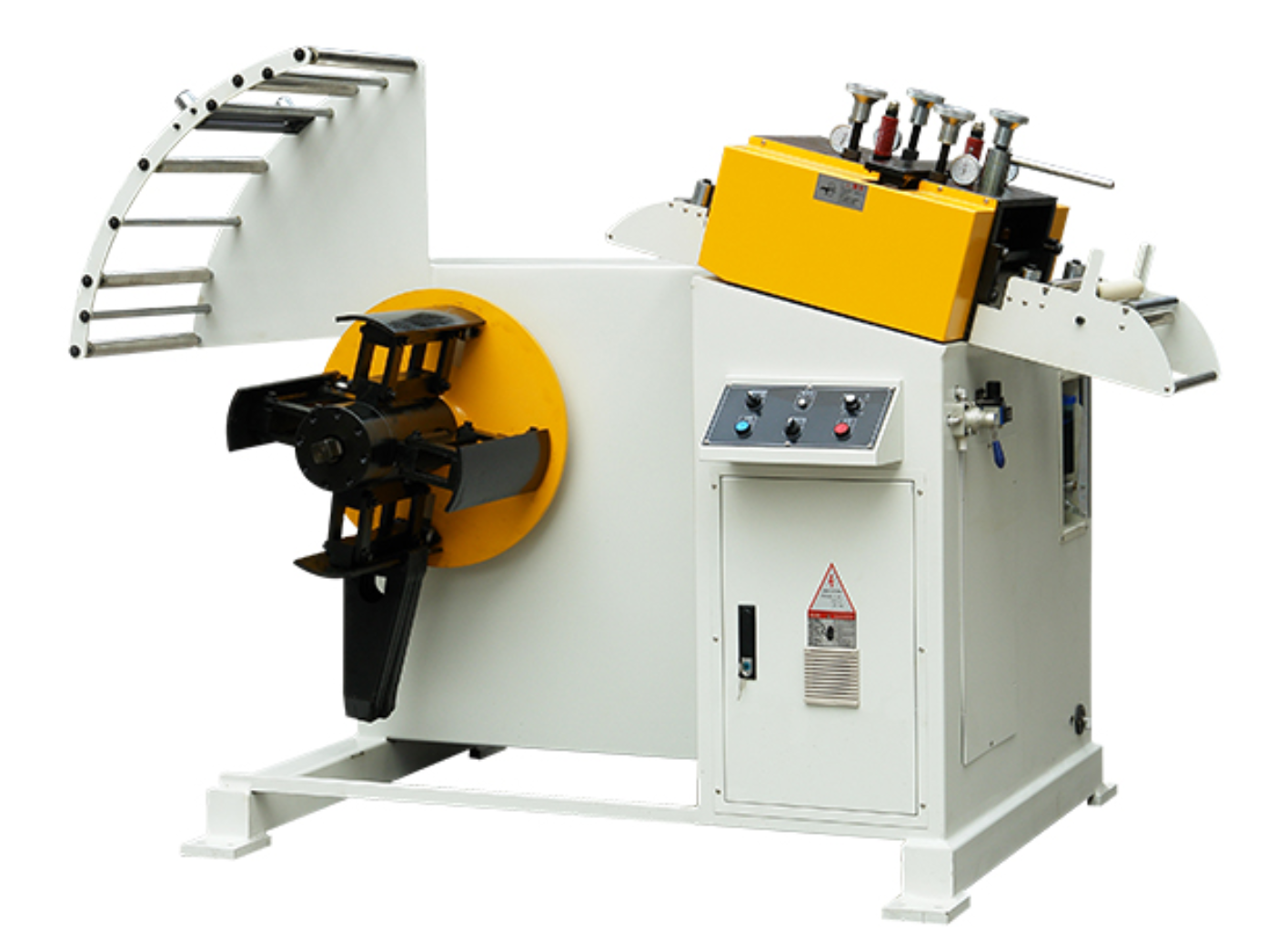

ULT SERIES is named 2 in 1 decoiler and straightener machine which has both decoiling and straightening function.The combined structure guarantee a synchronization between decoiler and straightener and save work space,it can achieve a precision straightening performsnce for many different kinds of sheet metal coil.ZHESHENG decoiler and straightener machine can be customized according to customer's specific product application.Contact us to design a suitable model for you.

Technical Data

Model ULT-150 ULT-200 ULT-300 ULT-400 ULT-500 ULT-600 ULT-700
Material width 150 200 300 400 500 600 700
Material thickness 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2
Coil weight Max 1000 2000 2000 2000 2000 2000 3000
Coil O.D.Max 1200 1200 1200 1200 1200 1200 1200
Coil I.D. 450-530 450-530 450-530 450-530 450-530 450-530 450-530
Straighten speed 15 15 15 15 15 15 15
Work roller(pc) Up4/Down3
Back roller N/A
Main motor 0.75 0.75 1.5 1.5 2.2 2.2 3
Coil expansion Hydraulic
Decoil motor 0.75 1.5 1.5 1.5 1.5 1.5 2.2
Operating air 0.49
Machine weight 800 900 1000 1100 1300 1500 1700
Dimension A*B*C 2.8*1.4*2.2 2.8*1.4*2.2 2.8*1.5*2.2 2.8*1.6*2.2 2.8*1.7*2.2 2.8*1.8*2.2 2.8*1.9*2.2
