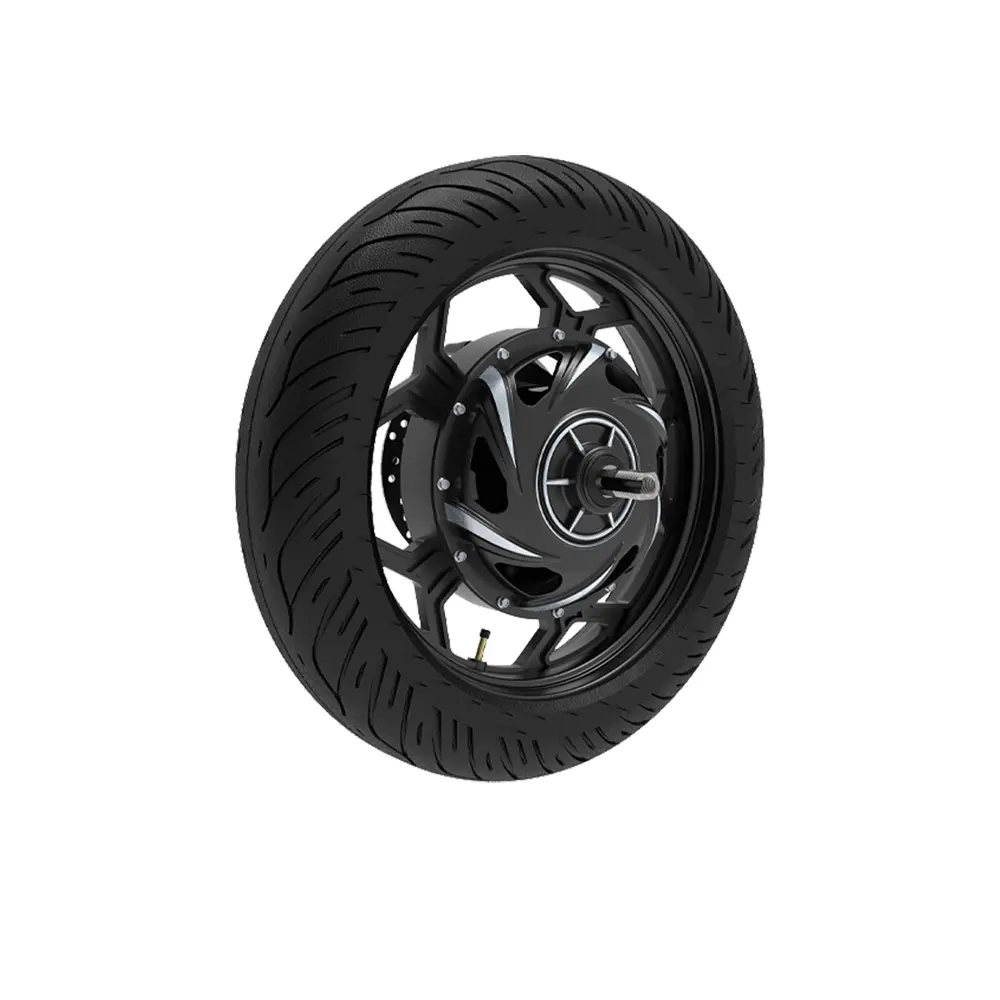

Six-phase planetary reduction gear motor
SKU: HT-232595
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
|
产品名称 Product name |
六相行星减速齿轮电机 Six-phase planetary deceleration gear motor |
|||
|
电机类型 Motor type |
永磁同步电机 Permanent magnet synchronous motor |
|||
|
额定功率 Rated power |
W |
3000 |
3800 |
5000 |
|
额定电压 Rated voltage |
V |
72 |
||
|
适用电压 Applicable voltage |
V |
62-96 |
||
|
峰值电流 Peak current |
A |
100 |
110 |
120 |
|
峰值功率 Peak power |
W |
9600 |
10560 |
11520 |
|
峰值转速 Peak speed |
RPM |
800-1100 |
800-1100 |
800-1100 |
|
峰值扭矩 Peak torque |
N.m |
230 |
280 |
395 |
|
电机效率 Motor efficiency |
% |
≦93 |
||
|
传感器类型 Sensor type |
霍尔传感器 Hall sensor |
|||
|
传动结构 Transmission structure |
行星减速结构 planetary deceleration gear |
|||
|
齿轮材料 Gear material |
20CrMnTi |
|||
|
绝缘等级 Insulation level |
B |
|||
|
环境温度 Environment temperature |
-30⁓50℃ |
|||
|
冷却方式 Cooling method |
自然风冷 Air cooling |
|||
|
保护温度 Protective temperature |
110℃ |
|||
|
电机防护等级 Motor protection level |
IP67 |
|||
