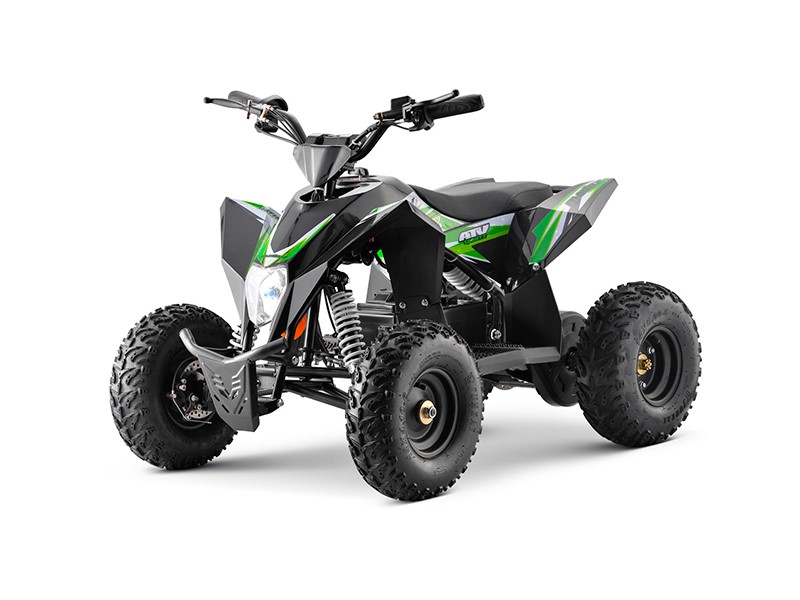

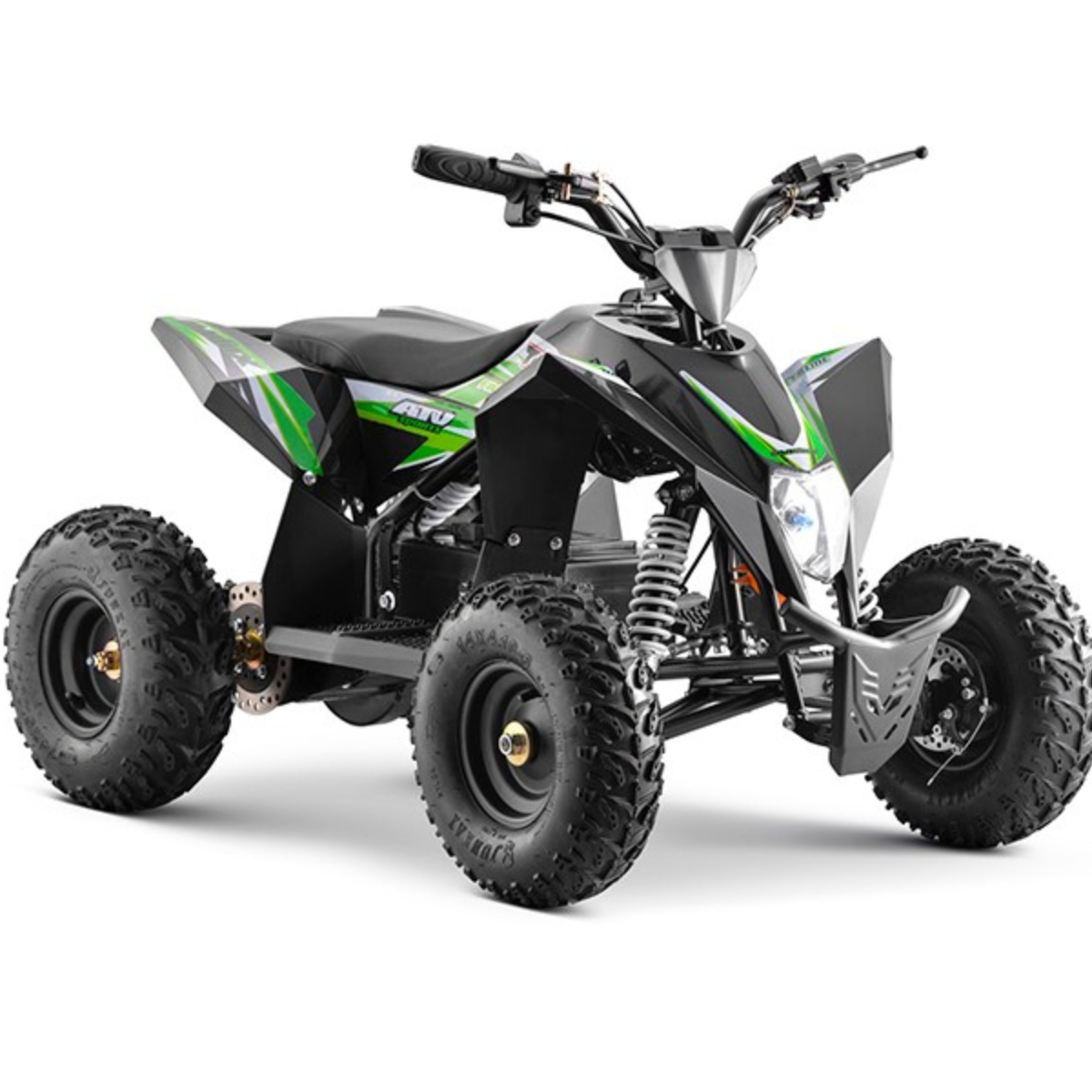

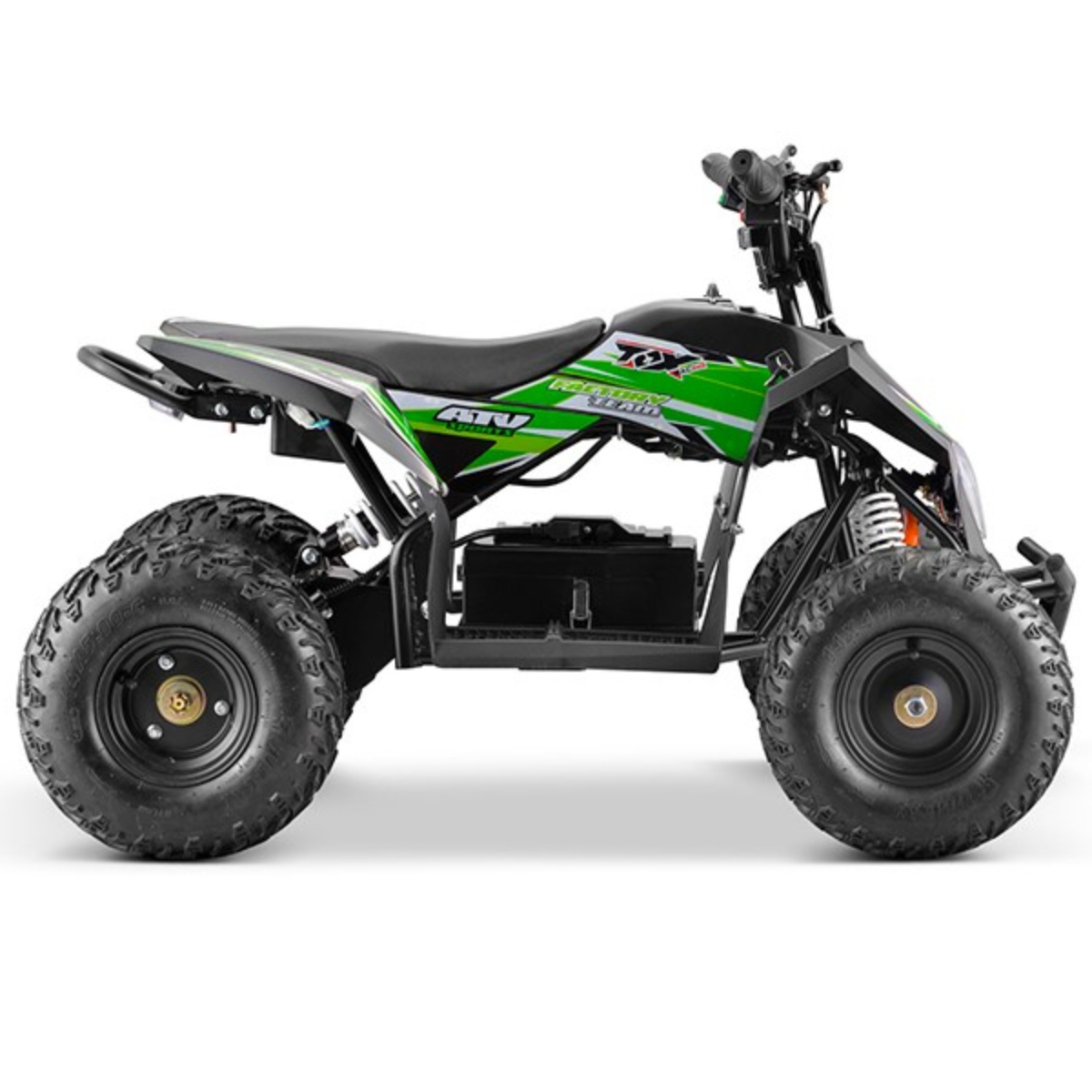

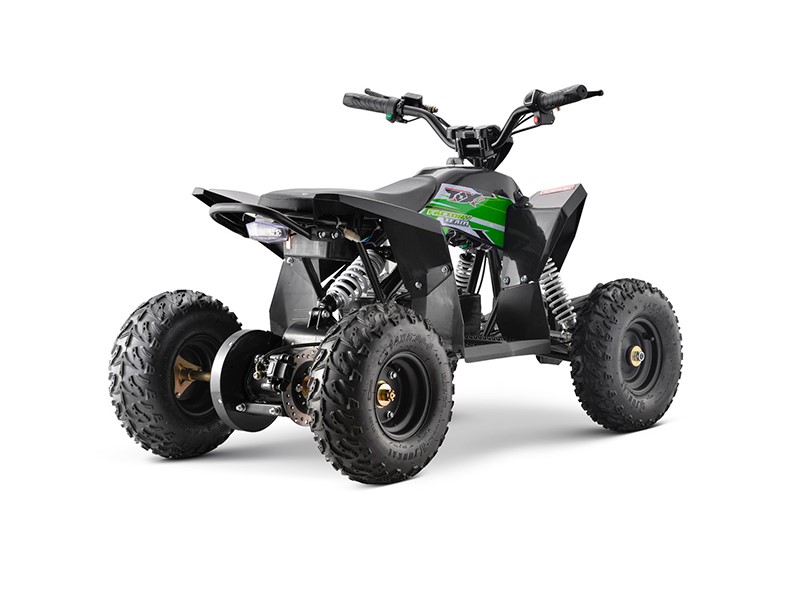

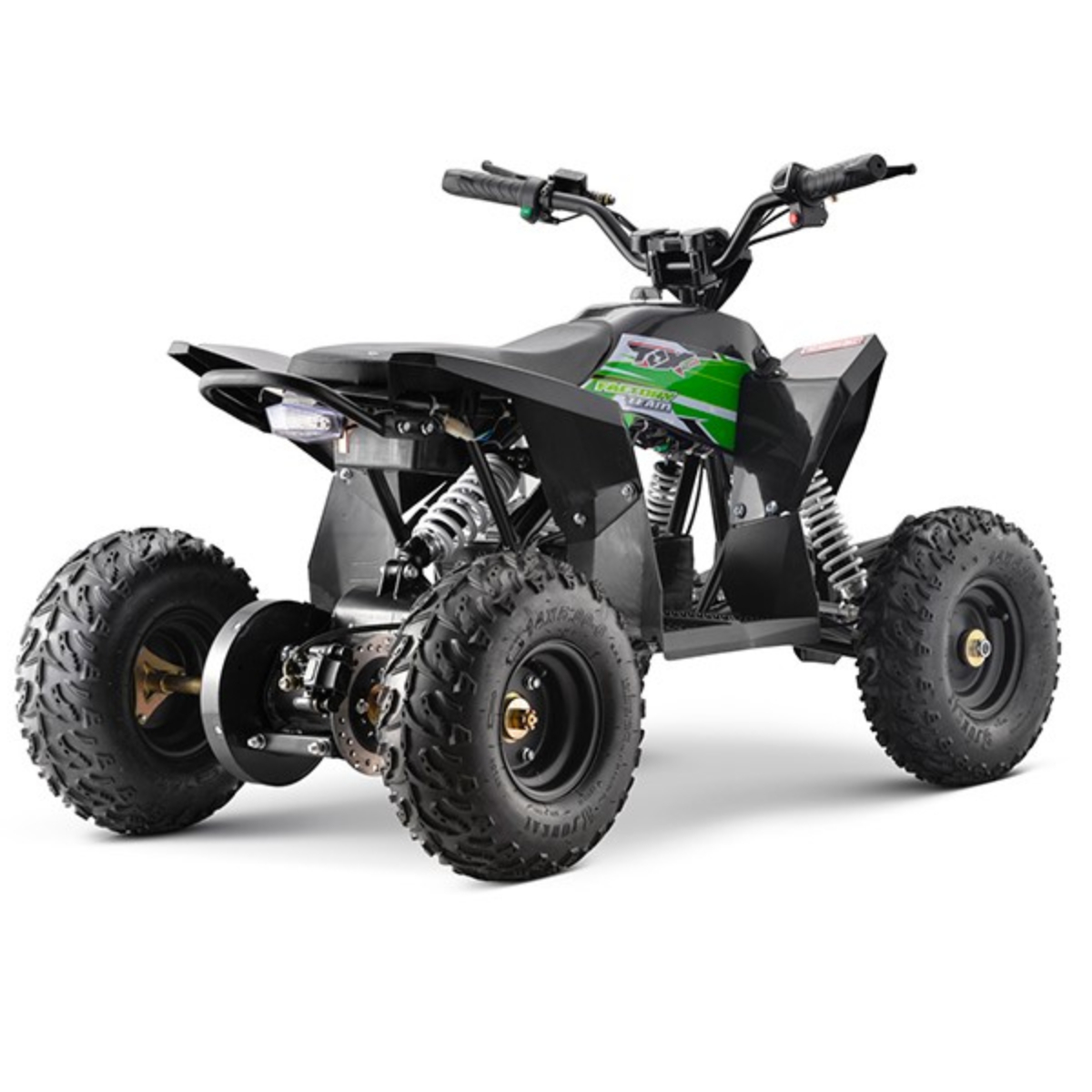

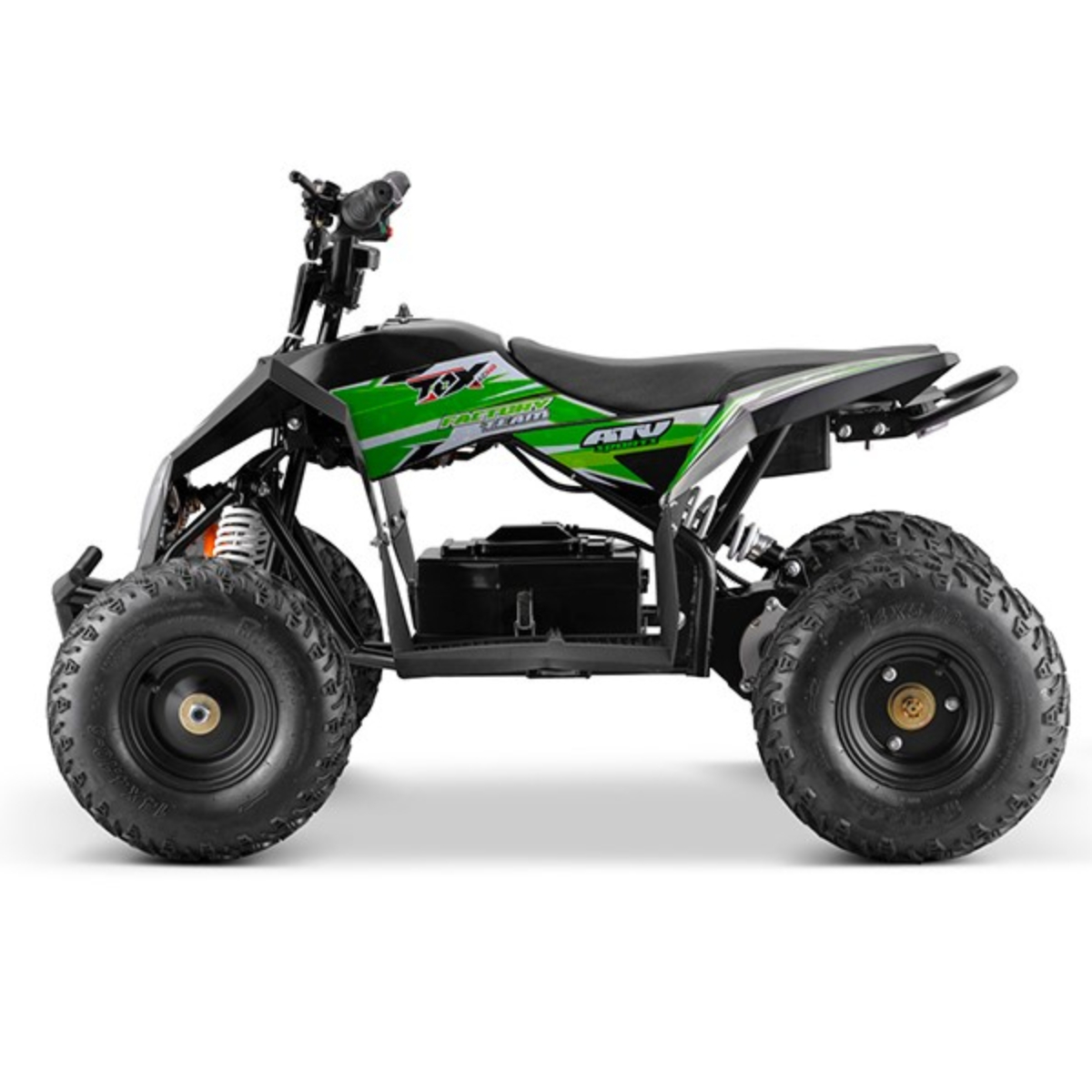

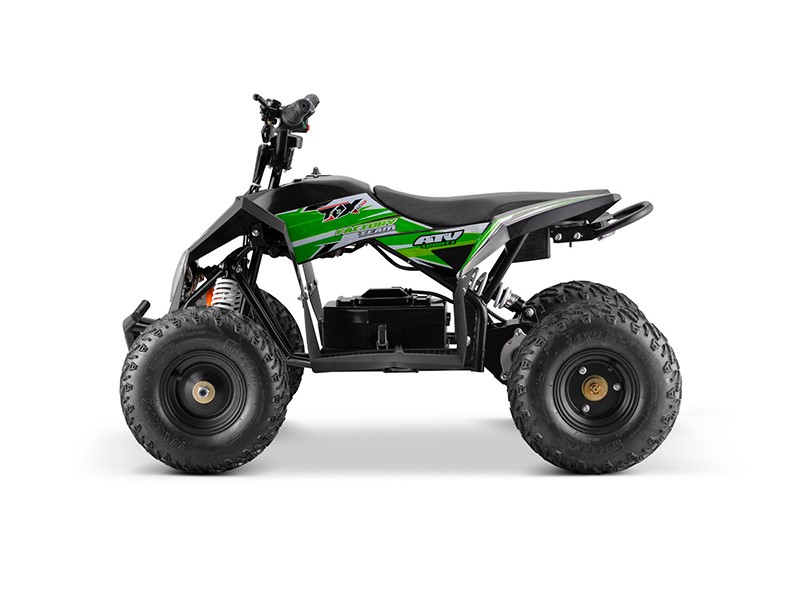

EATV-4

SKU: HT-935565

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Engine	1000W 36V neodymium magnet DC motor
Optional	1300W 48V neodymium magnet DC motor
Battery	3x12V 12Ah lead acid battery
Optional	36V 13Ah or 48V 13Ah lithium battery
Charger	43.2V-1.5Ah for 36V lead acid battery
Optional	42.0V-2.0Ah for 36V lithium batter 54.6V-2.0Ah for 48V lithium batter
Transmission	Chain drive, with reverse gear, speed adjustable
Final Drive For 1000W	11T/80T, 25H# chain
Final Drive For 1300W	10T/70T, 219H# chain
Tires	Front 14x4.10-6'', rear 14x5.00-6''
Brake System	Front and rear disc brake
Suspension	Hydraulic shock absorber, Front a swing arm, Rear mono shock
Range Per Full Charge	19km/36V13AH, 25km/48V13AH
Max Speed	27km/h
Max Load Capacity	65kgs
Wheelbase	780mm
Seat Height	550mm
Min Ground Clearance	70mm
Dry Weight	58kgs-36V with lead acid battery
Dry Weight	50kgs-36V or 48V with lithium battery
Carton Size	1040x630x520mm
QTY/Container	80pcs/20FT, 200pcs/40HQ
