MUD 200 TEEN-GER
SKU: HT-935361
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
| Engine Information | Engine type | 4-stroke, single cylinder, air cooled |
| Displacement | 200cc | |
| Output Max. | 6.3HP/3600rpm | |
| Max torque | 9.6 lb ft/3600rpm (1.33kgm/3600rpm) | |
| Bore x stroke | 2.6 x 2.1 inches (68x54mm) | |
| Max speed | 49.89KM/H | |
| Climbing ability | 12 degrees (12º) | |
| Ignition | C.D.I | |
| Starting system | Electric / Pull backup | |
| Battery | 12V 9Ah | |
| Carburetor brand | JF (RX) | |
| Engine oil | SG 15W/40 |
| General Information | Clutch | Automatic CTV |
| Driveline / Driving wheel | Chain / Dual wheel drive | |
| Suspension, F / R | Dual A-arm / Double Oil Damped Shock | |
| Brakes, F / R | No / Hydraulic brake Disc | |
| Tires, F / R | 16 x 6-8 / 16 x 7-8 | |
| Fuel capacity | 1 gal (3.785L) | |
| Weight, G.W. / N.W. | 405 / 308 lbs (184/140KG) | |
| Max load | 400 lbs (182KG) |

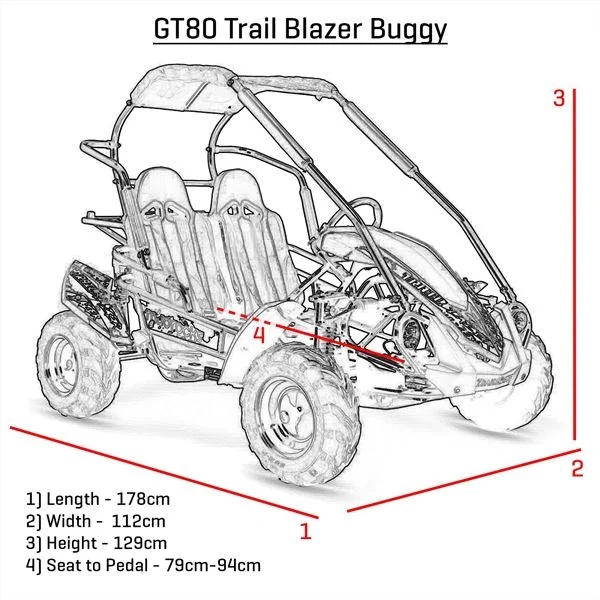

| Dimension Information | Wheelbase | 48.4 inches (1.23m) |
| OA L x W x H | 5835x36x43 inches (1.70x1.10x1.30m) | |
| Height to seat | 10.2 inches (25.91cm) | |
| Min. ground clearance | 2.8 inches (7.11cm) | |
| Pedal to seat back | 31.5 to 37 inches 80.01～93.98 cm | |
| Shipping information | 52 units / 40HQ |
DETAIL IMAGES
 |
 |
 |
