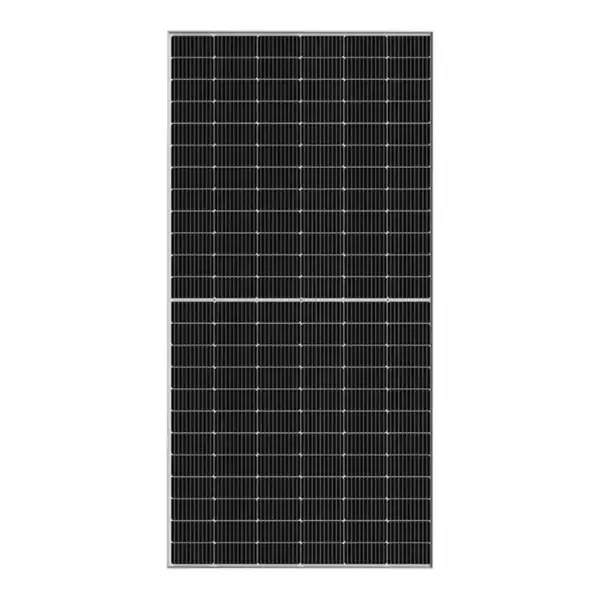

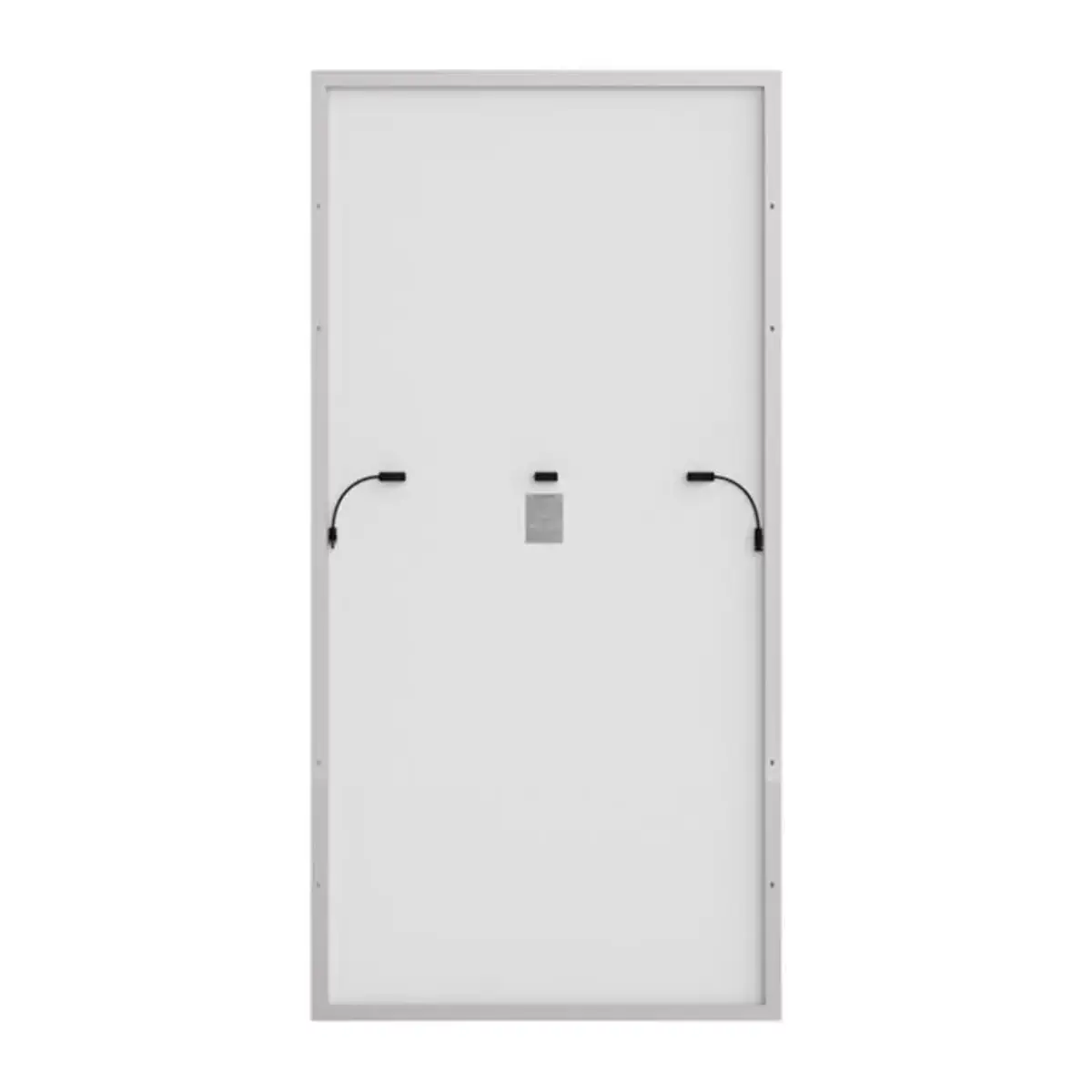

182MBB 550W Half Cut Cell Solar Module

The 550W solar module has the characteristics of high photoelectric conversion efficiency, low resistance loss, high reliability, beautiful appearance and adaptability to various complex environments, making it a popular choice for solar modules.



Mechanical Diagrams

Units：mm/±2



Certification authority；





Brand customization；



Batch No.	Logo	Parameter label	Package



Product Features;

◆High efficiency:

MBB technology is adopted to improve the photoelectric conversion efficiency and achieve higher power generation capacity.

◆Low resistance loss:

The design of multiple current collection lines reduces the flow distance of the current inside the cell and reduces resistance loss.

◆High Reliability:

By reducing the stress and thermal stress between cells, the reliability and long-term performance stability of the module are improved.

◆Beautiful appearance:

Modules using MBB technology have a more detailed cell layout and less wire shielding, presenting a more beautiful appearance.

◆Adapt to complex environments:

With good anti-PID performance and durable anti-reflection coating, it can work in different climates and environmental conditions, and has certain pressure and wind resistance.



Liectrical Parameters at （STC）			Mechanical Parameters
Power（W）	550W		Solar Cell（Type/Size）	Mono(182mm)
Module Efficiency	21.30%		Dimensions	2279*1134*35mm
Voltage at Pmax（Vmp）	41.97V		Weight	28.32KG
Current at Pmax（Imp）	13.11A		Mechanical Load	Front 5400Pa/Back 2400Pa
Open Circuit Voltage（Voc）	49.95V		Cable Cross Section Size	4.0mm²/300mm

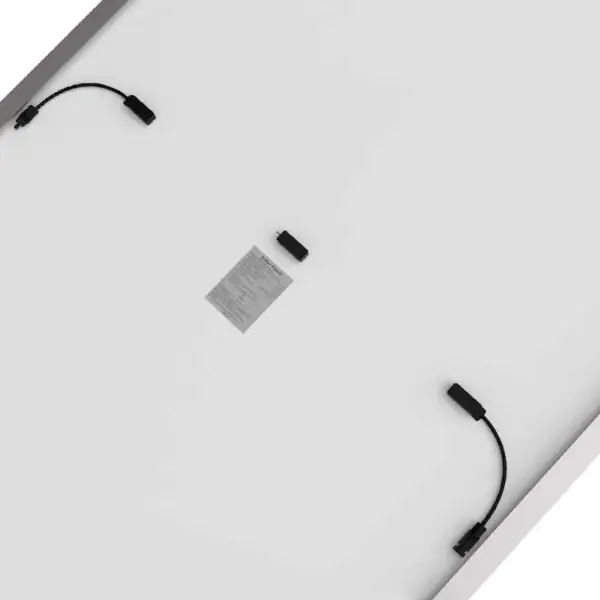

Short Circuit Current（Isc）	14.05A		Waterproof junction box	IP68/3*Bypass Diode





Characteristics;





Product Usage;

◆Solar power plants:

They can be used for the construction of large-scale solar power plants, generating electricity for the grid or large industrial users.



◆Commercial and industrial buildings:

 They are suitable for rooftop installations on commercial and industrial buildings, providing renewable power supply and reducing energy costs.



◆Agriculture and rural areas:

They can be used in agricultural greenhouses, irrigation systems, and for lighting and power supply in rural areas, meeting the energy needs of agriculture and rural communities.



◆Remote areas and islands:

Due to their high power output and adaptability to complex environments, they are suitable for providing power supply in remote areas and on islands, reducing reliance on traditional energy sources.



◆Mountainous regions and outdoor activities:

They are suitable for outdoor activities in mountainous regions, such as camping, hiking, and outdoor music festivals, providing portable renewable energy solutions.



Installation case；



Outdoor camping RV power supply
