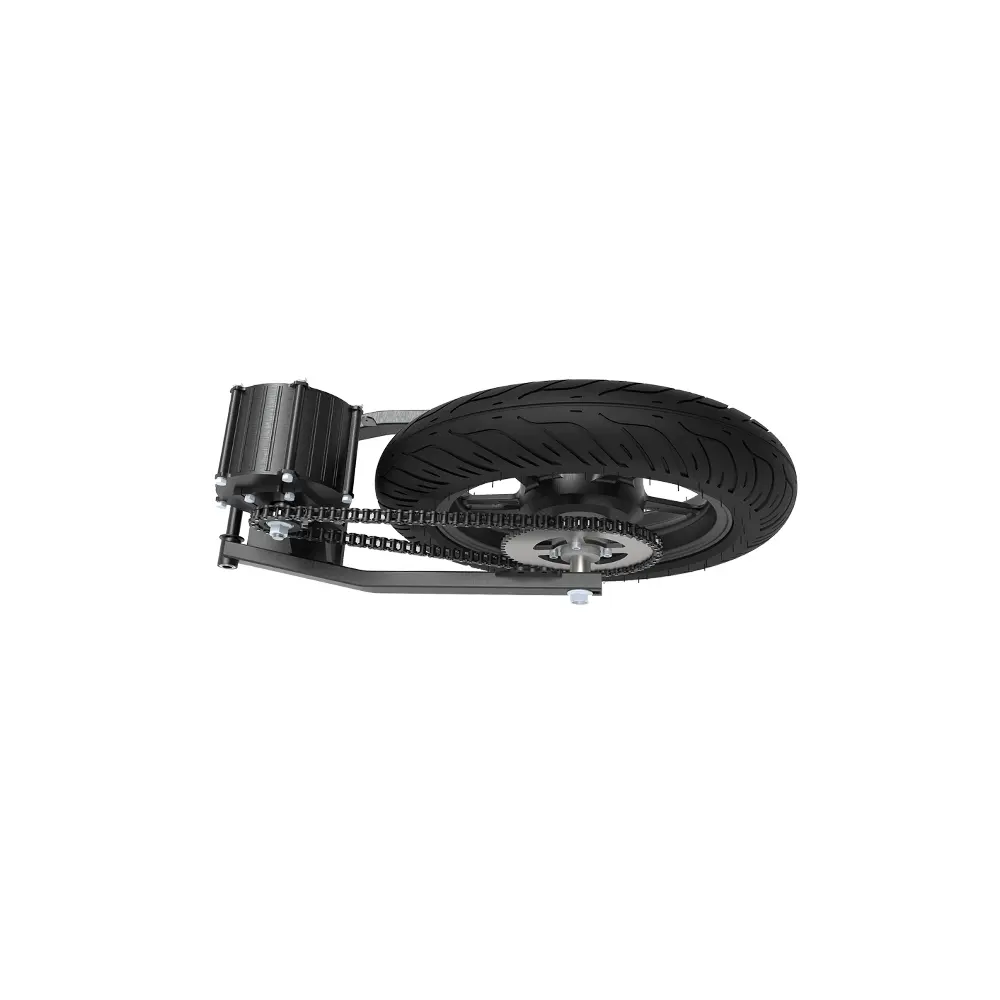

Six-phase mid-mounted motor
SKU: HT-232597
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
|
电机类型 Motor type |
六相永磁同步电机 Six-phase PMSM |
控制器型号 Controller model |
六相控制器 72V100A420 |
|
电机型号 Motor model |
175-57 |
控制器防护等级 Controller protection level |
IP66 |
|
电机防护等级 Motor protection level |
IP67 |
控制器外观尺寸 Controller dimension |
L240 W125 H72.3 |
|
工作电压 Working voltage |
60V-96V |
峰值母线电流 Peak line current |
100A |
|
额定功率 Rated power |
5000W |
峰值相线电流 Peak phase current |
420A |
|
峰值功率 Peak power |
10080W |
传感器类型 Sensor type |
霍尔传感器 Hall sensor |
|
峰值转速 Peak speed |
4100rpm |
绝缘等级 Insulation level |
B |
|
峰值扭矩 Peak torque |
71N.m |
环境温度 Environment temperature |
-30⁓50℃ |
|
峰值效率 Peak efficiency |
≦93% |
冷却方式 Cooling method |
自然风冷 Air cooling |
|
传动结构 Transmission structure |
行星减速结构 planetary deceleration gear |
保护温度 Protective temperature |
110℃ |
|
轴端外径 Outer diameterof shaft end |
Ф16*2 |
电机高度 Height of motor |
156 |
|
轮廓最大外直径 Max outer diameter of contour |
206.79 |
轮廓最大高度 Max height of contour |
205 |
|
适配接口种类 Interface types |
CAN通讯、485通讯、一线通、模拟仪表等 CAN communication,485 communication, one-line communication,analog instrumentation,etc. |
||
