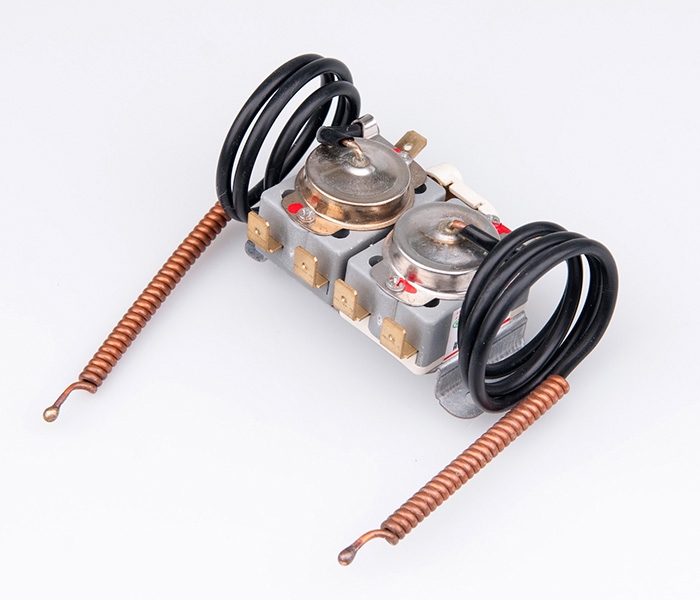

WQS protector series (20A, 30A, 45A, dual temperature sensor)

SKU: HT-216778

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

Specifications / Technical Requirements：

Temperature Range：60~150℃

Application Range：fryer,electric water heater etc,Over-temperature protection.

Rated Voltage：250V Rated Current：20A,30A,45A

Rated Voltage：400V Rated Current：16A

Contact Resistance：≤50m Ω

Insulation Resistance：≥100MΩ/500V

HI-pot Strength：AC 1800V 1mim 0.5mA

Max temperature of body：105℃

Max temperature of sensor：OFF+30℃

Length of capillary：300~1500mm
