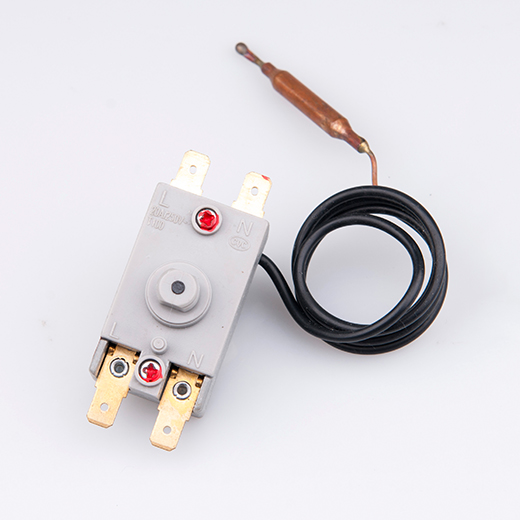

Oven capillary thermostat WQS 20A Protector Jiulong thermostat
SKU: HT-102663
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
- - Temperature Range: 60 ~150℃
- - Application Rang: fryer, electric water heater over-temperature protection etc
- - Rated Voltage: 250V
- Rated Current: 20A, 30A, 45A
- - Rated Voltage: 400V
- Rated Current: 16A
- - Contact Resistance: ≤50m Ω
- - Insulation Resistance: ≥100MΩ / 500V
- - HI-pot Strength: AC 1800V 1min 0.5mA
- - Max Temperature of Body: 105℃
- - Max Temperature of Sensor: OFF + 30℃
- - Length of Capillary: 300~1500mm
