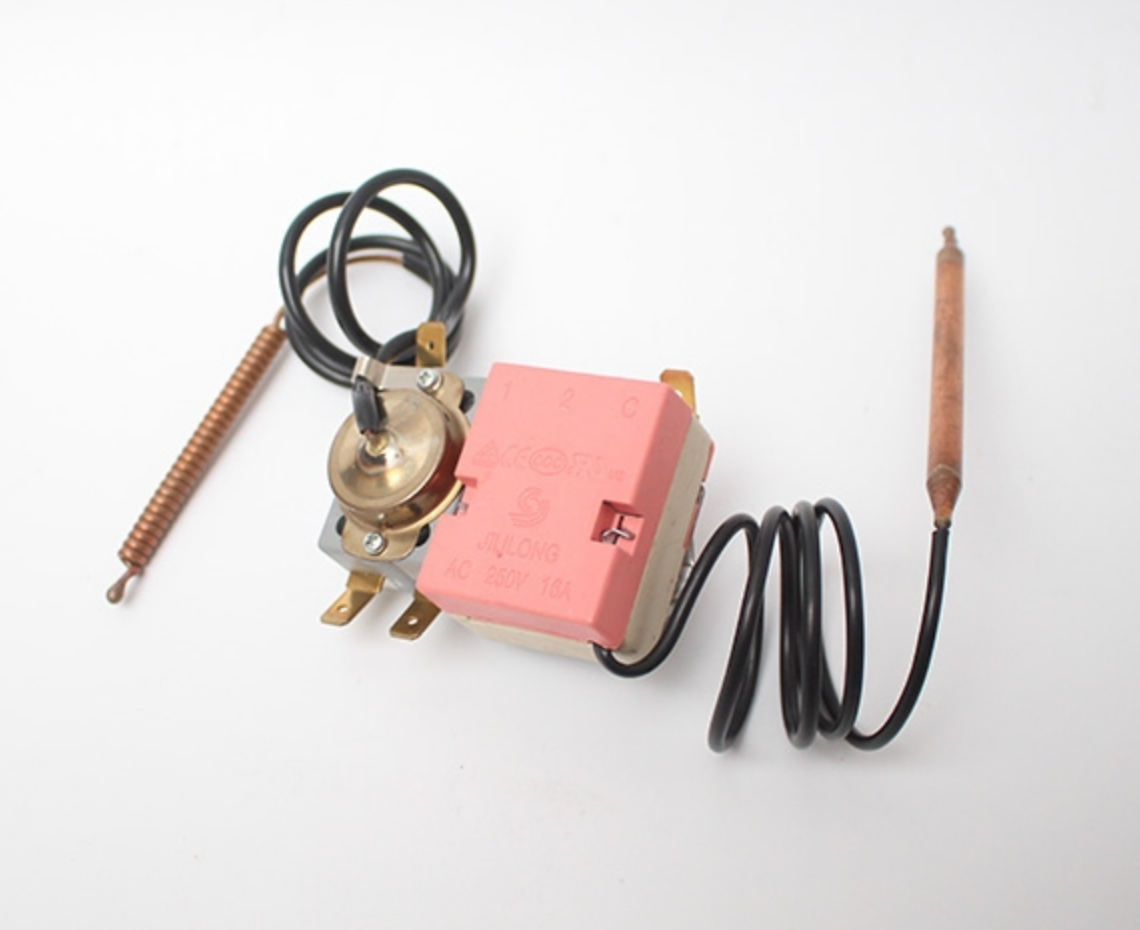

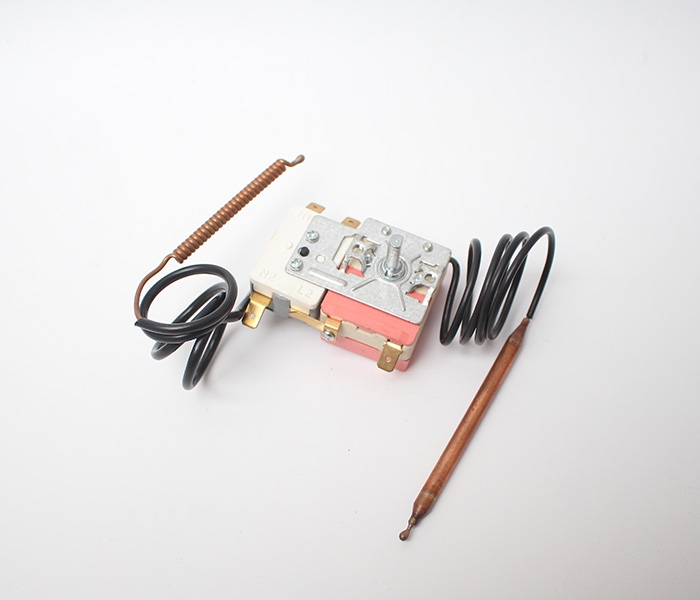

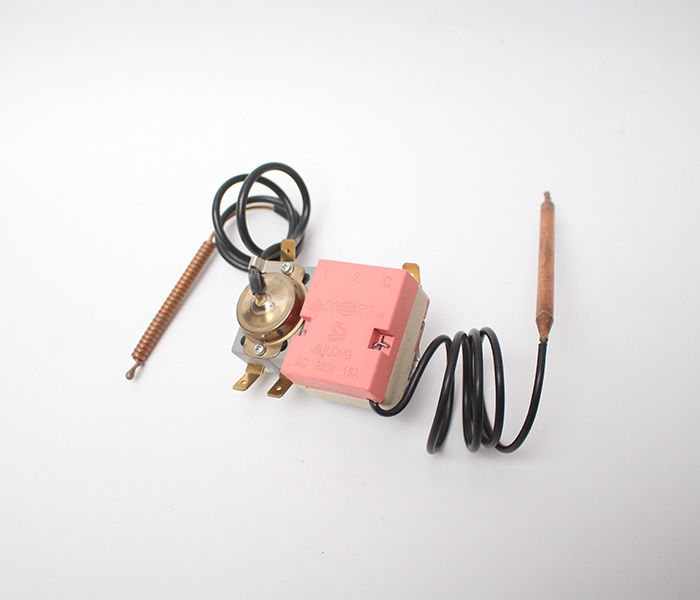

Temperature control + protector combination series

SKU: HT-216777

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

Specifications / Technical Requirements：

Temperature Range：60~150℃

Application Range：refrigerator,Washing machine,electric water heater etc.

Rated Voltage：250V

Rated Current：16A

Contact Resistance：≤50m Ω

Insulation Resistance：≥100MΩ/500V

HI-pot Strength：AC 2000V 1mim 0.5mA

Max temperature of body：100℃

Max temperature of sensor：OFF+30℃

Length of capillary：250~3000mm

Diff:2~15℃(Customized)
