Leenol Induction Type SMT Intelligent Trolley for 7inch/13 inch material-SMDC2S

SKU: HT-129142

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

Rack material: aluminum profile frame, anti-rust, anti-corrosion (with 304 stainless steel is the same food grade material, compared with stainless steel, no sharp corners, warping, to protect workers.) ; The baffle materials between storage locations are stainless steel wire and anti-static plastic baffle strips.

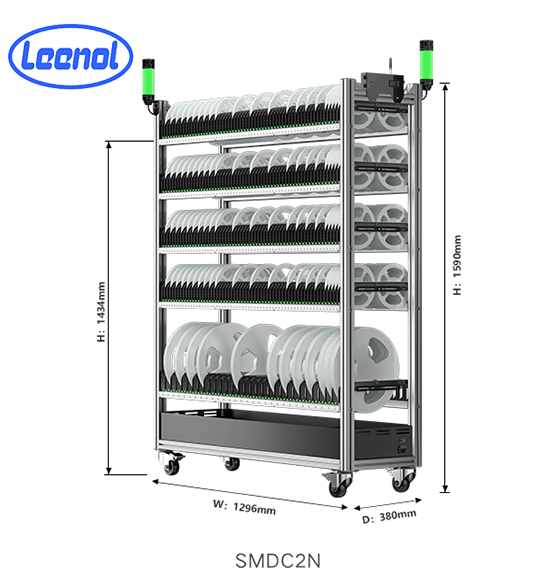

Rack structure: SMDC2N intelligent trolley have 4 layers double-sided storage position for 7 inch material, and 1 layer single-side storage position for 13 inch material, can storage 480pcs 7 inch material and 30 pcs 13 inch material, storage position width can be adjustable.

Electrical part: light strip components and photoinductive components are integrated design, the circuit board is not exposed, simple maintenance and replacement, easy to maintain and reduce maintenance costs. Controller Optional wireless controller or industrial machine. Voice music alarm lights and other functional options are optional.

Model	SMDC2S
Voltage	DC24V
Working flow	60 indicators indicating the warehouse location ≤240mA@DC24V Maximum total current of seven colors ≤2360mA@DC24V
IB Communication bus	38.4K baud rate, maximum transmission distance of 200 meters
Electric protection	Over current, over voltage protection, reverse protection
Max indicate position	60
Response time	within 30ms
Working environment	Temperature: -20℃ to + 50 ℃（-4℉ to +122℉） Humidness：90% at 55℃
