4 axis automatic welding machine

4 axis automatic welding machine

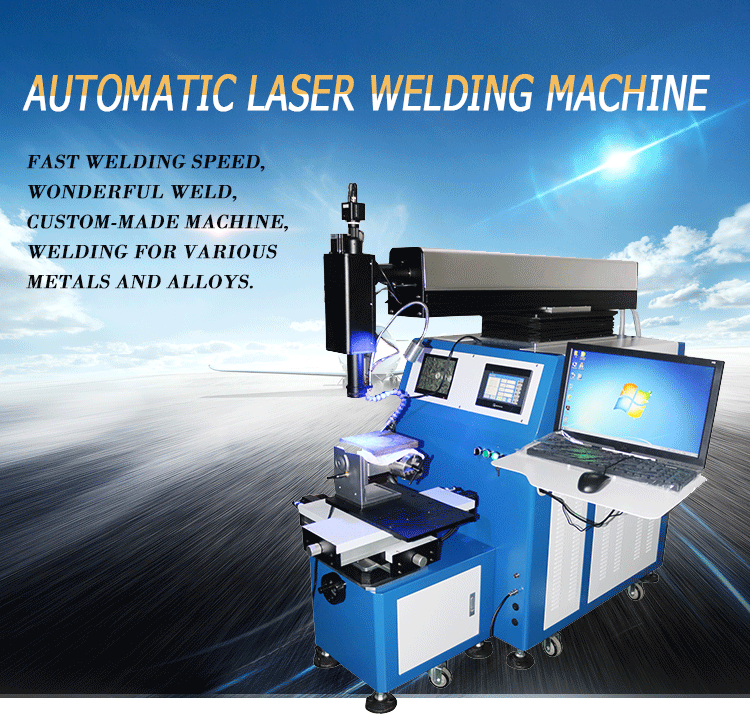

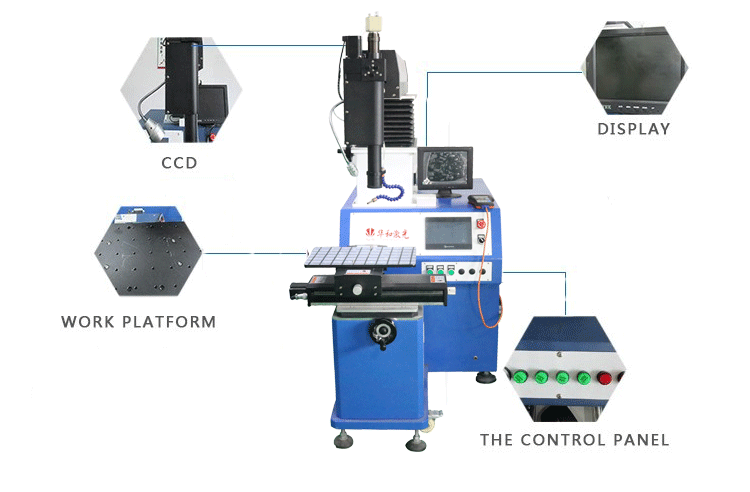

4  axis linkage automatic laser welding machine adopts double lamp ceramic reflection cavity imported from Britain, with powerful power, pulse programmable and intelligent system management. The z-axis of the workbench can be electrically moved up and down for focusing, which is controlled by industrial PC. Configure standard separated x/y/z 3D automatic mobile workbench. Another optional rotating fixture（ φ 80mm or φ 125mm optional). The monitoring system adopts red light and CCD. Equipped with external cooling system.

 Features：

 1.It adopts the ceramic condenser cavity imported from Britain, which is corrosion-resistant and high temperature resistant, and the service life of the cavity is 8-10 years

 2.High production efficiency and fast welding speed.

 3.The workbench can be moved electrically in two dimensions.

 4.Electric adjustment of light spot size.

 5.The laser head can rotate 360 °, and the overall optical path can rotate 360 °, or extend forward and backward

 Graphical:

1.Point, line, circle, square or any plane drawing drawn by AutoCAD
