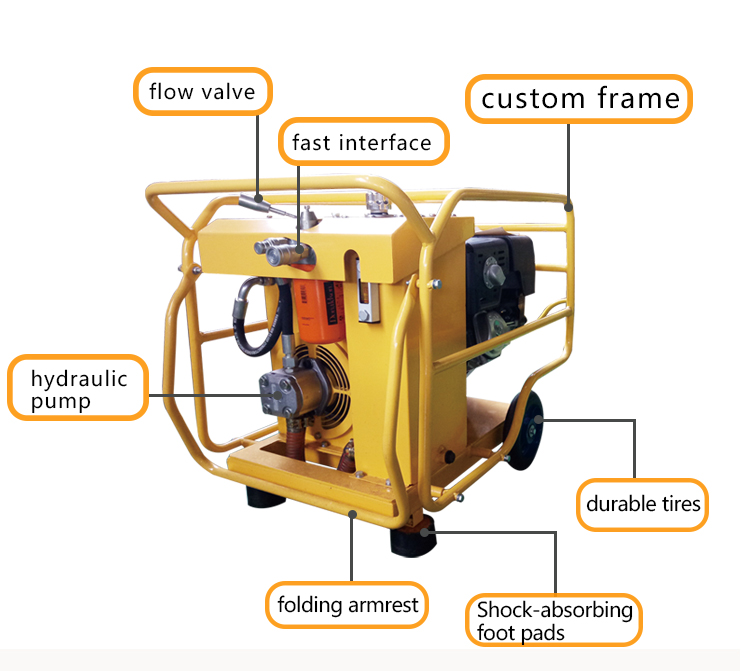

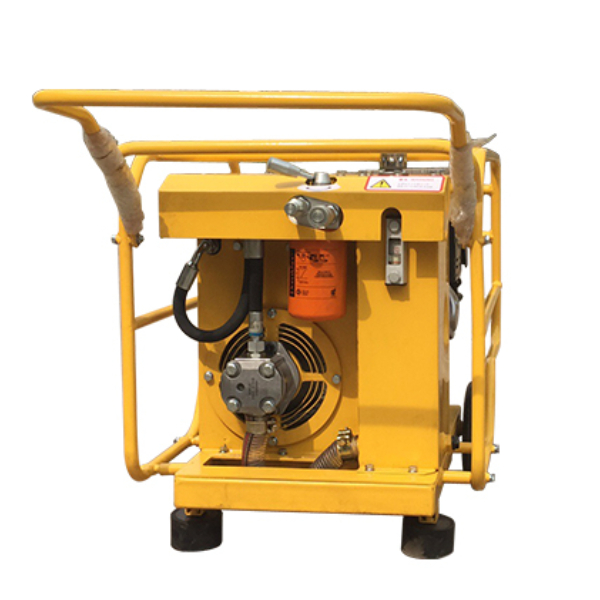

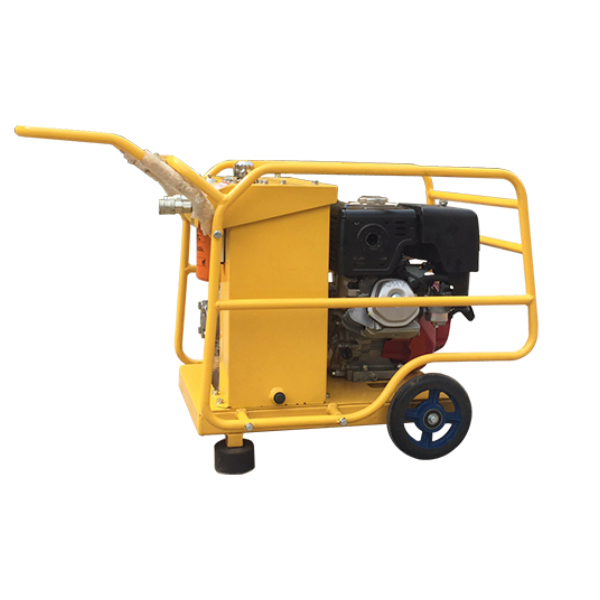

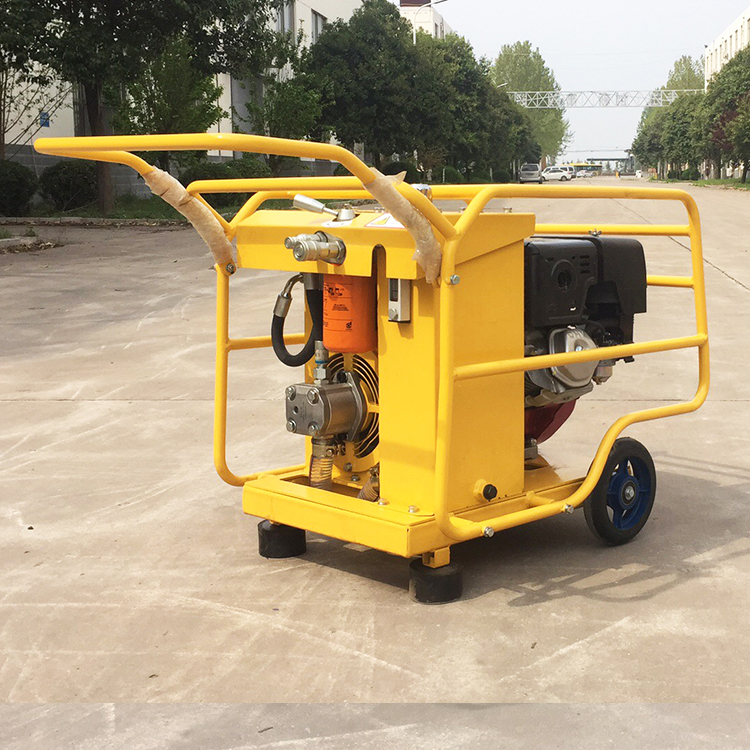

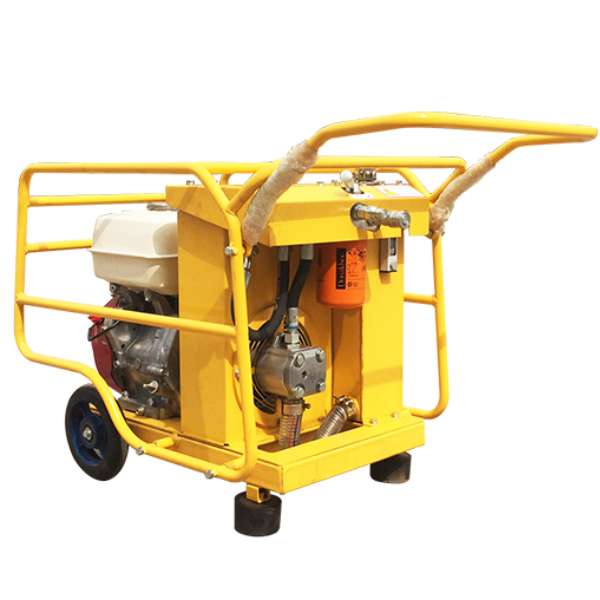

BM13-30 Hydraulic Power Unit manufacturers & suppliers
SKU: HT-528945
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
Production Use :

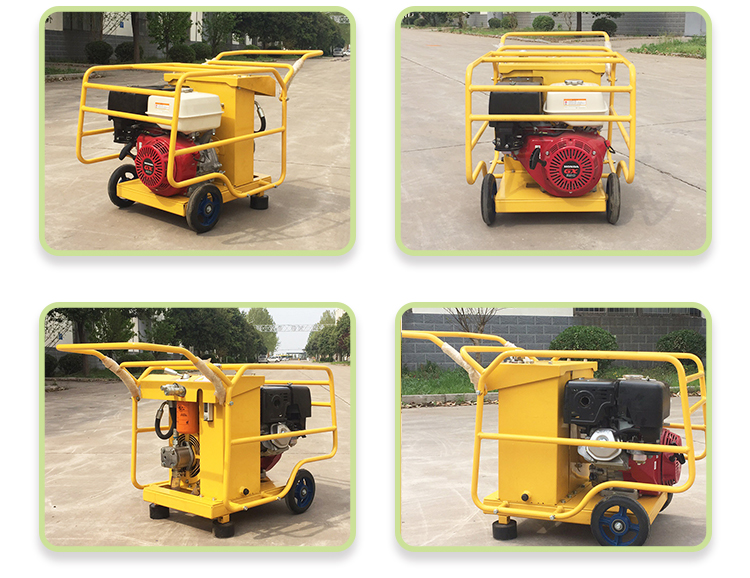

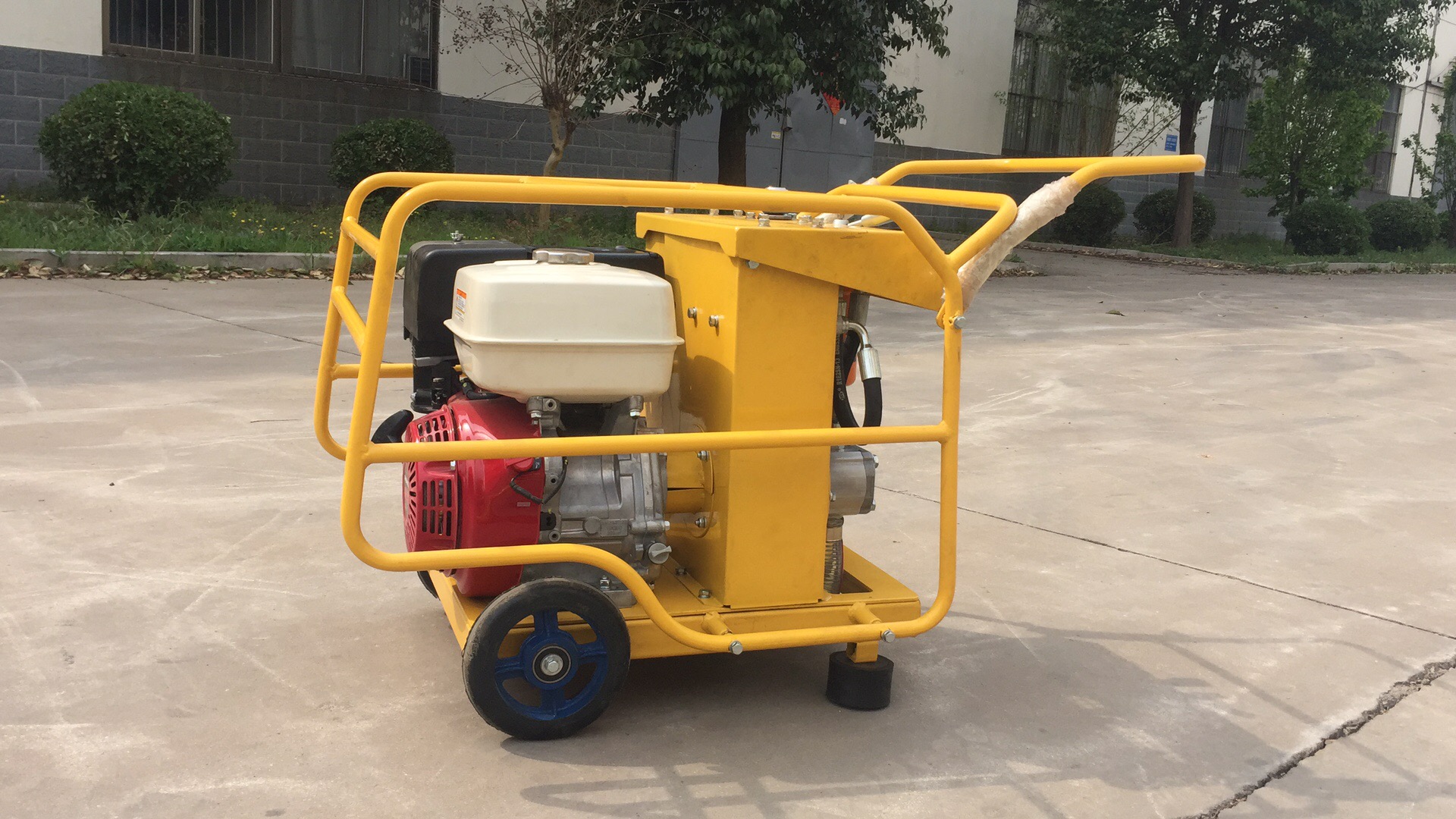

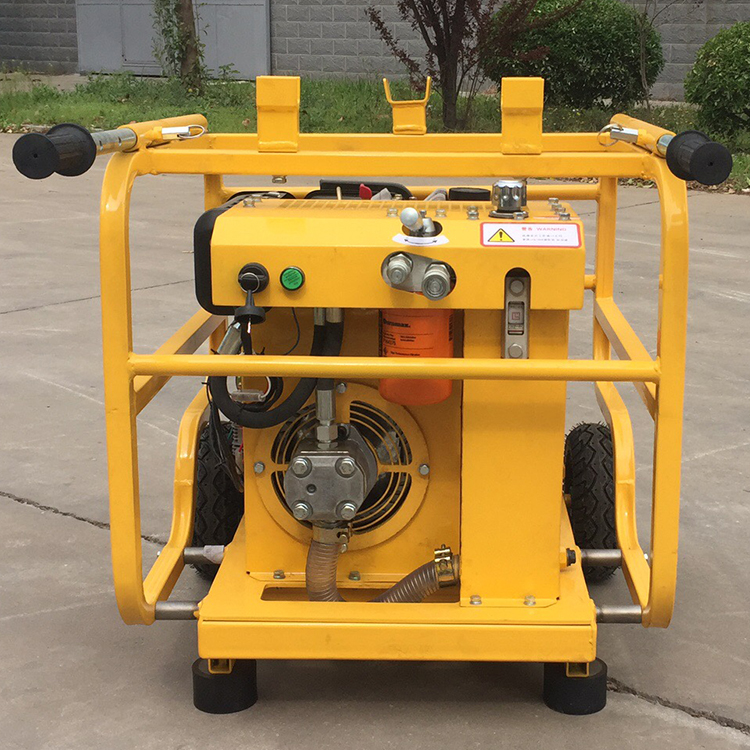

The hydraulic power station is used as the power source for combined hydraulic breaking tools in earthquake rescue and fire rescue, such as hydraulic breaking picks, hydraulic disc cutting saws, hydraulic diamond chainsaws, and hydraulic drainage pumps. It is small, light, portable and powerful.

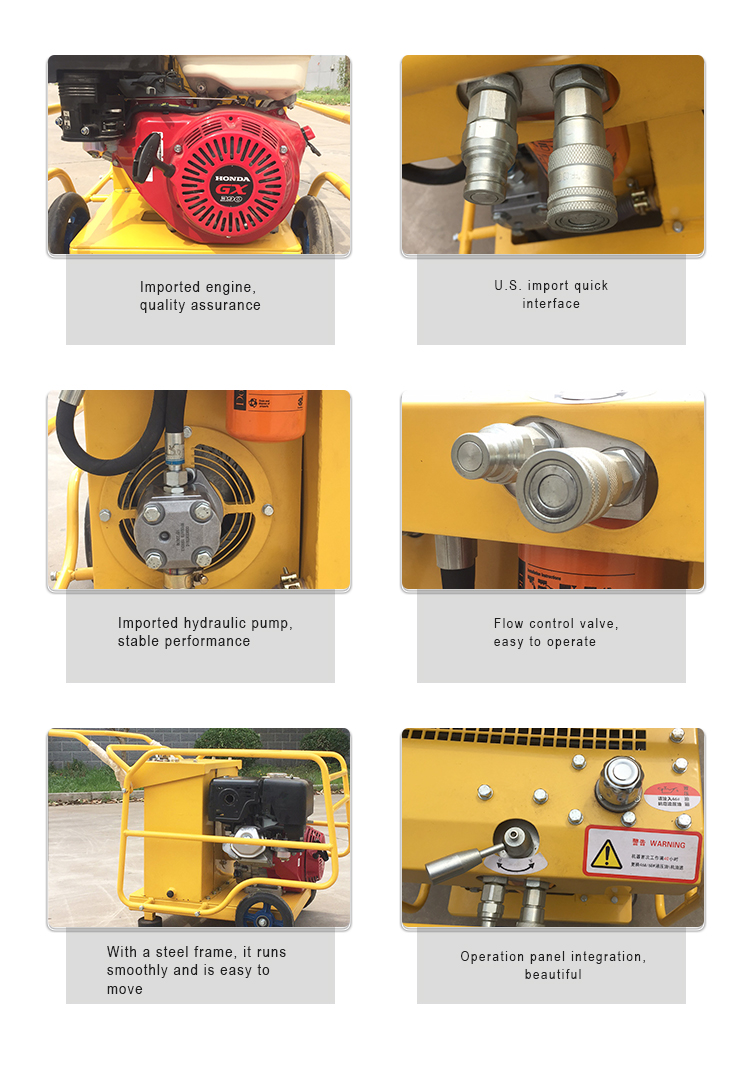

Production Feature:
1. Widely used ,it can drive dozens of hydraulic tools
2. Portable ,compact and light weight ,it can be installed in the rear of small trucks or cars
3. The engine adopts air cooling ,without antifreeze and low energy consumption
4. Mobility is good and can be easily carried out to the construction site
5.The movement of moving parts in closed loop is low maintenance cost and long service life
6.No exhaust engine powered device away from tools
|

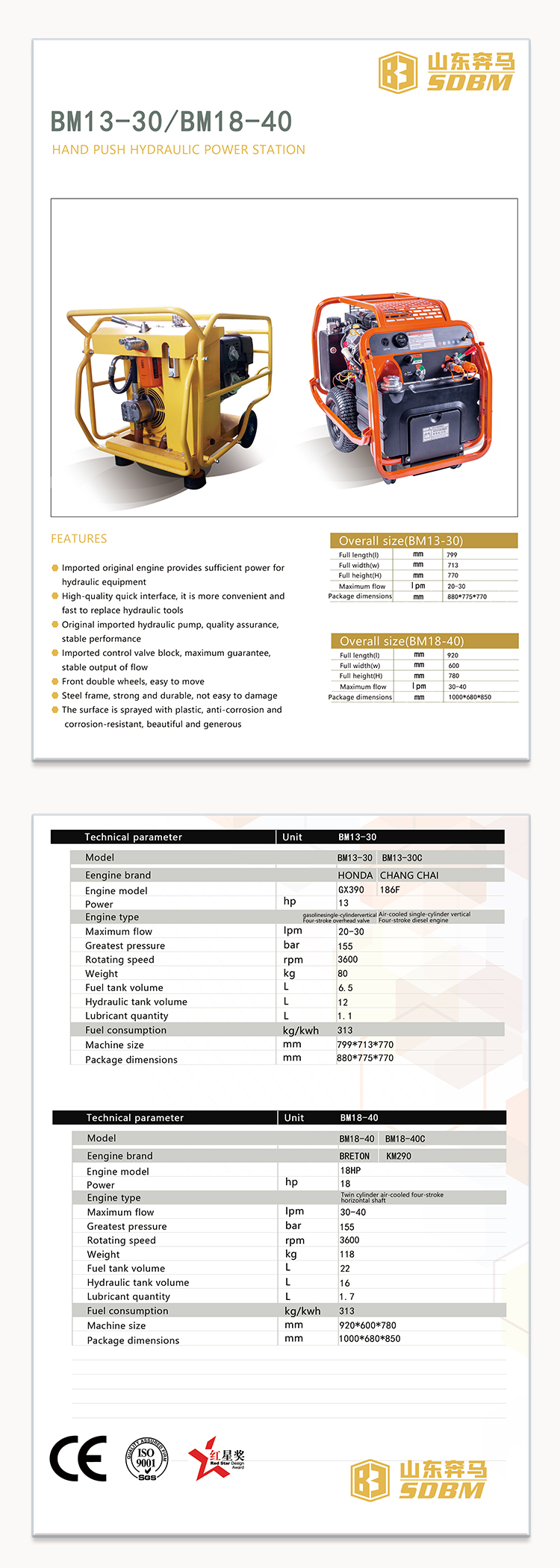

Model |
BM13-30 |
|
Maximum pressure |
155BAR |
|
Quantity flow of Hydraulic oil |
20-30LPM |
|
Hydraulic oil capacity |
12L |
|

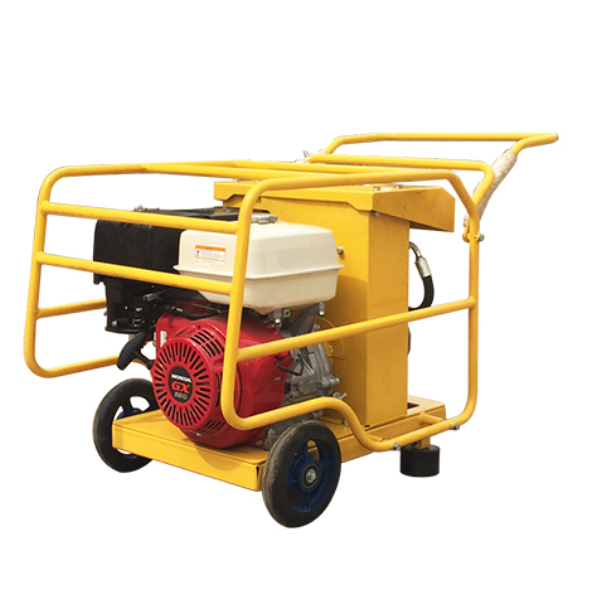

Engine Model |
HONDA GX390 |
|
power |
13OHP/360rpm |
|
Fuel tank Capacity |
6.5L |
|
Lubricating oil capacity |
1.1L |
|
Rate of fuel consumption |
313g/kWh |
|
Dimension |
799*713*770mm |
|
Package dimension |
880*775*770 |
|
Working weight |
115KG |
