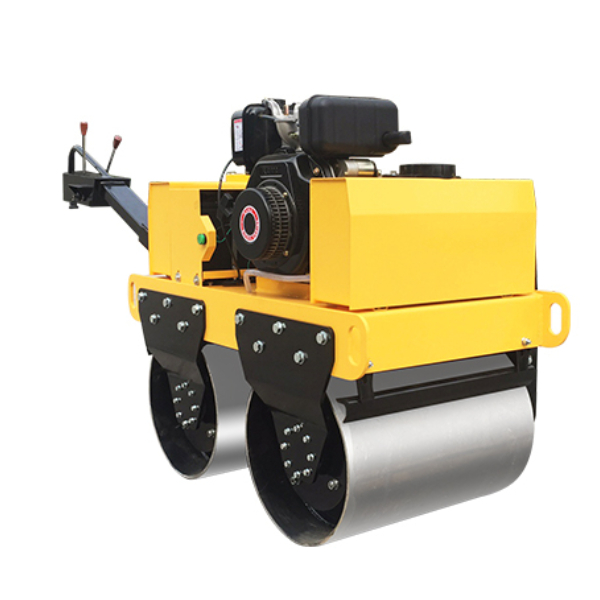

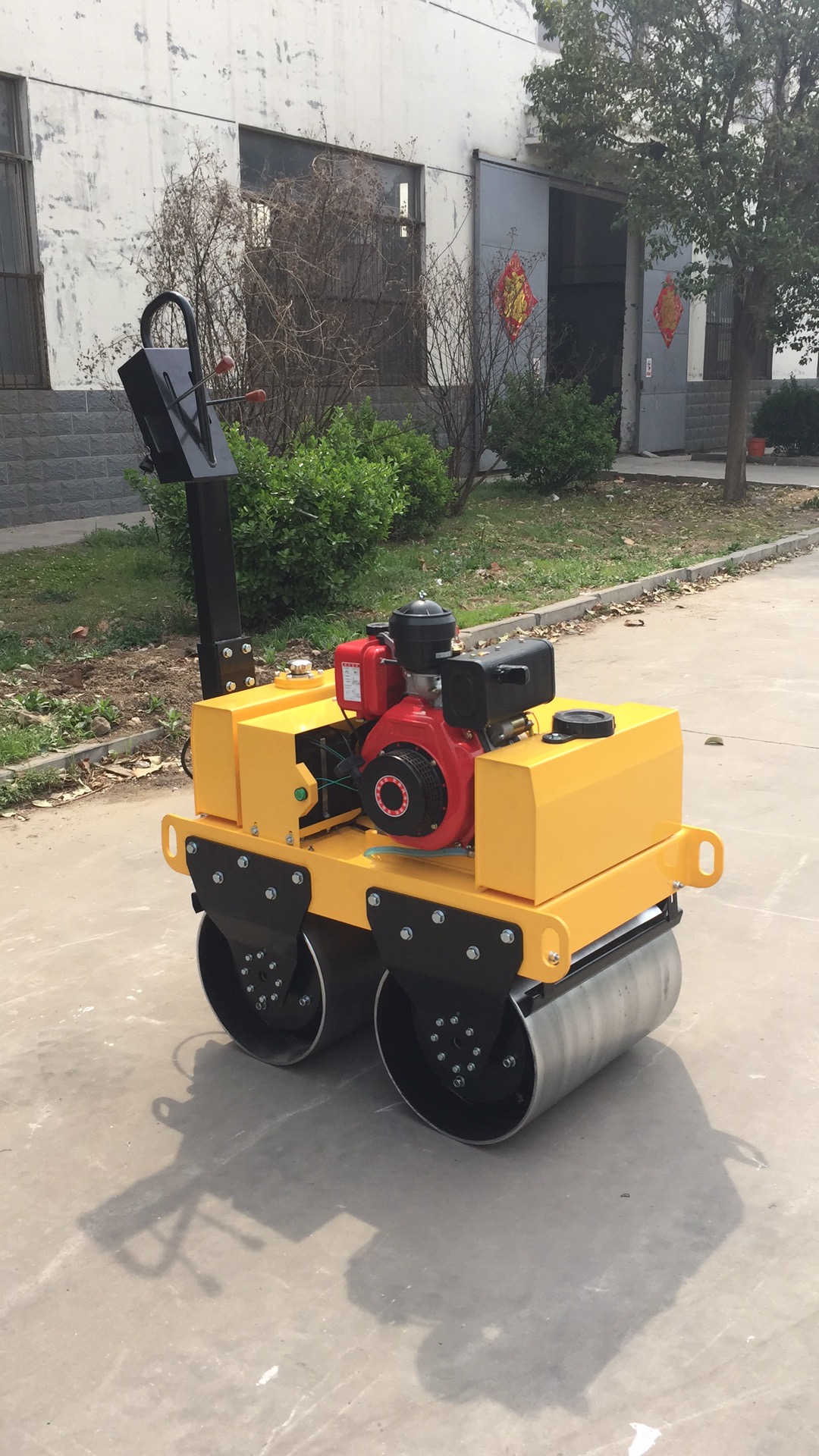

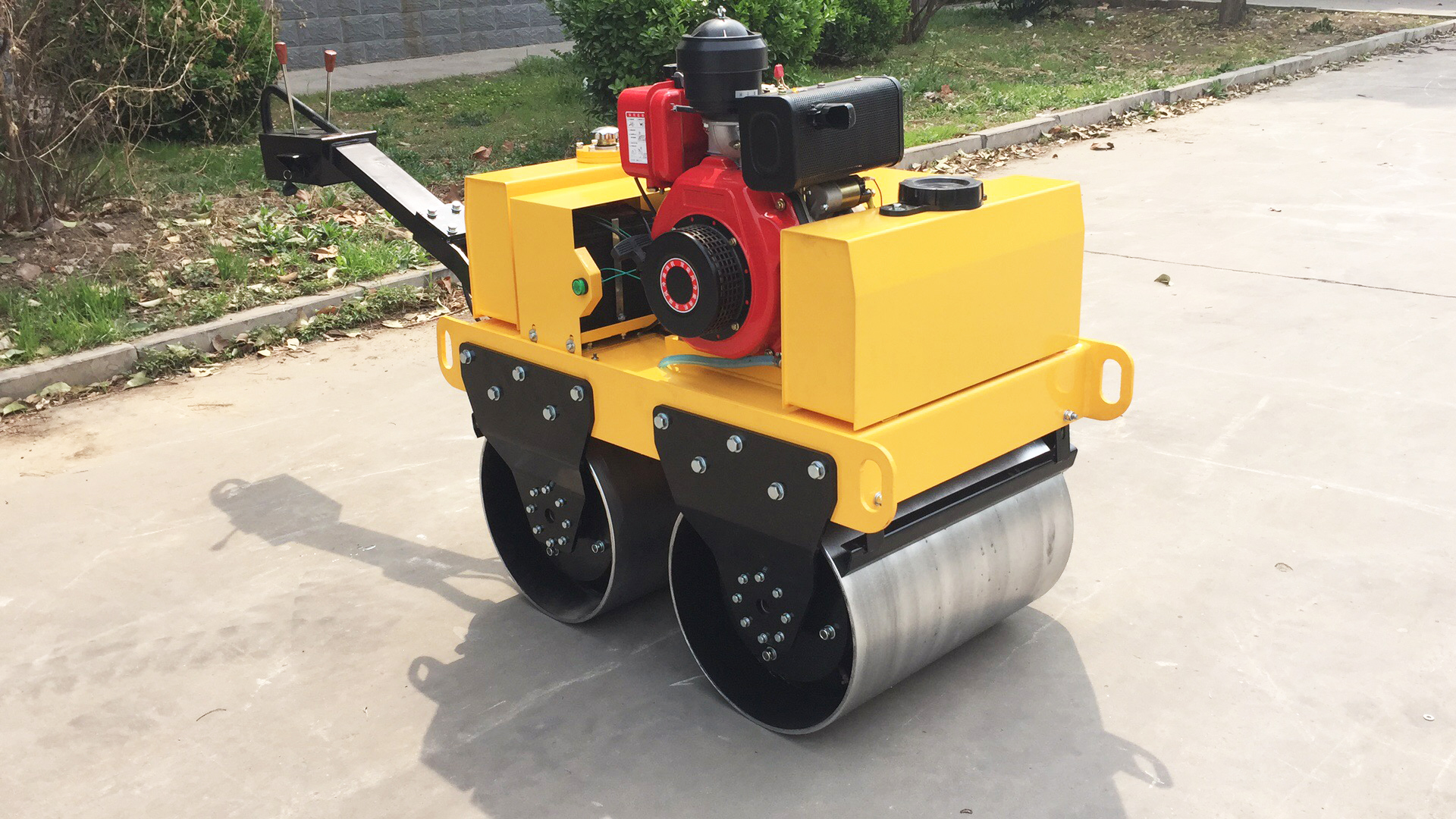

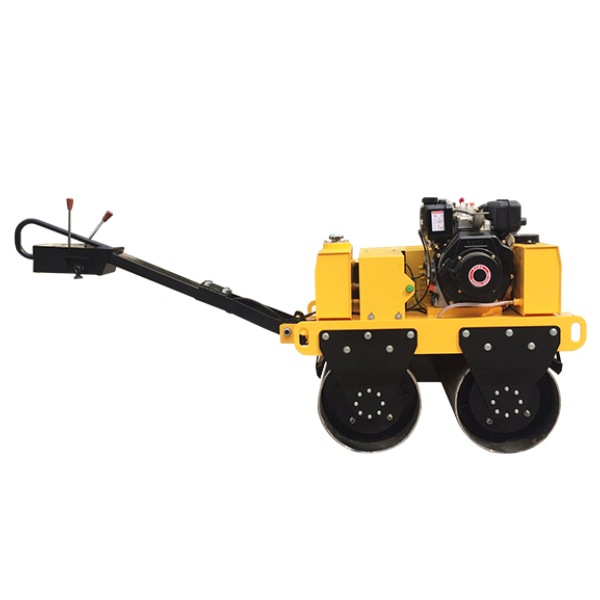

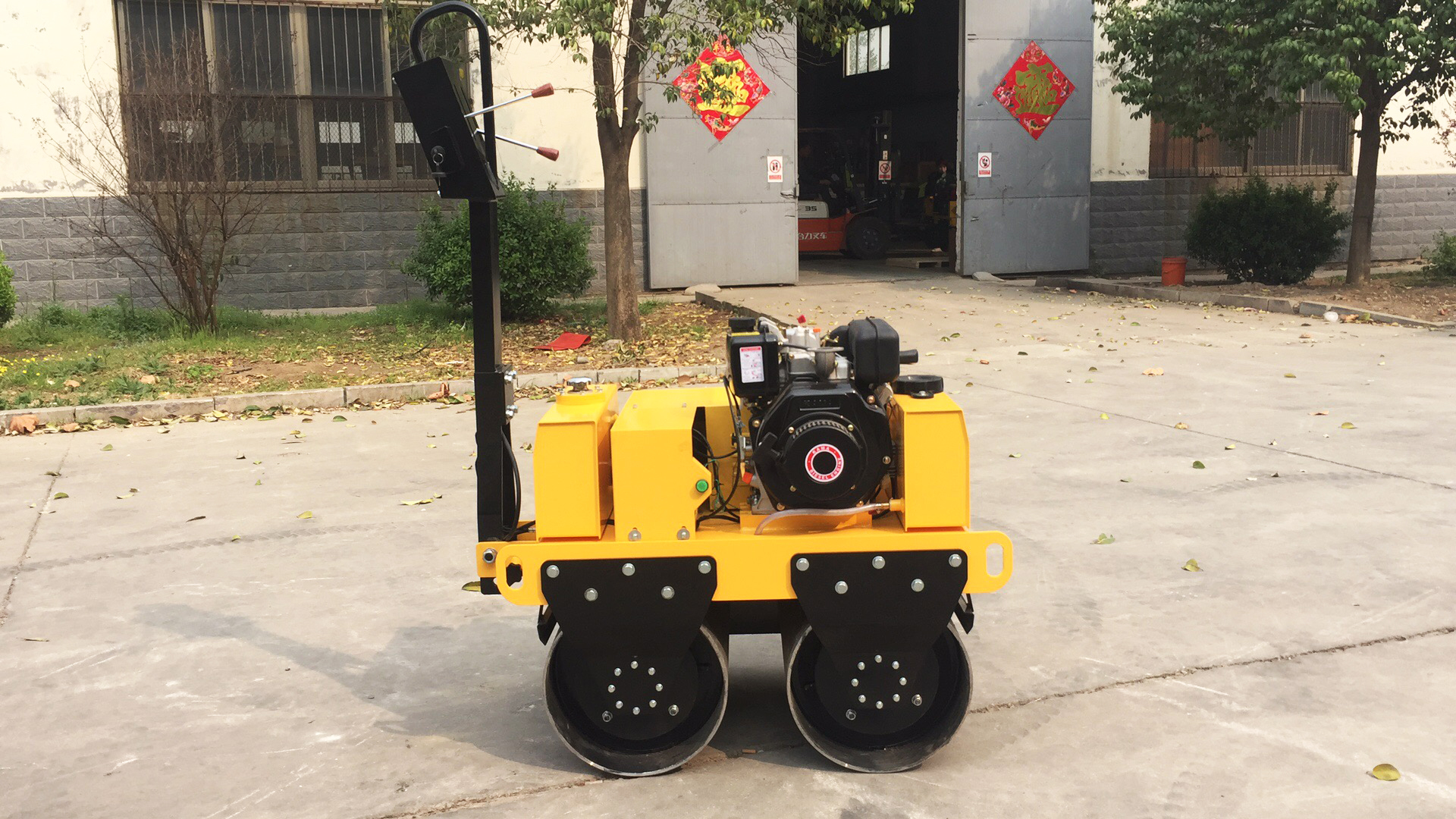

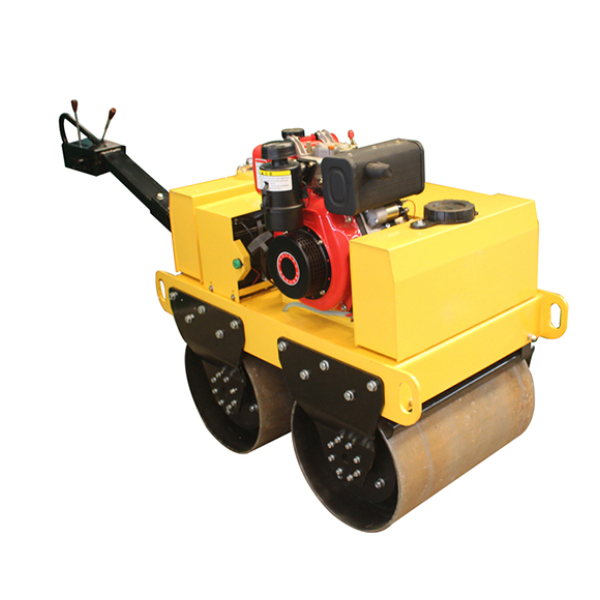

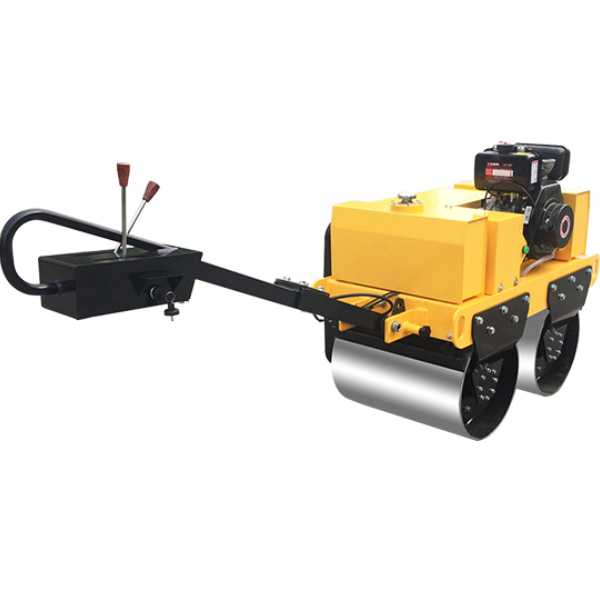

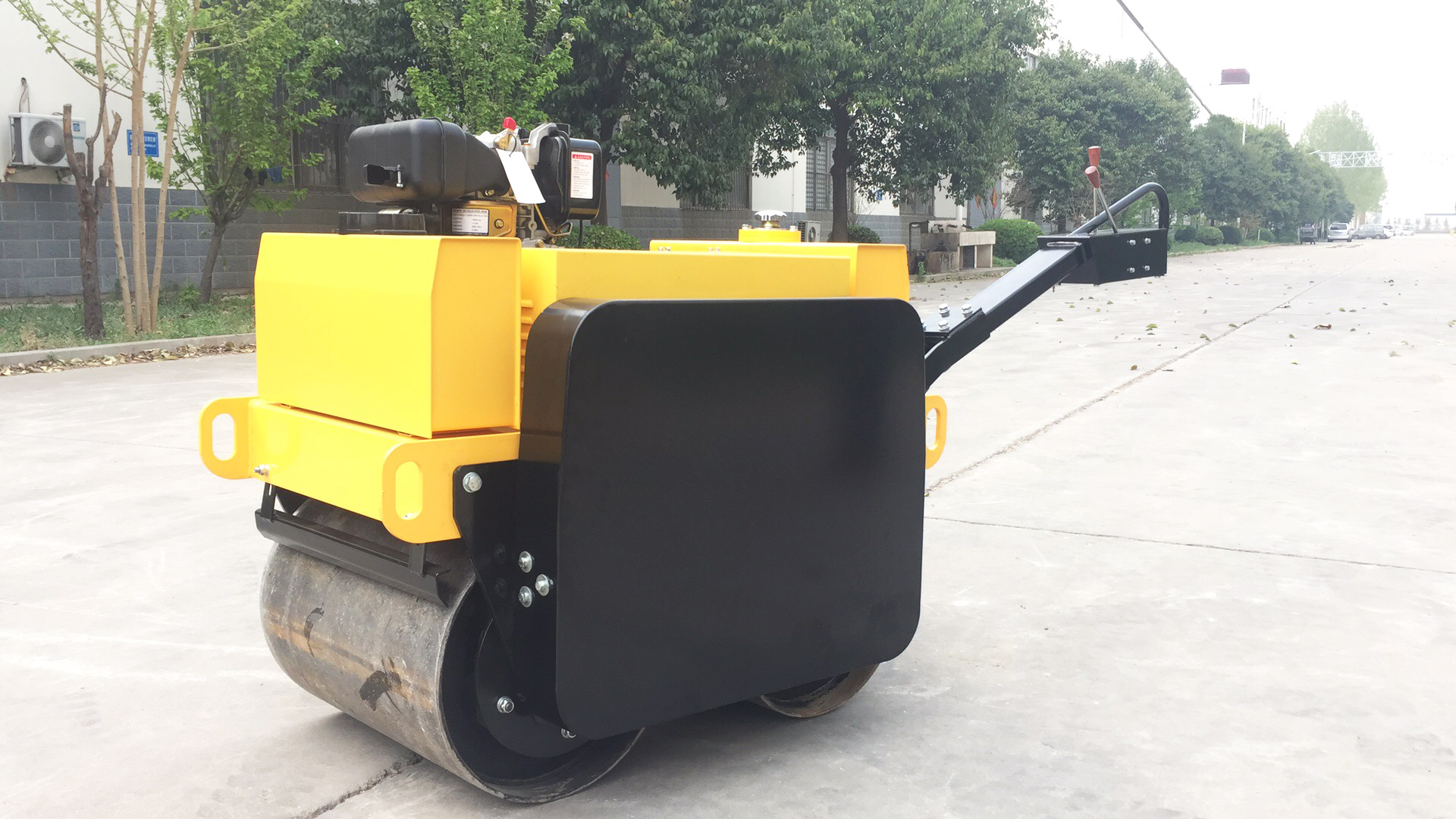

SDBM 500KG Mini Road Roller manufacturers & suppliers

SKU: HT-528926

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

BM50

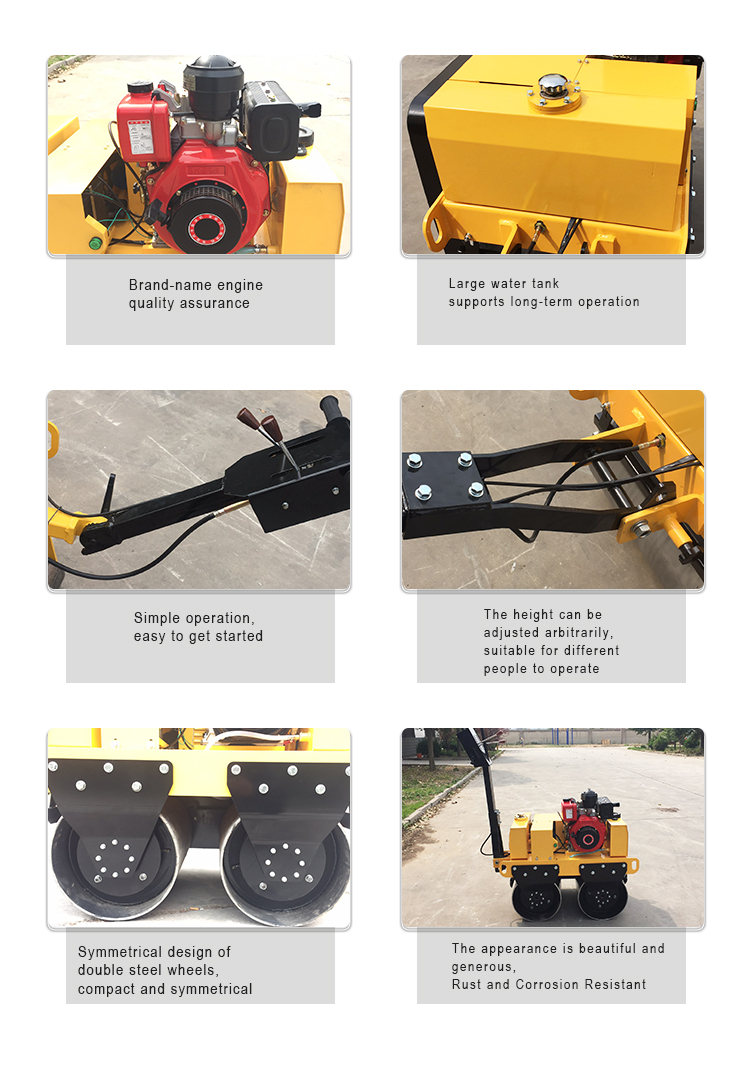

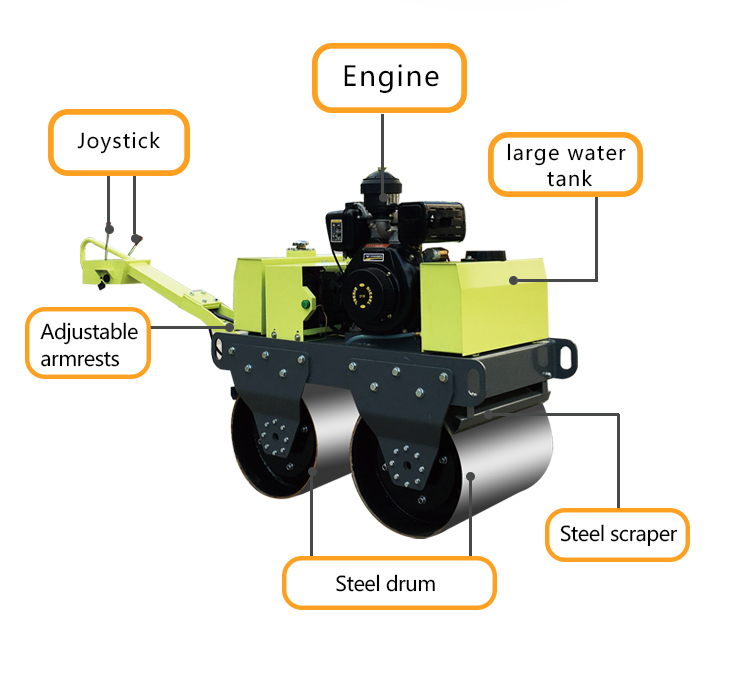

Main Features

1 ) Diesel/Gasoline engine, superior performance, esay to start.

2 ) Operating radius is small, can work in a small area, suitable for groove backfill.

3 ) With famous brand hydraulic pump, walking forward and backward, reversing convenient.

4 )With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine.

5)Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is convenient.

Model	BM50
WEIGHT
Operating Weight	540kg
Static Linear Load	45n/cm
DIMENSION
Working Width	780mm
Overall Length	2480mm
Overall Height	1820mm
Packing Size	16008501900mm
Steel Wheel Width	600mm
Steel Wheel Diameter	426mm
Start Up	Recoil hand pull electric start
DRIVE
Engine Brand	HONDA		Changchai/Changfa			Changchai
Engine Model	GX270		178F			RD180
Engine Type	Gasoline, four stroke		Diesel, four stroke			Diesel, water cooled
Number Of Cylinder	1
Output Power	6.7kw		4.4kw			5.7kw
Rotating Speed	3600rpm		3600rpm			2600rpm
WALKING CHARACTERISTICS
Speed	0-3.8km/h
Grade Ability	30%
BRAKES
Walking Way	Two-way hydraulic, chain transmission
EXCITING SYSTEM
Vibrating Drum	Front+Rear
Vibrating Frequency	70hz
Vibrating Amplitude	0.6mm
Exciting Force	20kn
SPRINKLER SYSTEM
Water Spray Form	Gravity-Type Water				-----
CAPACITY
Fuel Capacity	5.9L	2.7L			6.5L
Lubricating Oil Capacity	1.1L	1.1L			2L
Hydraulic Tank Capacity	18L
Water Tank Capacity	20L			-----
