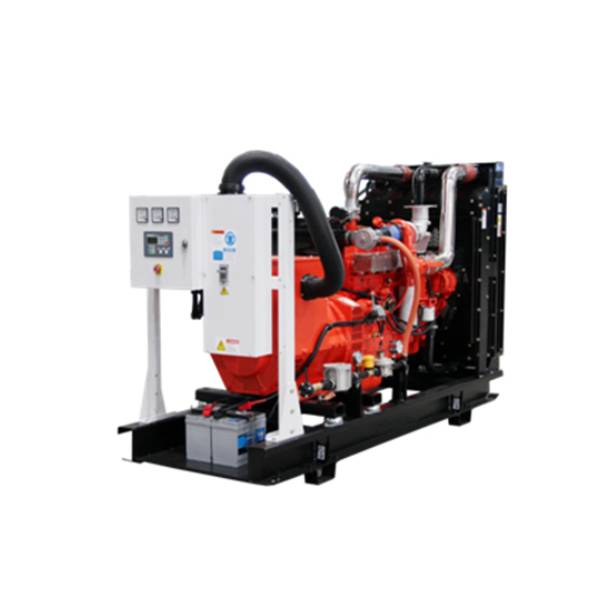

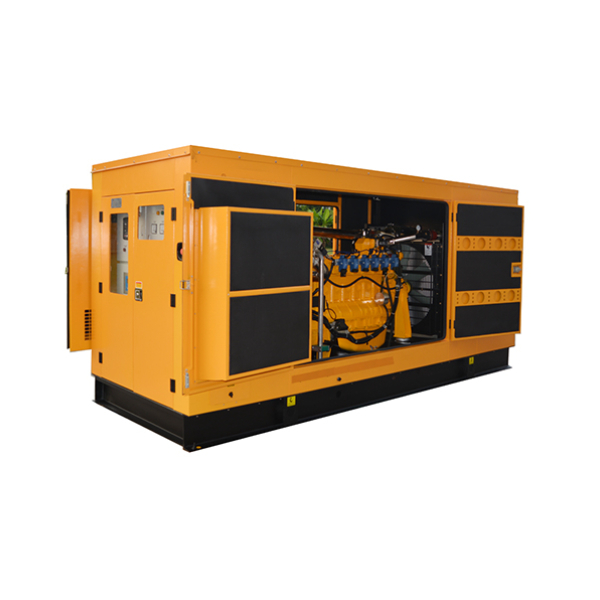

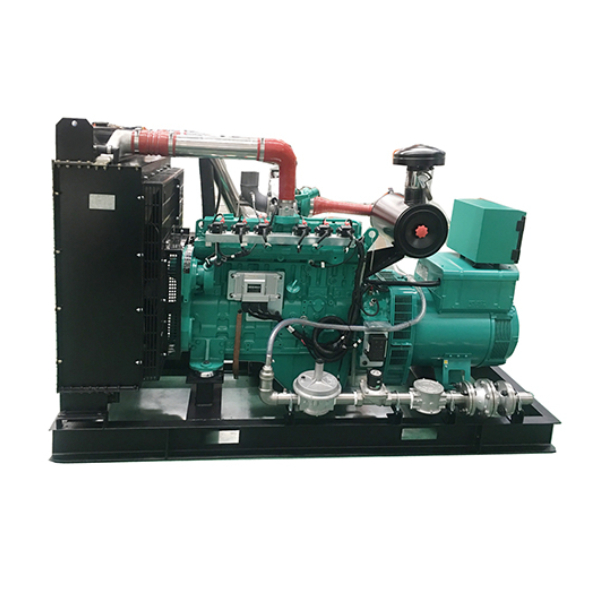

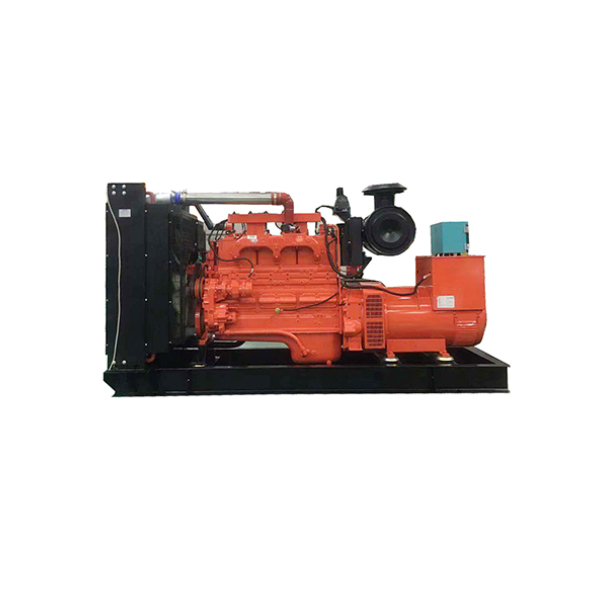

Gas Generaor 24kW-300kW

SKU: HT-222599

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

Gas Generator Feature:

Stable, Efficient, Digital

Advanced components and control systems are used to ensure the product's maximum usage availability. Improved lubricant management systems, optimised cylinders and turbochargers further enhance the product's continuity and reliability.

The most efficient in its class

. Up to 36 % electrical efficiency

. Low operating costs to maximise economic benefits

. Numerical simulation optimised the design of low fluid loss for a higher efficiency

Optimized lubricant management system

. The lowest consumption of lubricating oil in the same grade: <0.3 g/kWh

. Longer intervals for change in oil

. Integrated daily oil tank

Convenient installation of the unit

. Integrated auxiliary oil tank

. Vibration isolation base can reduce installation cost and facilitate stable operation

. Greater lubricant capacity

. Integrated lubricant management system

Higher usage availability and a longer life

. The cylinder with uniform intake air optimises the combustion process

. Optimised combustion process reduces peak pressure

. The unit runs smoothly with a small vibration

Advanced control system

. Simple human-computer interface

. Fully integrated remote access

. Wider range of control, such as: synchronization, circuit breakers and equipment control

Operational, and economic advantages

The special co-generation unit has a long overhaul period (natural gas overhaul period of 40,000hrs) and high efficiency, which has the highest economic benefit in the same class of products.

Gas Generator Standard Supply Scope:

. Gas Engine with alternator, 400V, 1500rpm, 50Hz

. Ignition System: Ignition controller, Ignition coil, Spark plug, High pressure wires, Sensor

. Air/Gas Mix System: Air/gas mixer, Controller, Pressure sensor, NOx sensor

. Governor System: Governor controller, Throttle, Sensor

. Gas Train Ball valve, Gas filter, Gas Regulator, Gas Control Valve

. Gas Inlet pressure: 5-20kPa

. Gas Low Heat Value: ≥ 36MJ/Nm3 Natural Gas

Natural Generators, 50Hz, 1500rpm, 24kW-300kW

Genset Model		SGG30	SGG50	SGG60	SGG100
Engine Model		SG4B	SG4BT	SG6B	SG6BT
Rating Speed	rpm	1500	1500	1500	1500
Frequency	Hz	50	50	50	50
Generator Output (PRP)	kW	24	40	48	80
Power Factor		0.8	0.8	0.8	0.8
Gas Engine Parameter
Engine Output (PRP)	kW	33	45	55	94
Configuration		4 In line	4 In line	6 In line	6 In line
Displacement	l	3.9	3.9	5.9	5.9
Bore	mm	102	102	102	102
Stroke	mm	120	120	120	120
Compression Ratio		11.5:1	11.5:1	11.5:1	11.5:1
System Parameter
Oil Capacity	l	10.9	10.9	16.4	16.4
Max. Allowed Oil Temperature	°C	120	120	120	120
Oil Pressure Warning	kPa	160	160	160	160
Oil Pressure Shutdown	kPa	80	80	80	80
Coolant Capacity for Engine	l	15	15	25	25
Max. Coolant Shutdown Temperature	°C	95	95	95	95
Flow of Coolant pump (JW)	m³/h	7.9	7.9	10	10
Max. Exhaust Temperature	°C	640	550	630	550
Starting Voltage	V	24	24	24	24
Thermal Balance
Electrical Efficiency	%	30	31.0	30.0	32.0
Thermal Efficiency	%	25.0	24.0	25.0	24.0
Total Efficiency	%	55.0	55.0	55.0	56.0
Gas Consumption @ 100% load ±5%	m3/h	10.0	13.0	16.0	25.0
Generator Parameter
Generator Model		GM-30-4	MP-50-4	MP-58-4	MP-104-4
Generator Prime Output	kW	30	50	58	104
Genset Dimension
Genset Size- L * W *H	mm	200010001200	200010001200	230010001200	230010001200
Genset Weight	kg	800	900	1800	2000

Genset Model		SGG150	SGG188	SGG285	SGG315	SGG375
Engine Model		SG6CT	SG6LT	SG6NT	CM6T28F.270	SG6KT
Rating Speed	rpm	1500	1500	1500	1500	1500
Frequency	Hz	50	50	50	50	50
Generator Output (PRP)	kW	120	150	228	252	300
Power Factor		0.8	0.8	0.8	0.8	0.8
Gas Engine Parameter
Engine Output (PRP)	kW	138	165	250	270	330
Configuration		6 In line	6 In line	6 In line	6 In line	6 In line
Displacement	l	8.3	8.9	14	11.8	18.9
Bore	mm	114	114	140	128	159
Stroke	mm	135	145	152	153	159
Compression Ratio		11.5:1	11.5:1	10.5:1	12.5:1	10.5:1
System Parameter
Oil Capacity	l	23.8	27.8	40	38	50
Max. Allowed Oil Temperature	°C	120	120	120	130	120
Oil Pressure Warning	kPa	200	200	200	200	200
Oil Pressure Shutdown	kPa	160	160	160	160	160
Coolant Capacity for Engine	l	36	38	52	45	63
Max. Coolant Shutdown Temperature	°C	95	95	95	95	95
Flow of Coolant pump (JW)	m³/h	11.8	11.8	24	24	37
Max. Exhaust Temperature	°C	550	550	550	550	550
Starting Voltage	V	24	24	24	24	24
Thermal Balance
Electrical Efficiency	%	32.0	32.0	33.0	36.0	34.0
Thermal Efficiency	%	24.0	24.0	24.0	30.0	24.0
Total Efficiency	%	56.0	56.0	57.0	76.0	58.0
Gas Consumption @ 100% load ±5%	m3/h	37.5	46.8	69.0	72.0	88.2
Generator Parameter
Generator Model		MP-140-4A	MP-160-4A	MP-250-4A	MP-280-4	MP-320-4A
Generator Prime Output	kW	140	160	250	280	320
Genset Dimension
Genset Size- L * W *H	mm	250011001500	250011001600	320013201850	320012501900	360015302000
Genset Weight	kg	2400	2600	3200	3500	4500
