10pin IDC ribbon cable connectors
SKU: HT-635157
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
Specifications:
Current Rating: 3Amp
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding:600V AC/DC
Contact Resistance:20MΩ Max.
Operating Temperature:-40℃~+105℃.
Materials:
Contact Material: Brass
Insulation Material: Polyester, UL 94V-0
All materials must be RoHS compliant.
Mechanical:
Mating Force: 1.67N MAX PER CONTACT.
UNMATING FORCE: 0.14N MIN PER CONTACT.

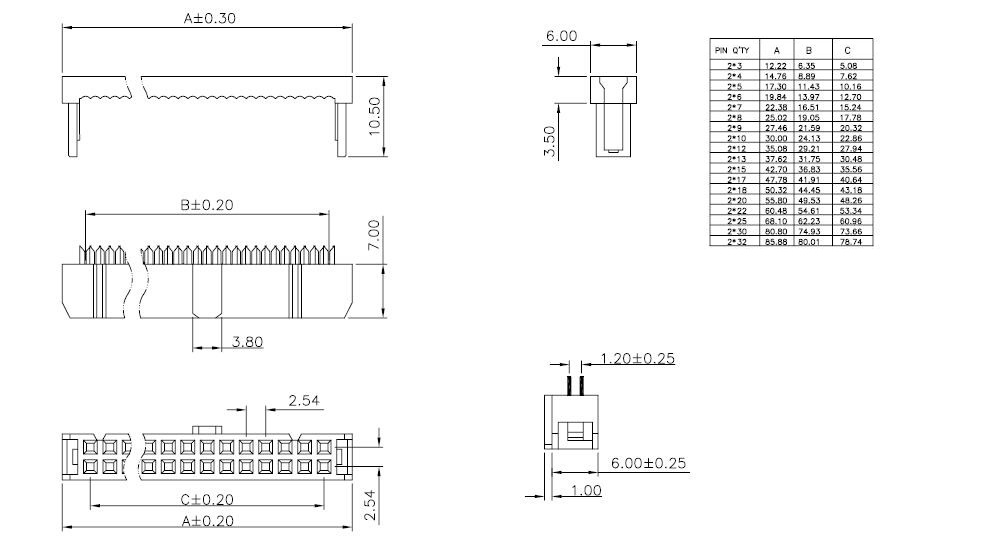

Drawing:
