1.27mm Female header HFIDR52
SKU: HT-634940
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
Specification:
Current Rating: 1.0 Ampere
Insulation Resistance: 1000MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20mΩ Max
Operating Temperature: -40°C to +105°C
Material:
Contact Material: Phosphor Bronze
Insulation Material: UL94V-0
LCP/NL6T
All material: RoHS&Reach Compliant
Halogen-free is available

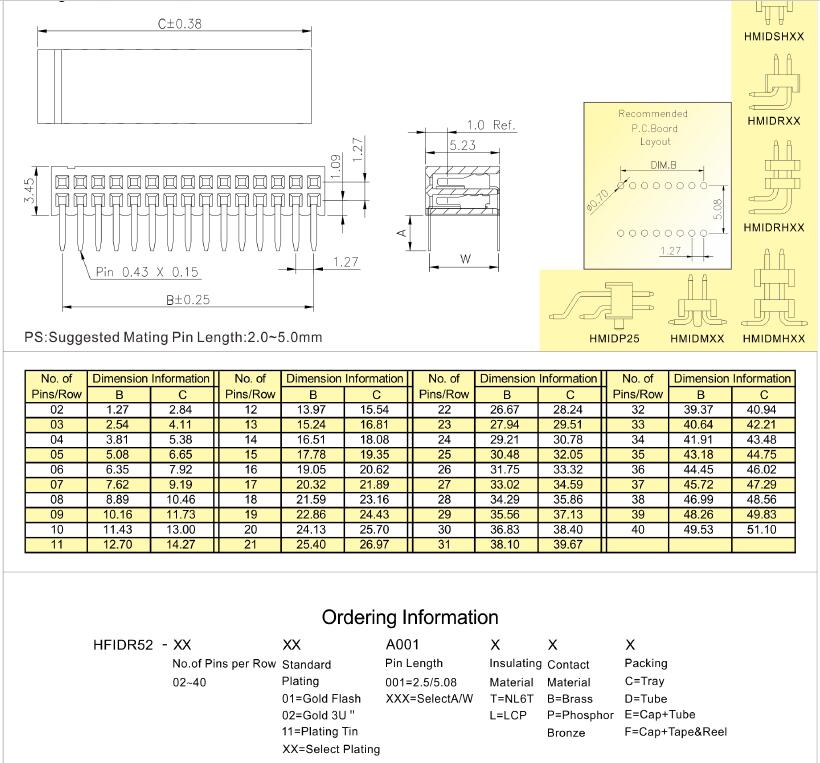

Drawing:
