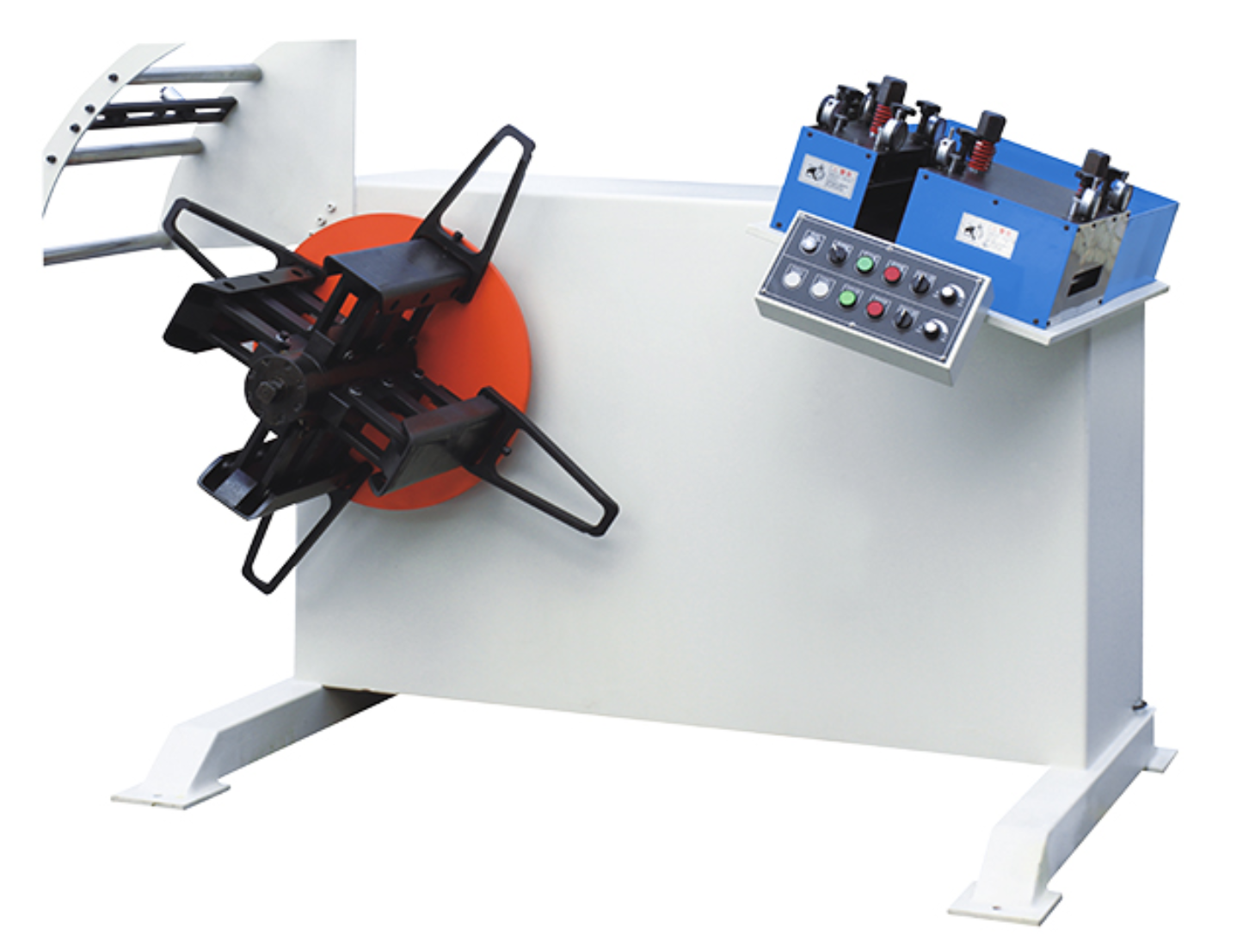

uncoiler and straightener

uncoiler and straightener

SKU: HT-263506
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available

Product details

Product overview

UL SERIES is named 2 in 1 decoiler and straightener machine which has both decoiling and straightening function.The combined structure guarantee a synchronization between decoiler and straightener and save work space,it can achieve a precision straightening performsnce for many different kinds of sheet metal coil.ZHESHENG decoiler and straightener machine can be customized according to customer's specific product application.Contact us to design a suitable model for you.

Technical Data

Model UL-200 UL-300 UL-400 UL-500 UL-600 UL-700
Material width 200 300 400 500 600 700
Material thickness 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2
Coil weight Max 1000 1000 1000 2000 2000 3000
Coil O.D.Max 1200 1200 1200 1200 1200 1200
Coil I.D. 450-530 450-530 450-530 450-530 450-530 450-530
Straighten speed 16 16 16 16 16 16
Work roller(pc) Up3/Down4
Back roller N/A
Main motor 0.75 1.5 1.5 2.2 2.2 3
Coil expansion Hand
Decoil motor N/A
Operating air 0.49
Machine weight 900 1000 1100 1300 1500 1700
Dimension A*B*C 2.3*1.1*1.6 2.3*1.2*1.6 2.3*1.3*1.6 2.3*1.4*1.6 2.3*1.5*1.6 2.3*1.6*1.6
