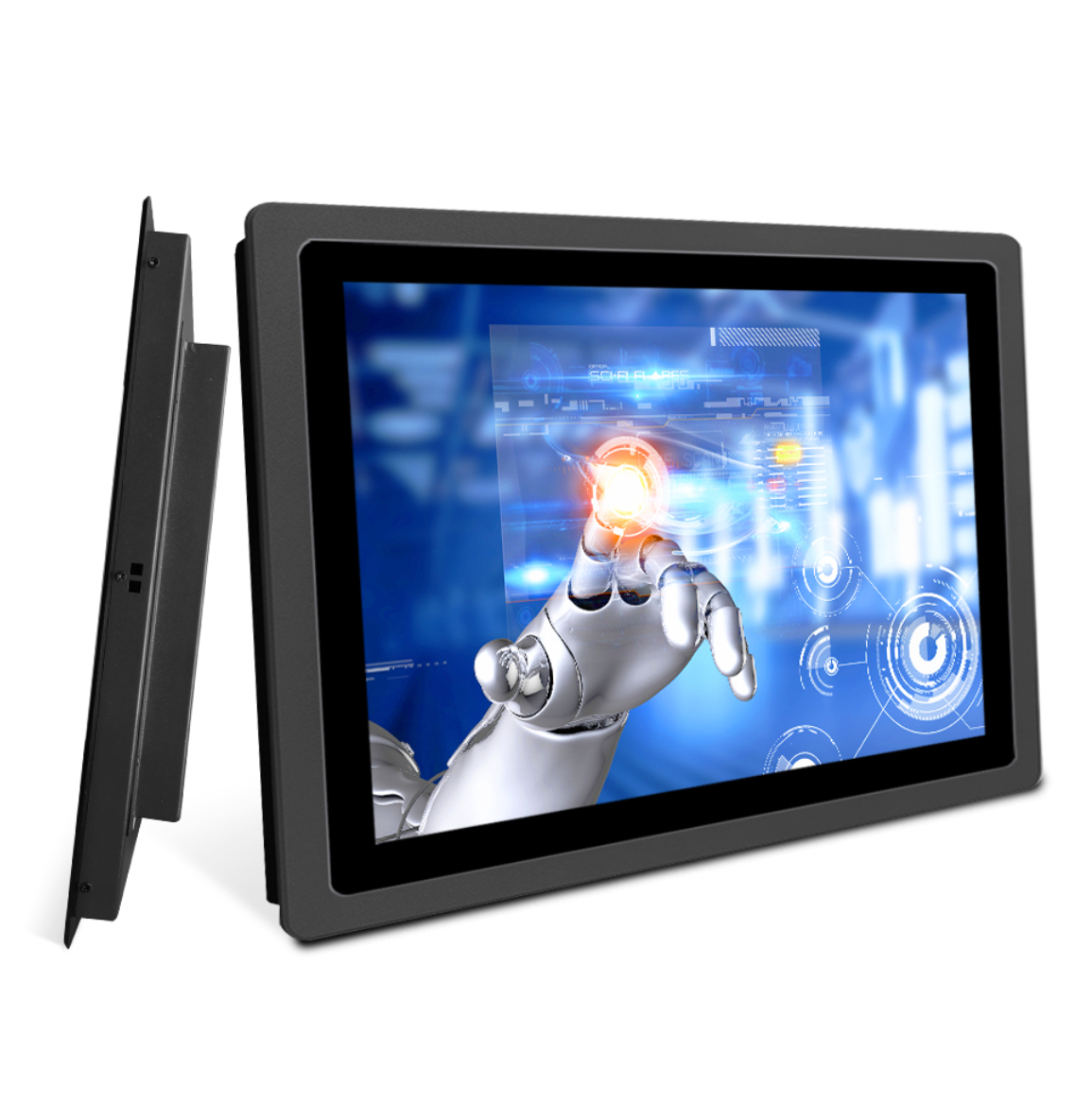

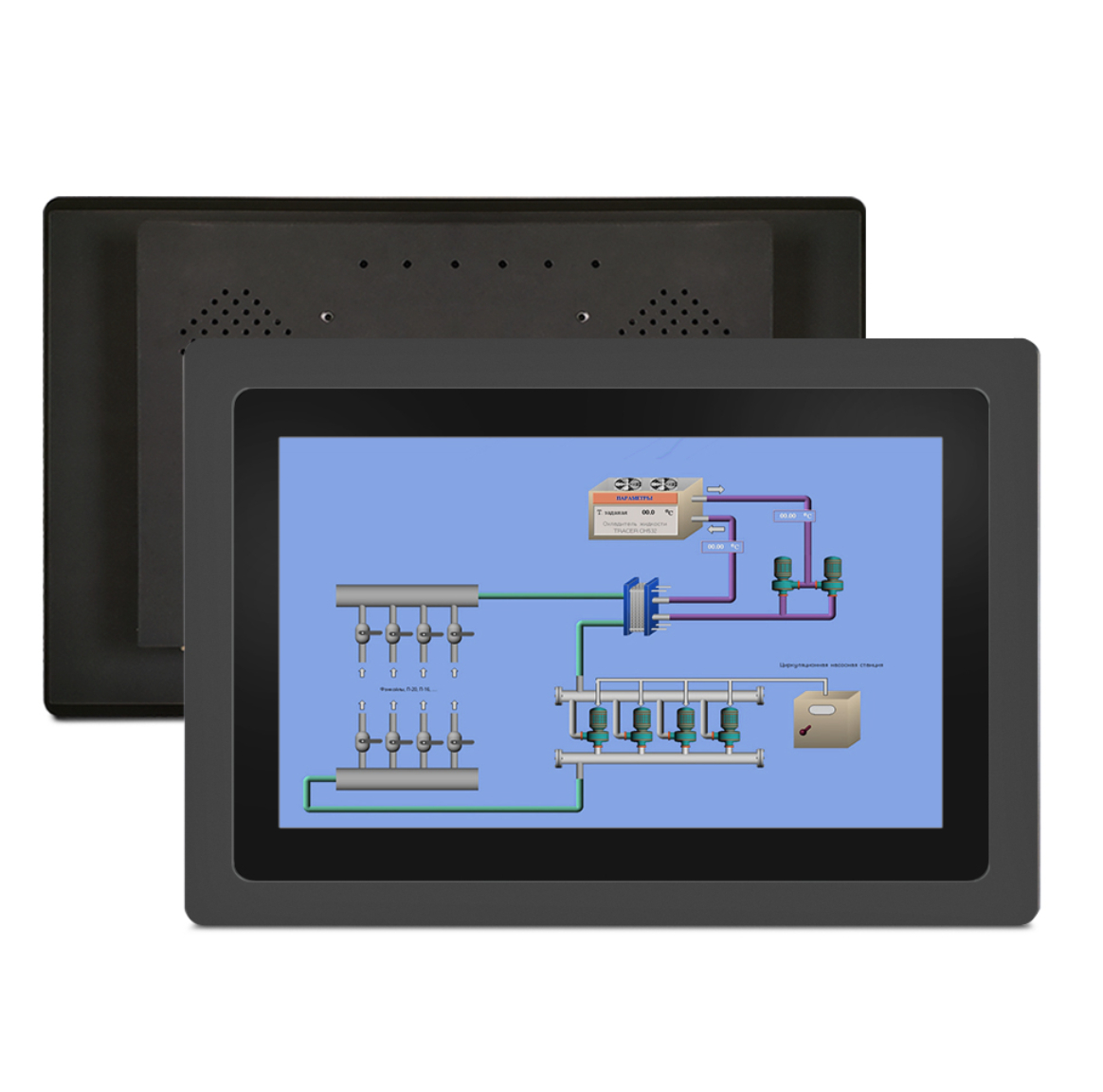

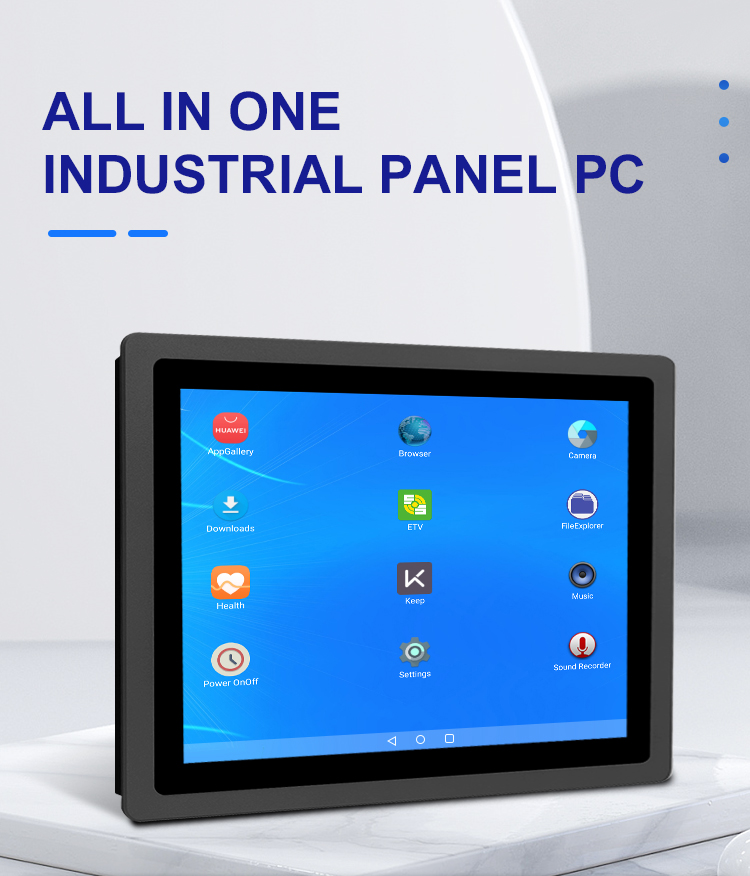

All in one industrial panel pc
SKU: HT-112648
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview

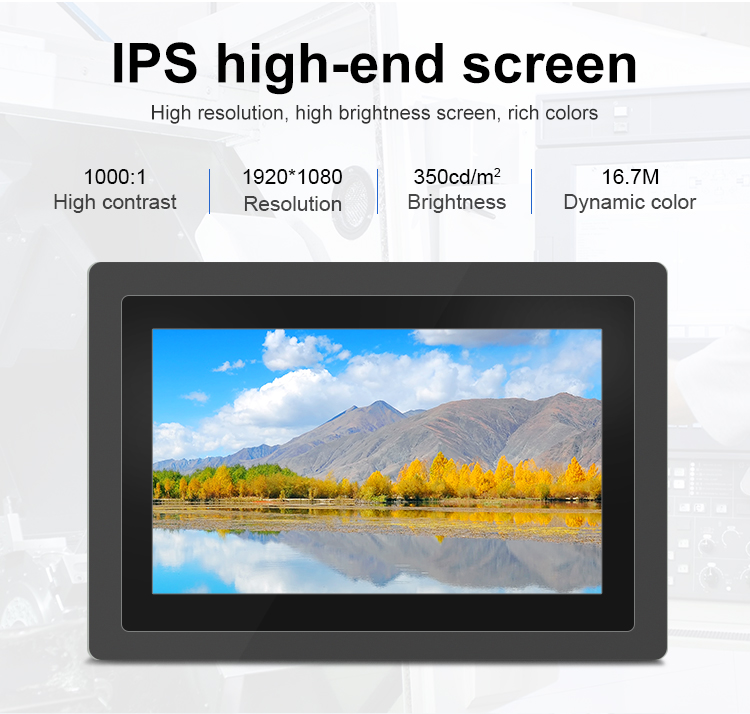

| Display Parameters | LCD Specifications | LCD Commercial Panel |
| Display size 13.3 inches | 13.3 inches | |
| Display area | 293.76*165.24mm | |
| Resolution | 1920*1080 | |
| Viewing angle | 89/89/89/89 | |
| Brightness | ≥250cd/m2 | |
| Backlight type | LED | |
| Response time | 16.7M (5-bit) | |
| Screen refresh rate | 60HZ | |
| Pixel arrangement | RGB vertical strip | |

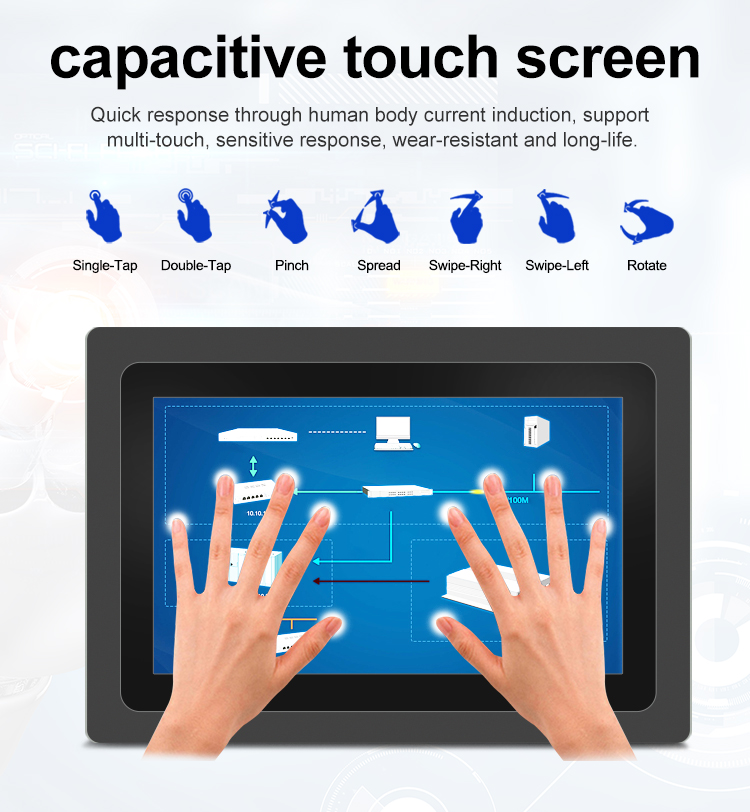

| touch parameters | Touch Solution Capacitive G+G | Capacitive G+G |
| Drive mode | HID free drive | |
| Touchpoints | 10 touches | |
| Touch media | Finger or a capacitive stylus | |
| Touch accuracy | ≦2mm | |
| Response time | 5ms | |
| Touch Calibration | Software | |
| Touch Interface | Tempered Glass | |
| System solutions | CPU | RK3399 |
| Running memory 2G optional 4G | 2G optional 4G | |
| Storage memory | 8G/16G optional 32G | |
| System version | Android 8.1 or above | |
| Pre-installed software Information release system, support for third-party applications | Information release system, support for third-party applications | |
| Network communication | Ethernet, Wifi optional 4G | |

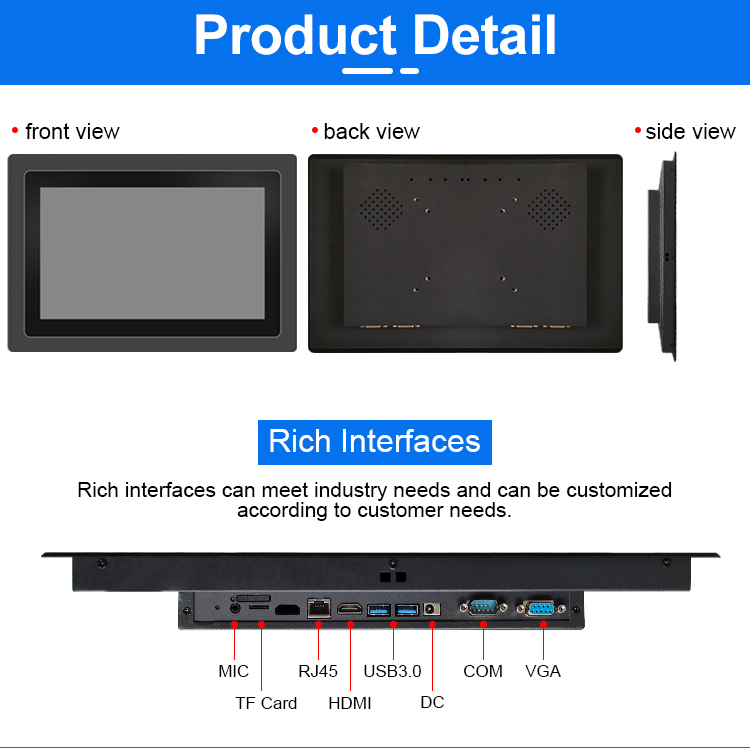

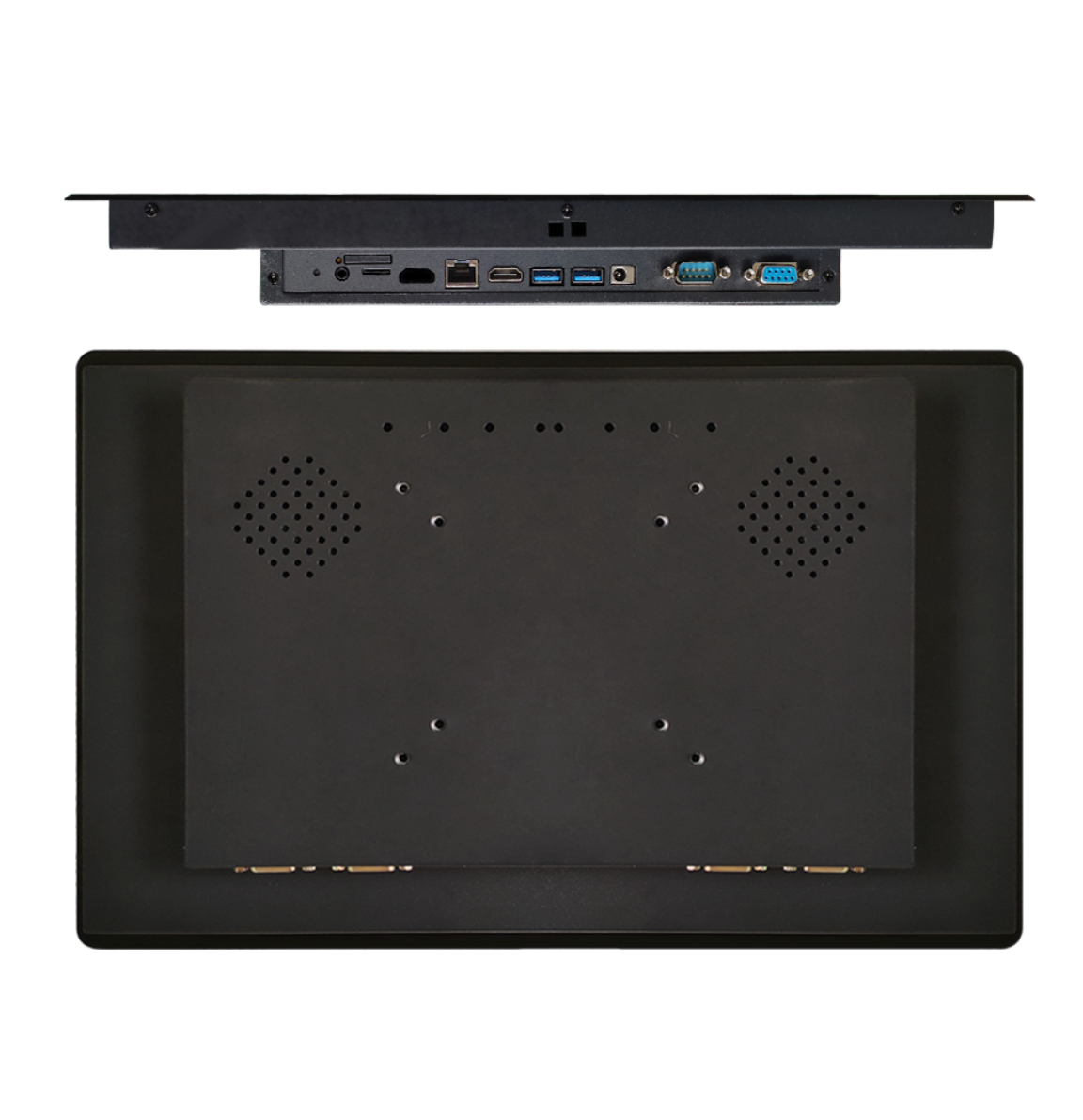

| System interface | DC*1 USB*2 HDMI*1 MIC*1 TF card slot*1 RJ45*1 | |
| Timing switch | supports custom switch | |
| Mouse and keyboard | Support wired/wireless mouse and keyboard | |

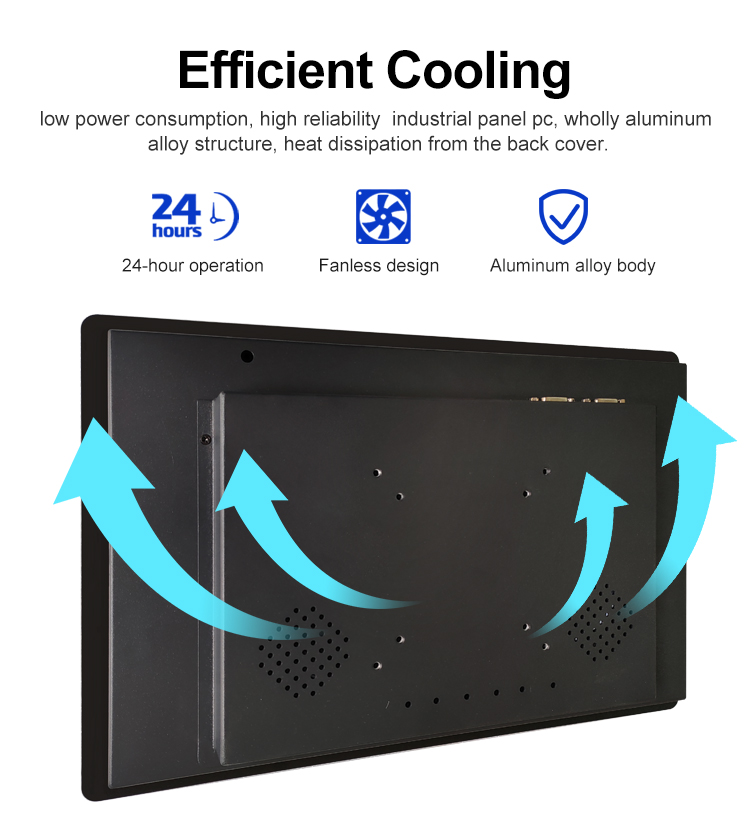

| Airframe parameters | Frame material: aluminum alloy oxide brushed profile | aluminum alloy oxide brushed profile |
| border-color | black | |
| Body color | black | |
| Tempered glass | 2mm thick high-strength physical tempered glass | |
| Body size | 378*249*50mm | |
| Packing size | 465*341*135mm | |
| Packing material | Gravity neutral carton | |
| Net weight/gross weight | 3.85KG/3.9KG | |
| Working environment | Use scene | indoor |
| Input voltage | AC110-220V | |
| Working power | ≦30W | |
| Standby power | ≦0.5W | |

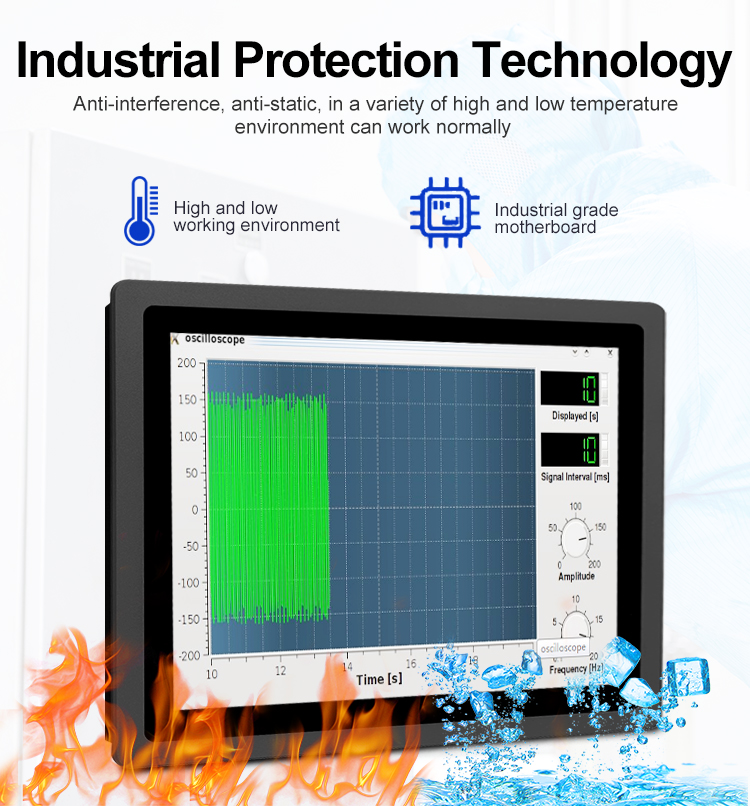

| Operating environment | temperature-20℃~60℃ Humidity 10%RH~90%RH |
|
| Storage Environment | Temperature‐10℃~55℃ Humidity 10%RH~90%RH |
