BMS with BT RS485 Canbus Balance LCD with Lithium Ion Battery 8s 10s 12s 14s 16s 24v 36v 48v 72v 100a 200a 300a 500a 600a
SKU: HT-123637
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview

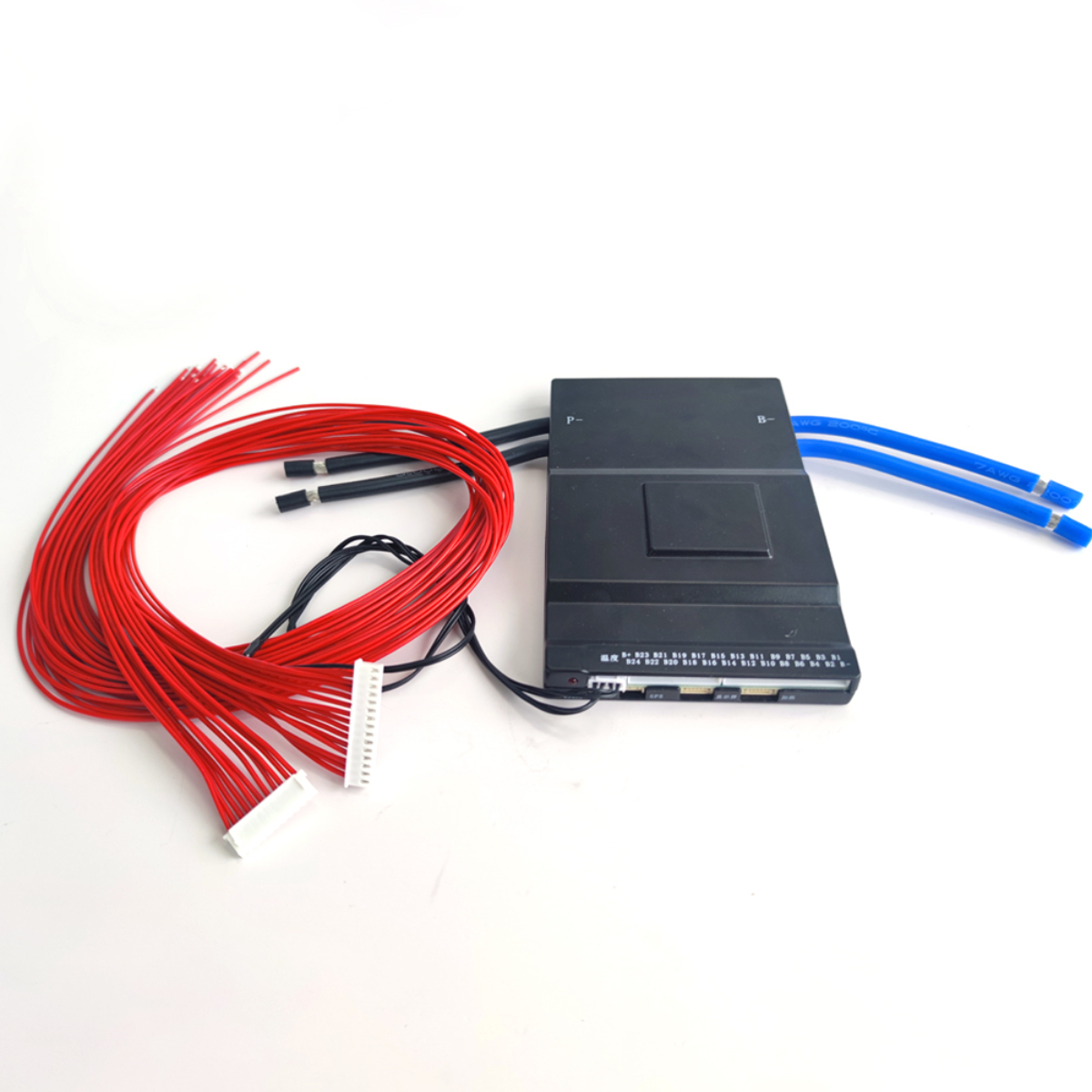

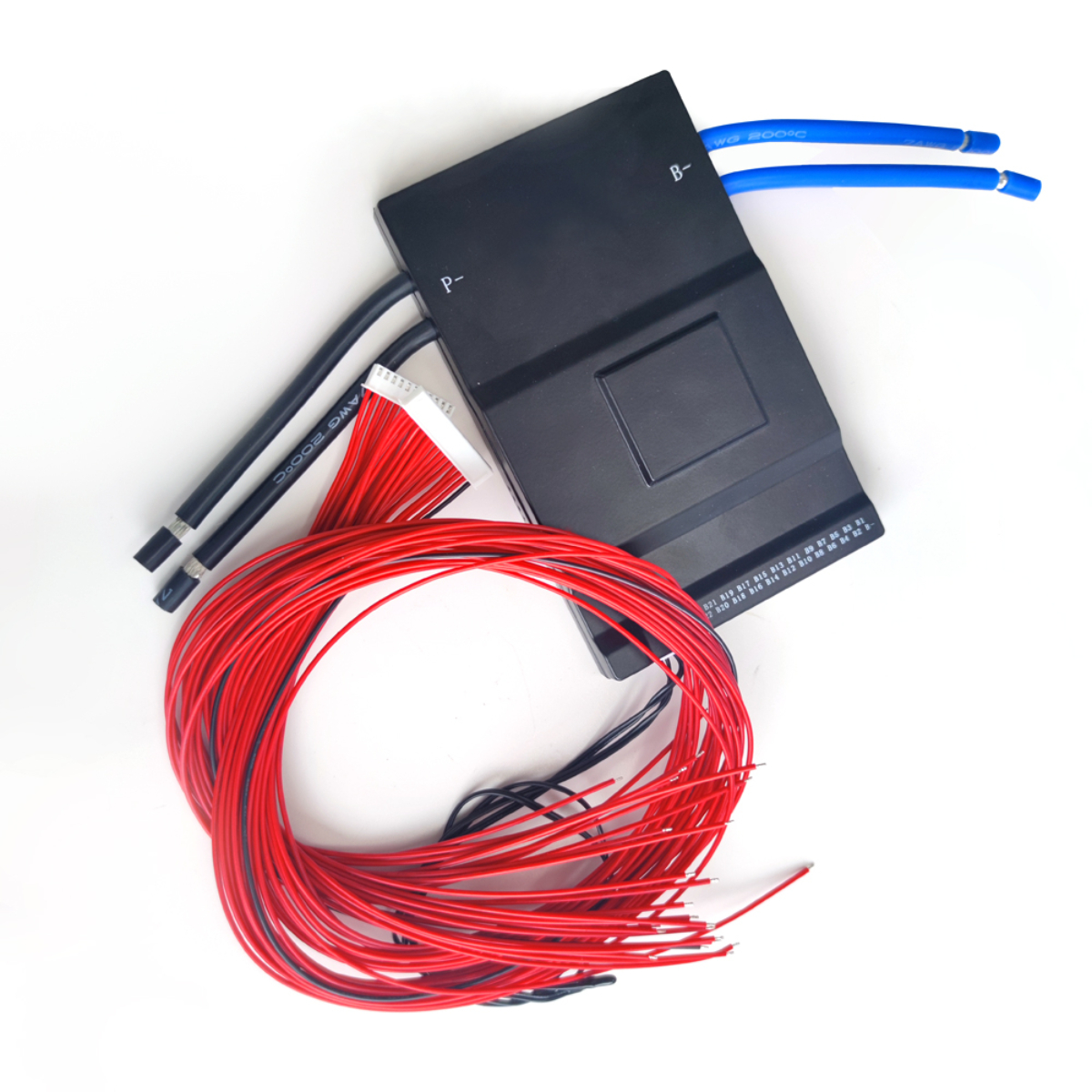

BMS with BT RS485 Canbus Balance LCD with Lithium Ion Battery
8s 10s 12s 14s 16s 24v 36v 48v 72v 100a 200a 300a 500a 600a
|

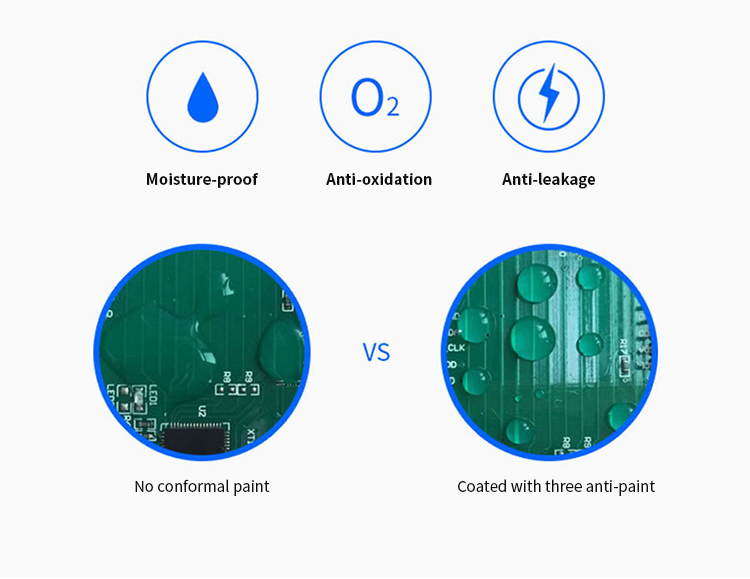

CIRCUIT THREE ANTI-COATING Coatings can form an insulating protective layer to protect thecircuit from environmental factors such as chemicals, moisture,leakage current and other pollutants, thereby improving thereliability and safety of printed circuit boards performance andprolong the service life of printed circuit boards. |
| Technical indicators | Product model：HKIVI |
| BD6A24S15P | |
| Number of ternary strings | 7~24 |
| Number of iron lithium strings | 8~24 |
| Number of titanic acid strings | 12~24 |

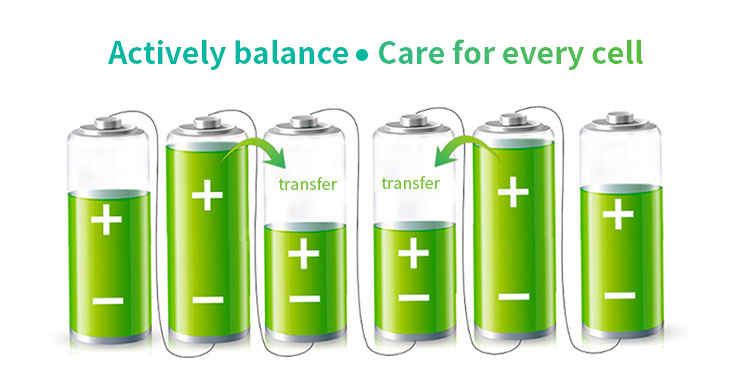

| Balance method | active balance |
| Active balancing current | 0.6A |

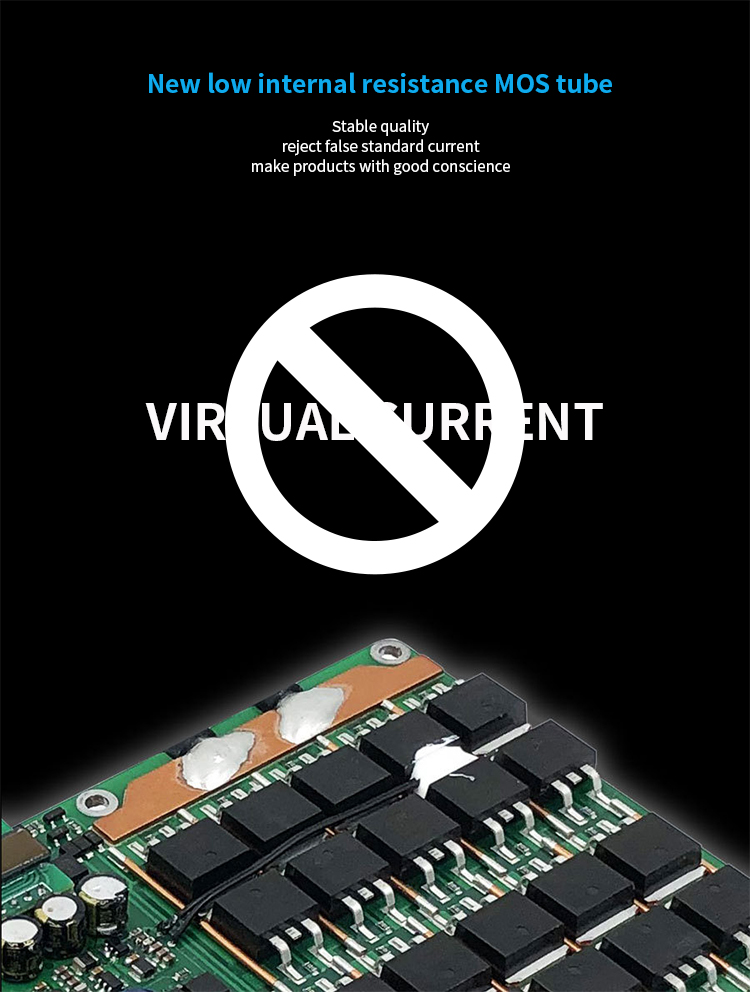

| Internal resistance of the main circuit | 0.65mΩ |
| Continuous discharge current | 150A |
| Maximum discharge current | 300A |
| Overcurrent protection (adjustable) |
10-150A adjustable |
| Other interfaces (fixed objects) |
RS485/CAN |
| Display interface | yes |
| Outlet mode |
same port |
| Single voltage range |
1-5V |
| Voltage Acquisition Accuracy |
+5mV |
| Overcharge protection voltage |
1.2~4.35V adjustable |
| Overcharge release voltage |
1.2~4.35V adjustable |
| Overcurrent release time |
2~120S adjustable |
| Over-discharge protection voltage |
1.2~4.35V adjustable |
| Over-discharge recovery voltage |
1.2~4.35V adjustable |
| Number of temperature detection | 3 |
| Temperature Protection | yes |
| Short circuit protection | yes |
| Coulomb counter | yes |
| Bluetooth function | support Android, Apple, HarmonyOS |
| GPS(optional) | support (GPS/RS485 choose one) |
Click Here For More Information And The Best Price!!!
|
We can provide: 1. Portable energy storage station: Used for outdoor events, charge for laptop, tablets, cell phone, fans...etc.
2. Familry use energy storage station: Used to storage power for family urgency use. 3. Solar energy full system and Spare parts:mono/poly solar panel; invertre; lithium battery
4. Energy storage container solution: for different projects, customized service,professional solutions
Further details will share with you directly, let’s work together, and get the market together. |
|

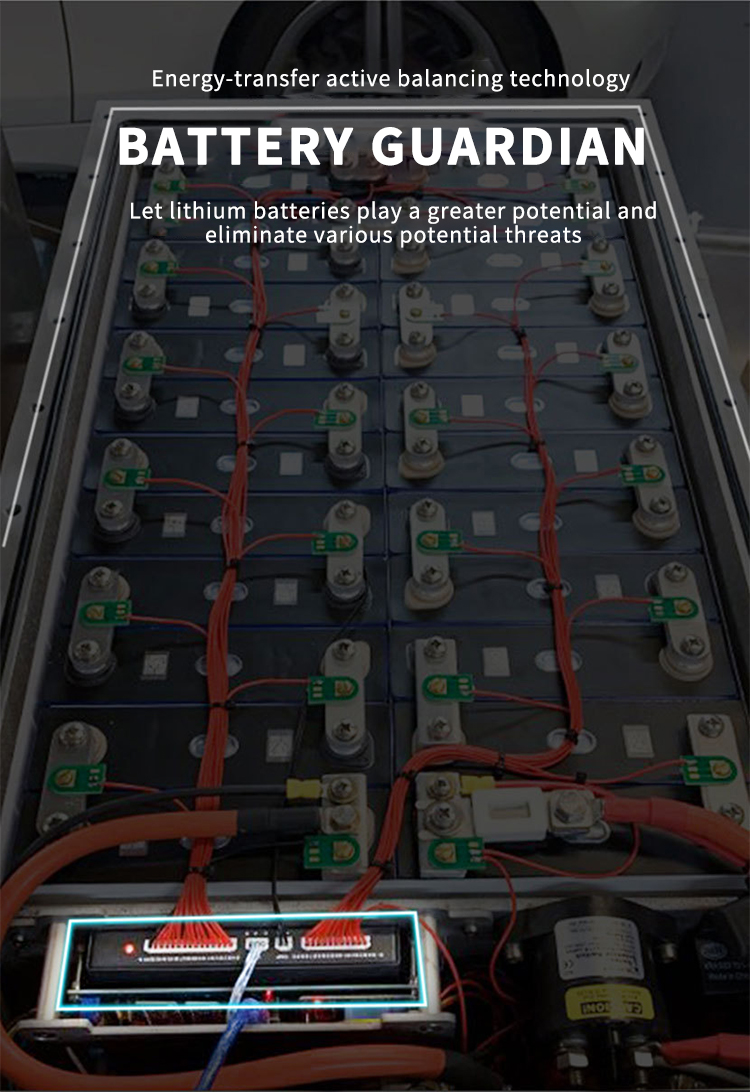

MULTI-SCENARIO APPLICATION It is widely used in the battery pack of small sightseeing cars,scooter sharing cars, high-power energy storage, base station standby power supply, solar power stations and otherproducts, and can also be used in battery balance maintenance, repair and other occasions |
| Overcharge Protection | Short circuit protection | Over discharge protection |
|
Prevents overcharging
from
shortening battery life
|
Automatic protection to prevent
damage to internal
components and batterieswhen the external load is
short-circuited
|
Prevents batteryover-discharge
from
shortening battery life
|
| Overcurrent protection | Drop protection | Over temperature protection |
|
Prevent excessive current
from
shortening battery life
|
Prevent the battery
from
losing protection dueto
disconnection of
the wiring harness or poor contact
|
Prevent the battery
from
being damaged or even
spontaneously ignited
due to excessive
battery temperature
|

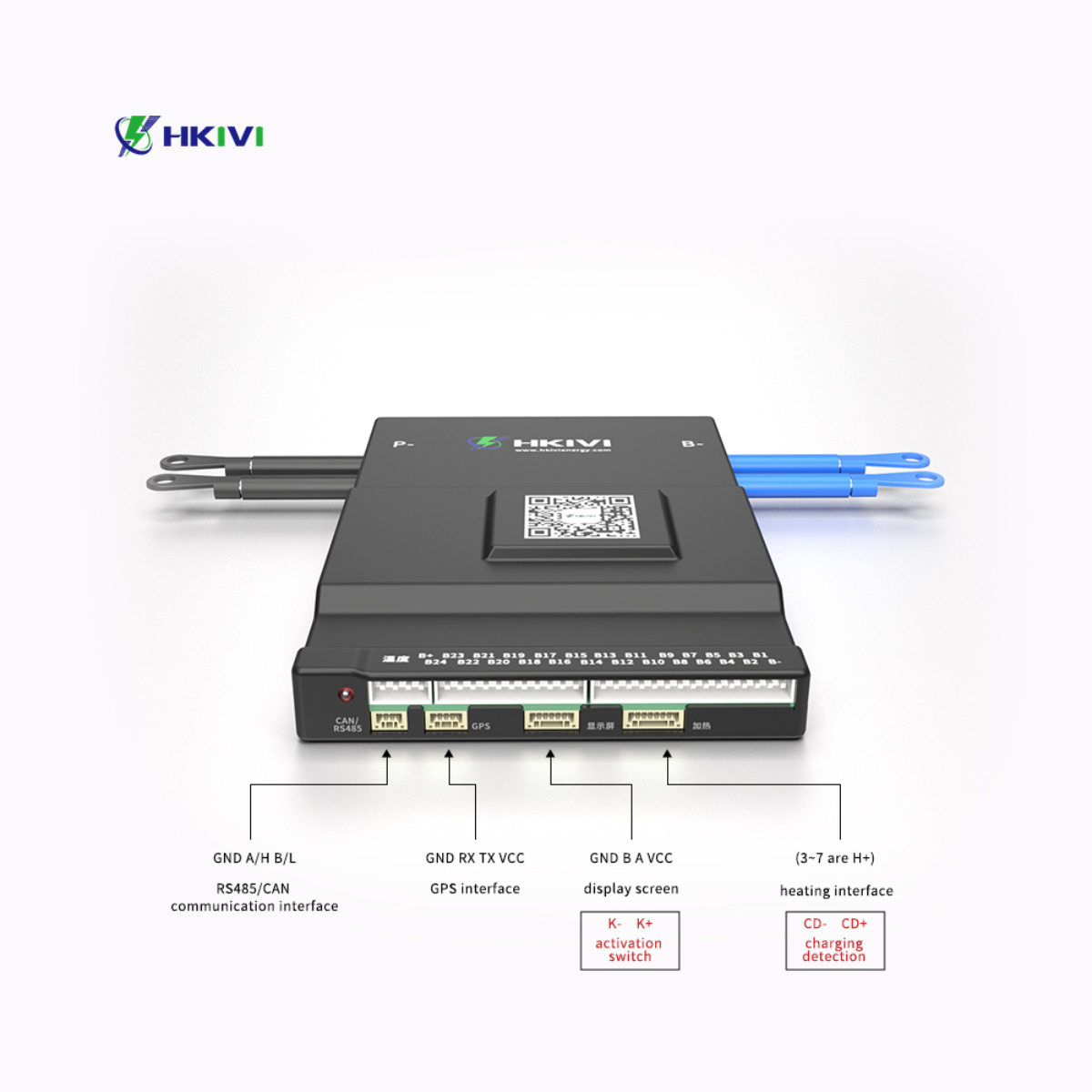

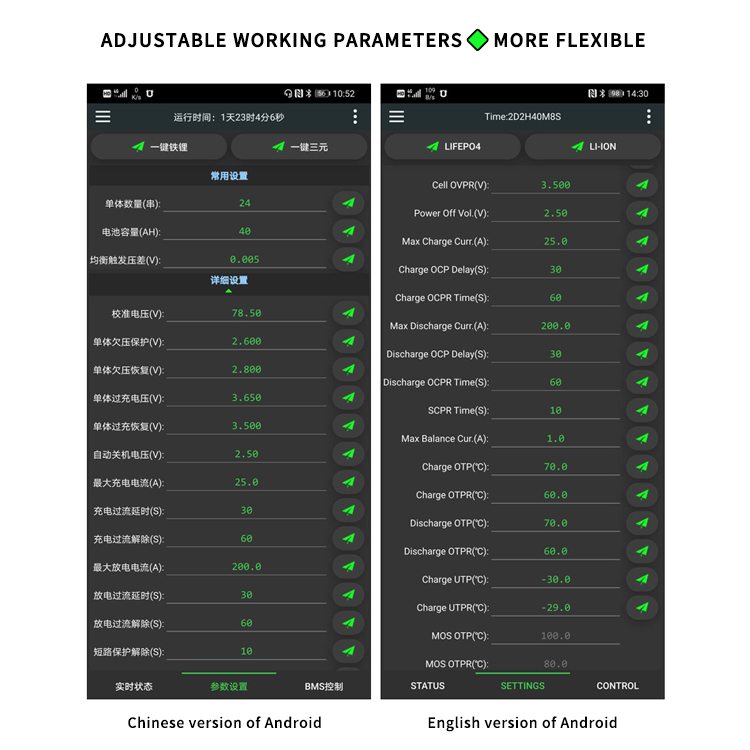

| Through the three communication methods of UART/ RS485/ CAN, it is connected to the com- puter host computer or the touch display screen andthe mobile APP to carry out intelligent mana- gement of the lithium battery. Support the custom development of mainstream inverters, China Tower platform and other communication protocols. |
| Technical indicators | Product model：HKIVI | |||||
| BD6A20S10P | BD6A24S10P | B1A20S15P | B1A24S15P | B2A24S15P | B2A24S20P | |
| Number of ternary strings | 7~20 | 7~24 | 7~20 | 7~24 | 7~24 | 7~24 |
| Number of iron lithium strings | 8~20 | 8~24 | 8~20 | 8~24 | 8~24 | 8~24 |
| Number of titanic acid strings | 14 | 14~20 | 14~20 | 14~24 | 14~24 | 14~24 |
| Balance method | active balance | |||||
| Active balancing current | 0.6A | 1A | 2A | |||
| Internal resistance of the main circuit | 1.00mΩ | 150A | 0.47mΩ | |||
| Continuous discharge current | 100A | 300A | 200A | |||
| Maximum discharge current | 200A | 300A | 350A | |||
| Overcurrent protection (adjustable) | 10-100A adjustable | 10-150A adjustable | 10-200A adjustable | |||
