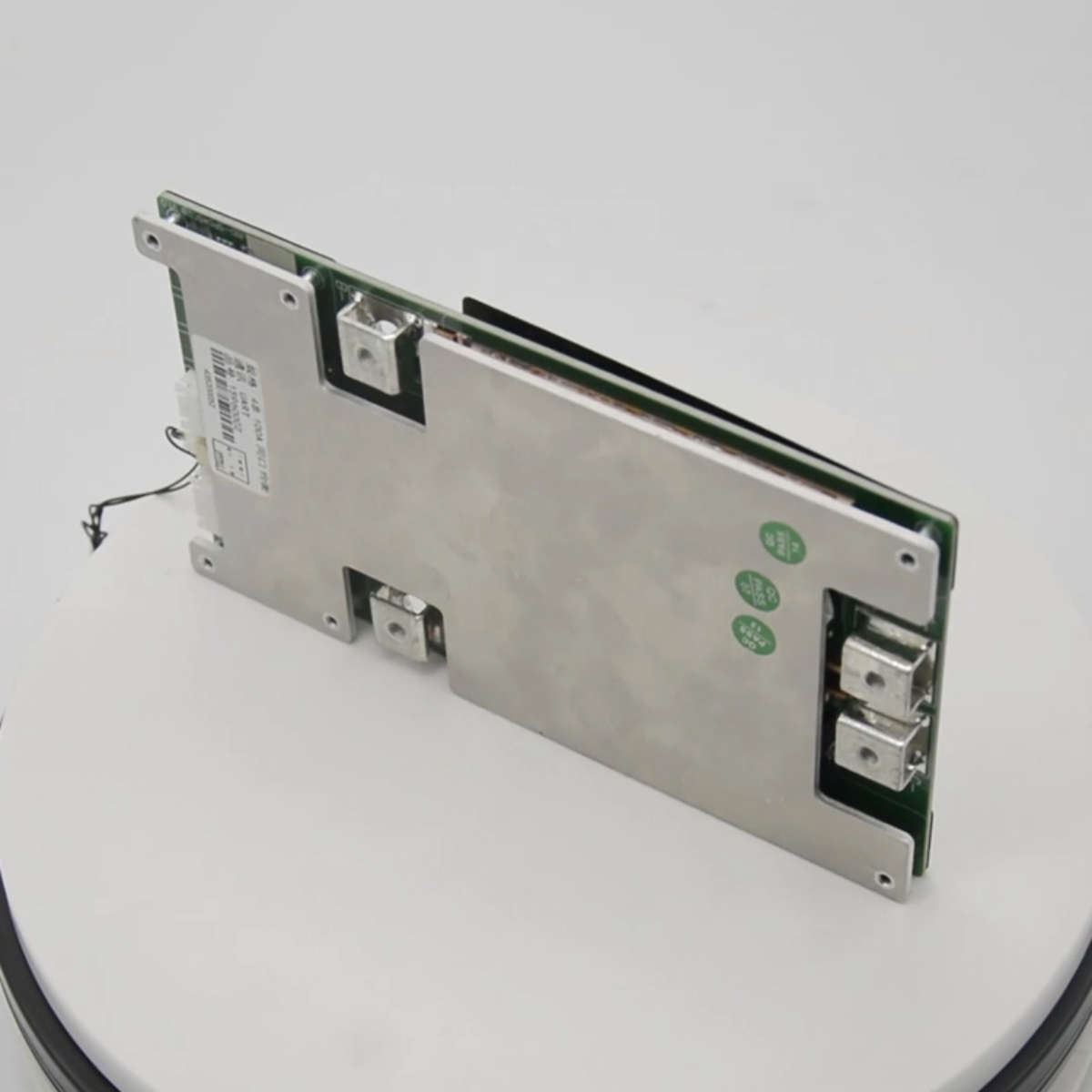

HKIVI bms lifepo4 12v 4s 80a smart bms for lithium batteries with UART communication port

SKU: HT-122579

Lead Time

5-15 days

Shipping

Sea freight, Air freight, Express

Payment

T/T, L/C

Sample

Available

Product details

Product overview

HKIVI bms app control 12v 100ah 12 volt 4s uart lifepo4 100a bms for power tool

SMART BMS

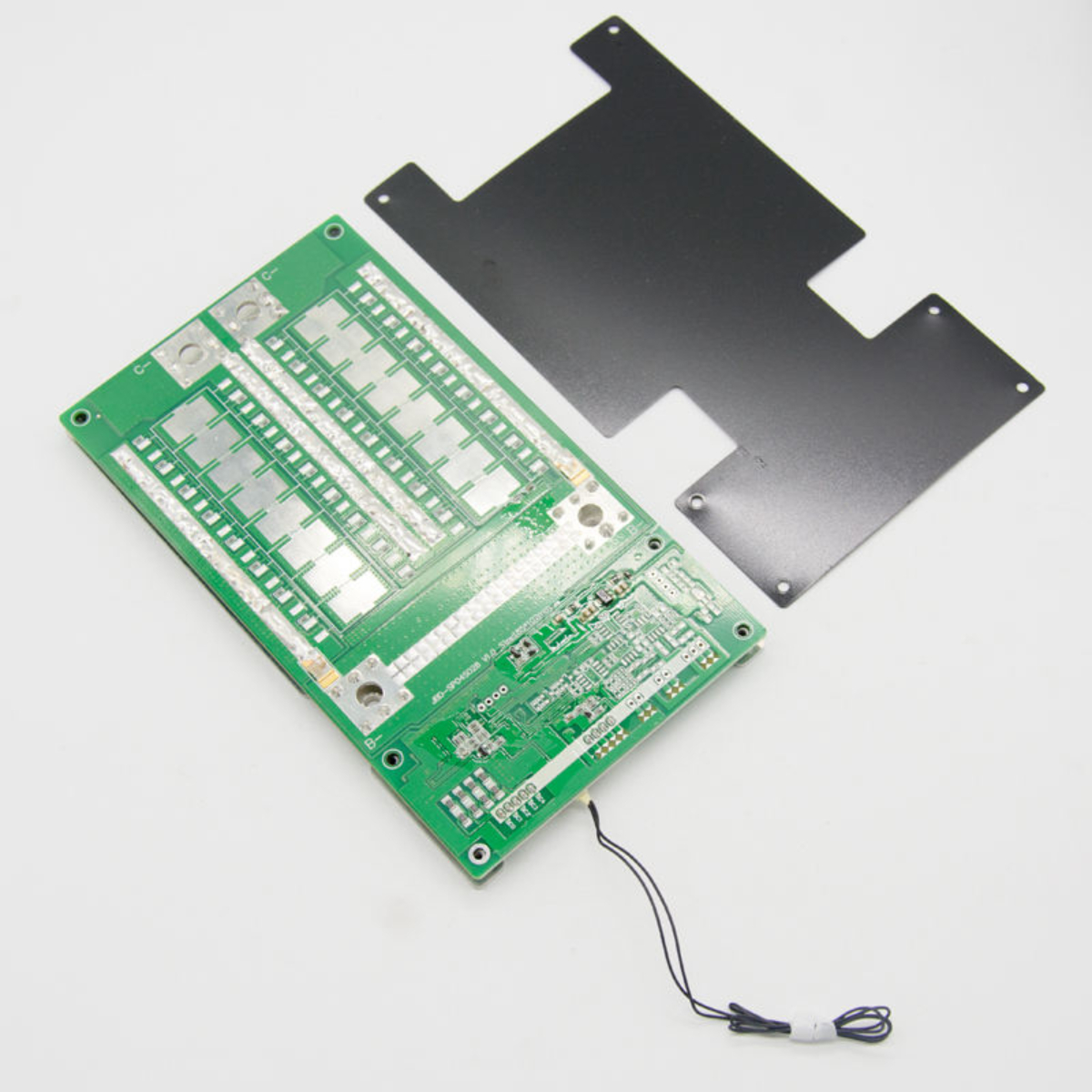

HKIVI-SP04S028 is a critical component of modern EVs, HEVs, and ESS, as it ensures the reliable and safe operation of the battery pack, which is a smart protection board solution specially designed for starting batteries and 4-string battery packs for electric energy storage products. It is suitable for lithium batteries with different chemical properties such as lithium ion, lithium polymer, and lithium iron phosphate. The protection plate has a strong load capacity and the maximum continuous discharge current can reach 150A.

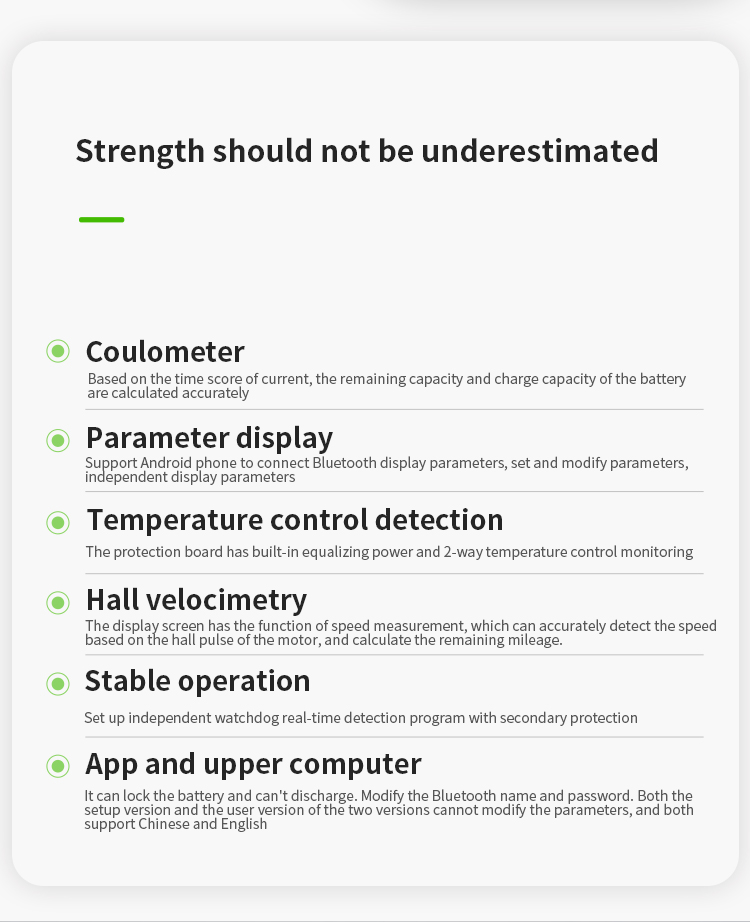

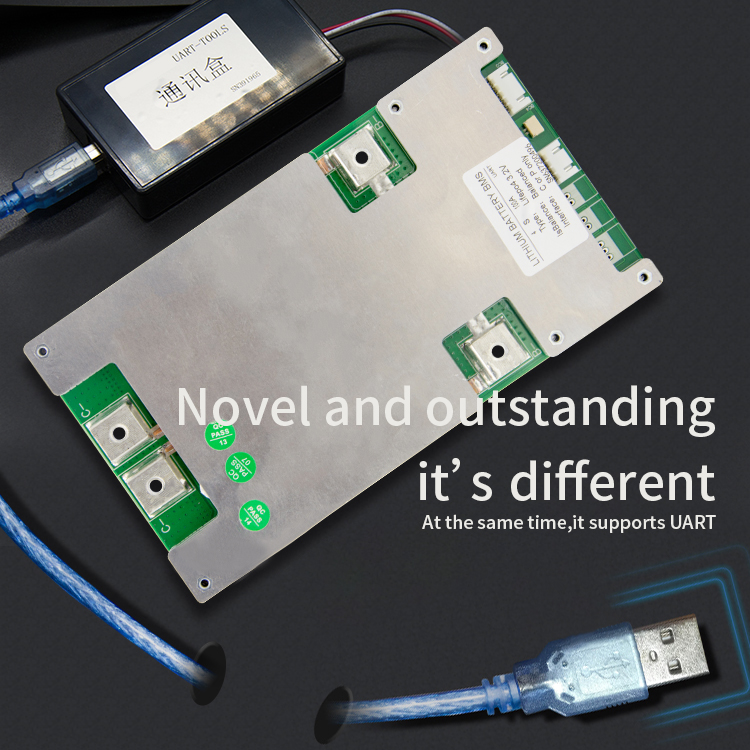

● 4 cores in series protection ● Multiple charging and discharging protection functions ● Hardware discharge over-current, short-circuit protection function process ● Software over-voltage, under-voltage, temperature and overload protection function processing ● Precise SOC calculation with auto SOC learning function ● RS485 and CANBUS communication reserved ● UART communication function, can read all data of the battery in real time and upgrade online ● Hardware discharge over-current, short-circuit protection function processing ● The reserved switch controls the output of the protection board

SMART BMS

Product Paramenters
Operating voltage range	/
Operating current (MAX)	150A
Over-charge protection voltage	3.65±0.05V
Over-discharge protection voltage	2.5±0.1V
Balanced turn-on voltage	3.4±0.05V
Charging over current protection value	/
High temperature protection value of charging	65±2℃
High temperature protection value of discharge	75±2℃
Internal resistance	<10mΩ

SMART BMS

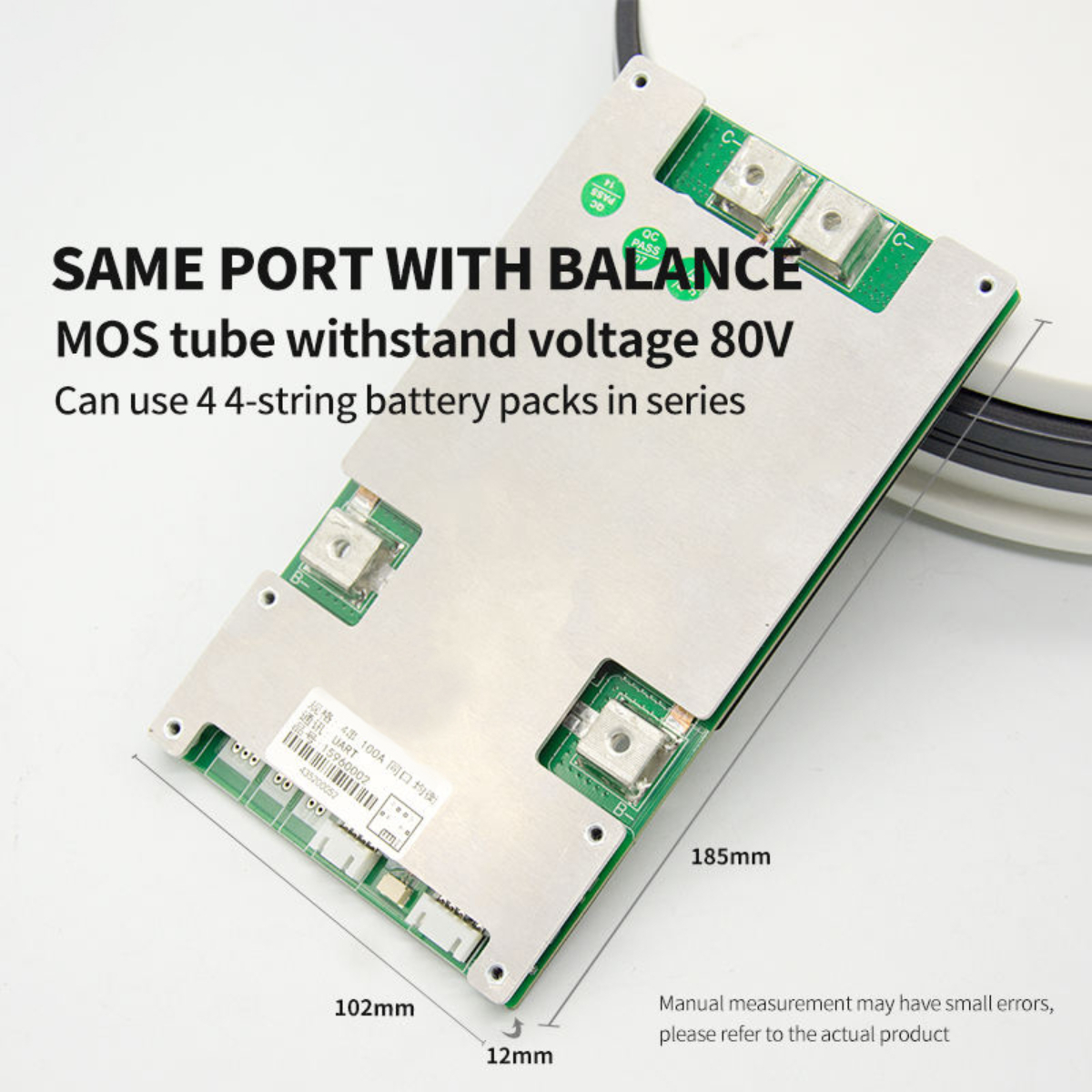

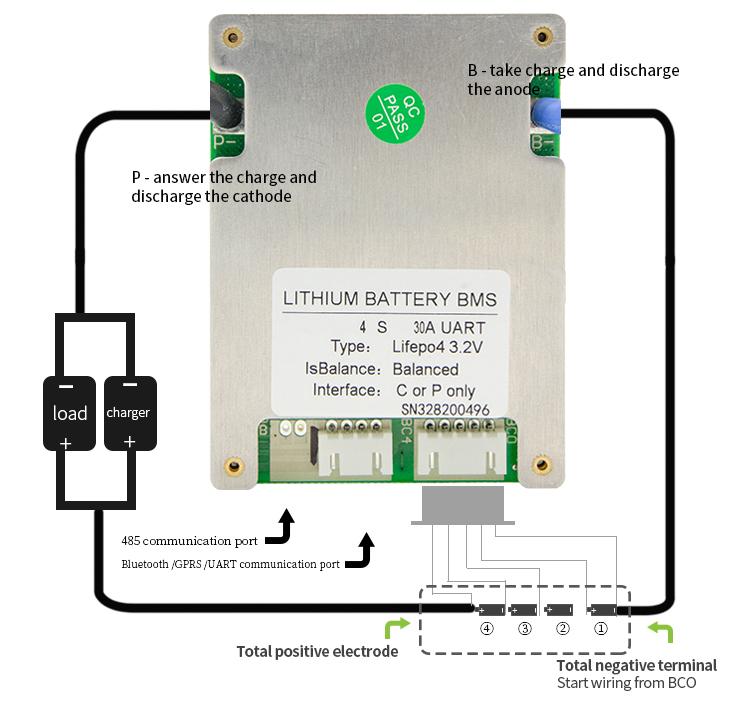

Same port BMS,6 step wiring method

only one string number connection method is taken as an example, and the same

analogy applies to other string number protection board connection method

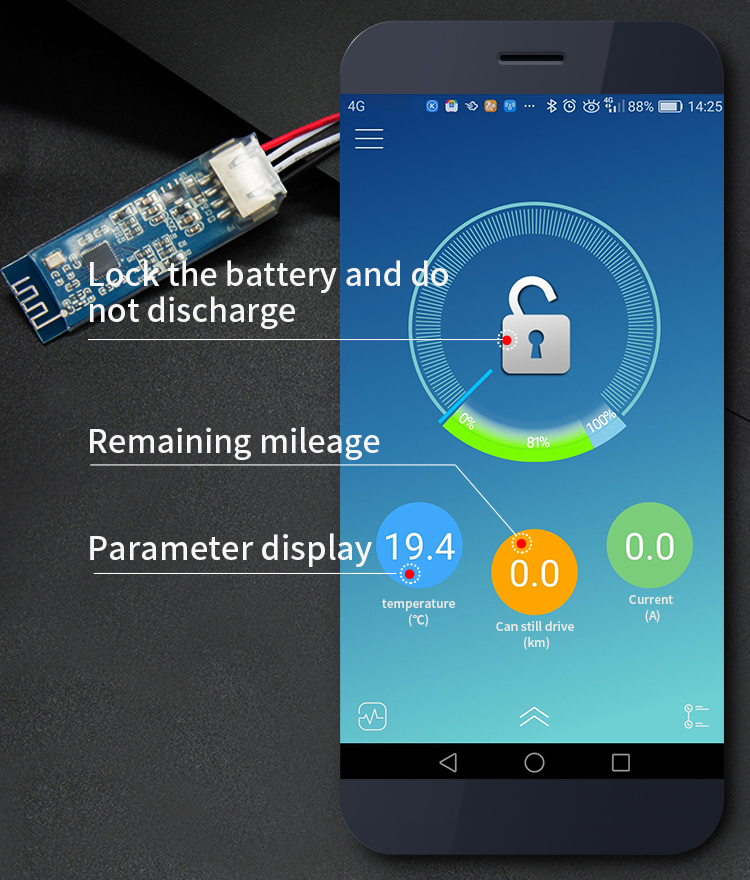

Real-time monitoring battery

Smart phone and protection board external connection, Bluetooth connection

SMART BMS

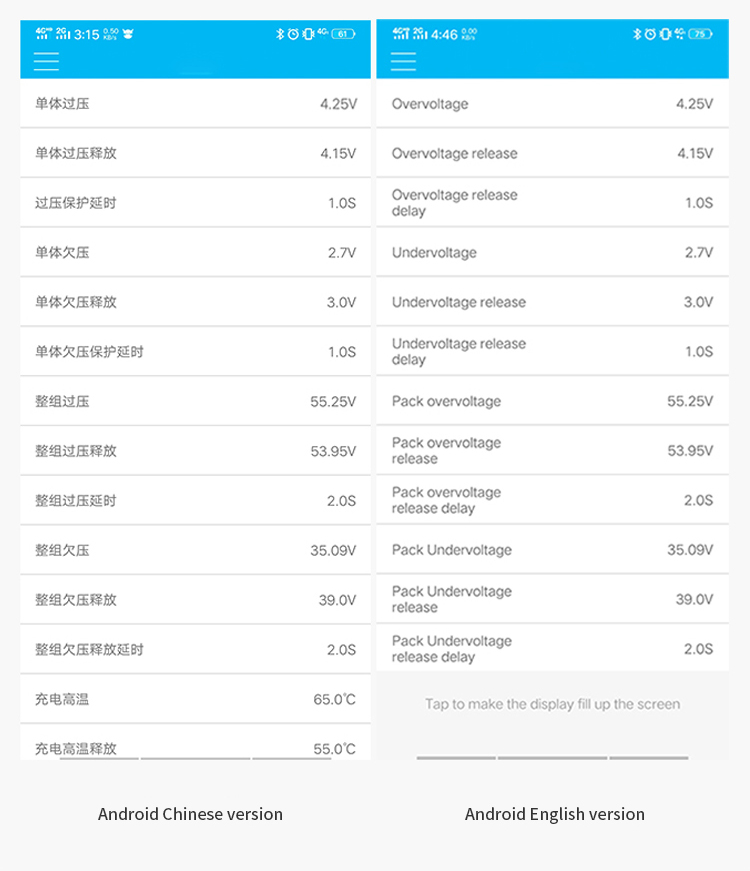

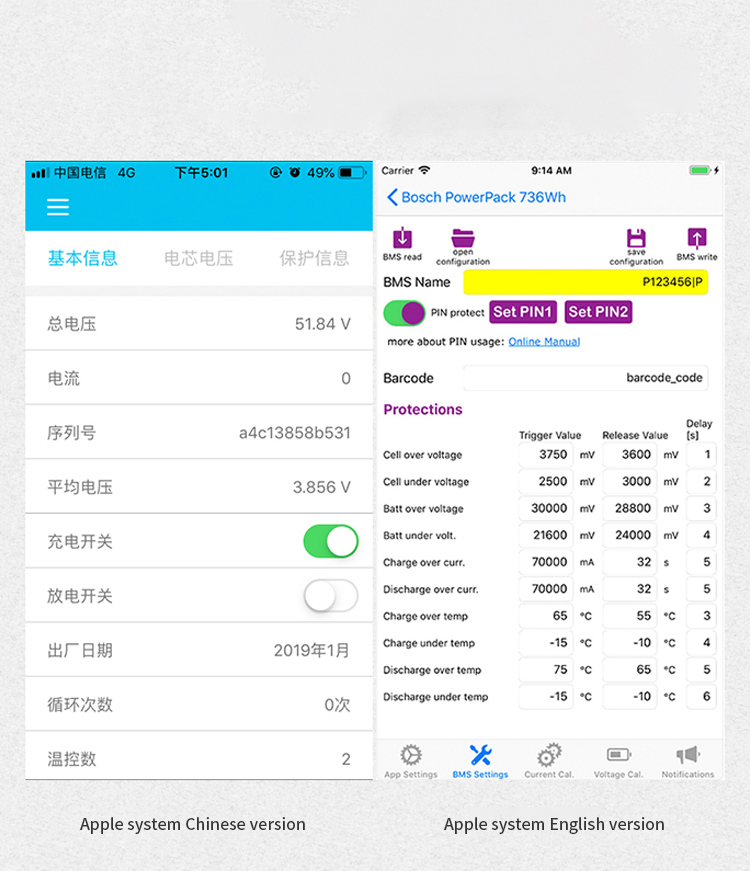

Apple App can only view the parameters, can not be modified,android app can fine tune the protection parameters, please know!

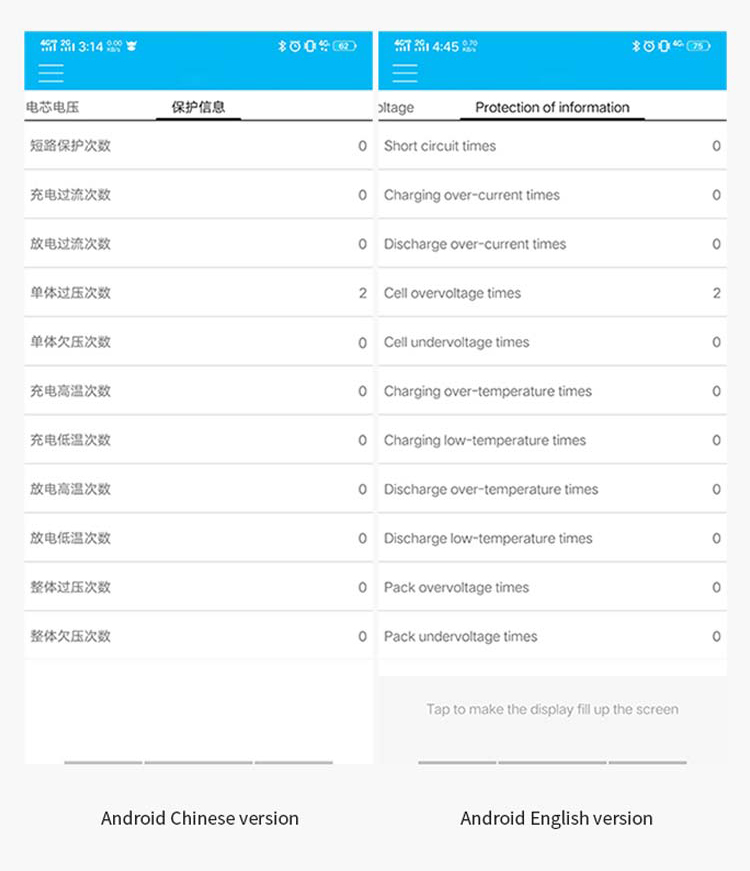

Basic information, adjustableprotection parameters	Protect information	The Chinese version does not modify the parameters,the English version requires a fee to modify the parameters

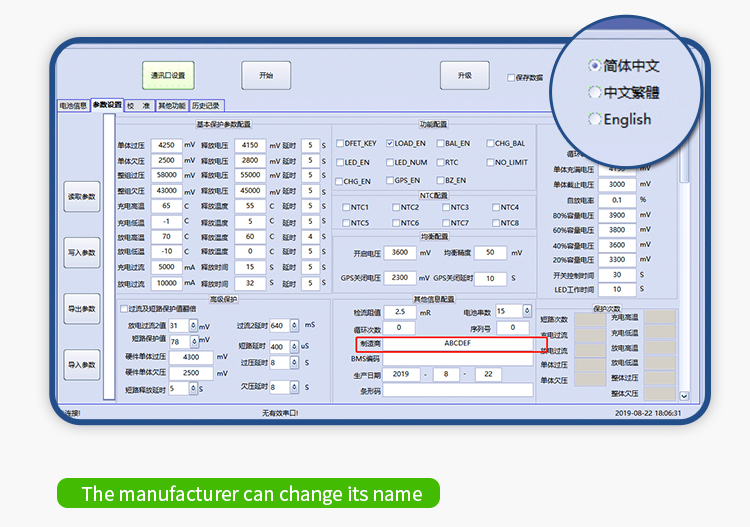

Upper computer- support English / Chinese / traditional

Record battery data in real time and set parameters

smart bms

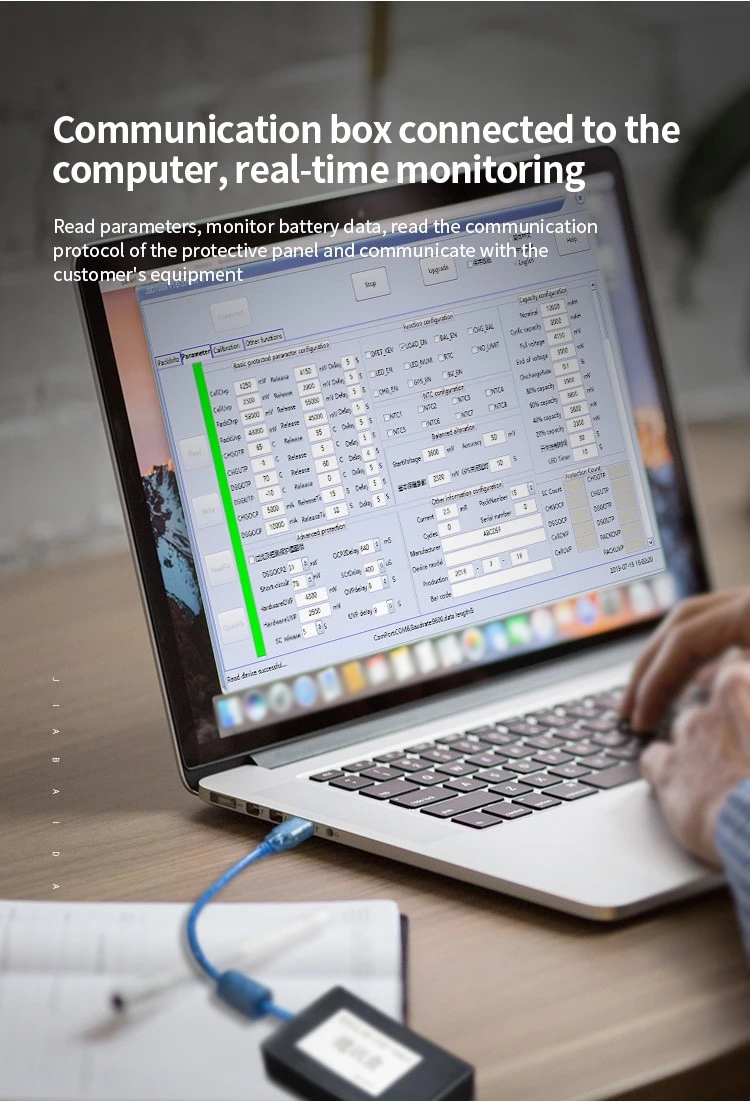

Communication box connected to the computer, real-time monitoring

Read parameters, monitor battery data, read the communication protocol of the protective panel and communicate with the customer's equipment

SMART BMS

Configuration contents of basic protection parameters:

Monomer overvoltage, monomer undervoltage, whole group overvoltage, whole group under voltage,charging high and low temperature discharge high and low temperature, charge overcurrent and discharge overcurrent protection value, release value and protection holding time.Customers can setit up according to their own usage.The release is divided into conditional release and time release,and the protection retention time means that it takes so long to reach the state of a certain protection.

Example: overvoltage 4.25V, to achieve overvoltage protection, high monomer voltage needs to begreater than or equalto 4.25 and lasts for 1s before overvoltage protection can occur. Lower than 4.15Vand continuous 100mS to restore non-protection (after protection, the voltage must drop below therelease voltage before restarting the charging MOS)

Example: discharge current lasting more than 30A triggers 5S off MOS, recovery condition is automatic recovery,32s automatically relieves discharge overcurrent
