5kw off grid pure sine wave solar power inverter for inverter solar

5kw off grid pure sine wave solar power inverter for inverter solar

SKU: HT-115766
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available

Product details

Product overview

Product Details Page
    1. Maximum efficiency is 85%;
    2. UHF switch technology, efficient and reliable;
    3. Pure sine wave output, suitable for various loads;
    4. With battery over-discharge, overload, over-temperature,and short-circuit protection function;
    5. Transparent frosted shell, beautiful and atmospheric;
    6. Instant load power can be 3 times of rated power, especially suitable for inductive loads.

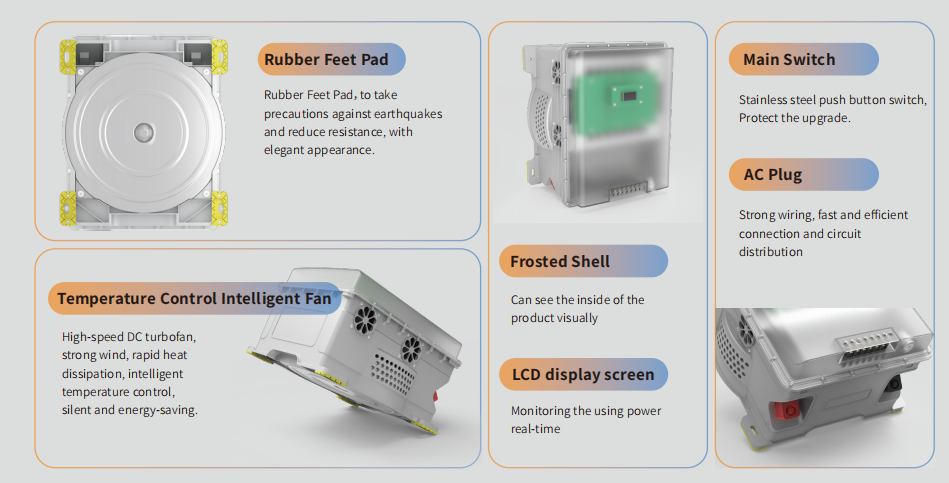

Rubber Feet Pad

Rubber Feet Pad,to take precautions against earthquakes and reduce resistance,with elegant appearance.

Temperature Control Intelligent Fan

High-speed DC turbofan, strong wind,rapid heat dissipation,intelligent temperature control.silent and energy-saving.

Frosted Shell

Can see the inside of the product visually


Inverter Output
Rated Battery Voltage
24VDC
48VDC
Rated Output Power
3KW
5KW
Output Voltage Regulation
230Vac±5%
Output Voltage Waveform
Pure Sine Wave
Output Frequency
50Hz
Peak Efficiency
85%
Standard DC Input Voltage
24VDC
48VDC
Cold Start Voltage
24VDC
48VDC
High DC Recovery Voltage
29VDC
58VDC
High DC Cut-Off Voltage
30VDC
60VDC
No Load Power Consumption
<30W
<50W
Protect
AC Short Circuit Protection
Existence
AC Output Overcurrent Protection
Existence
General Parameters

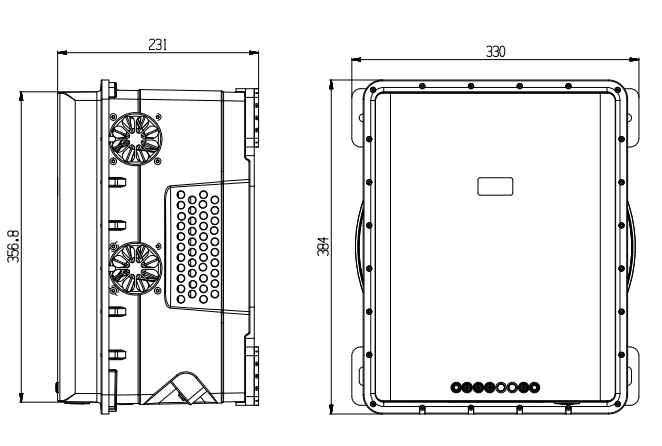

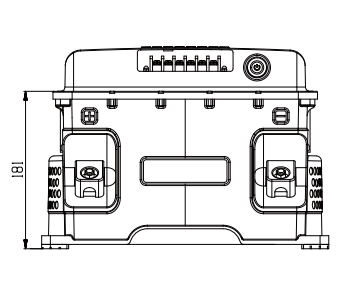

Size (W×H×T)
330×231×384mm
DC Side Terminal Type
Pure Copper Inverter Special Terminal
Temperature
-25℃~+60℃
Humidity
0%~100%
Altitude
4000m(>2000m Derating)
