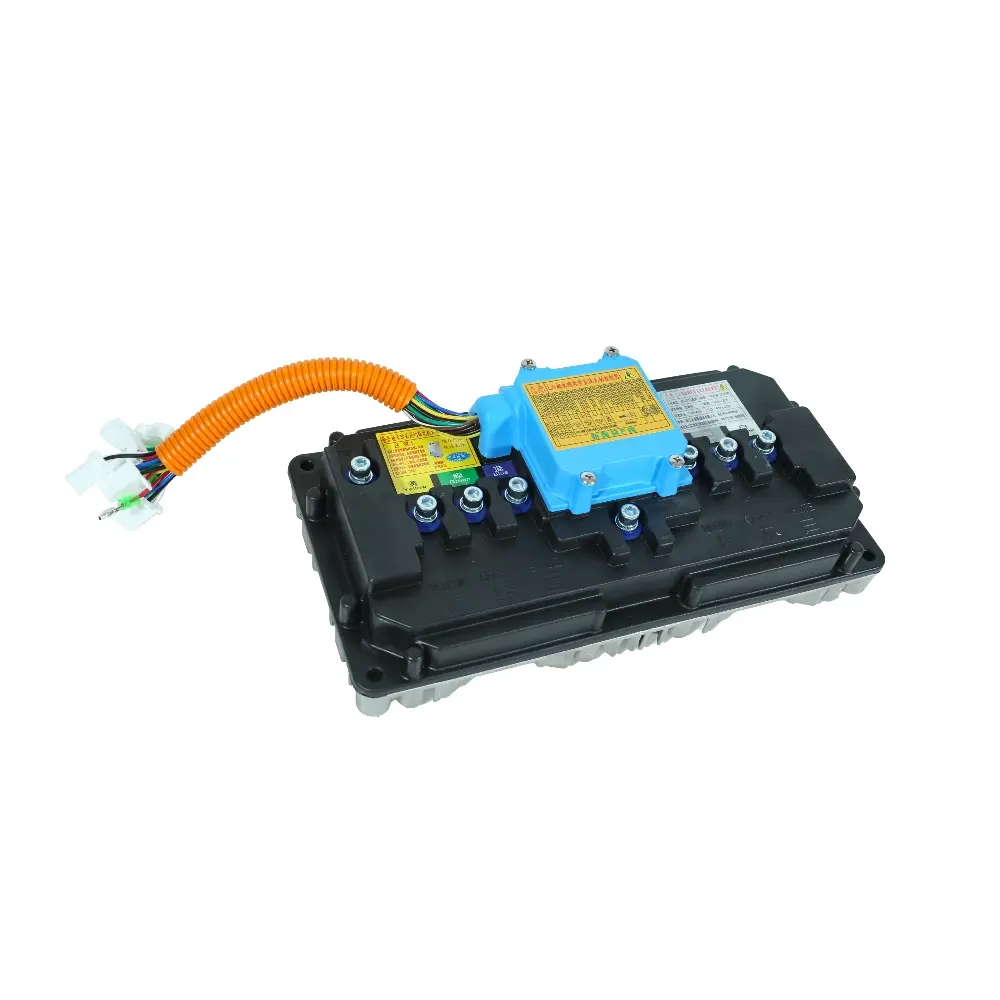

Six-phase controller
SKU: HT-232603
Lead Time
5-15 days
Shipping
Sea freight, Air freight, Express
Payment
T/T, L/C
Sample
Available
Product details
Product overview
|
型号 Model |
053型 Type 053 |
035型 Type 035 |
||
|
颜色 Color |
绿色 / 红色 Green / Red |
黑色 Black |
||
|
外观尺寸 Dimension |
(mm) |
L |
281 |
298 |
|
|
|
W |
129 |
153 |
|
|
|
H |
101 |
97 |
|
控制类型 Control type |
外环为转矩闭环控制 The outer loop is torque closed loop control |
|||
|
额定电压 Rated voltage |
（V） |
72 |
||
|
工作电压 Applicable voltage |
（V） |
42-90 |
||
|
峰值电流 Peak current |
（A） |
80A |
120A |
|
|
匹配电机 Matching motor |
（W） |
1000-1280 |
1500-2200 |
|
|
峰值功率 Peak power |
（W） |
5760 |
8640 |
|
|
传感器类型 Sensor type |
霍尔传感器 Hall sensor |
|||
|
冷却方式 Cooling method |
自然风冷 Air cooling |
|||
|
环境温度 Environment temperature |
（℃） |
-30~50 |
||
|
过温保护 Overtemperature protection |
（℃） |
90 |
||
|
防护等级 Protection level |
IP66 |
|||
|
功能特点 Functional Features |
软启动、防溜坡、陡坡缓降、辅助制动、低电平刹车、三档调速，可定制一线通和CAN通讯协议。 Soft start, climbing to prevent the vehicle from slipping backward, going down the steep slope slowly in low mode,auxiliary braking, low level braking, three speed regulation, can match the one-line communication protocol and CAN communication protocol. |
|||
